window. Ticking Clear Key ensures that all
keys pressed in the button mapping codes are
released after the mapping is executed.
Ticking Auto Icon causes the Magellan desktop
icon to always appear in front of other open
windows. Debug reports debug information.
The Quicktip function may be toggled on and
off with the Quicktip tickbox.

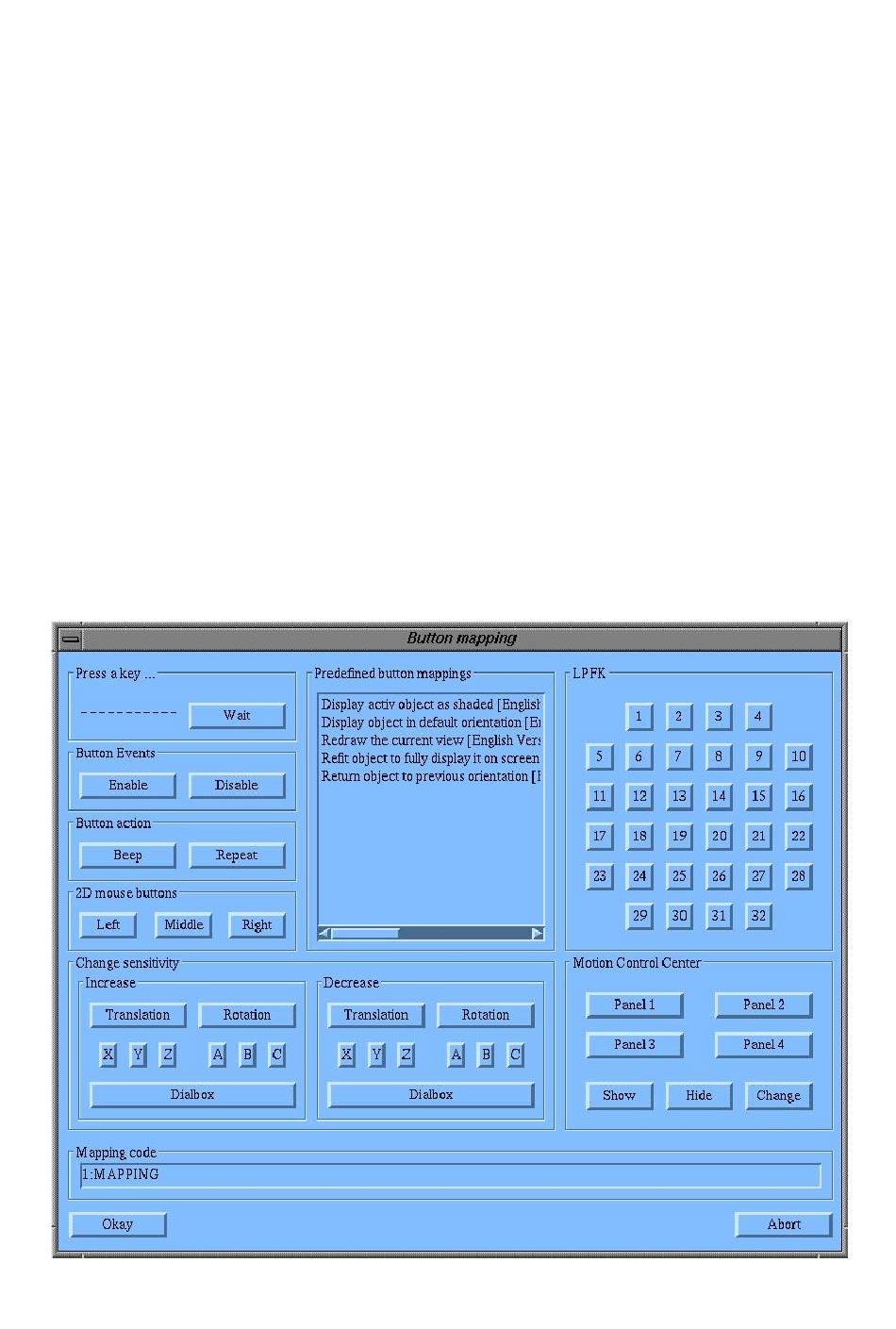

Button Mapping Window

To program or "map" a new command onto a
Magellan/SPACE MOUSE button, select the
button number from the scroll bar menu in
the Buttons section of the MCC main window.
Then click Programming , which opens the
Button Mapping window, shown below. Click
the buttons in this window to add commands
to the mapping code of the selected
Magellan/SPACE MOUSE button. The
functions of the buttons are described below.
Changes made to the mapping code are
displayed at the bottom of the window in the
Mapping Code field. Click Okay to save the
current changes or Abort to cancel.
Press a Key
Single keys entered in a button's mapping
sequence are displayed and stored here.
Wait should be entered in mapping
sequences that require a window to be
opened or a menu to be pulled down.
Button Events
Enable causes the application's default
command to be executed whenever the
selected button is pressed, regardless of
other commands included in the button
mapping. For example, if Enable is entered
and the mapping code for an additional
function is included in the button mapping,
the default function and the additional
function are simultaneously executed.
Disable prevents the default command from
being sent.
Button Action
Beep causes a single beep to sound. Repeat
causes the mapped command to be
repeatedly executed as long as the button is
held down. Note that the beep command
cannot be repeated.
