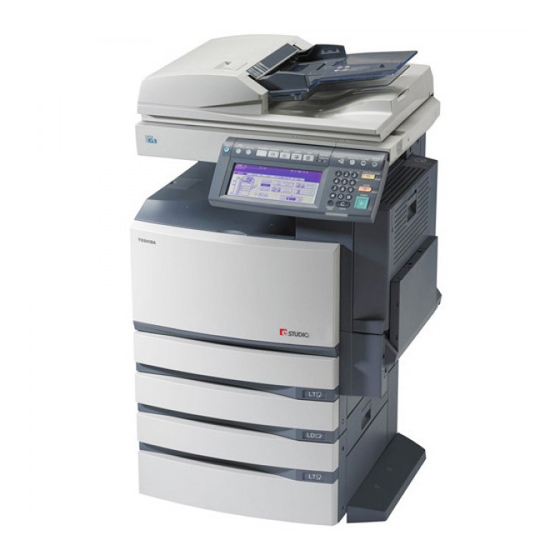

Toshiba e-STUDIO 4511 Product Manual
Toshiba copier product guide
Hide thumbs
Also See for e-STUDIO 4511:
- Printing manual (382 pages) ,
- Operator's manual (318 pages) ,
- Network administrator's manual (222 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Toshiba e-STUDIO 4511
Summary of Contents for Toshiba e-STUDIO 4511
- Page 1 PRODUCT GUIDE Making business brighter...
-
Page 2: Table Of Contents
INDEX PRODUCT OVERVIEW AND POSITIONING __________________________ 1–2 SYSTEM CONFIGURATION __________________________________________ 3 GENERAL FEATURES ______________________________________________ 4-6 COPIER FEATURES ________________________________________________ 7-10 NETWORK PRINTING FEATURES ____________________________________ 11-13 NETWORK SCANNING FEATURES __________________________________ 14 E-FILING FEATURES ________________________________________________ 15-16 FAX FEATURES ____________________________________________________ 17-18 MULTI-TASK FEATURES ____________________________________________ 19 MANAGEMENT TOOLS ____________________________________________ 20 OTHER CONVENIENT FEATURES ____________________________________ 21... -
Page 3: Product Overview And Positioning
Toshiba presents yet another technological breakthrough—the ColorEnhanced e- series offers you economy, high productivity, and high quality, just what you’d expect from Toshiba. What you might not expect is the added convenience of color – brilliant, full-color printing, copying, and scanning. - Page 4 Scan-to-email, Internet faxing, Scan-to-file, and optional Super Group G3 faxing. Toshiba’s first Net-ready black & white and color multifunction system offers economy, productivity, and image quality combined with convenience, versatility, and Toshiba reliability.
-
Page 5: System Configuration
SYSTEM CONFIGURATION Powerful Paper Handling Option Single-staple Finisher MJ1022 (for e- 3511 only) STUDIO Multi-staple Finisher MJ1023 Saddle-stitch Finisher MJ1024 Hole Punch Unit MJ6004 Wireless Option Wireless LAN Adapter Reversing Auto Document Feeder MR3015 Standard Bridge kit Inner KN3511 Tray All-in-One, e-Bridge Controller... -
Page 6: General Features
GENERAL FEATURES POWERFUL PAPER HANDLING Powerful paper handling features that work in conjunction with the advanced editing and finishing functions save paper and result in an increased work efficiency. Standard Stackless Automatic Duplexing Unit (ADU) Two-sided copies/prints are delivered quickly and easily thanks to the “stackless”... - Page 7 GENERAL FEATURES Optional Finishers The optional Finishers increase the speed and efficiency of making multiple copy/print sets and simplify complex jobs to produce professional looking documentation. Three types of optional Finishers are available: a Hanging type Finisher MJ1022*, a Multi-staple Finisher MJ1023 and a Saddle-stitch Finisher MJ1024.
- Page 8 GENERAL FEATURES EASY-TO-SEE AND EASY-TO-USE WIDE CONTROL PANEL The e- 3511/4511 enhanced Control Panel and Touch Panel STUDIO Display provides users with better viewability and more comfortable key entries. Half-VGA Touch Panel Display The e- 3511/4511 is equipped with the half-VGA Touch STUDIO Panel Display.
-
Page 9: Copier Features
COPIER FEATURES Easy Black & White and Full-Color Image Output The e- 3511/4511 provides the following three STUDIO color modes: • Black Mode — All originals are copied/printed out in black & white, regardless of their color. • Full-Color Mode — All originals are copied/printed out in full-color. -
Page 10: Original Mode
COPIER FEATURES Original Mode The e- 3511/4511 offers users a variety of original modes for STUDIO optimum copy image quality. The table below briefly describes each mode and shows you whether it is available in color mode. • Text — Available in Black mode and Full-Color mode. This mode is suitable for reproducing sharp text and fine lines. -
Page 11: Job Reservation
COPIER FEATURES Scan Once/Copy Many When using Scan Once/Copy Many, an original is scanned only once. The image is stored as digital data in the machine memory and output is produced from this stored image, rather than through continual scanning of the original as with analogue copiers. -
Page 12: Copier Features
COPIER FEATURES Advanced Digital Features The e- 3511/4511 provides a variety of convenient digital STUDIO copier-specific functions, allowing users to create documentation more easily, without any additional manual labor: • Edge Erase — A white border is created along the edges/center of the copy, eliminating unwanted edges of a poor original. -
Page 13: Network Printing Features
• TopAccess — TopAccess, which is web-based utility, allows users to download the printer drivers and other software applications from the Toshiba e- STUDIO The printer driver is designed to be user friendly: • Intuitive user interface — The print driver has been designed with the user in mind, comprising of a simple and intuitive layout. - Page 14 This allows users to specify the date and time a print job is to be output. Users can schedule the printer to print out large-volume documents in their off-hours, which minimizes waiting time for other jobs. 3511/4511, allowing for the storage of large-sized full- 3511/4511 uses Toshiba’s original RIP Accelerator Chip...
- Page 15 NETWORK PRINTING FEATURES Other Convenient Features The table below describes other functions which increase the convenience and usability in print mode. • Double-Sided Printing — The Auto Duplexing Unit (ADU) provides double-sided print. Taking full advantage of the double-sided print capability saves paper. •...
-
Page 16: Network Scanning Features
The scanning speed is a very fast 50 pages per minute for black & white - and a very respectable 20 pages per minute for color. In addition, thanks to Toshiba's advanced data compression technology, the e- 3511/4511 gets faster data processing... -
Page 17: E-Filing Features
Scan-to-File/email, faxes (option) in the e-Filing boxes, as follows: as required. • Copy-to-Box — A copy job is stored in the box in Toshiba’s Print received fax data unique file format. It can also be copied at the same time, Received to File/ email, as required. - Page 18 e-FILING FEATURES Operability for e-Filing Printer Driver The Print-to-Box option is available in the printer driver. Users can specify a destination box for storing a print job, password- protect it, and choose whether to print it out or not. Printer driver screen Control Panel The user-friendly screens help users to specify a box for storing and retrieving images, set up, edit or delete a box, and...
-
Page 19: Fax Features
FAX FEATURES STANDARD ECONOMICAL INTERNET FAX The e- 3511/4511 comes standard with the Internet FAX STUDIO function. The concept of Internet Fax is to transmit or receive the fax data using the IP network, including the Internet or intranet, as a part of or as the entire transmission path. Internet Fax also refers to a device, service or software that is capable of transmitting or receiving a fax over the IP network. -
Page 20: Fax Features
FAX FEATURES • Relay Transmission(F-code compliant) — A fax is transmitted to a hub station where a relay mailbox is created, then the fax is relayed to final destinations, resulting in savings of phone charges. • Recovery Transmission — In case of fax transmission error, the fax is stored in memory for a specified period of time. -
Page 21: Multi-Task Features
MULTI-TASK FEATURES Concurrent Processing The e- 3511/4511 can process one job while a preset job is in STUDIO progress. Up to five jobs in total can be preset via the Control Panel or Web-based utility, with priority given to those set at the Control Panel. -
Page 22: Management Tools
Viewer. This saves manual re-entry all addresses. Optional Scrambler Board Toshiba has developed a new optional security board called “Scrambler Board” , designed to encrypt all data on the hard disk after copying, printing, faxing or scanning. This provides a high level of security for those who wish to further protect data resident in their machine. -
Page 23: Other Convenient Features
OTHER CONVENIENT FEATURES Other Convenient Features • Interrupt — While one copy job is in progress, it can be interrupted using the INTERRUPT key and another copy job can be initiated. Once completed the interrupted copy job will resume. • Department Code — The Department Code setting assists an administrator in knowing how many copies/prints/faxes/scans in black &... -
Page 24: Advanced Technology
3511/4511 performs, including copy jobs, print jobs, scan STUDIO jobs and network communications. Mounted on the e-Bridge Controller are the following: • Toshiba-manufactured 64-bit RISC CPU, used to implement the concurrent processing of copying, printing, scanning and network communicating • High-speed memory (PC133 SDRAM), arranged as image... -
Page 25: Advanced Technology
The heat roller has been reduced to Ø60 in diameter, compared to Toshiba’s high-end Black & White specific MFP systems where the heat roller is Ø80 in diameter. This structure allows the entire fuser roller to be heated evenly. -
Page 26: Advanced Technology
ADVANCED TECHNOLOGY Unique 4-pass Color Developing System Toshiba's precise downsizing technology enables the 3511/4511 to make use of a unique 4-pass color STUDIO developing unit and still be as compact as any conventional black & white machine. In most color MFP systems, the developing system applies the... -
Page 27: Purchase Motivation
(No need for 2 types of controllers) • Less inventory Original architecture • Toshiba original controller • Toshiba TEC solution friendly • Same User Interface as copy operation • Quick action for customization Profitable supply business Utilization of various counters •... -
Page 28: Specifications
SPECIFICATIONS General Specifications Copying/Printing process - - - - - - -Indirect Electrostatic - - - - - - - - - - - - - - - - - - -Photographic Method Type - - - - - - - - - - - - - - - - - - -Desktop Original scanning method - - - - - -CCD Line Sensor (4-Lines) Resolution Scanning: - - - - - - - - - - - - - - - -600 x 600 dpi... -
Page 29: Printer Specifications
SPECIFICATIONS Printer Specifications Processor - - - - - - - - - - - - - - - - - -Standard Tx4937 333 Mhz - - - - - - - - - - - - - - - - - - -(Shared for All Imaging - - - - - - - - - - - - - - - - - - -Functions) - Page 30 SPECIFICATIONS e-FILING SPECIFICATIONS Number of boxes Public Box: - - - - - - - - - - - - - - -1 Box User Box: - - - - - - - - - - - - - - - -200 Boxes Number of Folders - - - - - - - - - - -100 Folders Per Box Number of Documents - - - - - - - -400 Pages Per Box/Folder Number of Pages - - - - - - - - - - - -200 Pages Per Document...
- Page 31 SPECIFICATIONS Paper Feed Pedestal (PFP) KD1011 Paper supply: - - - - - - - - - - - - - -Maximum 550 Sheets - - - - - - - - - - - - - - - - - - -(80 g/m2.22 lbs.) Paper size: - - - - - - - - - - - - - - - -A5-R/Statement-R to - - - - - - - - - - - - - - - - - -...
- Page 32 SPECIFICATIONS Finisher (Saddle-stitch Type) MJ1024 Trays: - - - - - - - - - - - - - - - - - - - 2 Trays + Saddle-stitch Tray Upper Tray Capacity: - - - - - - - -1,000 Sheets - - - - - - - - - - - - - - - - - - - A4, B5, A5-R: 80 g/m2 - - - - - - - - - - - - - - - - - - -...
- Page 33 Agency (EPA). The unit offers Energy Saver modes and a Sleep Mode to reduce power consumption when not in use, as well as paper saving features. Toshiba printed circuit boards are 100% free of lead and halogen materials, about half of recycled plastic parts by weight is halogen free, and Chromium VI reduction is also achieved for steel plates and screws.
- Page 34 Designs and specifications subject to change without notice. For best results and reliable performance, always use supplies manufactured or designated by Toshiba. Not all options and accessories may be available at the time of product launch. Please contact a local Authorized Toshiba Dealership for availability.
