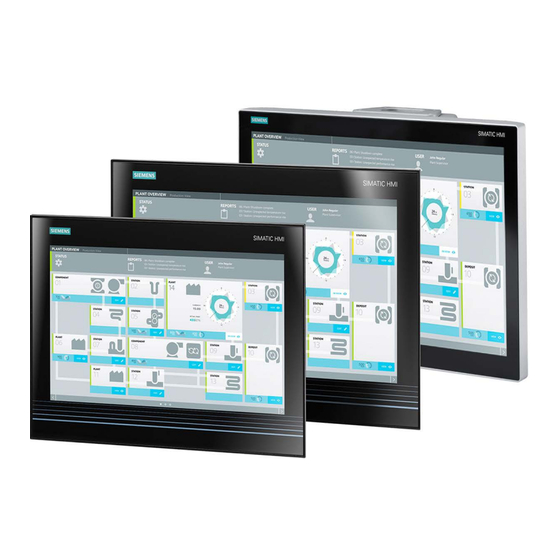

Industrial Flat Panel IFP1500, IFP1900,
IFP2200, IFP1900 PRO, IFP2200
PRO, IFP1900 ETH, IFP2200 ETH
SIMATIC
Industrial Monitors
Industrial Flat Panel
IFP1500, IFP1900, IFP2200,
IFP1900 PRO, IFP2200 PRO,
IFP1900 ETH, IFP2200 ETH
Operating Instructions
07/2016
A5E31298376-AF
___________________
Preface
___________________
Overview
___________________
Safety information
___________________
Installing and connecting the
device
___________________
Commissioning the device
___________________
Operating the device
___________________
Maintaining and servicing
your device
___________________
Technical information
___________________
Technical Support
___________________
List of abbreviations
1
2
3
4
5
6
7
A
B

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC IFP2200

Summary of Contents for Siemens SIMATIC IFP2200

  • Page 1 ___________________ Industrial Flat Panel IFP1500, IFP1900, Preface IFP2200, IFP1900 PRO, IFP2200 ___________________ Overview PRO, IFP1900 ETH, IFP2200 ETH ___________________ SIMATIC Safety information ___________________ Installing and connecting the device Industrial Monitors Industrial Flat Panel ___________________ IFP1500, IFP1900, IFP2200, Commissioning the device IFP1900 PRO, IFP2200 PRO, ___________________ IFP1900 ETH, IFP2200 ETH...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Preface

    Preface These operating instructions contain all the information you need for commissioning and operation of the SIMATIC Industrial Flat Panel IFP. It is intended both for programming and testing personnel who commission the device and connect it with other units (automation systems, programming devices), as well as for service and maintenance personnel who install add-ons or carry out fault/error analyses.
  • Page 4 • SIMATIC IFP1900 PRO, suitable for support arm and extension components • SIMATIC IFP2200 PRO, suitable for support arm and extension components • Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 5: Table Of Contents

    Table of contents Preface ..............................3 Overview..............................9 Product description ........................9 Scope of delivery ........................12 Design of the built-in units ...................... 13 1.3.1 IFP1500/1900/2200 Multitouch, IFP1900/2200 ETH .............. 13 1.3.2 IFP1500/1900/2200 Touch ..................... 15 1.3.3 IFP1500 Touch/Key ........................ 16 1.3.4 Interfaces ..........................
  • Page 6 Table of contents Mounting the PRO device ...................... 45 3.3.1 Notes on mounting ......................... 45 3.3.2 PRO devices, suitable for support arm / pedestal and extension components ..... 47 3.3.3 PRO devices, suitable for support arm and extension components ........49 Connecting the device ......................
  • Page 7 Table of contents Technical information ..........................77 Certificates and approvals ...................... 77 Directives and declarations ..................... 80 7.2.1 ESD guideline ......................... 80 7.2.2 Electromagnetic compatibility ....................82 Dimension drawings ........................ 83 7.3.1 Dimension drawing of the IFP1500 Multitouch ............... 83 7.3.2 Dimension drawing of the IFP1500 Monitor and Touch ............
  • Page 8 Table of contents Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 9: Overview

    Overview Product description SIMATIC Industrial Flat Panels are LCD monitors suitable for industrial use with a brilliant TFT display which can be connected to all SIMATIC IPCs as well as almost all generally available PCs. Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...
  • Page 10 Overview 1.1 Product description Features of the built-in units ● Rugged front ● Brilliant TFT display with a wide reading angle; Resistive single touch screen in sizes 15", 19" and 22" Capacitive multi-touch screen available in sizes 15", 19" and 22" ●...
  • Page 11 Overview 1.1 Product description Additional features of the PRO devices ● All-round dust-proof and splash-proof with IP65 degree of protection and Enclosure Type 4X / 12 (indoor use only) ● Can be mounted directly on the machine ● 19" display, 22" display; capacitive multi-touch screen ●...

  • Page 12: Scope Of Delivery

    Overview 1.2 Scope of delivery Scope of delivery The product package includes the following components: Name Figure Number Industrial Flat Panel Installation instructions (Quick Install Guide) Accessory kit "Mounting clips power supply connector" "Connecting cables" accessory kit DVI connecting cable or DisplayPort connecting cable;...

  • Page 13: Design Of The Built-In Units

    Overview 1.3 Design of the built-in units Design of the built-in units 1.3.1 IFP1500/1900/2200 Multitouch, IFP1900/2200 ETH This section describes the design of the multi-touch devices, using the IFP1900 Multitouch as an example. Front view and bottom view ① Display/touch screen ②...
  • Page 14 Overview 1.3 Design of the built-in units Rear view ① Rating plate ② Interface name ③ Equipotential bonding ④ Retaining elements for strain relief of the connecting cables Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 15: Ifp1500/1900/2200 Touch

    Overview 1.3 Design of the built-in units 1.3.2 IFP1500/1900/2200 Touch This section describes the design of the monitor and touch devices, using the IFP1500 Touch as an example. Front view and side view ① Display/touch screen ② Recesses for mounting clips ③...

  • Page 16: Ifp1500 Touch/Key

    Overview 1.3 Design of the built-in units 1.3.3 IFP1500 Touch/Key Front view ① Display and function keys with LED ② Alphanumeric keys ③ Control keys ④ Cursor keys ⑤ USB port 1.3.4 Interfaces 1.3.4.1 Standard versions ① X80 connector for 24 V DC power supply ②...

  • Page 17: Ethernet Monitor Devices

    Overview 1.3 Design of the built-in units 1.3.4.2 Ethernet Monitor devices ① X80 connector for 24 V DC power supply ② X1 Ethernet port ③ Reset button ④ X70 DisplayPort interface ⑤ X61/X62 USB Type A ⑥ X60 USB Type B 1.3.4.3 Extended versions ①...

  • Page 18: Design Of The Pro Devices

    Overview 1.4 Design of the PRO devices Design of the PRO devices 1.4.1 PRO devices, suitable for support arm The following figures show the design of the devices using IFP1900 PRO suitable for support arm as an example. Front view and side view ①...

  • Page 19: Pro Devices, Suitable For Pedestal And Extension Components

    Overview 1.4 Design of the PRO devices Rear view ① Mechanical interface for fastening ② Rating plate ③ Enclosure ④ Backplane cover 1.4.2 PRO devices, suitable for pedestal and extension components The following figures shows the design of the devices using IFP1900 PRO suitable for pedestal and extension components as an example.
  • Page 20 Overview 1.4 Design of the PRO devices Bottom view ① Mechanical interface for fastening Rear view ① Backplane cover ② Enclosure ③ Rating plate ④ Mechanical interface for fastening Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 21: Pro Devices, Suitable For Support Arm And Extension Components

    Overview 1.4 Design of the PRO devices 1.4.3 PRO devices, suitable for support arm and extension components The following figures show the design of the devices using IFP1900 PRO suitable for support arm and extension components as an example. Front view and side view ①...

  • Page 22: Interfaces

    Overview 1.4 Design of the PRO devices Rear view ① Mechanical interface for fastening (round tube) ② Terminal compartment cover ③ Nameplate ④ Mechanical interface below ⑤ Lower cover, included in the product package 1.4.4 Interfaces ① ⑤ Protective conductor terminal X61/X62 USB Type A ②...

  • Page 23: Accessories

    This section contains the number of accessories available at the time of publication of the operating instructions. You will find additional accessories on the Internet at: All Industrial Flat Panels ● Industry Mall (https://mall.industry.siemens.com) ● Expansion components and accessories (http://www.automation.siemens.com/mcms/pc- based-automation/en/industrial-pc/expansion_components_accessories) ●...

  • Page 24: System Components For Pro Devices

    Overview 1.6 System components for PRO devices Touch/Key Extended version Name Article number Film for labeling the Print templates for the slide-in labels are 6AV7672-0DA00-0AA0 function keys (slide-in labels) available on the "Documentation and Drivers" CD/DVD. Ethernet Monitors Name Specification Article number Recommended Ethernet TP Cord RJ45/RJ45, 15 m...
  • Page 25 "suitable for support arm" and "suitable for pedestal" via the base adapter: ● A Siemens VESA adapter set for VESA compatible systems ● Manufacturer-specific adapter or couplings The following table shows the available Siemens adapter sets and examples of vendor- specific adapter versions: Adapter version...
  • Page 26 Mechanical interface to support arm Article number: 6AV7674-1KF00-0AA0 You can find additional system components for PRO devices on the Internet (https://mall.industry.siemens.com/mall/en/WW/Catalog/Products/10299123?tree=CatalogTr ee). Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 27: Safety Information

    Safety information General safety instructions Machinery Directive WARNING The device may only be used in machines which comply with the Machinery Directive The Machinery Directive specifies precautions to be taken when commissioning and operating machinery within the European Economic Area. Failure to follow these precautions is a breach of the Machinery Directive.
  • Page 28 Safety information 2.1 General safety instructions Strong high-frequency radiation NOTICE Observe immunity to RF radiation The device has increased immunity to RF radiation according to the specifications on electromagnetic compatibility in the technical specifications. Radiation exposure in excess of the specified immunity limits can impair device functions, result in malfunctions and therefore injuries or damages.
  • Page 29 In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. Customer is responsible to prevent unauthorized access to its plants, systems, machines and networks.

  • Page 30: Notes About Usage

    Safety information 2.2 Notes about usage Notes about usage NOTICE Device is approved for indoor use only The device may be damaged if operated outdoors. • "Indoor use only" • Operate the device indoors only. Industrial applications The device is designed for industrial use. It conforms to the following standards: ●...
  • Page 31 • Only use suitable detergents. Only use suitable detergents. Read the information about Chemical resistance of the HMI devices and industrial PCs (http://support.automation.siemens.com/WW/view/en/39718396) on the Internet. Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH...
  • Page 32 Safety information 2.2 Notes about usage TFT displays NOTICE Burn-in effect, backlighting A permanent picture with bright screen objects can have a burn-in effect. An outline of the image is displayed for a while; the longer the image has been burnt-in, the longer the outline will be visible.

  • Page 33: Installing And Connecting The Device

    Installing and connecting the device Preparing for installation 3.1.1 Checking the delivery package Procedure 1. When accepting a delivery, please check the packaging for visible transport damage. 2. If any transport damage is present at the time of delivery, lodge a complaint at the shipping company in charge.

  • Page 34: Built-In Unit

    Installing and connecting the device 3.1 Preparing for installation NOTICE Damage from condensation If the device is subjected to low temperatures or extreme fluctuations in temperature during transportation, as is the case in cold weather, for example, moisture can build up on or inside the device (condensation).
  • Page 35 Installing and connecting the device 3.1 Preparing for installation Mounting position Select one of the approved mounting positions for your device. The approved mounting positions are described in the following sections. Mounting in horizontal format All devices are suitable for horizontal mounting positions. A maximum ambient temperature of +50 °C is permitted for vertical mounting of the IFP1500 (0°...

  • Page 36: Checking Clearances

    Installing and connecting the device 3.1 Preparing for installation 3.1.2.2 Checking clearances The following clearances are required around the device to ensure adequate self-ventilation: ● At least 15 mm to the right and left of the mounting cutout (in x direction) to allow for insertion of the mounting clips during installation ●...

  • Page 37: Preparing The Mounting Cutout

    Installing and connecting the device 3.1 Preparing for installation 3.1.2.3 Preparing the mounting cutout Note Stability of the mounting cutout The material in the area of the mounting cutout must be sturdy enough to ensure permanent safe mounting of the device. To achieve the degrees of protection described below, it must be ensured that deformation of the material cannot occur due to the force of the mounting clips or operation of the device.

  • Page 38: Labeling The Function Keys

    Labeling strip templates are available in a Word document on the Internet at: Labeling strips for 15" widescreen (http://support.automation.siemens.com/DE/view/en/59000814) If you would like to make your own labeling strips, you can find the dimensions under "Dimensions for labeling strips (Page 97)".
  • Page 39 Installing and connecting the device 3.1 Preparing for installation The figure below shows the positions of the guides for the labeling strips of the 15" Touch/Key version. ① Guide for labeling strips F1, F3 ... F15 ② Guide for labeling strips F2, F4 ... F16 ③...

  • Page 40: Pro Devices

    Installing and connecting the device 3.2 Installing the built-in unit 3.1.3 PRO devices 3.1.3.1 Permitted mounting positions The device is intended for mounting on a support arm or stand. The figure below shows the permitted mounting positions and the associated ambient temperatures using a device for stand mounting as an example.

  • Page 41: Mounting Clips Or Mounting Brackets, Position For Ip65

    Installing and connecting the device 3.2 Installing the built-in unit ● Ensure that the protective contact socket of the building installation is easily accessible and that there is a mains disconnect switch in switchgear cabinet installations. ● Position the device so that it is not exposed to direct sunlight. ●...
  • Page 42 Installing and connecting the device 3.2 Installing the built-in unit Positions of the mounting clips or mounting brackets for IP65 To achieve the IP65 degree of protection for the device, the mounting clips or brackets must be affixed at the positions shown below. Device Position Touch screen device with:...

  • Page 43: Fastening The Device With Mounting Clips Or Mounting Brackets

    Installing and connecting the device 3.2 Installing the built-in unit 3.2.3 Fastening the device with mounting clips or mounting brackets Requirement ● All packaging components and protective films have been removed from the device. ● The mounting clips included in the accessory kit are to hand. Procedure Note If the mounting seal is damaged, the degree of protection is not guaranteed.

  • Page 44: Position Of The Mounting Clips For Ip66-Complaint Installation

    Installing and connecting the device 3.2 Installing the built-in unit Mounting with optional mounting brackets Mounting brackets can be used instead of mounting clips in steps 1 to 5: 3.2.4 Position of the mounting clips for IP66-complaint installation Positions of the mounting clips To achieve IP66 degree of protection instead of IP65 for a device with capacitive multi-touch screen, fasten 4 additional mounting clips (available as accessories) at the positions marked by the red boxes.

  • Page 45: Mounting The Pro Device

    Installing and connecting the device 3.3 Mounting the PRO device Mounting the PRO device 3.3.1 Notes on mounting WARNING The device must be mounted securely. Inadequately dimensioned fasteners may cause the device to fall down. Serious physical injury may result. Make sure that fasteners are adequately dimensioned during installation.
  • Page 46 Liability disclaimer The device is mounted to a pedestal or a support arm via the mechanical interface with screws. Siemens AG assumes no liability for the consequences of incorrect installation. Warranty at risk If you do not install the HMI device in accordance with the specifications in these operating instructions, the warranty for the device is voided.

  • Page 47: Pro Devices, Suitable For Support Arm / Pedestal And Extension Components

    ● One of the following support arms or pedestal systems: – Support arm or pedestal with mechanical VESA interface and the corresponding Siemens adapter set – Support arm or pedestal with mechanical interface suitable for the Siemens base adapter See also section "System components for PRO devices (Page 24)".
  • Page 48 Installing and connecting the device 3.3 Mounting the PRO device 1. If an adapter plate for the Siemens base adapter is included in your support arm system, attach the adapter plate to the support arm with 4 M6x12 screws. Pay attention to the torque that is specified for the support arm.

  • Page 49: Pro Devices, Suitable For Support Arm And Extension Components

    The following description shows an example of how to attach the PRO device to a support arm system using the optionally available Siemens flange mount. Mounting to a round tube that fits the opening of the PRO device is performed in a similar fashion.
  • Page 50 • Round tube made of steel: 8 Nm • Round tube made of aluminum: 5 Nm 4. If an adapter plate for the Siemens flange mount is included with your support arm, attach the adapter plate to the support arm with 4 M6x12 screws.

  • Page 51: Connecting The Device

    Installing and connecting the device 3.4 Connecting the device Connecting the device 3.4.1 Notes on connection Requirement ● The device has been installed according to the information provided in these operating instructions. ● Ensure only shielded data cables are used for operation, as described in the section Accessories (Page 23).

  • Page 52: Earthing The Device

    Installing and connecting the device 3.4 Connecting the device 3.4.2 Earthing the device The relevant symbol on the device identifies the terminal for the earth connection. Protective earth Functional ground Requirement ● T20 screwdriver ● Cable lug for M4 ● Protective conductor or equipotential-bonding cable with minimum cross-section 2.5 mm Procedure The figure below shows the connection of a protective conductor in a built-in unit.

  • Page 53: Connecting The Power Supply

    Installing and connecting the device 3.4 Connecting the device 3.4.3 Connecting the power supply Depending on the device version, you can operate the device with the following voltage: ● Standard monitor and standard touch versions, PRO device: 24 V DC 2-pin ●...
  • Page 54 Installing and connecting the device 3.4 Connecting the device Procedure 1. Ensure that the cable ends of the power supply lines are fitted with end sleeves. 2. Switch off the 24 V DC power supply. 3. Fasten the end of a connecting cable L+ and a connecting cable M with the supplied power supply terminal.

  • Page 55: Connecting Devices With 3-Pin 24 V Dc

    Installing and connecting the device 3.4 Connecting the device 3.4.3.2 Connecting devices with 3-pin 24 V DC Note before connecting the device WARNING Safety extra-low voltage (SELV) The device should only be connected to a 24 V DC power supply which meets the requirements of safe extra low voltage (SELV) according to IEC/EN/DIN EN 60950-1.

  • Page 56: Connecting An Ac Power Supply

    Installing and connecting the device 3.4 Connecting the device 3.4.3.3 Connecting an AC power supply Note before connecting NOTICE Damage to the device in ungrounded supply systems The device features a safety-certified power cable. Connect the device only to a grounding socket.
  • Page 57 Installing and connecting the device 3.4 Connecting the device 120 V power supply Use a flexible cable with the following characteristics: ● UL approval ● CE marking ● Type SJT with three conductors ● At least 18 AWG (0.75 mm ) conductor cross-section ●...

  • Page 58: Connecting Ifp Standard, Extended And Pro To A Pc

    Installing and connecting the device 3.4 Connecting the device 3.4.4 Connecting IFP Standard, Extended and PRO to a PC 3.4.4.1 Overview Connection diagram for standard monitor version Connection diagram for standard touch version Connection diagram for Extended versions and PRO devices (24 V DC only) Distance up to 5 meters Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 59: Standard Version

    Installing and connecting the device 3.4 Connecting the device Distance of 5m to 30m 3.4.4.2 Standard version Procedure 1. Connect the Flat Panel and the PC using a DVI or DisplayPort line. 2. If using a Touch version, also connect the device and the PC with a USB line.

  • Page 60: Connecting Ethernet Monitor To A Pc

    Installing and connecting the device 3.4 Connecting the device 3.4.5 Connecting Ethernet Monitor to a PC 3.4.5.1 Overview Connection diagram for "Commissioning" mode Connection diagram for "Ethernet" mode Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 61: Connection Versions

    Installing and connecting the device 3.4 Connecting the device 3.4.5.2 Connection versions "Commissioning" mode When you commission an Ethernet Monitor with the "Ethernet Monitor" software or want to change the network parameters of an Ethernet Monitor, connect the Ethernet Monitor and IPC in the "Commissioning"...

  • Page 62: Securing The Cables

    Installing and connecting the device 3.4 Connecting the device Note Functional problem with USB port If you connect an external device with a 230 V power supply to the USB port without using a non-insulated installation, you may experience functional problems. Use a non-insulated system design.

  • Page 63: Commissioning The Device

    Commissioning the device If you operate the device exclusively as monitor and do not change the brightness, you do not need to commission the device. To use advanced functions of the device, perform the following commissioning. Requirement ● The Industrial Flat Panel is mounted according to the Quick Install Guide. ●...
  • Page 64 Commissioning the device Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 65: Operating The Device

    Operating the device Operator input options Depending on your device and the connected I/O devices, the following operator input options are available: ● Integrated keyboard on touch device (not for all IPC) ● Touch screen for touch device CAUTION Unintentional actions with touch screen operation If you touch the touch screen while system-internal processes are running, unintended reactions of the device may be triggered.

  • Page 66: Operating A Device With Resistive Single Touch Screen

    Operating the device 5.2 Operating a device with resistive single touch screen Operating a device with resistive single touch screen When you touch an object on the single touch screen, the corresponding function is performed. WARNING Personal injury or property damage due to incorrect operation Incorrect operation of devices with a touch screen can occur.

  • Page 67: Operating A Device With Capacitive Multi-Touch Screen

    Operating the device 5.3 Operating a device with capacitive multi-touch screen Operating a device with capacitive multi-touch screen You operate the multi-touch screen with one or multiple fingers. You can also operate it using gestures with up to five fingers at a time. WARNING Personal injury or property damage due to no earth connection An inadequate earth connection or the lack of one may cause malfunction of the capacitive...
  • Page 68 Operating the device 5.3 Operating a device with capacitive multi-touch screen WARNING Danger of malfunction due to improper execution of gestures on the touch screen If gestures are executed incorrectly on the touch screen with multi-touch function, these gestures may not be recognized or could be recognized incorrectly. The entries made are then not implemented by the device or are implemented incorrectly or in an unintended manner.

  • Page 69: Operating A Touch/Key Device

    Operating the device 5.4 Operating a Touch/Key device Functions of the multi-touch screen General functions ● Detection of up to 5 finger touches at a time. ● Detection of gestures that are supported by the operating system or the software installed on the device.
  • Page 70 Operating the device 5.4 Operating a Touch/Key device External keyboard Note The keyboard layout has been set to "English/USA international". If you use a keyboard with a layout other than the "English/USA international" layout, the key codes of the internal and external keyboards might no longer correspond.
  • Page 71 Operating the device 5.4 Operating a Touch/Key device Control keys The following table describes the control keys and their associated functions. With keyboard shortcuts, hold the first key down. Then press the second button. Key or Function keyboard shortcut Switch between upper and lower case: LED on: Upper case •...

  • Page 72: Advanced Device Functions

    Operating the device 5.5 Advanced device functions Cursor keys Key or Function keyboard shortcut Moves the cursor, selection or a controller in the specified direction. Moves the cursor or selection one page up. Moves the cursor or selection one page down. Moves the cursor to the start of the first screen.

  • Page 73: Maintaining And Servicing Your Device

    Maintaining and servicing your device Cleaning the device Scope of maintenance When working in areas where there is dust that may be hazardous to functionality, the device must be operated in a control cabinet with a heat exchanger or with suitable supply air.

  • Page 74: Ethernet Monitors - Diagnostics And Reset

    Maintaining and servicing your device 6.2 Ethernet Monitors - Diagnostics and reset Ethernet Monitors - Diagnostics and reset 6.2.1 Diagnostics screen The diagnostics screen shows information on the system state of the Ethernet Monitor when no picture is displayed. The diagnostics screen is not displayed permanently; it alternates with a black screen.

  • Page 75: Restoring The Factory Settings For An Ethernet Monitor

    Maintaining and servicing your device 6.2 Ethernet Monitors - Diagnostics and reset 6.2.2 Restoring the factory settings for an Ethernet Monitor When the Ethernet Monitor was operated in the LAN network, it has an individual IP address. When you connect the Ethernet Monitor to another location in the network, it is no longer found because the Ethernet Monitor software is looking for the default IP address.

  • Page 76: Spare Parts And Repairs

    Siemensstr. 2 90766 Fürth Germany See also Spare parts and repairs (http://support.automation.siemens.com/WW/view/en/16611927) Recycling and disposal The devices described in these operating instructions can be recycled thanks to their low level of pollutants. Contact a certified disposal service company for environmentally sound recycling and disposal of your old devices.

  • Page 77: Technical Information

    (Directive for Explosion Protection) EU Declarations of Conformity The EU Declarations of Conformity are available to the relevant authorities at the following address: Siemens AG Digital Factory Division Factory Automation Automation Products and Systems DF FA AS DH AMB...
  • Page 78 Temperature values, see EC design examination certificate The EC type examination certificates are available on the Internet at: Technical Support (https://support.industry.siemens.com) Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...
  • Page 79 Technical information 7.1 Certificates and approvals The table below describes the test numbers of the HMI device classes: Manufacturer site HMI device class Test number Siemens AG Comfort Panel, ITC, IFP DEKRA11ATEX0005X Division Digital Factory IECEx DEK 13.0085X Werner-von-Siemens-Straße 50...

  • Page 80: Directives And Declarations

    Technical information 7.2 Directives and declarations Marine approvals Acceptance procedures for shipping and offshore applications in preparation: ● ABS American Bureau of Shipping (USA) ● BV Bureau Vertias (France) ● DNV Det Norske Veritas (Norway) ● GL Germanische Lloyd ● LR Lloyds Register of Shipping ●...
  • Page 81 Technical information 7.2 Directives and declarations NOTICE Damage to ESD from touch Electrostatic sensitive devices, ESD, can be destroyed by voltages which are far below the human perception limit. If you touch a component or electrical connections of a module without discharging any electrostatic energy, these voltages may arise.

  • Page 82: Electromagnetic Compatibility

    "Lightning and Surge Voltage Protection" in the "S7-300 Automation System, Hardware and Installation" installation manual. The "S7-300 Automation System, Hardware and Installation" installation manual is available for download from the Internet (http://support.automation.siemens.com/WW/view/en/15390415). The following lightning protection element was used during the testing of the Industrial Flat Panel: Dehn BVT AVD 24"...

  • Page 83: Dimension Drawings

    Technical information 7.3 Dimension drawings Dimension drawings 7.3.1 Dimension drawing of the IFP1500 Multitouch Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 84: Dimension Drawing Of The Ifp1500 Monitor And Touch

    Technical information 7.3 Dimension drawings 7.3.2 Dimension drawing of the IFP1500 Monitor and Touch Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 85: Dimension Drawing Of The Ifp1900 Multitouch And Ifp1900 Eth

    Technical information 7.3 Dimension drawings 7.3.3 Dimension drawing of the IFP1900 Multitouch and IFP1900 ETH Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 86: Dimension Drawing Of The Ifp1900 Monitor And Touch

    Technical information 7.3 Dimension drawings 7.3.4 Dimension drawing of the IFP1900 Monitor and Touch Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 87: Dimension Drawing Of The Ifp2200 Multitouch And Ifp2200 Eth

    Technical information 7.3 Dimension drawings 7.3.5 Dimension drawing of the IFP2200 Multitouch and IFP2200 ETH Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 88: Dimension Drawing Of The Ifp2200 Monitor And Touch

    Technical information 7.3 Dimension drawings 7.3.6 Dimension drawing of the IFP2200 Monitor and Touch Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 89: Dimension Dimensional Drawing Of The Ifp1900 Pro

    Technical information 7.3 Dimension drawings 7.3.7 Dimension dimensional drawing of the IFP1900 PRO IFP1900 PRO, suitable for pedestal and extension components ① Without base adapter ② With base adapter Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...
  • Page 90 Technical information 7.3 Dimension drawings IFP1900 PRO, suitable for support arm ① Without base adapter ② With base adapter Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...
  • Page 91 Technical information 7.3 Dimension drawings IFP1900 PRO, suitable for support arm and extension components ① Without flange mount ② With flange mount Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 92: Dimension Drawing Of The Ifp2200 Pro

    Technical information 7.3 Dimension drawings 7.3.8 Dimension drawing of the IFP2200 PRO IFP2200 PRO, suitable for pedestal and extension components ① Without base adapter ② With base adapter Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...
  • Page 93 Technical information 7.3 Dimension drawings IFP2200 PRO, suitable for support arm ① Without base adapter ② With base adapter Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...
  • Page 94 Technical information 7.3 Dimension drawings IFP2200 PRO, suitable for support arm and extension components ① Without flange mount ② With flange mount Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 95: Dimension Drawing Of The Ifp1500 Touch/Key

    Technical information 7.3 Dimension drawings 7.3.9 Dimension drawing of the IFP1500 Touch/Key Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 96: Dimension Drawing Host Unit Usb

    Technical information 7.3 Dimension drawings 7.3.10 Dimension drawing Host Unit USB The Host Unit USB is available as an accessory (DVI/USB cable sets >5 m). Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 97: Dimensions For Labeling Strips

    This section contains the dimensions of the labeling strips for 15" widescreen devices. Labeling strip templates are available in a Word document on the Internet at: Labeling strips for 15" widescreen (http://support.automation.siemens.com/DE/view/en/59000814) Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 98: Rating Plate

    Technical information 7.4 Rating plate Rating plate The rating plate includes information that clearly identifies your device. You need this information when you contact Customer Support. The figure below shows an example of a rating plate. ① Order number ② Serial number ③...
  • Page 99 Technical information 7.5 Technical specifications Display IFP1500 IFP1500 IFP1900 IFP2200 Type LCD widescreen TFT Active display area 15.4'' 15.6'' 18.5'' 21.5'' 331.2 × 207 mm 344.2 × 193.5 mm 409.8 × 230.4 mm 475.2 × 267.3 mm Resolution 1280 x 800 pixels 1366 x 768 pixels 1366 x 768 pixels 1920 x 1080 pixels...
  • Page 100 Technical information 7.5 Technical specifications Interfaces Monitor Touch Touch Extended/ IFP1500 standard versions standard versions PRO devices versions Touch/Key DVI-D DisplayPort USB Type A, rear USB Type A, front USB Type B, host USB-Link/Ethernet, RJ45 USB type A, maximum load 500 mA, equivalent to USB standard 2.0 DC power supply IFP1500 IFP1900...

  • Page 101: Ambient Conditions

    Technical information 7.5 Technical specifications 7.5.2 Ambient conditions 7.5.2.1 Transport and storage conditions Mechanical and climatic conditions for transportation and storage The requirements regarding transport and storage conditions for the device are more stringent than those laid down in IEC 60721-3-3. The following requirements apply to the transport and storage of the device in its original packaging.

  • Page 102: Operating Conditions

    Technical information 7.5 Technical specifications 7.5.2.2 Operating conditions Mechanical and climatic conditions of use The device is designed for use in locations protected from the effects of the weather. The conditions of use meet the requirements for DIN IEC 60721-3-3: ●...
  • Page 103 Technical information 7.5 Technical specifications Testing mechanical ambient conditions The table below provides information on the type and scope of tests for mechanical ambient conditions. Tested for Test standard Comments Vibrations Vibration test in accordance Type of vibration: with IEC 60068, part 2-6 Frequency cycles at a rate of change of 1 octave/minute.
  • Page 104 Technical information 7.5 Technical specifications Pulse-shaped interference The following table shows the electromagnetic compatibility of modules with regard to pulse- shaped interference. This requires the device to meet the specifications and directives for electrical installation. Pulse-shaped interference Test voltage Degree of severity Electrostatic discharge Air discharge: 8 kV in accordance with IEC 61000-4-2...

  • Page 105: Information On Insulation Tests, Protection Class And Degree Of Protection

    Technical information 7.5 Technical specifications Emission of radio interference The following table shows the unwanted emissions from electromagnetic fields in accordance with EN 55016, Limit Value Class A, Group 1, measured at a distance of 10 m. Radiated emission (emitted interference) From 1 GHz to 3 GHz <...

  • Page 106: Interface Description

    Technical information 7.6 Interface description Protection against foreign objects and water PRO device Degree of protection Explanation All-round When mounted: IP65 according to IEC 60529 • Enclosure Type 4X / 12 (indoor use only) according to UL50 • The degree of protection can only be guaranteed if the seals are completely flush at the mechanical interfaces and the associated covers are closed.
  • Page 107 Technical information 7.6 Interface description Additional information: Design of an SELV and PELV power supply Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 108: Dvi-D Interface

    Technical information 7.6 Interface description 7.6.2 DVI-D interface DVI-D interface Pin no. Abbreviation Signal TX2N TDMS data 2- TX2P TDMS data 2+ TMDS data shield 2, ground Not assigned Not assigned DDC CLK DDC clock DDC CLK DDC data Not assigned TX1N TDMS data 1- TX1P...

  • Page 109: Displayport

    Technical information 7.6 Interface description 7.6.3 DisplayPort DisplayPort interface Pin no. Abbreviation Meaning Input/output ML_Lane3- DP data 3- Input Ground ML_Lane3+ DP data 3+ Input ML_Lane2- DP data 2- Input Ground ML_Lane2+ DP data 2+ Input ML_Lane1- DP data 1- Input Ground ML_Lane1+...

  • Page 110: Usb Hub, Type A

    Technical information 7.6 Interface description 7.6.5 USB hub, Type A USB port Pin No. Abbreviation Signal + 5 V (fused) - Data Data channel + Data Data channel Ground 7.6.6 Ethernet Ethernet RJ45 interface Pin no. Short description Meaning Input / output BI_DA+ Bi-directional data A+ Input/output...

  • Page 111: Technical Support

    You can find additional information and support for the products described on the Internet at the following addresses: ● Technical support (https://support.industry.siemens.com) ● Support request form (http://www.siemens.com/automation/support-request) ● After Sales Information System SIMATIC IPC/PG (http://www.siemens.com/asis) ● SIMATIC Documentation Collection (http://www.siemens.com/simatic-tech-doku-portal) ● Your local representative (http://www.automation.siemens.com/mcms/aspa-db/en/Pages/default.aspx) ●...

  • Page 112: Troubleshooting

    Technical Support A.2 Troubleshooting Troubleshooting Ethernet Monitors Error pattern Possible cause Possible remedy The Windows Start screen is Occurs when uninstalling Uninstalling cannot be performed with an not visible and only the the Ethernet Monitor Ethernet Monitor. Use a different monitor extended desktop is software in combination for uninstalling.

  • Page 113: List Of Abbreviations

    List of abbreviations ANSI American National Standards Institute ASCII American Standard Code for Information Interchange Width Backlight Inverter BIOS Basic Input Output System CD-ROM Compact Disc – Read Only Memory Central Processing Unit Direct Current DHCP Dynamic Host Configuration Protocol Domain Name Service Distributed I/O Data Source Name...
  • Page 114 List of abbreviations Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

  • Page 115: Glossary

    Glossary Application An application is a program which is put directly on the operating system MS-DOS or windows. An application on the PC/PG, for example, is STEP 7. Controller Installed hardware and software which control the functions of specific internal or external devices, e.g.
  • Page 116 Glossary Plug and play Through plug and play, the computer configures itself automatically to be able to communicate with peripheral devices, e.g. screens, modems and printers. User connects a peripheral device: plug. Afterwards, the peripheral device can be used immediately. play, without having to configure the operating system manually.

  • Page 117: Index

    Index Connecting the PE conductor, 52 Connection sequence, 51 Control keys, 71 CTRL key, 71 Abbreviations, 113 Cursor key, 72 AC power supply Cursor keys, 72 Technical specifications, 100 ACK key, 71 Acknowledge key, 71 Alphanumeric keys, 70 ALT key, 71 DC power supply Ambient conditions Technical specifications, 100...
  • Page 118 Index Factory settings Ethernet Monitor, 75 ACK, 71 FCC, 79 ALT, 71 FM Approval, 78 Cancel, 71 Function key CTRL, 71 Labeling, 38 Cursor, 72 Delete, 71 END, 72 ENTER, 71 ESC, 71 Guidelines for Explosion Protection, 78 HOME, 72 Scroll back, 72 Scroll forward, 72 SHIFT, 71...
  • Page 119 Index New Zealand, 79 Safety Note Certificates, 77 General information, 31 Standards, 77 Safety information Functional problem, 62 Operation indoors, 30 Storage, 34 Operation Transportation, 34 Capacitive multi-touch screen, 67 USB port, 62 Single touch screen, 66 Scroll back key, 72 Touch screen, 65 Scroll forward key, 72 Shift key, 71...
  • Page 120 Index UL approval, 78 USA, 56 USB device Connecting, 61 USB port Type B, 110 Conditions, 102 In residential areas, 30 Industrial, 30 With additional measures, 102 Weight, 98 Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH Operating Instructions, 07/2016, A5E31298376-AF...

This manual is also suitable for:

Simatic ifp1900Simatic ifp1500Simatic ifp1900 ethSimatic ifp1900 proSimatic ifp2200 pro

Table of Contents
