  • Page 1 TC - PT100 Temperature Controller For Dry Type Medium Voltage Transformers KAEL Mühendislik Elektronik www.kael.com.tr Tic. ve San. Ltd.Şti.

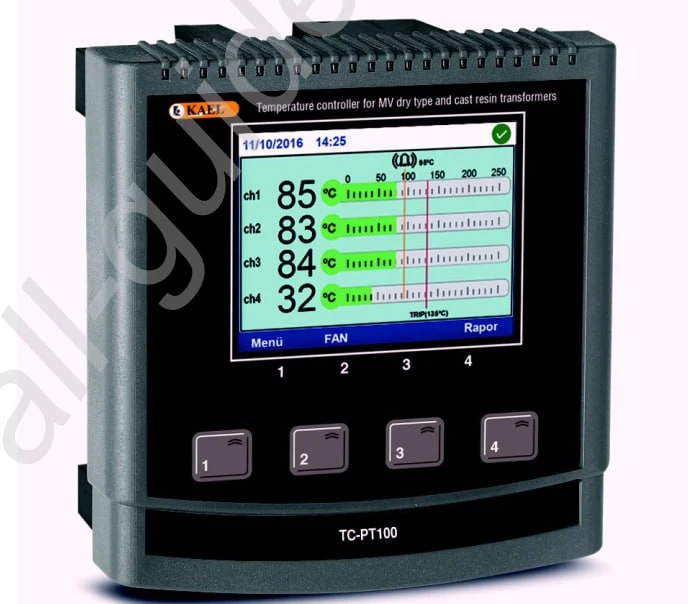

  • Page 2 Introduction Developed for winding temperature control of resin or dry type MV transformers. It is based on high level electromagnetic interference, also standardized. There are 4 PT100 sensor inputs. The transformer core temperature or the ambient temperature can also be measured from the 4th sensor input if the 3-phase transformer requests the winding temperatures individually as well as it can be measured.
  • Page 3 Features ■ 24 - 240 Vac - Vdc 50/60Hz ultra wide feed input ■ Easy menu design with Turkish, English and Russian language support ■ Color LCD display (320 x 240 pixel x 2.4 ") ■ Built on embedded system and working on operating system ■...
  • Page 4: Information Panel

    Power supply Un : 24 ... 240V AC 50/60Hz / DC Δn : (0,9 – 1,1) x Un Over-voltage protection device ALARM TRIP PT100 white PT100 white FAULT PT100 white PT100 white K-FAN SYSTEM TC - PT100 STOP Temperature Controller...
  • Page 5: Supply Unit

    Supply Unit TC - PT100 has a very wide operating voltage range. It can operate in the range of 24 - 240 Vac, 50/60 Hz. If the supply of the device is taken directly from the output of the transformer (230V AC),...
  • Page 6 Refer to section 3.7 SETTING FAULT SETTING for the error that will occur as a result of activating the Fault Setting function in Settings. NOTE: Exceeding the minimum / maximum scale value can result from interference in the sensor lines; In this case, the sensors and all extension cables must be installed correctly. (See the Measurement Signal Transfer paragraph) Data Recording Error If the internal memory fails, the FAULT relay position changes and the main display shows...
  • Page 7 4. Step: Entering Alarm Value 11/10/2016 14:25 ALARM SET. You can set Alarm Temperature Set value by Up, Down Enter Alarm Set Value buttons. Then click the Apply button. In this case, if OK is pressed, 130 ºC the change is recorded. If you want to change without recording, press Back button.
  • Page 8: Relay Test

    MENU Control of the contacts of the output relays, detailed testing of the operating states of the sensors and general settings where the 11/10/2016 14:25 MENU settings are made. The parameters in the menu can be accessed with Relay Test the arrow keys and enter into the setting or test section with the ►...
  • Page 9: Alarm Adjustment

    3.2 TEMPERATURE UNIT ADJUSTMENT 11/10/2016 14:25 11/10/2016 14:25 TEMPERATURE SET. TEMPERATURE SET. The temperature unit can be set to Select Temperature Unit Select Temperature Unit Celsius(ºC) or Fahrenheit(ºF). The system Save changes the settings according to the ºC ºC Changes selected temperature unit and displays the temperature values according to that unit.The temperature display on the main...
  • Page 10 Fan Stop Value:The temperature value, at which the fan relay will be deactivated after, is energized. Fan ON Time (Tp): Set in minutes. It can be selected from 1-30 min or OFF can be selected and this feature can be canceled. Fan OFF time (Ts): Set in hours.
  • Page 11: Date - Time Adjustment

    11/10/2016 14:25 01/01/2012 3.8 PASSWORD 11/10/2016 14:25 11/10/2016 14:25 PASSWORD SET. ADJUSTEMENT Password Menu Password Options Password Options Password ON/OFF This is the section that is Save ► Devrede Pass OFF Change Password Changes entered to change the password or enable or disable the use of the Back Cancel...
  • Page 12: Screen Saver

    3.10 SCREEN SAVER 11/10/2016 14:25 Used to activate the screen saver or to change to the otomatic screen SCREEN SAVER Screen Saver Settings protection mode. Choose one of the ON/OFF options by using the Up/Down buttons and press the Apply button. If the OK button is pressed, all changes will be saved into the memory.
  • Page 13 Application ● 3 PT100-KS signal conductors must be connected to the distribution box (BOX-KS) without terminal connection and considering the distance to be protected from high voltage. Sufficient length and thickness provide adequate insulation for transformer coil wires. ● In the distribution box 3 conductors of each PT100 sensor must be connected to the PT100 sensor inputs of the TC-PT100 temperature controller with a minimum 0.50 mm²...
