ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tool(s) and your own Phillips screwdriver
,
adjustable wrench
, and rubber mallet
.

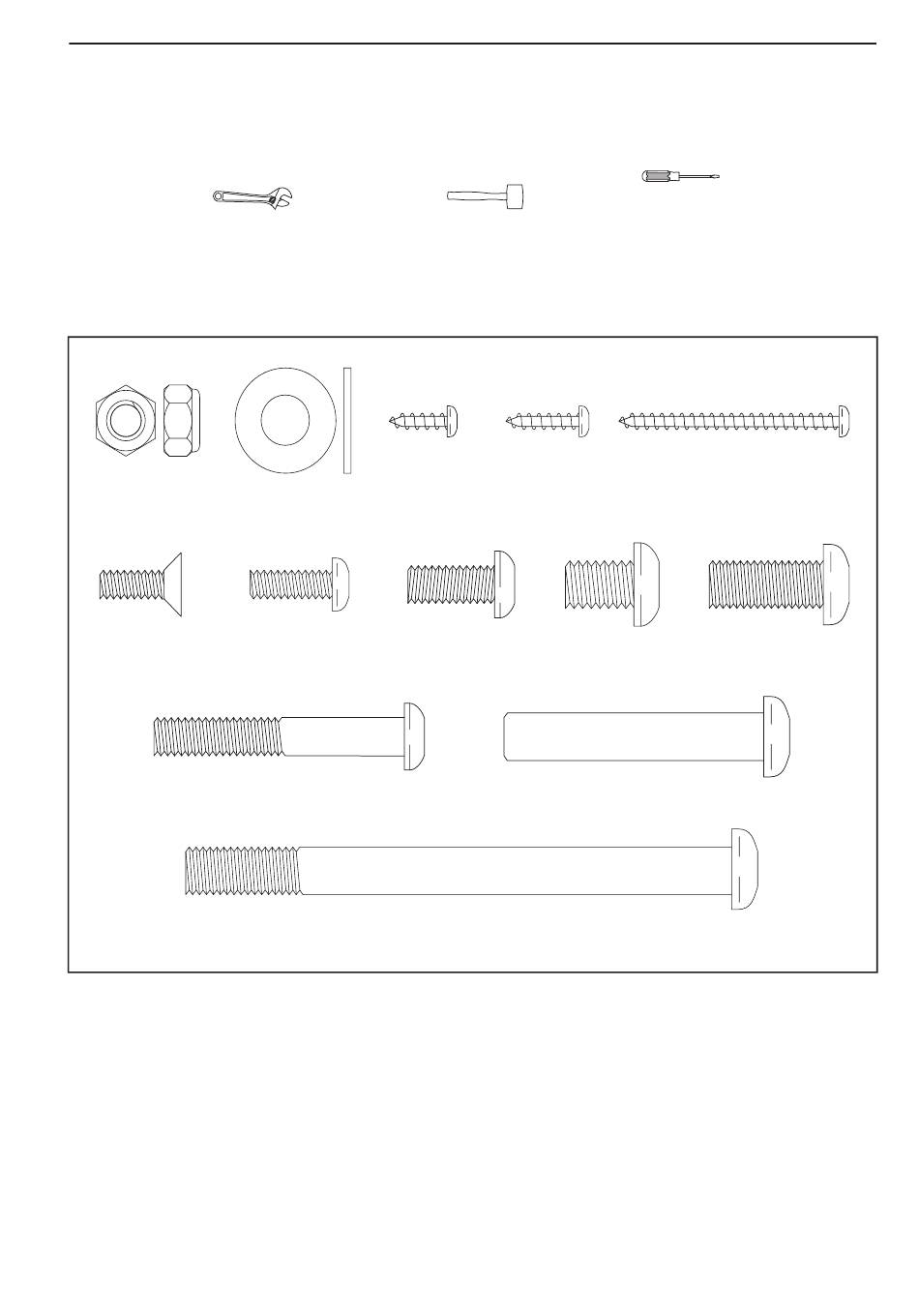

Use the drawings below to identify small parts. The number in parentheses below each drawing is the key num-
ber of the part, from the PART LIST near the end of this manual. The number following the parentheses is the
quantity needed for assembly. Note: Some small parts may have been preassembled. If a part is not in the
hardware kit, check to see if it has been preassembled.
#8 x 1/2"
M4 x 16mm
#8 x 2"
Screw (79)–6
Screw (80)–4
Screw (68)–4
M8 Hex Nylon
M10 x 22mm x
Locknut (77)–4
1.5mm Washer
(63)–2
M6 x 14mm
M6 x 18mm
M8 x 19mm
M10 x 15mm
M10 x 27mm
Flat Head
Screw (57)–6
Screw (65)–4
Screw (71)–2
Screw (64)–4
Screw (55)–1
M8 x 55mm Screw
Barrel Nut (56)–1
(61)–4
M10 x 120mm Screw (58)–2
5
