13. Connect contact heart cables.
A. Locate left and right heart rate wiring exiting from the handles.
B. Plug heart rate cables into main frame sockets. See Figure 10.
14. Attach the foot pads.
A. Have one person lift the unit while a second
person places a foot pad (#3) under each of
the two back feet. See Figure 11.
15. Level the unit.
A. Confirm that the unit is on a level surface. If
it is not, use a 9/16" open-end wrench to
adjust the leveling feet up or down.
See Figure 12.
16. Visually inspect the unit.
A. Carefully remove any package material from
arms and rest of unit.
B. Carefully examine the unit to ensure that the
assembly is correct and complete.
Cybex Arc Trainer 425A Owner's Manual

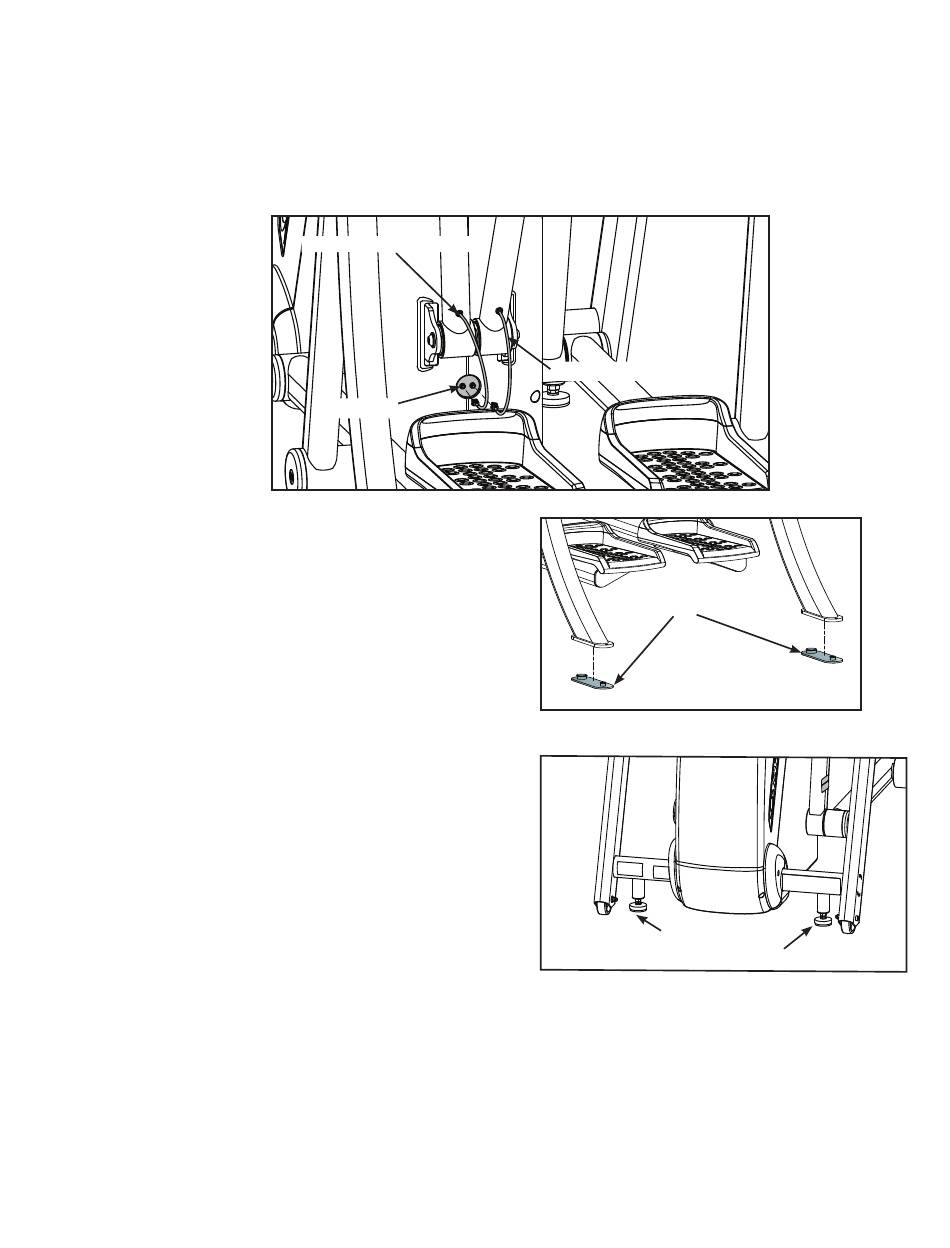

Left Heart Rate Cable
Sockets
Figure 10
Right Heart Rate Cable
#3
Figure 11
Leveling Feet
Figure 12
