Virtualization/Control Software, cont'd

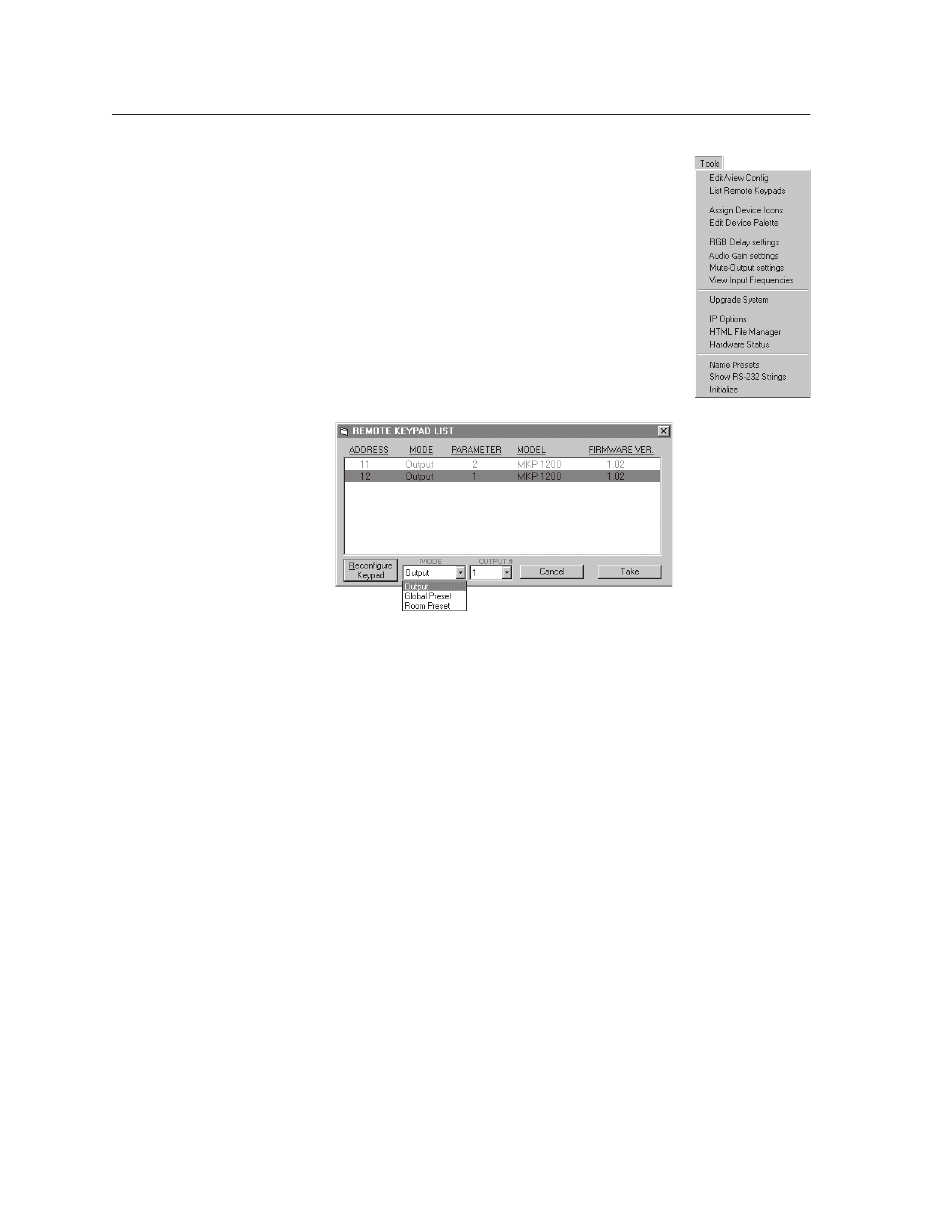

Tools menu —
Figure 3-18 — Remote Keypad screen
www.camboard.de
3-30
Matrix 12800 Switchers • Virtualization/Control Software
CAMBOARD Electronics
Edit/view Config — Displays the Virtual Map screen,
which graphically presents the virtual map and
allows you to make changes to the map.
List Remote Keypads — List Remote Keypads shows the
status of all possible MKP 1200 Remote Keypads.
Information displayed includes: address, mode,
parameter, model and firmware version (figure 3-18).
To configure a keypad, select it, click the Reconfigure
Keypad button. Use the Mode drop-down box to
select Output mode, Global Preset mode, or Room
Preset mode. Use the Output # drop-down box to
change the output number. Refer to the MKP 1200
User's Manual, for details.
Assign device icons — Displays the complete set of input and output device
icons. You can drag any of these icons to the input and output boxes.
Edit device palette — Allows you to add your own device icon graphics.
RGB delay settings — Displays the RGB Delay & Mute Adjust screen, from
which you can view and adjust the switching interval setting for each
input.
Audio gain settings — Displays the audio gain level setting for a single input
or for all inputs and allows you to change it.
Mute-Outputs settings — Displays the RGB Delay & Mute Adjust screen,
from which you can mute video and/or audio for each input.
View input frequencies — Displays the input horizontal and vertical
frequencies for each input (DSVP).
Upgrade System — Starts the system upgrade wizard, which takes you
through the steps to save the current Matrix 12800 settings to the
controlling computer 's hard drive before you revirtualize your system.
Name presets — Allows you to assign a name to each of the 32 global
memory presets.
Show RS-232 strings — Displays the ASCII commands that are used by the
current configuration. You can refer to these commands for RS-232
programming.
Initialize — Initializes and clears any or all of the following: ties, presets,
audio configuration, preset titles, icon names, and icons.
