If you clicked Emulate to create a program for a system in advance without
being connected to it, you will have to define the number and type (video, sync,
or audio) of BMEs, the number of inputs, and the number of outputs for the
Matrix 12800 system you are emulating. See Programming the matrix
offline (emulate mode) in this chapter.
3.
On the menu bar, click System-Config to show the Virtual Map screen
(figure 3-3).
4.
On the menu bar, click Configure>Room Configuration to show the Room
Mapper screen (figure 3-9).

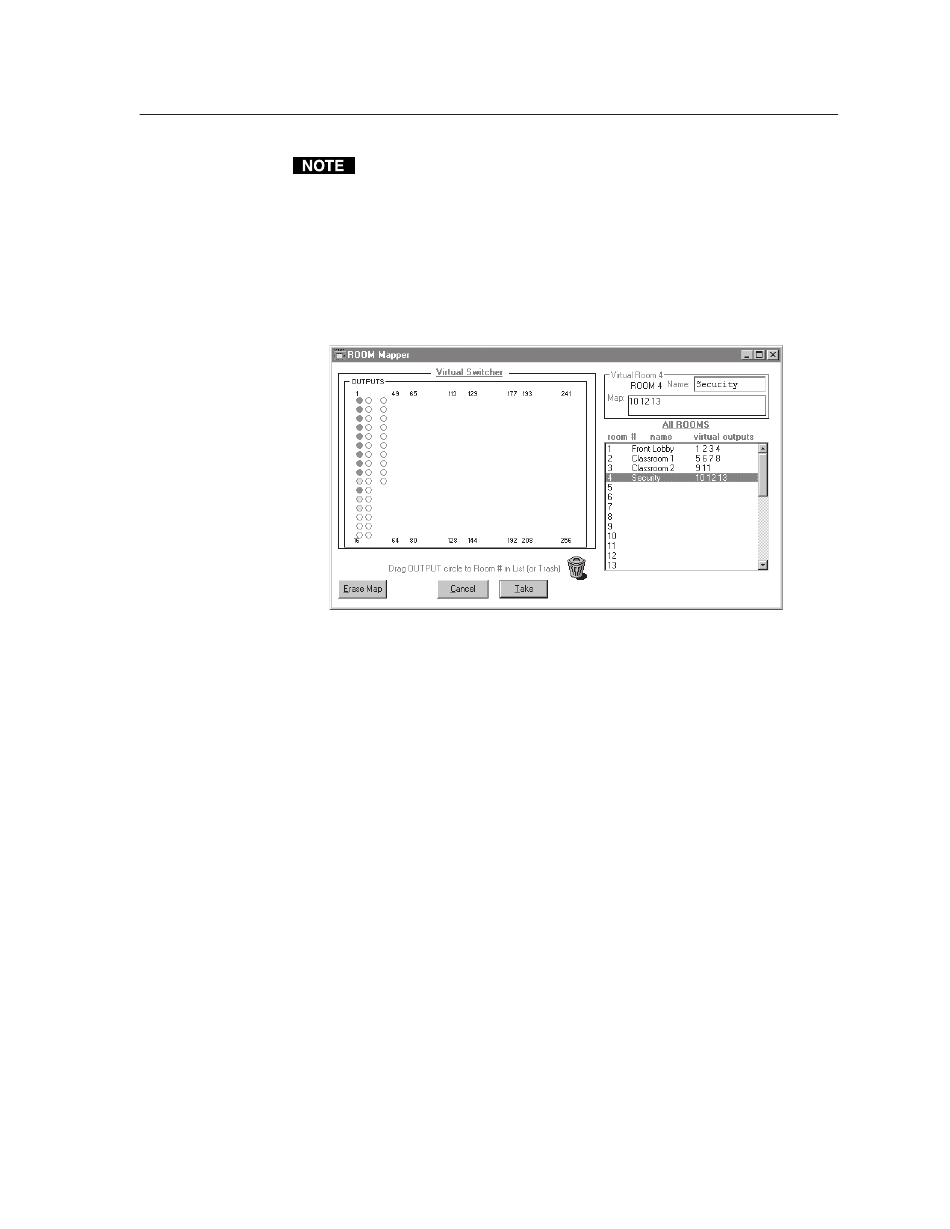

Figure 3-9 — Room Mapper screen
5.
Assign virtual outputs to rooms by dragging and dropping the output circles
from the Virtual Switcher Out field to the list on the right of the screen.
To remove a virtual output from a room, drag and drop the output circle from
the Virtual Switcher Out field to a different room in the list. Drag the output
circle to the trash can on the bottom of the screen if the output is no longer to
be assigned to any room.
6.
If desired, assign or edit names for each room as follows:
Select the desired room in the list.
a.
b.
Type or edit the name for the virtual input or virtual output in the Name
field.
c.
Press the Tab key on the keyboard to exit the Name field.
d.
To add or edit the name of another room, return to step 6a.
After the room has been programmed and the last name has been added or
7.
edited, Click the Take button.
8.
Click the Close button to exit the Room Mapper screen.
9.
On the Virtual Map screen menu bar, click Return to Main to return to the
main screen (figure 3-2).
