Restrictions for Port Mapping

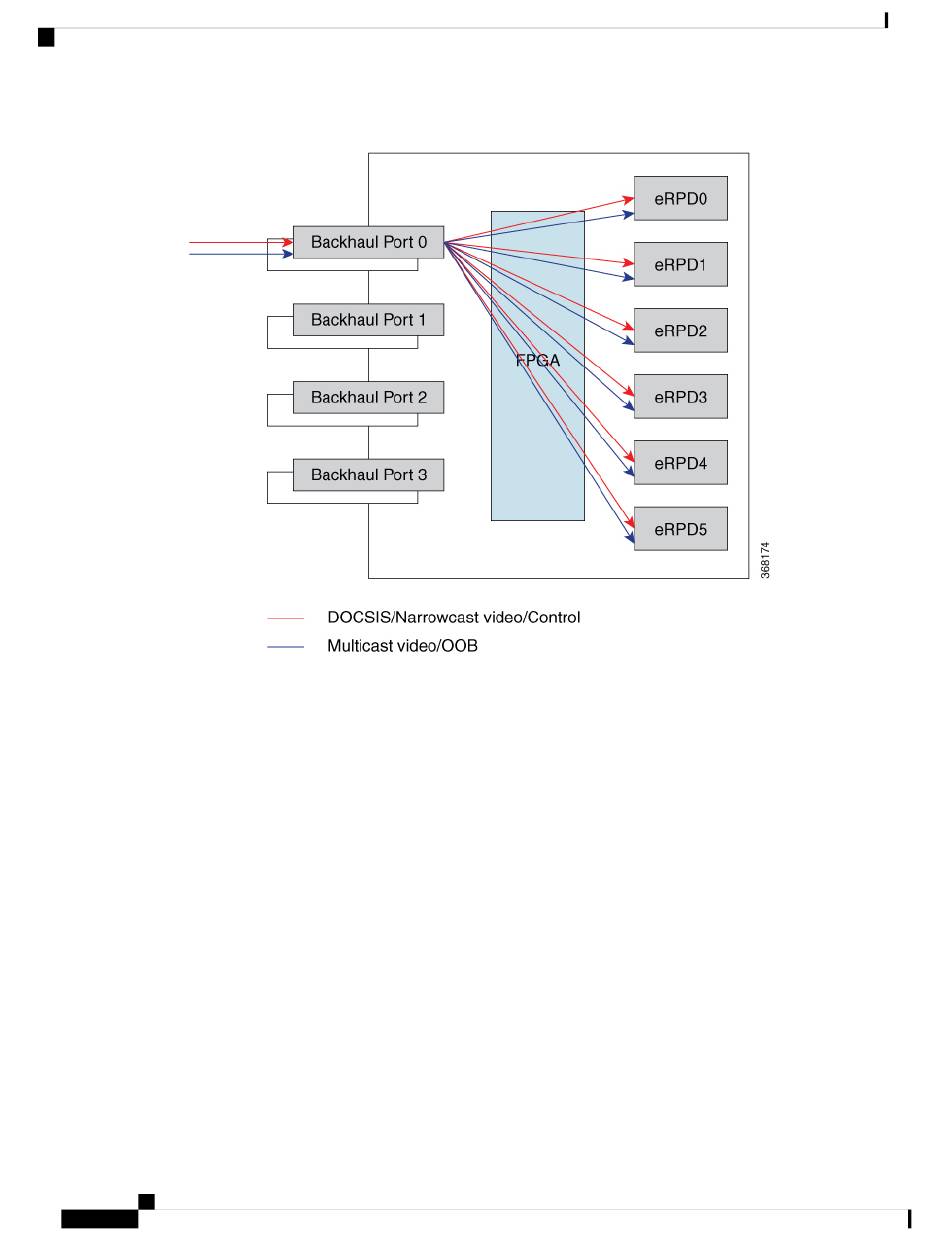

Figure 5: Example of Port Mapping with One SFP+ Port
To switch between 4+4 mode and 6+2 mode, you can use backhaul mode switch or change using the command
line interface.
Restrictions for Port Mapping
You can map any SFP+ ports to any PHY devices, but these restrictions apply.
• You cannot map redundant backhaul ports to eRPDs.
• For narrowcast, multicast DOCSIS, and control traffic, each PHY device receives DOCSIS and control
• For video traffic, these restrictions apply.
Cisco Remote PHY Shelf 7200 Software Configuration Guide for Cisco Remote PHY Shelf 7200 Software 1.1
48
Cisco Remote PHY Shelf 7200 High Availability Guide for Cisco Remote PHY Shelf 7200 Software 1.1
data from only one 10GE SFP+ port.
• Supports up to 96 QAM channels across eight SFP+ ports.
• Supports a minimum of 64 narrowcast QAM channels per port.
• Supports a maximum of 480 unique MPEG streams.
• Each PHY device receives narrowcast video from only one 10GE SFP+ port.
