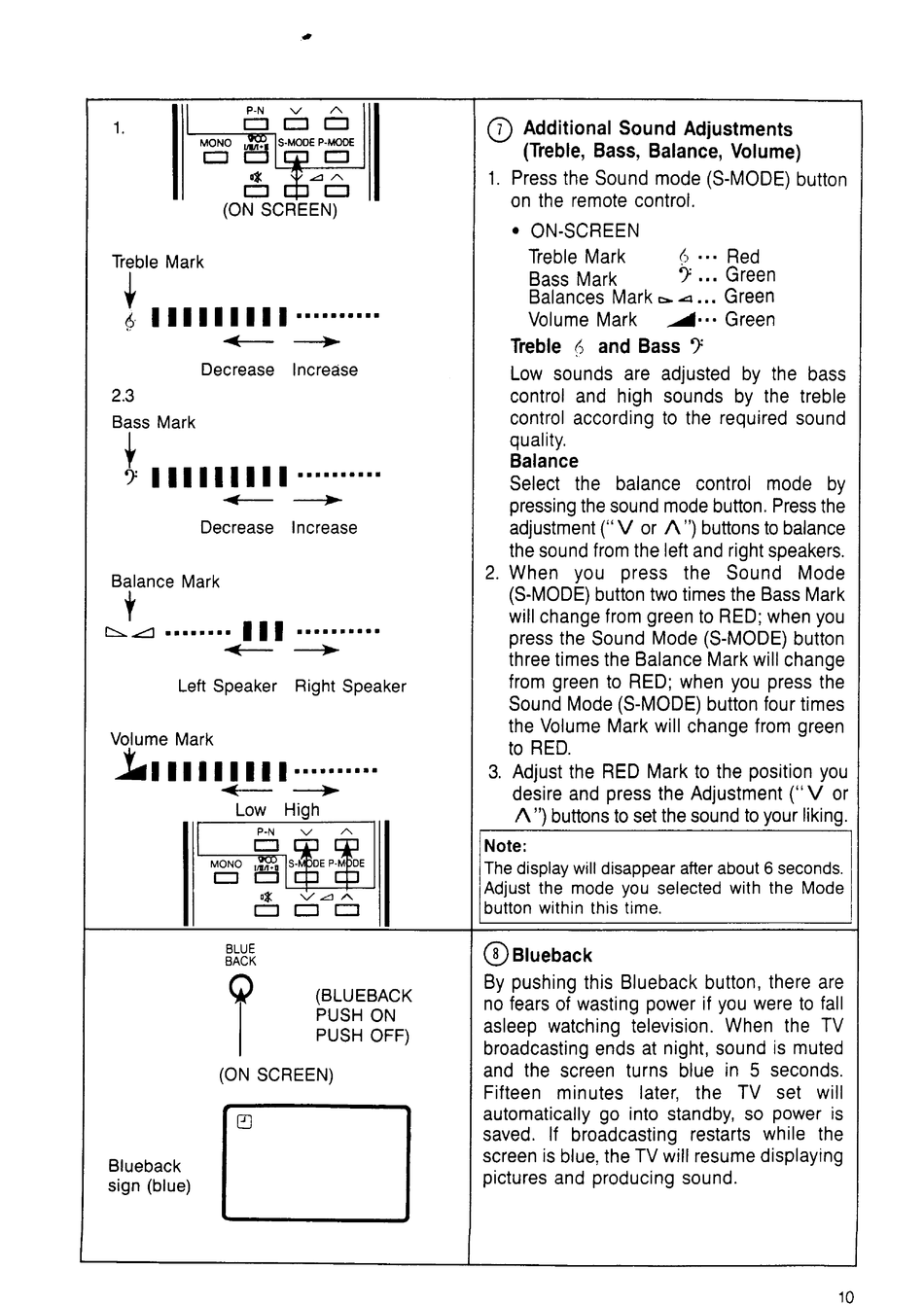

Sharp SX-51A7 Operation Manual page 11

P-N " A
Treble Mark
Decrease Increase
2.3
Bass Mark
Decrease Increase
Balance Mark
JI
[14
. . . . . . . . 1 [ i
. . . . . . . . . .
--
Left Speaker Right Speaker
Volume Mark
Low High
II
P-N " A
BLUE
BACK
Q
(BLUEBACK
PUSH ON
PUSH OFF)
(ON SCREEN)
I
cl
Blueback
sign (blue)
@ Additional Sound Adjustments
(Treble, Bass, Balance, Volume)
1.
2.
3
Press the Sound mode (S-MODE)
button
on the remote control.
l
ON-SCREEN
Treble Mark --Q Red
Bass Mark
$...
Green
Balances Mark e, 4.. . Green
Volume Mark A-9 Green
Treble 6 and Bass 7
Low sounds are adjusted by the bass
control and high sounds by the treble
control according to the required sound
quality.
Balance
Select the balance control mode by
pressing the sound mode button. Press the
adjustment ("V or A") buttons to balance
the sound from the left and right speakers.
When you press the Sound Mode
(S-MODE) button two times the Bass Mark
will change from green to RED; when you
press the Sound Mode (S-MODE) button
three times the Balance Mark will change
from green to RED; when you press the
Sound Mode (S-MODE) button four times
the Volume Mark will change from green
to RED.
Adjust the RED Mark to the position you
desire and press the Adjustment (W or
A") buttons to set the sound to your liking.
Note:
The display will disappear after about 6 seconds.
Adjust the mode you selected with the Mode
button within this time.
0
8 Blueback
By pushing this Blueback button, there are
no fears of wasting power if you were to fall
asleep watching television. When the TV
broadcasting ends at night, sound is muted
and the screen turns blue in 5 seconds.
Fifteen minutes later, the TV set will
automatically go into standby, so power is
saved. If broadcasting restarts while the
screen is blue, the TV will resume displaying
pictures and producing sound.
10
