Installation
The TC-9102 series controller is designed to be mounted within the Fan
Coil Unit housing or within a control cabinet. The mounting location
must be clean and dry, and not subject to extreme heat or cold. The
installation and electrical wiring must conform to local codes and should
be carried out by authorized personnel only. Users should ensure that all
Johnson Controls' products are used safely and without risk to health or
property.
For surface mounting, slide the two mounting brackets into the slots at
opposite corners of the controller base behind the terminals. Fix to the
surface using the 4-mm diameter self-tapping screws.
For DIN rail mounting, place the controller on the upper edge of the rail
and press the controller firmly against the rail until the spring-loaded clip
engages the lower edge of the rail. To remove the controller, insert a
screw driver into the clip at the base of the controller and pull the clip
downwards to release. Alternatively, lift the controller upwards against
the spring of the retaining clip and pull forward from the top.
120 mm/4.72"
108 mm/4.25"

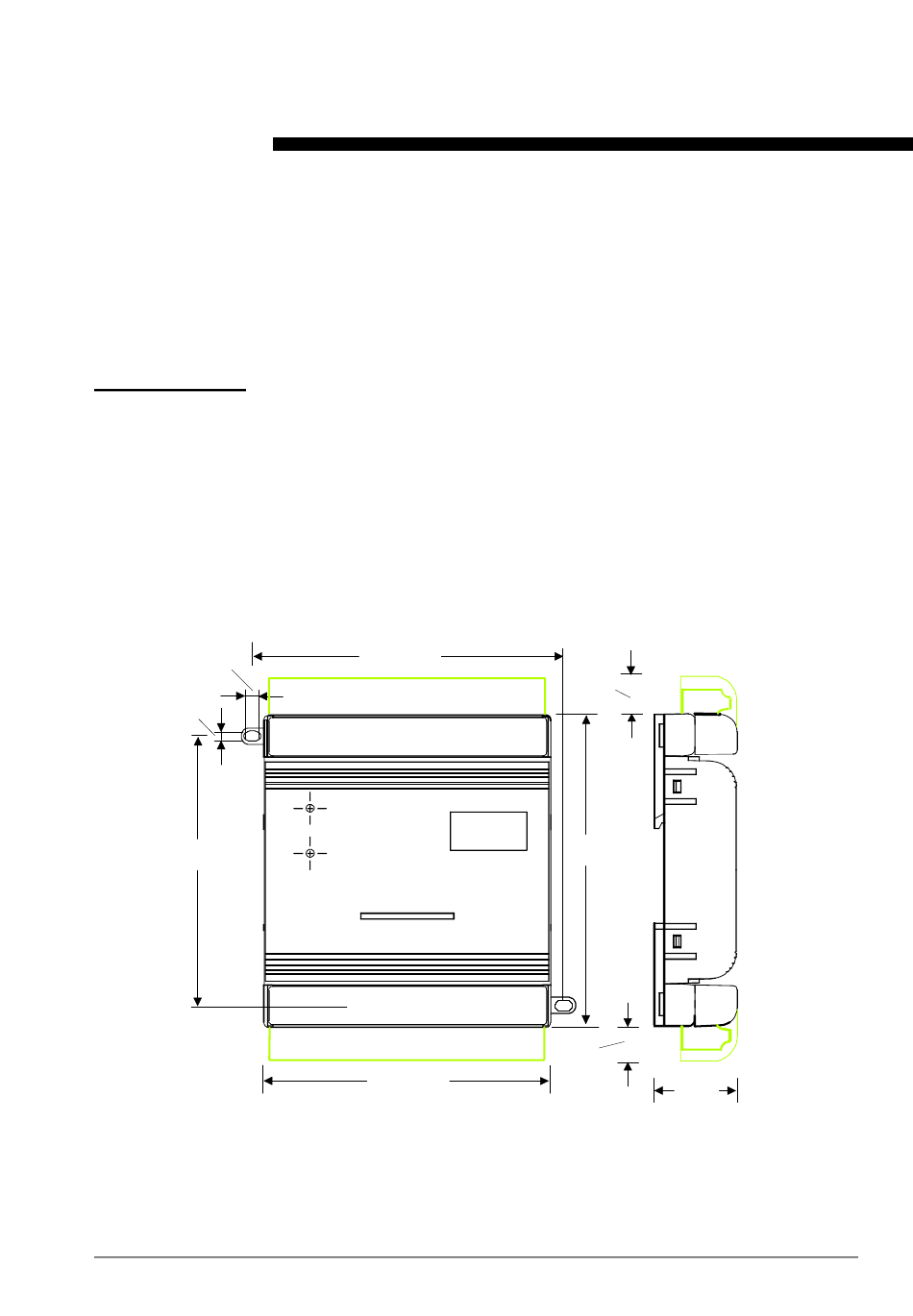

Figure 13: TC-9102 Controller Dimensions
(Separable Terminals
Only)
14 mm/
0.55"
118 mm/
4.64"
14 mm/
0.55"
31 mm/
3
1.22"
itc02dim
Technical Bulletin—TC-9102
