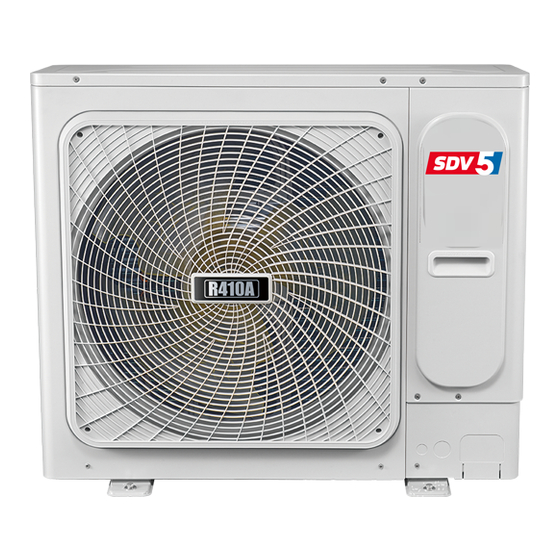

Sinclair SDV5 Installation & Owner's Manual

Full dc inverter systems
Hide thumbs Also See for SDV5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
FULL DC INVERTER SYSTEMS
REMOTE CONTROLLER RM05B
C O M M E R C I A L A I R C O N D I T I O N E R S S D V 5

Advertisement

Table of Contents
loading

Related Manuals for Sinclair SDV5

Summary of Contents for Sinclair SDV5

  • Page 1 FULL DC INVERTER SYSTEMS REMOTE CONTROLLER RM05B C O M M E R C I A L A I R C O N D I T I O N E R S S D V 5...
  • Page 2 Original instructions IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

  • Page 3: Table Of Contents

    Contents Installation ..............1 1. Installation Precautions ........1 2. Installation Accessories ........3 3. Dimensions of Remote Controller and Bracket 4. Installation and Fixing ........4 5. Replace the Batteries ........5 Operating the Remote Controller ......7 1. Using Precautions ..........7 2.

  • Page 4: Installation

    Installation 1. Installation Precautions Safety Considerations Please read this "Safety Considerations" carefully before installing Controller and be sure to install it correctly. After completing the installation, make sure the controller operates properly. Please instruct the customer how to operate the controller and how to perform maintenance.
  • Page 5 Installation WARNING Precautions in handling remote controller • Direct the transmitting part of the remote controller to the receiving part of the air conditioner. • If something blocks the transmitting and receiving path of the indoor unit and the remote controller as curtains, it will not operate. •...

  • Page 6: Installation Accessories

    Installation 2. Installation Accessories • Please check that you have all the following parts. Schematic Name Screw lid ① Philips head screw (M2.0*4.5) ② AAA battery ③ Remote controller manual ④ 3. Dimensions of Remote Controller and Bracket Figure 2.1 Dimensions of remote controller...

  • Page 7: Installation And Fixing

    Installation Figure 2.2 Dimensions of remote controller bracket 4. Installation and Fixing 1) Use the screws (accessories) to fix and secure the remote controller bracket in a stable position (see Figure 2.3); Make sure you refer to "1. Installation Precautions" to determine the location.

  • Page 8: Replace The Batteries

    Installation 2) Slide the remote controller vertically down into the remote controller bracket (see Figure 2.4). Figure 2.4 5. Replace the Batteries 1) Slide open the front cover of the remote controller in the direction indicated by the arrow (see Figure 2.5); 　...
  • Page 9 Installation 2) Remove the battery cover (see Figure 2.6); Figure 2.6 3) Take out the old battery and install two new AAA batteries matching the indicated polarity (see Figure 2.7). Close the battery cover. Figure 2.7...

  • Page 10: Operating The Remote Controller

    Operating the Remote Controller 1. Using Precautions To gain full advantage of the controller's functions and to avoid malfunction due to mishandling, we recommend that you read this instruction manual carefully before use. The precautions described herein are classified as WARNING and CAUTION.

  • Page 11: Model And Key Parameters

    Operating the Remote Controller CAUTION • Do not operate the device with wet hands to prevent water from entering the remote controller and damage the circuit board. • Do not use the air conditioner for purposes other than those for which it is intended.

  • Page 12: Button Names And Functions

    Operating the Remote Controller 3. Button Names and Functions Figure 3.1 External view of remote controller...
  • Page 13 Operating the Remote Controller Button Function Set operating mode: Auto → Mode ① Cool → Heat → Dry → Fan Adjust the temperature setting Adjust downwards or timer (programmed time) ② downwards On/off switch Switch on/off the unit ③ Turn on or off the display of the Display ④...

  • Page 14: Name And Function On Display Screen

    Operating the Remote Controller Note: • The buttons are not available for first generation indoor units. 4. Name and Function on Display Screen ① ④ Figure 3.2 Display screen of remote controller Name Display Function Temperature Displays current temperature setting ①...

  • Page 15: Operating Methods

    Operating the Remote Controller Shows that the remote controller Lock ⑧ button is locked Timer On/Off Displays times to turn on/off the unit ⑨ Fan speed Displays the current fan speed ⑩ Swing Shows that Swing is on ⑪ 5. Operating Methods 5.1 On/Off Operations 1) Press (see Figure 3.3), and the remote controller displays the...

  • Page 16: Fan Speed Operations

    Operating the Remote Controller 2) Press each time to change the operating mode according to the order shown in Figure 3.5; Auto Cool Heat Figure 3.5 3) In Auto, Cool, Dry or Heat mode, press to adjust the temperature setting. Press to adjust the temperature by 1°C (default).

  • Page 17: Fan Direction Operations

    Operating the Remote Controller 5.4 Fan Direction Operations Press to adjust the direction of the louver (see Figure 3.9). Figure 3.9 1) For second generation indoor units, there are 5 swing angles, and the louver swings by a particular angle each time the button is pressed; 2) For first generation of indoor units, the louver will swing by about 6 degrees each time the button is pressed.

  • Page 18: Idu Display Operations

    Operating the Remote Controller 5.6 IDU Display Operations The Display function is used to control the on/off state of the display in the indoor unit. 1) When the remote controller is in on or off state, press (see Figure 3.11), and the display of the indoor unit lights up; Figure 3.11 2) When the display of the indoor unit lights up, press to turn off...

  • Page 19: Silent Mode Operations

    Operating the Remote Controller 5.8 ECO Operations The remote controller can send the ECO signal to the indoor unit when the unit is operating in Cool or Heat mode. 1) Press (see Figure 3.13) to send the ECO signal to the indoor unit.
  • Page 20 Operating the Remote Controller ② Press to adjust the timer settings; ③ Once the adjustment is done, the timer information is sent to the indoor unit. 2) Timer Off Operation: ① Press (see Figure 3.15), and the remote controller will display "Timer Off", and "0.0h Later Off"...

  • Page 21: Setting Operations

    Operating the Remote Controller 5.10 Setting Operations Press to configure the remote controller parameters (see Figure 3.16) (for details, refer to the parameter configuration methods in Field Settings). Figure 3.16 5.11 Lock Buttons Operations Once the buttons on the remote controller are locked, all the other button operations are invalid except for Lock, Cooling Only/Cooling and Heating Selection and Group Address Setting.

  • Page 22: Cooling Only/Cooling And Heating Selection Operations

    Operating the Remote Controller 5.12 Cooling Only/Cooling and Heating Selection Operations 1) In Cooling Only mode, press to turn on the Cooling and Heating function. (see Figure 3.18) Figure 3.18 2) In Cooling and Heating mode, press to turn on the Cooling Only function.

  • Page 23: Field Settings

    Field Settings 1. Indoor Unit Address Query and Setting LOCK Long press for 5 seconds (see Figure 4.1) to enter the address settings page of the indoor unit. Long press the same button again for 5 seconds to exit the page. Figure 4.1 1) Indoor Unit Address Query: Once in the address setting page, press...
  • Page 24 Field Settings 2) Indoor Unit Address Setting: Once in the address setting page, press to enter the Send page. In Send page, press to adjust the address up and down respectively. Press to send the address to the indoor unit. (See Figure 4.3) Figure 4.3...

  • Page 25: Parameter Configuration For Remote Controller

    Field Settings 2. Parameter Configuration for Remote Controller 1) Configuration Method: ① Long press at the same time for 5 seconds or press to enter the parameter settings page (see Figure 4.4). Figure 4.4 ② Press to adjust the parameter value; ③...
  • Page 26 Field Settings Figure 4.5 2) See Table 4.1 for details. Table 4.1 Parameters of remote controller Parameter Parameter Definition 7 fan speeds, temperature adjustment step of 0.5°C 3 fan speeds, temperature adjustment step of 1°C 7 fan speeds, temperature adjustment step of 1°C (default parameter) 3 fan speeds, temperature adjustment step of 0.5°C...
  • Page 27 SINCLAIR CORPORATION Ltd. 1-4 Argyll St. London W1F 7LD Great Britain www.sinclair-world.com This product was manufactured in China (Made in China). REPRESENTATIVE SINCLAIR Global Group s.r.o. Purkynova 45 612 00 Brno Czech Republic TECHNICAL SUPPORT SINCLAIR Global Group s.r.o. Purkynova 45...
