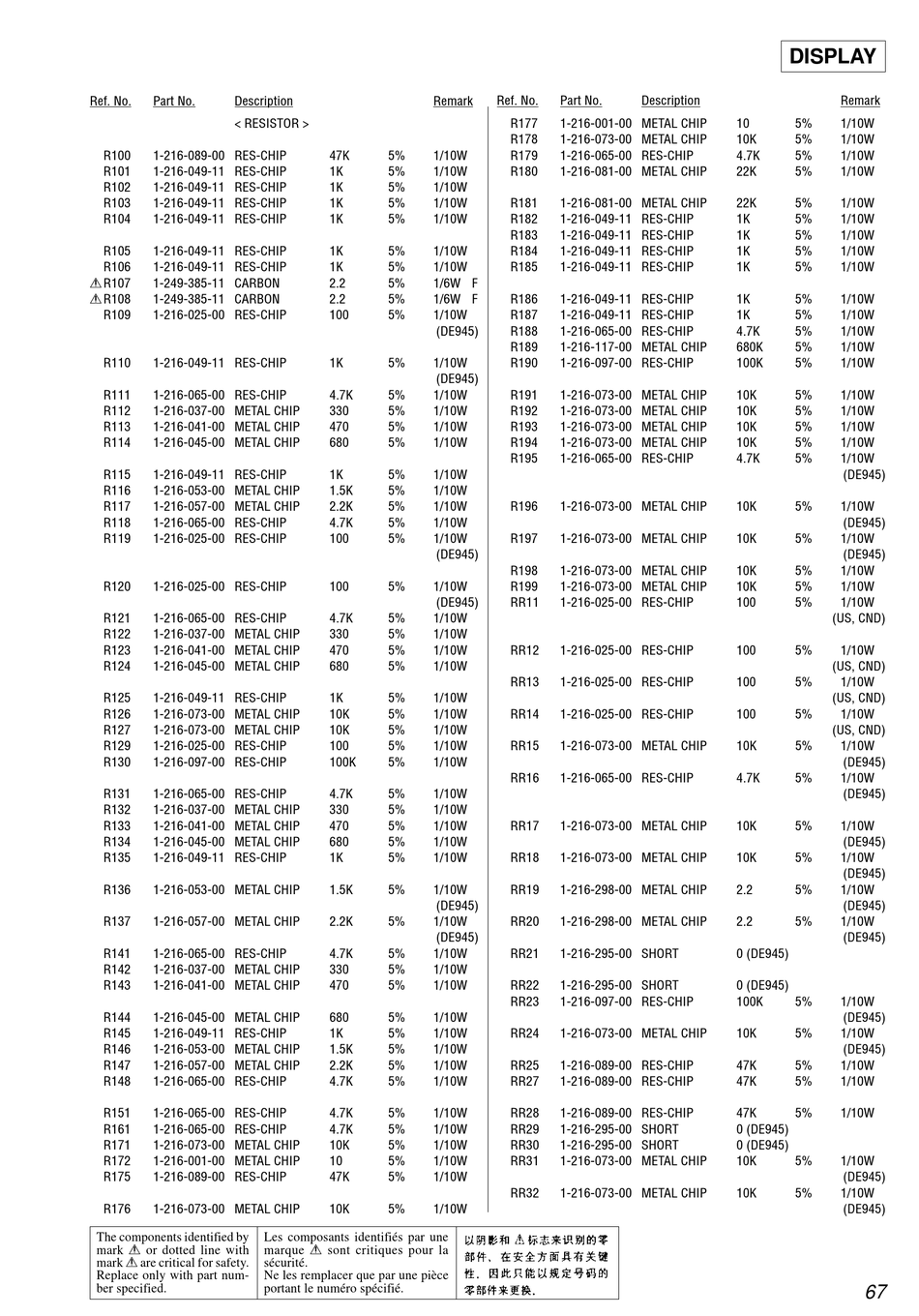

Sony STR-DE845 Service Manual page 67

Ref. No. Part No. Description
< RESISTOR >
R100 1-216-089-00 RES-CHIP
R101 1-216-049-11 RES-CHIP
R102 1-216-049-11 RES-CHIP
R103 1-216-049-11 RES-CHIP
R104 1-216-049-11 RES-CHIP
R105 1-216-049-11 RES-CHIP
R106 1-216-049-11 RES-CHIP
0 R107
1-249-385-11 CARBON
0 R108
1-249-385-11 CARBON
R109 1-216-025-00 RES-CHIP
R110 1-216-049-11 RES-CHIP
R111 1-216-065-00 RES-CHIP
R112 1-216-037-00 METAL CHIP
R113 1-216-041-00 METAL CHIP
R114 1-216-045-00 METAL CHIP
R115 1-216-049-11 RES-CHIP
R116 1-216-053-00 METAL CHIP
R117 1-216-057-00 METAL CHIP
R118 1-216-065-00 RES-CHIP
R119 1-216-025-00 RES-CHIP
R120 1-216-025-00 RES-CHIP
R121 1-216-065-00 RES-CHIP
R122 1-216-037-00 METAL CHIP
R123 1-216-041-00 METAL CHIP
R124 1-216-045-00 METAL CHIP
R125 1-216-049-11 RES-CHIP
R126 1-216-073-00 METAL CHIP
R127 1-216-073-00 METAL CHIP
R129 1-216-025-00 RES-CHIP
R130 1-216-097-00 RES-CHIP
R131 1-216-065-00 RES-CHIP
R132 1-216-037-00 METAL CHIP
R133 1-216-041-00 METAL CHIP
R134 1-216-045-00 METAL CHIP
R135 1-216-049-11 RES-CHIP
R136 1-216-053-00 METAL CHIP
R137 1-216-057-00 METAL CHIP
R141 1-216-065-00 RES-CHIP
R142 1-216-037-00 METAL CHIP
R143 1-216-041-00 METAL CHIP
R144 1-216-045-00 METAL CHIP
R145 1-216-049-11 RES-CHIP
R146 1-216-053-00 METAL CHIP
R147 1-216-057-00 METAL CHIP
R148 1-216-065-00 RES-CHIP
R151 1-216-065-00 RES-CHIP
R161 1-216-065-00 RES-CHIP
R171 1-216-073-00 METAL CHIP
R172 1-216-001-00 METAL CHIP
R175 1-216-089-00 RES-CHIP
R176 1-216-073-00 METAL CHIP
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Remark
47K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
2.2 5% 1/6W F
2.2 5% 1/6W F
100 5% 1/10W
(DE945)
1K 5% 1/10W
(DE945)
4.7K 5% 1/10W
330 5% 1/10W
470 5% 1/10W
680 5% 1/10W
1K 5% 1/10W
1.5K 5% 1/10W
2.2K 5% 1/10W
4.7K 5% 1/10W
100 5% 1/10W
(DE945)
100 5% 1/10W
(DE945)
4.7K 5% 1/10W
330 5% 1/10W
470 5% 1/10W
680 5% 1/10W
1K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
100 5% 1/10W
100K 5% 1/10W
4.7K 5% 1/10W
330 5% 1/10W
470 5% 1/10W
680 5% 1/10W
1K 5% 1/10W
1.5K 5% 1/10W
(DE945)
2.2K 5% 1/10W
(DE945)
4.7K 5% 1/10W
330 5% 1/10W
470 5% 1/10W
680 5% 1/10W
1K 5% 1/10W
1.5K 5% 1/10W
2.2K 5% 1/10W
4.7K 5% 1/10W
4.7K 5% 1/10W
4.7K 5% 1/10W
10K 5% 1/10W
10 5% 1/10W
47K 5% 1/10W
10K 5% 1/10W
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description
R177 1-216-001-00 METAL CHIP
R178 1-216-073-00 METAL CHIP
R179 1-216-065-00 RES-CHIP
R180 1-216-081-00 METAL CHIP
R181 1-216-081-00 METAL CHIP
R182 1-216-049-11 RES-CHIP
R183 1-216-049-11 RES-CHIP
R184 1-216-049-11 RES-CHIP
R185 1-216-049-11 RES-CHIP
R186 1-216-049-11 RES-CHIP
R187 1-216-049-11 RES-CHIP
R188 1-216-065-00 RES-CHIP
R189 1-216-117-00 METAL CHIP
R190 1-216-097-00 RES-CHIP
R191 1-216-073-00 METAL CHIP
R192 1-216-073-00 METAL CHIP
R193 1-216-073-00 METAL CHIP
R194 1-216-073-00 METAL CHIP
R195 1-216-065-00 RES-CHIP
R196 1-216-073-00 METAL CHIP
R197 1-216-073-00 METAL CHIP
R198 1-216-073-00 METAL CHIP
R199 1-216-073-00 METAL CHIP
RR11 1-216-025-00 RES-CHIP
RR12 1-216-025-00 RES-CHIP
RR13 1-216-025-00 RES-CHIP
RR14 1-216-025-00 RES-CHIP
RR15 1-216-073-00 METAL CHIP
RR16 1-216-065-00 RES-CHIP
RR17 1-216-073-00 METAL CHIP
RR18 1-216-073-00 METAL CHIP
RR19 1-216-298-00 METAL CHIP
RR20 1-216-298-00 METAL CHIP
RR21 1-216-295-00 SHORT
RR22 1-216-295-00 SHORT
RR23 1-216-097-00 RES-CHIP
RR24 1-216-073-00 METAL CHIP
RR25 1-216-089-00 RES-CHIP
RR27 1-216-089-00 RES-CHIP
RR28 1-216-089-00 RES-CHIP
RR29 1-216-295-00 SHORT
RR30 1-216-295-00 SHORT
RR31 1-216-073-00 METAL CHIP
RR32 1-216-073-00 METAL CHIP
DISPLAY
Remark
10 5% 1/10W
10K 5% 1/10W
4.7K 5% 1/10W
22K 5% 1/10W
22K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
4.7K 5% 1/10W
680K 5% 1/10W
100K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
4.7K 5% 1/10W
(DE945)
10K 5% 1/10W
(DE945)
10K 5% 1/10W
(DE945)
10K 5% 1/10W
10K 5% 1/10W
100 5% 1/10W
(US, CND)
100 5% 1/10W
(US, CND)
100 5% 1/10W
(US, CND)
100 5% 1/10W
(US, CND)
10K 5% 1/10W
(DE945)
4.7K 5% 1/10W
(DE945)
10K 5% 1/10W
(DE945)
10K 5% 1/10W
(DE945)
2.2 5% 1/10W
(DE945)
2.2 5% 1/10W
(DE945)
0 (DE945)
0 (DE945)
100K 5% 1/10W
(DE945)
10K 5% 1/10W
(DE945)
47K 5% 1/10W
47K 5% 1/10W
47K 5% 1/10W
0 (DE945)
0 (DE945)
10K 5% 1/10W
(DE945)
10K 5% 1/10W
(DE945)
67
