STR-DE845/DE945

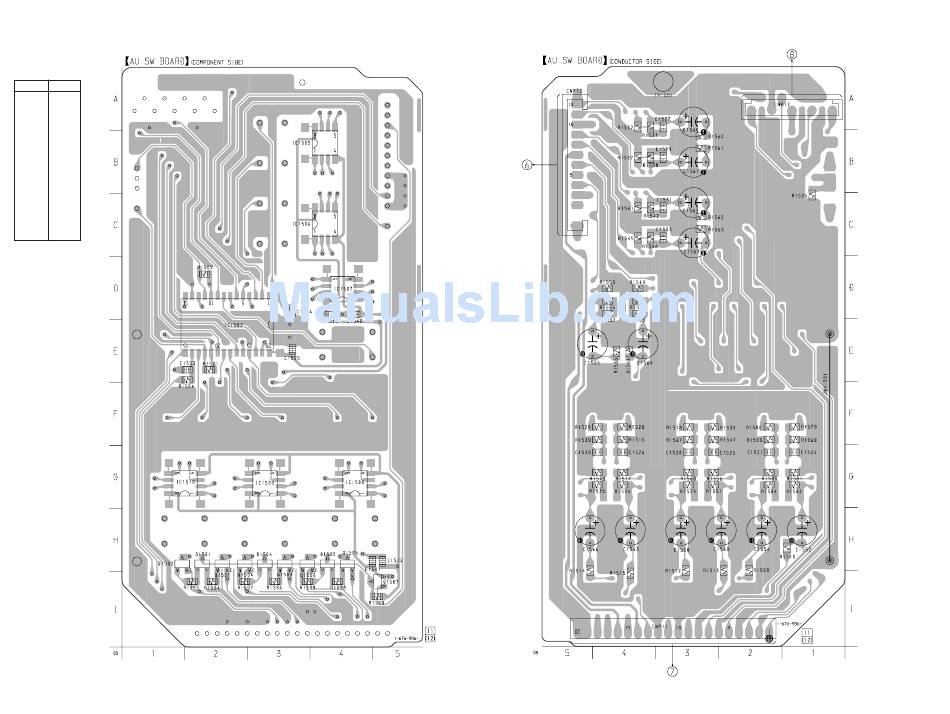

4-14. PRINTED WIRING BOARD – AU SW Board – •
• Semiconductor
Location
Ref. No. Location
D1501 H-2
D1504 H-3
D1505 H-4
IC1502 E-2
IC1505 B-4
IC1506 C-4
IC1507 D-4
IC1508 G-4
IC1509 G-3
IC1510 G-1
Q1501 H-2
Q1502 H-1
Q1503 H-3
Q1504 H-2
Q1505 H-4
Q1506 H-3
Q1507 I-5
See page 14 for Circuit Boards Location.
(Page 19)
24 24
(Page 36)
(Page 30)
