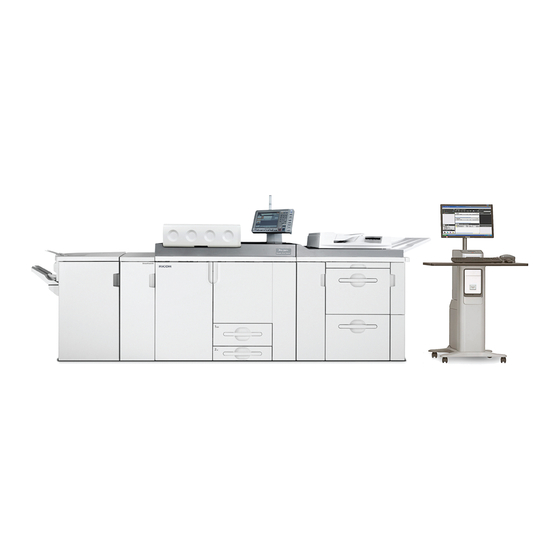

Ricoh Pro C901S Manual

Ricoh Pro C901S Manual

Adjustment item menu guide: tcru/oru
Hide thumbs Also See for Pro C901S:
Table of Contents

Advertisement

Quick Links

Adjustment Item Menu Guide: TCRU/ORU
Model Name:
Pro C901S/Pro C901
Read this manual carefully before using this machine and keep it handy for future reference.
1

Advertisement

Table of Contents
loading

Related Manuals for Ricoh Pro C901S

Summary of Contents for Ricoh Pro C901S

  • Page 1 Adjustment Item Menu Guide: TCRU/ORU Model Name: Pro C901S/Pro C901 Read this manual carefully before using this machine and keep it handy for future reference.

  • Page 2: How To Read This Manual

    How to Read This Manual Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Symbols This manual uses the following symbols: Important:...

  • Page 3: Table Of Contents

    Table of Contents How to Read This Manual ....................2 1. Adjustment Settings for Skilled Operators ........4 1.1 Displaying the [Adjustment Settings for Skilled Operators] Button ......4 1.2 Accessing the Adjustment Settings for Skilled Operators ......... 6 1.3 Layout of the Adjustment Settings for Skilled Operators........... 8 1.4 Features of the Displayed Items and Setting Operations..........

  • Page 4: Adjustment Settings For Skilled Operators

    1. Adjustment Settings for Skilled Operators 1. Adjustment Settings for Skilled Operators 1.1 Displaying the [Adjustment Settings for Skilled Opera- tors] Button To use the Adjustment Settings for Skilled Operators, you must first configure your machine's Administrator Authentication Management setting. 1.
  • Page 5 1. Adjustment Settings for Skilled Operators 5. Press [Administrator Authentication Management]. 6. Press [Machine Management]. 7. Select [On] for "Admin. Authentication". Press [OK]. Press [Exit]. The [Adjustment Settings for Skilled Operators] button appears.

  • Page 6: Accessing The Adjustment Settings For Skilled Operators

    1. Adjustment Settings for Skilled Operators 1.2 Accessing the Adjustment Settings for Skilled Opera- tors 1. Press [Adjustment Settings for Skilled Operators]. 2. Press [Login]. 3. Enter your login user name, and then press [OK]. If you are logging on as the administrator for the first time, enter "admin".
  • Page 7 1. Adjustment Settings for Skilled Operators 4. Enter your login password, and then press [OK]. The Adjustment Settings for Skilled Operators appears.

  • Page 8: Layout Of The Adjustment Settings For Skilled Operators

    1. Adjustment Settings for Skilled Operators 1.3 Layout of the Adjustment Settings for Skilled Opera- tors This section explains how to use the Adjustment Settings for Skilled Operators. BZS005 Adjustment items are displayed in this area. When you select an item, its configuration screen will then open.

  • Page 9: Features Of The Displayed Items And Setting Operations

    1. Adjustment Settings for Skilled Operators 1.4 Features of the Displayed Items and Setting Opera- tions The following operations are available for each adjustment item: • Value setting • Item setting • Executing • Display only Value setting Press [+] to increase the value, or [-] to decrease. Select [OK] to apply the new setting.
  • Page 10 1. Adjustment Settings for Skilled Operators Executing Press [OK] to perform a selected function. Display only You can check the setting of the selected item.

  • Page 11: Details Of Menu Items In Adjustment Settings For Skilled Operators

    2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2. Details of Menu Items in Adjustment Settings for Skilled Operators 2.1 Menu Items and Functions Shift Image Adjustment For details about the following items, see, p.17 "Shift Image Adjustment". Item Description 0101...
  • Page 12 Adjust the image density difference between the top and Across Feed Direction bottom of the image. 0701 ADF Scanning Density Adjust the scanning density of thin paper originals fed Adjustment (RGB) from the ADF. This function is available only on Pro C901S.
  • Page 13 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu Paper Feed Adjustment For details about the following items, see, p.28 "Paper Feed Adjustment". Item Description 0103 Double Feed Detect Specify whether or not to detect double or multiple sheet feeds.
  • Page 14 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu Finishing Position Adjustment For details about the following items, see, p.36 "Finishing Position Adjustment". Item Description 0414 Adjust Staple Position / Adjust the vertical position of the staples when using Finisher Finisher SR5000.
  • Page 15 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu Jogger Adjustment For details about the following items, see, p.44 "Jogger Adjustment". Item Description 0416 Paper Alignment for Sta- Adjust the width of the staple jogger for edge stapling in pling Across Feed Dir.
  • Page 16 Switch Print Screen Select the mode that appears when [To Print Screen] is pressed: copier mode or printer mode. This function is only for Pro C901S. 0801 Productivity Priority Mode Specify whether or not to favor throughput on a job that...

  • Page 17: Setting Values

    2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2.2 Setting Values 2.2.1 Shift Image Adjustment 0101: Adjust Image Position With Feed Direction Adjust the horizontal position of the print image. Specify this for all the Paper Weight settings in "Tray Paper Settings". The front of the sheet BZS205 Press [+] to shift the image to the left (leading edge).
  • Page 18 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu Setting Default Max. Min. Step Unit Value Value Value Paper Weight 1 -3.0 Paper Weight 2 Paper Weight 3 Paper Weight 4 Paper Weight 5 Paper Weight 6 Paper Weight 7 Paper Weight 1 (Back Side) Paper Weight 2 (Back Side)
  • Page 19 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0102: Adjust Image Position Across Feed Direction Adjust the vertical position of the print image. This setting can be specified for each tray independently. The front of the sheet BZS207 Press [+] to shift the image to the bottom.
  • Page 20 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu Setting Default Max. Min. Step Unit Value Value Value Tray 1 -3.0 Tray 2 Tray 3: Wide LCT Tray 4: Wide LCT Tray 5: Wide LCT Tray 6: Wide LCT Tray 3: LCT Tray 4: LCT Tray 5: LCT...
  • Page 21 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0104: Auto Image Position Adjustment Across Feed Direction Specify whether or not the machine automatically detects paper pathway deviations during the paper feeding process and adjusts the horizontal position of the print image accordingly.
  • Page 22 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2.2.2 Image Quality Adjustment 0201: Adjust Image Density Execute image density control manually. The machine adjusts image density. This operation takes about 30 seconds. Do not open the left or right front cover during the operation.
  • Page 23 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0107: Adjust Erase Margin With Feed Direction Adjust the mask width at the leading/trailing edge of the image. By increasing the mask width, you can increase the paper margin at the leading/trailing edge of the paper.
  • Page 24 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0204: Interval Mode Specify the interval during which the machine stops imaging and the number of sheets the machine prints between intervals. After printing the specified number of sheets, the machine stops its imaging operation for a set interval.
  • Page 25 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0211: Adjust Fusing Temperature on Standby Adjust the fusing temperature in effect when the machine is in standby mode Specify this setting for different ranges of ambient temperature. Depending on the paper thickness, the machine adjusts the temperature of the heat roller and pressure roller to achieve appropriate fusing intensity when printing.
  • Page 26 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0218: Adjust Maximum Image Density Specify the adjusted toner adhesion on the drum surface and intermediate transfer belt. The adjustment will be carried out when the machine automatically adjusts image density.
  • Page 27 Specify the scanning density for red, green, and blue as a percentage of the normal scanning density. Setting Default Max. Min. Step Unit Value Value Value R Adjustment G Adjustment B Adjustment Note: • This function is available only on Pro C901S.
  • Page 28 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2.2.3 Paper Feed Adjustment 0103: Double Feed Detect Specify whether or not to detect paper double feeding. Setting can be made for each tray independently. If this is set to "On", the machine stops when it detects paper double feeding, so as to prevent mixing of unprinted paper.
  • Page 29 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0115: Adjust Wide LCT Fan Timer Specify the duration of the airflow from the fans in each tray of the wide LCT. This setting can be made for each tray independently. A longer duration will prevent multiple sheets of thick, coated, or other special paper being fed in together and becoming jammed.
  • Page 30 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0105: Skew Detection Specify whether or not to detect paper skew. Setting can be made for each tray independently. If this is set to "On", the machine detects paper skew when feeding paper. If paper is skewed, set this to "Off", and then adjust the image position to correct the skew.
  • Page 31 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2.2.4 Monitoring 0302: Replaceable Parts Counter Check the PM counter value. Setting Remarks Developer (Black) Value display only. Developer (Cyan) Developer (Magenta) Developer (Yellow) Drum Unit (Black) Drum Unit (Yellow) Drum Unit (Cyan) Drum Unit (Magenta) Waste Toner Bottle...
  • Page 32 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2.2.5 Maintenance 0301: Reset Replaceable Parts Counter Reset the counter for replaceable parts. After you have replaced a unit, reset the counter for the unit. For details about replacing units, see the Replacement Guide. Setting Selection Developer (Black)
  • Page 33 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0205: Developer Exhaust Discharge used developer into the developer bottle. When discharging developers of multiple colors at the same time, attach the developer bottles for the selected colors. For details about discharging developers, see the Replacement Guide.
  • Page 34 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0206: Developer Fill Fill the developer unit with fresh developer. When filling developers of multiple colors at the same time, attach the developer bottles for the selected colors. For details about filling developers, see the Replacement Guide.
  • Page 35 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0207: Toner Density Sensor Initial Setting Initialize the developer manually. This operation takes about 1 minute. Setting Selection Select Colour(s) Black Yellow Cyan Magenta Black, Yellow Black, Cyan Black, Magenta Cyan, Yellow Magenta, Yellow...
  • Page 36 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2.2.6 Finishing Position Adjustment 0414: Adjust Staple Position / Finisher Adjust the vertical position of the staples when using Finisher SR5000. Press [+] to move the position forward (up), or [-] to move it backward (down). Setting Default Max.
  • Page 37 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0401: Adjust Staple Position for Booklet Adjust the horizontal position of the booklet staples when using Booklet Finisher SR5020. Press [+] to move the position rightward (across horizontally-spreading pages), or press [-] to move it leftward.
  • Page 38 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0403: Adjust Staple Position / Booklet Finisher Adjust the vertical position of the staples when using Booklet Finisher SR5020. Press [+] to move the position forward (up), or [-] to move it backward (down). Setting Default Max.
  • Page 39 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0405: Adjust Punch Position With Feed Dir. / Booklet Finisher Adjust the horizontal position of the punch holes when using Booklet Finisher SR5020. Press [+] to move the position toward the top edge (left) relative to the paper feed direction, or [-] to move it toward the bottom edge (right).
  • Page 40 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0601: Adjust Z-fold Position 1 Adjust the width of the bottom end segment (S) of Z-fold sheets when using the Z- folding unit. Press [+] to make the end segment (S) wider, or [-] to make it narrower. The mark indicates the top edge relative to the paper feed direction, and the mark...
  • Page 41 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0602: Adjust Z-fold Position 2 Adjust the overall fold size (L) of Z-fold sheets when using the Z-folding unit. Press [+] to increase the overall fold size(L), or [-] to decrease it. The mark indicates the top edge relative to the paper feed direction, and the mark...
  • Page 42 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0603: Cover Sheet Position for Perfect Binding With Feed Dir Adjust the horizontal alignment of the cover sheet position when performing perfect binding. When you bind the copies with the perfect binder, make this adjustment if the center of the book block's spine and the center of the cover sheet are misaligned horizontally.
  • Page 43 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0605: Adjust Perfect Binding Finishing Angle Square the top, bottom, and outside edges when trim-ming a deck of paper. Make this adjustment if the three edges of the deck of paper cut by the perfect binder are not square Enter the distance from the square part at each edge.
  • Page 44 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 2.2.7 Jogger Adjustment 0416: Paper Alignment for Stapling Across Feed Dir. / Finisher Adjust the width of the staple jogger for edge stapling in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when using Finisher SR5000.
  • Page 45 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0417: Paper Alignment in Shift Tray Across Feed Dir. / Finisher Adjust the width of the paper alignment jogger in the shift tray in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when using Finisher SR5000.
  • Page 46 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0406: Paper Alignment for Booklet Across Feed Dir. Adjust the width of the staple jogger for booklets in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when using Booklet Finisher SR5020.
  • Page 47 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0409: Ppr.Alignmnt for Stapling Across Feed Dir./Booklet Finisher Adjust the width of the staple jogger for edge stapling in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when using Booklet Finisher SR5020.
  • Page 48 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0410: Ppr.Alignment in Shift Tray Across Feed Dir./Bklet Finisher Adjust the width of the paper alignment jogger in the shift tray in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when using Booklet Finisher SR5020.
  • Page 49 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0411: Ppr.Alignment for Stapling With Feed Dir./Booklet Finisher Adjust the travel distance of the paper edge stopper for edge stapling in order to reduce horizontal variation in paper alignment due to difference in size, thickness, and curl of paper, when using Booklet Finisher SR5020.
  • Page 50 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0501: Paper Alignment in Stacker Tray Across Feed Direction 1 Adjust the width of the main jogger in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when the stacker is installed.
  • Page 51 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0502: Paper Alignment in Stacker Tray With Feed Direction Adjust the travel distance of the paper edge stopper in order to reduce horizontal variation in paper alignment due to difference in size, thickness, and curl of paper, when the stacker is installed.
  • Page 52 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0503: Paper Alignment in Stacker Tray Across Feed Direction 2 Adjust the width of the sub jogger in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when the stacker is installed.
  • Page 53 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0505: Paper Alignment in 2nd Stacker Tray With Feed Direction Adjust the travel distance of the paper edge stopper in order to reduce horizontal variation in paper alignment due to difference in size, thickness, and curl of paper, when the second stacker is installed.
  • Page 54 2. Details of Menu Items in Adjustment Settings for Skilled Operators Menu 0506: Paper Alignment in 2nd Stacker Tray Across Feed Dir. 2 Adjust the width of the sub jogger in order to reduce vertical variation in paper alignment due to difference in size, thickness, and curl of paper, when the second stacker is installed.
  • Page 55 Copier Copier Printer Note: • This function is only for Pro C901S. 0801: Productivity Priority Mode Specify whether or not to favor throughput on a job that involves printing on thick and then on thin paper. After printing on the thick paper, the machine usually stops to let the fusing temperature decrease before printing on the thin paper.

  • Page 56: Custom Paper Settings For Administrators

    3 Custom Paper Settings for Administrators 3. Custom Paper Settings for Administrators 3.1 Accessing Advanced Settings The machine's administrator can adjust the custom paper settings registered in [Program/ Change/ Delete Custom Paper]. To directly access the advanced settings for custom paper adjustment, you must first configure your machine's Administrator Authentication Management setting.
  • Page 57 3 Custom Paper Settings for Administrators 4. Enter your login user name, and then press [OK]. If you are logging in as the administrator for the first time, enter "admin". 5. Enter your login password, and then press [OK]. 6. Press the [Paper Setting] key on the control panel. BZS201 7.
  • Page 58 3 Custom Paper Settings for Administrators 8. Check that [Program/ Change] is selected. Select the program number of the custom paper setting you wish to adjust. Press [Advanced Settings]. The advanced settings for custom paper adjustment appear.

  • Page 59: Description Of Paper Icons

    3 Custom Paper Settings for Administrators 3.2 Description of Paper Icons You can check the custom paper status by looking at the paper icon in the "Program/ Change/ Delete Custom Paper" menu. If you change the custom paper setting in the advanced settings, the paper icon changes as follows: BZS202 1.

  • Page 60: Deleting Saved Custom Paper Settings

    3 Custom Paper Settings for Administrators 3.3 Deleting Saved Custom Paper Settings The machine administrator can delete the custom paper setting saved in the paper library. To delete custom paper settings, you must first specify the machine administrator authentication setting. (See, p.4 "Displaying the [Adjustment Settings for Skilled Operators] Button".) Press the [User Tools] key on the control panel.
  • Page 61 3 Custom Paper Settings for Administrators 7. Press [Recall Paper Library]. 8. Press [Delete Saved Custom Paper]. Press [Saved Paper Library]. Select the program number of the custom paper setting you wish to delete. Press [Yes]. The custom paper setting is deleted.

  • Page 62: Paper Presets In "Advanced Settings

    3 Custom Paper Settings for Administrators 3.4 Paper Presets in "Advanced Settings" In "Advanced Settings", there are paper presets for various types of commercially- available paper. The paper presets may vary depending on the custom paper profile version. For details about the paper presets in "Advanced Settings", contact your service representative.

  • Page 63: Details Of Menu Items In Advanced Settings

    4. Details of Menu Items in Custom Paper Settings 4. Details of Menu Items in Advanced Settings 4.1 Menu Items and Functions Paper Feed Adjustment For details about the following items, see, p.66 "Paper Feed Adjustment". Item Description Wide LCT Fan Setting Specify the movement of the Wide LCT fan.
  • Page 64 4. Details of Menu Items in Custom Paper Settings Line Speed Adjustment For details about the following items, see, p.70 "Line Speed Adjustment". Item Description Process Speed Setting Adjust the machine's print speed. Paper Transfer Feed Adjust the speed of the transfer roller. Speed Adjustment Fusing Feed Speed Ad- Adjust the speed of the fusing roller.
  • Page 65 4. Details of Menu Items in Custom Paper Settings Item Description Ppr Transfer Current Trail Specify the area to apply paper transfer current at the Edg Dist: BW trailing edge of the paper when printing in black and white. Ppr Transfer Current Trail Specify the area to apply paper transfer current at the Edg Dist: FC trailing edge of the paper when printing in full color.

  • Page 66: Setting Values

    4. Details of Menu Items in Custom Paper Settings 4.2 Setting Values 4.2.1 Paper Feed Adjustment 01: Wide LCT Fan Setting Specify the movement of the Wide LCT fan. If you set this to "On", air is discharged from the duct in the paper tray. By jetting air onto the edges of the sheets, sheets stuck to each other can be separated.
  • Page 67 4. Details of Menu Items in Custom Paper Settings 04: Double Feed Detect Specify whether or not to detect paper double feeding. If this is set to "On", the machine stops when it detects paper double feeding, so as to prevent mixing of unprinted paper. Setting Selection Double Feed Detect...
  • Page 68 4. Details of Menu Items in Custom Paper Settings 4.2.2 Shift Image Adjustment 07: Adj Image Position of Side1 With Feed Adjust the horizontal position of the image to be printed on the front of paper. Press [+] or [-] to move the image feed direction or reverse feed direction. Setting Max.
  • Page 69 4. Details of Menu Items in Custom Paper Settings 12: Adjust Erase Margin of Leading Edge Adjust the mask width at the leading edge of the image. By increasing the mask width, you can increase the paper margin at the leading edge of the paper.
  • Page 70 4. Details of Menu Items in Custom Paper Settings 4.2.3 Line Speed Adjustment 14: Process Speed Setting Adjust the machine's copy/print speed. When using paper of poor fusing quality, set this to "Low". By slowing the copy/print speed, you can enhance grip. However, if this is set to "Low", the maximum continuous copy/print speed will drop from 90 to 70 cpm.
  • Page 71 4. Details of Menu Items in Custom Paper Settings 4.2.4 Transfer Adjustment 17: Image Transfer Current: B&W Adjust the current for the charger when printing in black and white. By increasing the current, you can increase the toner adhesion to the drum surface, and so increase the density when printing in black and white.
  • Page 72 4. Details of Menu Items in Custom Paper Settings 20: Image Transfer Current: FC: Magenta Adjust the current for the charger (magenta) when printing in full color. By increasing the current, you can increase the toner adhesion to the drum surface, and so increase the density of magenta when printing in full color.
  • Page 73 4. Details of Menu Items in Custom Paper Settings 23: Paper Transfer Current: FC Adjust the current for the paper transfer roller when printing in full color. By increasing the current, you can increase the transferability of images to the paper, and so increase the density when printing in full color.
  • Page 74 4. Details of Menu Items in Custom Paper Settings 27: Paper Transfer Current; Lead Edge: FC Adjust the paper transfer current at the leading edge of the paper when printing in full color. Specify the paper transfer current at the leading edge of the paper as a percentage of the current specified in "23: Paper Transfer Current: FC".
  • Page 75 4. Details of Menu Items in Custom Paper Settings 31: Paper Transfer Current; Trail Edge: FC Adjust the paper transfer current at the trailing edge of the paper when printing in full color. Specify the paper transfer current at the trailing edge of the paper as a percentage of the current specified in "23: Paper Transfer Current: FC".
  • Page 76 4. Details of Menu Items in Custom Paper Settings 4.2.5 Fuser Adjustment 34: Fusing Heat Roller Temperature Adj Adjust the heat roller temperature. If the fusing is insufficient, increase the temperature. If uneven luster or ghost images appear, decrease the temperature. Press [+] or [-] to adjust the temperature.
  • Page 77 4. Details of Menu Items in Custom Paper Settings 38: Fusing Unit Air Separator Setting Select the pattern for jetting air to separate paper in the fusing unit. Depending on the paper type, the sheet might be stuck to the pressure roller and jam during fusing.
  • Page 78 4. Details of Menu Items in Custom Paper Settings 40: Reduce Initl CPM: Norml/High Temp Env On a three-step scale, specify copy/print speed reduction at normal room temperature and above. Should the temperature of the fusing unit fall below a certain point, the machine will reduce the copy/print speed to increase fusibility.
  • Page 79 4. Details of Menu Items in Custom Paper Settings 4.2.6 Decurler Adjustment 42: Decurler Feed Speed Adj: Curl Adj Off Adjust the paper feed speed of the decurler unit when "0106: Adjust Paper Curl" in the [Adjustment Settings for Skilled Operators] menu is set to "Off". Press [+] or [-] to adjust the speed.
  • Page 80 Index ADF Scanning Density Adjustment (RGB), 27 Fusing Feed Speed Adjustment, 70 Adj Image Position of Side1 Across Feed, 68 Fusing Heat Roller Temperature Adj, 76 Adj Image Position of Side1 With Feed, 68 Fusing Nip Width Setting, 76 Adj Image Position of Side2 Across Feed, 68 Fusing Pressure Roller Temperature Adj, 76 Adj Image Position of Side2 With Feed, 68 Fusing Unit Air Separator Setting, 77...
  • Page 81 Set Number of Folds for Booklet, 39 Toner Density Sensor Initial Setting, 35 Skew Detection, 30, 67 Switch Print Screen, 55 Wide LCT Fan Setting, 66 Copyright © 2010...
  • Page 82 M077-9602...
