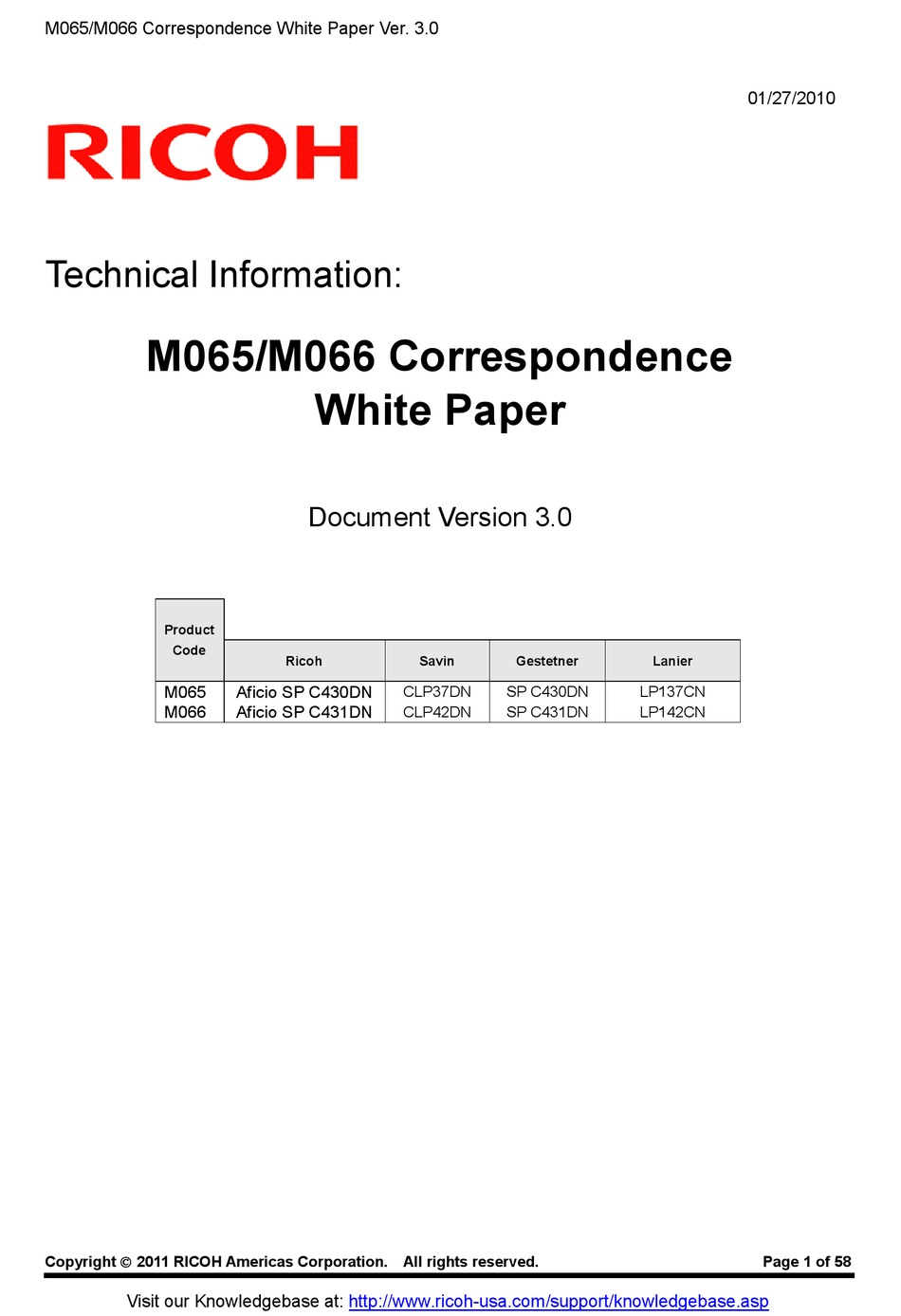

M065/M066 Correspondence White Paper Ver. 3.0
Technical Information:
M065/M066 Correspondence
Product
Code
M065
M066
Copyright  2011 RICOH Americas Corporation. All rights reserved.
Visit our Knowledgebase at:
White Paper
Document Version 3.0
Ricoh
Aficio SP C430DN
CLP37DN
Aficio SP C431DN
CLP42DN
http://www.ricoh-usa.com/support/knowledgebase.asp
Savin
Gestetner
SP C430DN
SP C431DN
01/27/2010
Lanier
LP137CN
LP142CN
Page 1 of 58

Advertisement

Table of Contents
loading

Related Manuals for Ricoh Aficio SP C430DN

Summary of Contents for Ricoh Aficio SP C430DN

  • Page 1 Product Code Ricoh Savin Gestetner Lanier M065 Aficio SP C430DN CLP37DN SP C430DN LP137CN M066 Aficio SP C431DN CLP42DN SP C431DN LP142CN Copyright  2011 RICOH Americas Corporation. All rights reserved. Page 1 of 58 Visit our Knowledgebase at: http://www.ricoh-usa.com/support/knowledgebase.asp...
  • Page 2 Ricoh Company, Ltd. does not grant or intend to grant hereby any right to such trademarks or property to any third parties. The use of any trade name or web site is not intended to convey endorsement or any other affiliation with Ricoh products.
  • Page 3 SSH2 (Secure Shell) is intended as a replacement for rlogin, rsh, and rcp. Additionally, ssh provides secure X connections and secure forwarding of arbitrary TCP connections. Ricoh’s implementation of SSH is based on OpenSSH 3.9.

  • Page 4: Table Of Contents

    M065/M066 Correspondence White Paper Ver. 3.0 INDEX 1. Pantone Support ......................8 What is PANTONE Support? ..................8 The Contents of the Release Package ............... 8 How to use it? ......................9 Target Customer of PANTONE Function ..............9 Difference PANTONE Support and Ink Simulation with Pallet Color ......9 2.
  • Page 5 M065/M066 Correspondence White Paper Ver. 3.0 Launch Date ......................24 4. Positioning Embedded vs. Appliance ............... 26 Supported device ..................... 26 5. Embedded ........................27 Main Specification ....................27 Security System ....................... 27 Terminology ......................30 6. PictBridge ........................32 What is PictBridge? ....................
  • Page 6 M065/M066 Correspondence White Paper Ver. 3.0 11-2-3 Features ......................42 11-3 Specifications ......................44 11-3-4 Specification of “PCL6 Driver for Universal Print ver.3.0” ........44 11-3-5 Applicable OS ....................45 11-3-6 Applicable PDL ....................45 11-3-7 Brand ......................... 45 11-3-8 Supported Language ..................
  • Page 7 M065/M066 Correspondence White Paper Ver. 3.0 17-2 Windows Active Directory Support (Paper Size Setting Tab - PCL only) ....56 17-2-19 Purpose and Benefits ..................56 17-2-20 Supported OS: ....................56 17-3 DDNS (Dynamic Domain Name System) Support............ 56 17-3-21 How it works ......................

  • Page 8: Pantone Support

    M065/M066 Correspondence White Paper Ver. 3.0 Pantone Support 1-1 What is PANTONE Support? PANTONE is the one of the standard color of special ink industry. PANTONE has more than 3,000 colors, but it is impossible to reproduce all PANTONE color with CMYK printer.

  • Page 9: How To Use It

    M065/M066 Correspondence White Paper Ver. 3.0 1-3 How to use it? By importing color palette files to the specified desktop publishing application software, you can generate the optional reproduction of PANTONE colors with this printer. Select the color with the dedicated PANTONE palettes of the printer from the application. 1-4 Target Customer of PANTONE Function ...

  • Page 10: Printing In Non-Windows Environment (Using Connectivity Tools)

    M065/M066 Correspondence White Paper Ver. 3.0 Printing in Non-Windows Environment (Using Connectivity Tools) In the office, several information resources are handled as the communication method within the section to section, both inside the company and with the client outside. In recent 10years, due to the revolution of the information technology, the solution changing the method from analog to digital has been offered continuously.

  • Page 11: Unix Filter

    Device Option setting on Unix environment (Tray selection, Duplex, Staple etc…) Support OS standard print command for each OS All segment of Ricoh MFPs/LPs supported Major Unix/Linux OS support Unix Filter can be downloaded for free from the download web site such as below: http://www.ricoh-usa.com/downloads/downloads.asp?tsn=Ricoh-USA&path=http://support.ri coh.com/connectivity/rc/top/unixfilter.htm...

  • Page 12: Printing With Cups (Common Unix Printing System)

    The PPDs of the MFPs/LPs on Linux Foundation started to be posted on February 22nd, 2005. By distributing PPDs on Linux Foundation, potential customers, who print under UNIX/Linux environment, will have interest in Ricoh’s devices. That will contribute to expansion of MFP/LP sales and capture TDV.

  • Page 13: The Stance For The Ppds Distribution On Linux Foundation

    M065/M066 Correspondence White Paper Ver. 3.0 2-3-3 The stance for the PPDs distribution on Linux Foundation As PPDs posted on Linux Foundation are modified as free software under the MIT license*, there will be no official supports for posted PPDs. For more details of support policy, please refer to "Support policy for PPDs on Linux Foundation and CUPS printing"...
  • Page 14  Duplex Duplex SAP Device Type can be downloaded for free from each Ricoh family group sales company’s download web site. i.e. Global distribution page managed by RCL is also implemented in Ricoh Europe B.V. download website as in-line frame http://www.ricoh-support.com/enduser/downloads/advsearchresult.asp?type=link&prodcatname=So...

  • Page 15: Novel Ndps Gateway

    NDPS Gateway Overview NDPS Printer NDPS Client NDPS Gateway Ethernet NDPS Broker  Support Environment NetWare6.5 SP6 or later  Applicable Module Novell generic NDPS gateway Ricoh does not provide gateway and snap-in. Page 15 of 58...

  • Page 16: Printing On Citrix Presentation Server

    NDPS Gateway development and RCL has advised the usage of Novell generic NDPS gateway. For new models that are not listed on the Web page, we advise that you use generic NDPS gateway. RICOH Americas Corporation http://support.ricoh.com/connectivity/rc/top/ndps.htm http://support.ricoh.com/connectivity/re/top/ndps.htm RICOH Europe RICOH Asia Pacific http://support.ricoh.com/connectivity/ra/top/ndps.htm...
  • Page 17 M065/M066 Correspondence White Paper Ver. 3.0 Advantage of Citrix Presentation Server Save PC management cost Utilize old version PCs Strengthen security High-speed response with Narrow Band Disadvantage of Citrix Presentation Server Cannot use device option -Duplex SBC (Server Based Computing) market is still -Staple growing -Tray selection...
  • Page 18 Device Option Utility for Citrix Presentation Server can be downloaded for free from the web site such as below: http://www.ricoh-usa.com/downloads/downloads.asp?path=http://support.ricoh.com/reg2/rc/top/met a.htm Regarding Device Option Utility for Citrix Presentation Server, please refer to the announcement of Device Option Utility for Citrix Presentation Server release.

  • Page 19: As/400 Hpt Printing Support (Using Hp Ftypmdl And Wco)

    M065/M066 Correspondence White Paper Ver. 3.0 2-7 AS/400 HPT Printing Support (using HP FTYPMDL and WCO) 2-7-5 What is IBM AS/400? AS/400 is a server product introduced by IBM in 1998. AS/400 has been changed its name to “iSeries”, and got accumulatively more than 750,000 machines on the market since 1998. More than 150 countries have been using it and OS/400, its standard Operating System, has been localized to 51 languages.

  • Page 20: Hpt (Host Print Transform)

    M065/M066 Correspondence White Paper Ver. 3.0 2-7-8 HPT (Host Print Transform) Host Print Transform function is supported as standard by AS/400 since V2R3. It is the most basic data stream transformer. Here are some AS/400 data streams. SCS (SNA Character String) SCS is a data stream for a line dot printer, and can deal with only text data.

  • Page 21: 56Busing Hp Mftypmdl&Wco

    Applicable OS: IBM OS/400 V5R1, V5R2 and V5R3 Necessary information and documentation for Ricoh internal and for customers are issued separately as the announcement of “Market Information –IBM AS/400 HPT printing (HP Compatible Solution)”. For more details, refer to this announcement.

  • Page 22: Advanced Features For Printing In Host System Environment

    M065/M066 Correspondence White Paper Ver. 3.0 2-8 Advanced Features for Printing in Host System Environment Supporting connection and printing the data come from backyard host system has become important year-by-year especially in major account and global account business. For recent years, we have been teaming-up several projects and conducting field survey consulting internal stuff such as system engineers, field pre-sales specialists, global account sales who are deeply involved in major account and global account business deals and who receive the several requirements related to host printing.

  • Page 23: Nrs (Commercial Name : @Remote)

    Sales Companies can effectively use the device information to enhance the sales of MFP and Laser Printer with a TCO solution (by monitoring and analyzing Ricoh and Competitive devices) and improve the level of Customer satisfaction while reducing the cost of operation at the sales companies’...

  • Page 24: Benefit

    M065/M066 Correspondence White Paper Ver. 3.0 3-3 Benefit 1) For Customer  Utilization reporting can lead to be more suitable device layout, improved workflow, fleet optimization and can lead to reduction of running cost.  Auto Meter Reading can reduce time and labor cost to retrieve meters manually. ...
  • Page 25 (RC-Gate to NRS E-mail Center) In case of Internet communication # of Monitored 500 devices (including device *1 Ricoh and non-Ricoh devices) # of Managed 100 devices 1 device (own device only) device *1 In case of e-mail communication # of Monitored...
  • Page 26 B&W B188 B286/B289, G180 * Type BN-1 (External type) ----- External Appliance Type * (Embedded type) --- Standard on Ricoh made devices noted above For the details, please refer to “NPLI of NRS” which was issued. Page 26 of 58...
  • Page 27 M065/M066 Correspondence White Paper Ver. 3.0 Embedded This device equips as a standard function. Embedded type functionality is a subset of Basil’s functionality. The main difference is that Cumin is embedded in GW architecture. Where Basil can monitor up to 500 additional devices, Embedded type can only monitor its own meter data, device status or communicate on its own behalf.
  • Page 28 M065/M066 Correspondence White Paper Ver. 3.0 NRS Gateway Device (Embedded type) HTTPS Polling Encrypted Response and/or demand Authentication (SSL (for FW upgrade) Encryption Comm. Method (External Communication (External Appliance Appliance type - Method Trigger type - Gateway) Gateway) From Embedded type (Customer DESS HTTPS Site)
  • Page 29 M065/M066 Correspondence White Paper Ver. 3.0 Monitored Devices (including 100 Managed Devices) Managed Devices E-Mail HTTPS Monitored Items / Messages: Connection LAN via IP LAN via IP LAN via IP LAN via IP Method to Device Periodic / Reporting Once Daily Once Daily Once Daily Once Daily...
  • Page 30 M065/M066 Correspondence White Paper Ver. 3.0 5-3 Terminology HTTPS (Hypertext Transfer Protocol over Secure Socket Layer, or HTTP over SSL): HTTPS (Hypertext Transfer Protocol over Secure Socket Layer, or HTTP over SSL) is a Web protocol Netscape browser developed by and built into its that encrypts and decrypts user page requests as well as the pages that are returned by the Web server.
  • Page 31 M065/M066 Correspondence White Paper Ver. 3.0 SSL (Secure Sockets Layer): The Secure Sockets Layer (SSL) is a commonly-used protocol for managing the security of a message transmission on the Internet. SSL has recently been succeeded by Transport Layer Security (TLS), which is based on SSL.
  • Page 32 M065/M066 Correspondence White Paper Ver. 3.0 PictBridge 6-1 What is PictBridge? Enjoy easy digital printing without a PC. PictBridge was created to make printing digital photos even easier and more accessible. Pictbridge allows you to connect a digital still camera (*1) (referred to hereafter as “DSC”) directly to printer without a PC, enabling direct printing on the spot.
  • Page 33 M065/M066 Correspondence White Paper Ver. 3.0 6-3 PictBridge Direct-printing Functions and Features PictBridge allows customer easily to print images captured by DSC without PC. PictBridge includes a wide range of functions, however the particular functions available will depend on the individual device specifications.
  • Page 34 *The number of the maximum transmission image files is 999, but the maximum number of the transmission image files depends on each DSC. Between Ricoh DSCs* and Ricoh brands’ machines, the below additional features are available. Please refer to specification of DSC to make sure if your DSC supports these features.
  • Page 35 M065/M066 Correspondence White Paper Ver. 3.0 (2) Landscape double images Photo Photo Photo Photo Paper size is A4/Letter landscape. (3) Triple images with/without rule Photo Photo Photo Photo Photo Photo Paper size is A4/Letter.  Toner saving By specifying the print density on the digital camera, you can save on toner when printing. Specification on the digital camera Print density Default/OFF...
  • Page 36 Printer unavailable Running out of ink *1: This is Ricoh original digital still camera format mode. Need Ricoh DSCs and Ricoh brand’s machines to use the format. *2: Between Ricoh DSCs and Ricoh brands’ machines only. Page 36 of 58...
  • Page 37 M065/M066 Correspondence White Paper Ver. 3.0 Secure Socket Layer (SSL) Support This function can establish encrypted communication by SSL to protect data from interception, analysis and tampering when  SSL printing (IPP over SSL) ⇒ Refer ‘6.Printing Data Encryption via IPP’ ...
  • Page 38 M065/M066 Correspondence White Paper Ver. 3.0 Printing Data Encryption via IPP Customer can print data with encryption by SSL/TLS via IPP (Internet Printing Protocol) using to Smart Device Monitor for client. This function allows customers to protect their print data just in case. Installed Certificate Encryption by SSL/TLS...
  • Page 39 M065/M066 Correspondence White Paper Ver. 3.0 Data Overwrite Security (DOS) function This function can overwrite print data that is stored on internal hard drive by writing over the latent image with random sequences of 1’s and 0’s. This enables to access or reconstruct residential data virtually impossible. NOTES: 1.
  • Page 40 M065/M066 Correspondence White Paper Ver. 3.0 10. SNMPv3 support This function can establish an encrypted communication environment via SNMPv3 when getting machine information by Smart Device Monitor for admin. NOTE: [Encryption only] Encrypt at all times. It occurs an error if devices do not support encryption. [Encryption /Clear Text] It communicates by clear text if devices do not support encryption.
  • Page 41 11. Universal Driver 11-1 Function A single printer driver can be used for across Ricoh’s MFPs and LPs. When the universal driver is connected to the target machine, it gets the machine information from MIB by bidirectional communication. (network only) a) Applicable Models If the target machine is an applicable model, the driver UI changes to its own UI of the target device.
  • Page 42 So the cost and time for introduction and maintenance of devises is getting higher and longer, and a lot of IT managers want to reduce them. To meet these requests, we will release a common driver for RICOH printing devices named “PCL6 Driver for Universal Print”.
  • Page 43 M065/M066 Correspondence White Paper Ver. 3.0 -This driver supports Bi-directional (two-way) communication, this communication will be started after "Accessories" tab being selected or "Update Now" icon arrowed in the next figure being clicked by users. The driver UI and available options will be changed automatically depending on the connected network printers and MFPs.
  • Page 44 M065/M066 Correspondence White Paper Ver. 3.0 * Including following products and later products than those. B140/B141/B142/B143/B163/B228, B156/B220, B202/B178/B180, B132/B200, G112, G116, G126, G139, G104 ** "PCL6 Driver for Universal Print" doesn’t support the earlier products than above such as: B079/B082, B147/B149, B051/B052 11-3 Specifications 11-3-4 Specification of “PCL6 Driver for Universal Print ver.3.0”...
  • Page 45 11-3-6 Applicable PDL PCL6 (PCLXL) 11-3-7 Brand Supported Language RICOH / NRG / Savin / Gestetner / Lanier / Infotec English / French / German / Italian / Spanish / Dutch * “Help” is written in English only. Supported Functions ** All languages are provided as a single driver package.
  • Page 46 -LPR 11-3-15 Applicable PDL Brand PostScript RICOH / NRG / Savin / Gestetner / Lanier / Infotec 11-3-17 Supported Language English / French / German / Italian / Spanish / Dutch * ”Help” is written in English only. ** All languages are provided as a single driver package. The displayed language on driver UI will correspond with a language set at "Keyboards and Languages"...
  • Page 47 M065/M066 Correspondence White Paper Ver. 3.0 11-3-18 [Supported Functions] Same as functions of conventional PS driver except for the features described in [Remarks]. Remarks: 1. This driver is qualified WHQL certificate, so the alert message will not be shown during installation.
  • Page 48 M065/M066 Correspondence White Paper Ver. 3.0 13. New Common “One Click” UI with PCL6 and PS Printer Driver A lot of new OS is released one after another; customization requests from users are getting large. In such environment, RCL has to develop many drivers (such as Printer/Scanner/LAN-Fax drivers for Japanese domestic version and overseas version) compatible to new OS, our development and QA resource is always running short.
  • Page 49 M065/M066 Correspondence White Paper Ver. 3.0 14. XPS Printer Driver Support In order to print XPS documents, which have been adopted in Windows Vista, XPS driver is available with our models. An XPS document is a new Microsoft document format that can be used to archive content in a standardized format or publish content in an easily viewable form.
  • Page 50 M065/M066 Correspondence White Paper Ver. 3.0 15. WS-Printer New network technology named “Web Services on Devices (WSD)” has been introduced to Windows Vista, connecting each device has been much easier. Our models that support this new technology, enable users to enjoy following benefits. - Automatic driver installation of network printer - To discover an available printer without inputting IP address and print from it.
  • Page 51 PDF file goes through LAN. (You can see easily which is heavy 325KB or 2.16MB) And PDF Direct Print just requires your PC to transfer a PDF file. Does not require spooling. Ricoh’s PDF Direct Print uses lpr(lp),rsh, rcp, ftp as the file transfer tool. NOTES: PDF Direct Print supports only “1 byte font”.
  • Page 52 PDF file. In such case, the customer has to wait their PC operation until the PC finished spooling. Ricoh can provide the comfortable PDF print environment to generic office with the tiny tool. Function Palette...
  • Page 53 M065/M066 Correspondence White Paper Ver. 3.0 16-5 How you can use it? DeskTopBinder From DeskTopBinder Pro version 4, installation will become much more flexible. Customers who only need PDF Direct Print function, can install the function without installing the full package of DeskTopBinder.
  • Page 54 M065/M066 Correspondence White Paper Ver. 3.0 DeskTopBinder 1) Install DeskTopBInder. 2) Run DeskTopBinder. 3) Select the PDF file and click the [PDF Direct Print] icon 16-6 How to Print via lpr/FTP lpr printing You can print a PDF file directly using the lpr command. Click the icon button.
  • Page 55 C:\current directory>cd [directory containing the target file] C:\[directory containing the target file]>ftp [IP address] Connected to [IP address] 220 RICOH Aficio SP 9100DN FTP server (x.xx.x) ready. User ([IP address]: none): [user name] 331 Password required for [user name] Password: 230 User [user name] logged in.
  • Page 56 M065/M066 Correspondence White Paper Ver. 3.0 17. Bonjour, Windows Active Directory Support, DDNS 17-1 Bonjour Support What is Bonjour? Bonjour is formally called “Rendezvous”. The name of technology has been changed from Mac OS X v10.4 “Tiger”. Bonjour is Apple Computer's version of ZeroConf (Zero Configuration Networking), a set of protocols that enables a device on an IP network to automatically recognize and connect with other devices on the network.
  • Page 57 M065/M066 Correspondence White Paper Ver. 3.0 17-3-22 Customer Benefits Under conventional DNS function, name resolution does not work with following cases.  Change of IP address for MFP  Change of Device Name for MFP However, with DDNS function, above change will be automatically notified to DNS server, name resolution work even after these changes.
  • Page 58 M065/M066 Correspondence White Paper Ver. 3.0 18. IPv6 IPv6 is short for "Internet Protocol Version 6". IPv6 is the "next generation" protocol designed by the IETF (Internet Engineering Task Force) to replace the current version Internet Protocol, IP Version 4 ("IPv4").
