Index Safety Information ..........................3 1.1. Hints for safe and faultless use ....................3 Unpacking ............................4 Introduction ............................4 Features ............................4 Cleaning ............................4 Menu..............................5 DMX control mode ..........................6 DMX channel and function ....................... 7 2 / 9...
1. Safety Information • The warranty expires in case of manual changes at the device by the user. • The device may only be repaired by professionals. • Only use fuses of the same type as the original and only use original spare parts.

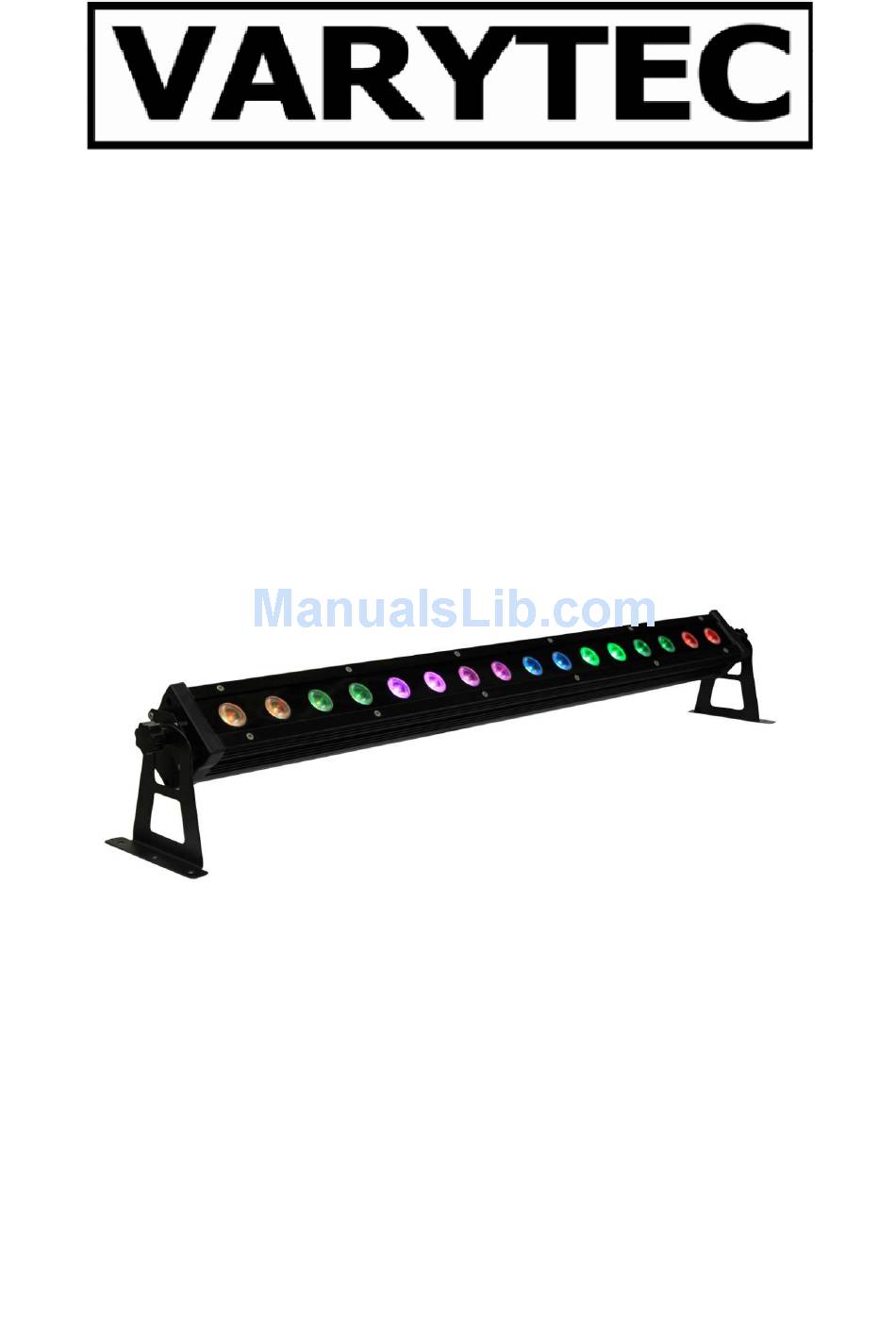

PLEASE recycle the carton whenever possible 3. Introduction The LED Street Bar 16x3W RGB IP65 is a DMX intelligent LED color washlight. This wash can be used in a standalone mode or connected in a Master/Slave configuration. The unit can also be controlled via DMX controller.
6. Menu The LED Street Bar 16x3W RGB IP65 comes with an easy to navigate system menu. This next section will detail the functions of each command in the system menu. Please read the next section thoroughly! To access the main menu press the ESC button. Tap the UP or DOWN buttons until you reach function you wish to change.
LED Street Bar 16x3W RGB IP65. A DMX controller allows you to create unique programs tailored to your individual needs. 1. The LED Street Bar 16x3W RGB IP65 uses six DMX channel modes. See next page for detailed description of the DMX traits.
8. DMX channel and function 10CH 16CH 24CH 28CH FUNCTION ..DIMMING LED main function SPEED Strobo 7 / 9...
Page 8
DMX value and function 0<-------------------------------------------->255 DIMMING 0%<------------------------------------------->100% LED main 10~19 20~29 30~39: 210~219 220~229 230~239 240~255 0~9:dimmer …… function strobing mode1 mode2 mode20 auto 1 auto 2 auto 3 0<-------------------------------------------->255 function speed slow<------------------------------------------->fast strobo 0:NO strobing 1~255: slow<------------------------------------------->fast 8 / 9...
Page 9
