BN-6 STANDALONE
BENCH OWNER'S
MANUAL

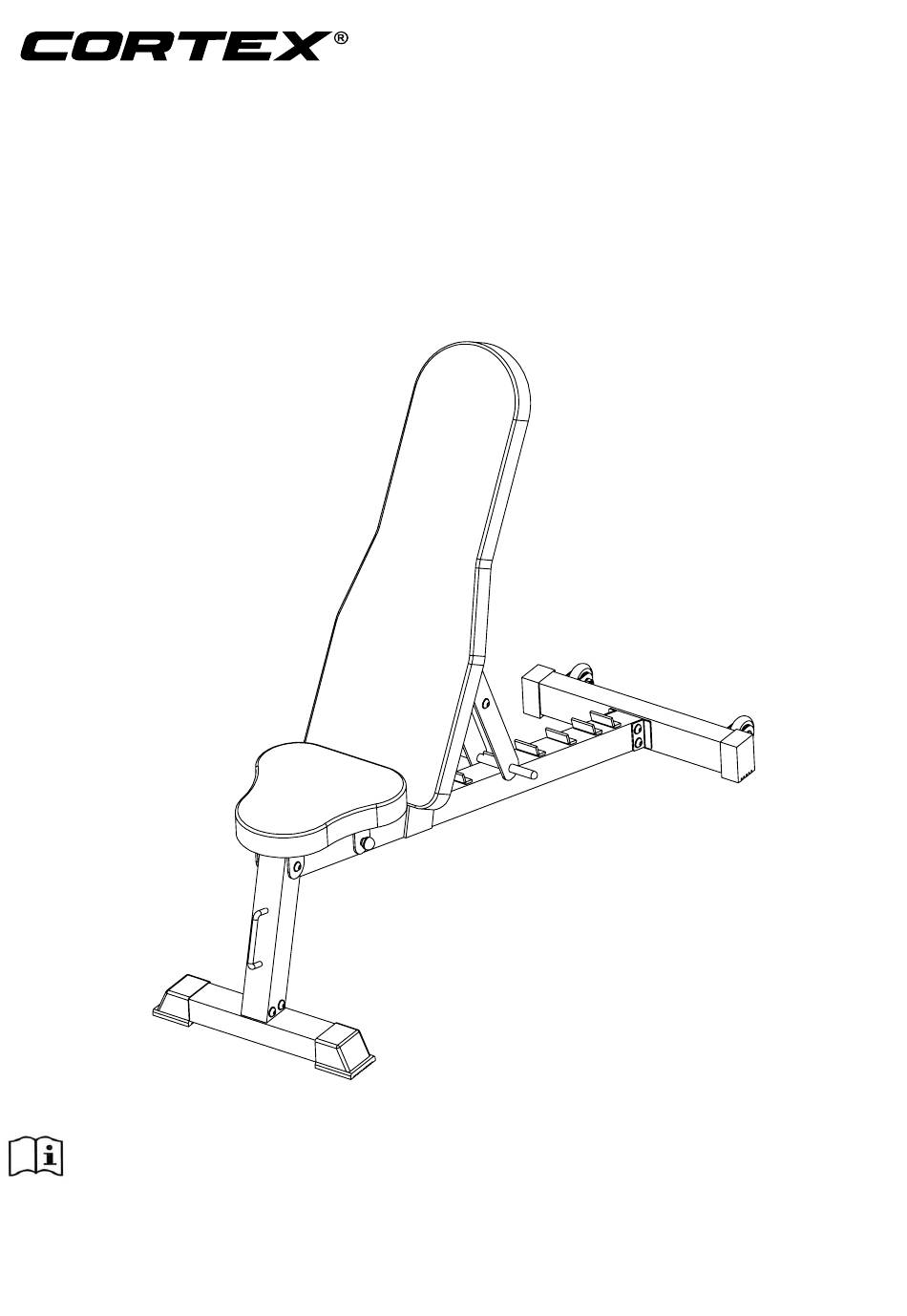

Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for future
reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Advertisement

loading

Related Manuals for Cortex BN-6

Summary of Contents for Cortex BN-6

  • Page 1 BN-6 STANDALONE BENCH OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS CARE INSTRUCTIONS PARTS LIST ASSEMBLY INSTRUCTIONS WARRANTY BN-6 Standalone Bench...

  • Page 3: Important Safety Instructions

    Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movement. This equipment is designed for indoor and family use only Care must be taken when lifting or moving the equipment so as not to injure your back. BN-6 Standalone Bench...

  • Page 4: Care Instructions

    Lubricate moving joints with grease after periods of usage  Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects  The machine can be kept clean by wiping it down using dry cloth BN-6 Standalone Bench...

  • Page 5: Parts List

    M10 x 70mm Front frame Wheels Hex bolt M10 x 45mm Tube plug M10 x 190mm Tube plug Seat plate Ball head rod Pull up tube Pull up bar Pan bolt M10 x 65mm Plastic bushing Tube plug BN-6 Standalone Bench...

  • Page 6: Assembly Instructions

    Attach 2x Wheels (#27) to the 1x Back Frame (#3) with:  2x Hex Bolts M10 x 45mm (#28)  4x Washers Φ10 (#17)  2x Nuts (#18) d) Attach 2x Tube Plug M10 x 190mm (#29) to 1x Front Frame (#26) STEP 2: BN-6 Standalone Bench...
  • Page 7 Secure 1x Axis (#16) into 1x Support Frame (#4) with:  2x Iron Bushing (#15) c) Secure 1x Support Frame (#4) to the 1x Main Tube (#1) with:  2x Pan Bolt M10 x 20mm (#20)  2x Washers Φ10 (#17) BN-6 Standalone Bench...
  • Page 8 Secure 2x Support Plates (#6) to the 1x Support Frame (#4) with:  1x Hex bolts M10 x 95mm (#19)  2x Washers Φ10 (#17)  1x Nuts M10 (#18) f) Secure 1x Knot (#14) on to the 1x Support Frame (#4). Note this part may be pre-installed. BN-6 Standalone Bench...
  • Page 9 Secure 1x Seat Pad (#2) to 1x Seat Plate (#31) with:  2x Pan bolts M8 x 15mm (#23)  2x Washers Φ8 (#22) b) Secure 1x Cushion (#5) to Support Frame (#4) with:  6x Pan Bolts M8 x 15mm (#23)  6x Washers Φ8 (#22) BN-6 Standalone Bench...

  • Page 10: Warranty

    Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs Warranty and Support: Please email us at support@lifespanfitness.com.au for all warranty or support issues. For all warranty or support related enquiries an email must be sent before contacting us via any other means. BN-6 Standalone Bench...
