WARNING
• Install the equipment by carefully following the instructions given by the manufacturer and in compliance with the legislation in force.
• All the equipment must only be used for the purpose it was built for. Comelit Group S.p.A. declines any responsibility for improper use of the apparatus, for modifications made
by others under for whatever reason, and for the use of non-original accessories and materials.
• All the products comply with the requirements of the 2006/95/CE directives (which replace the 73/23/CEE directives and subsequent amendments), as certified by the CE mark
on the products.
• Do not route the riser wires in proximity of the power supply cables (230/400V).
• Do not press and hold the audio catch while the handset is lifted.

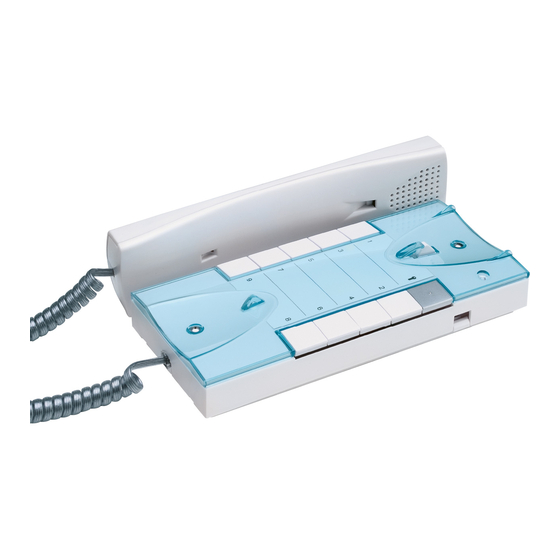

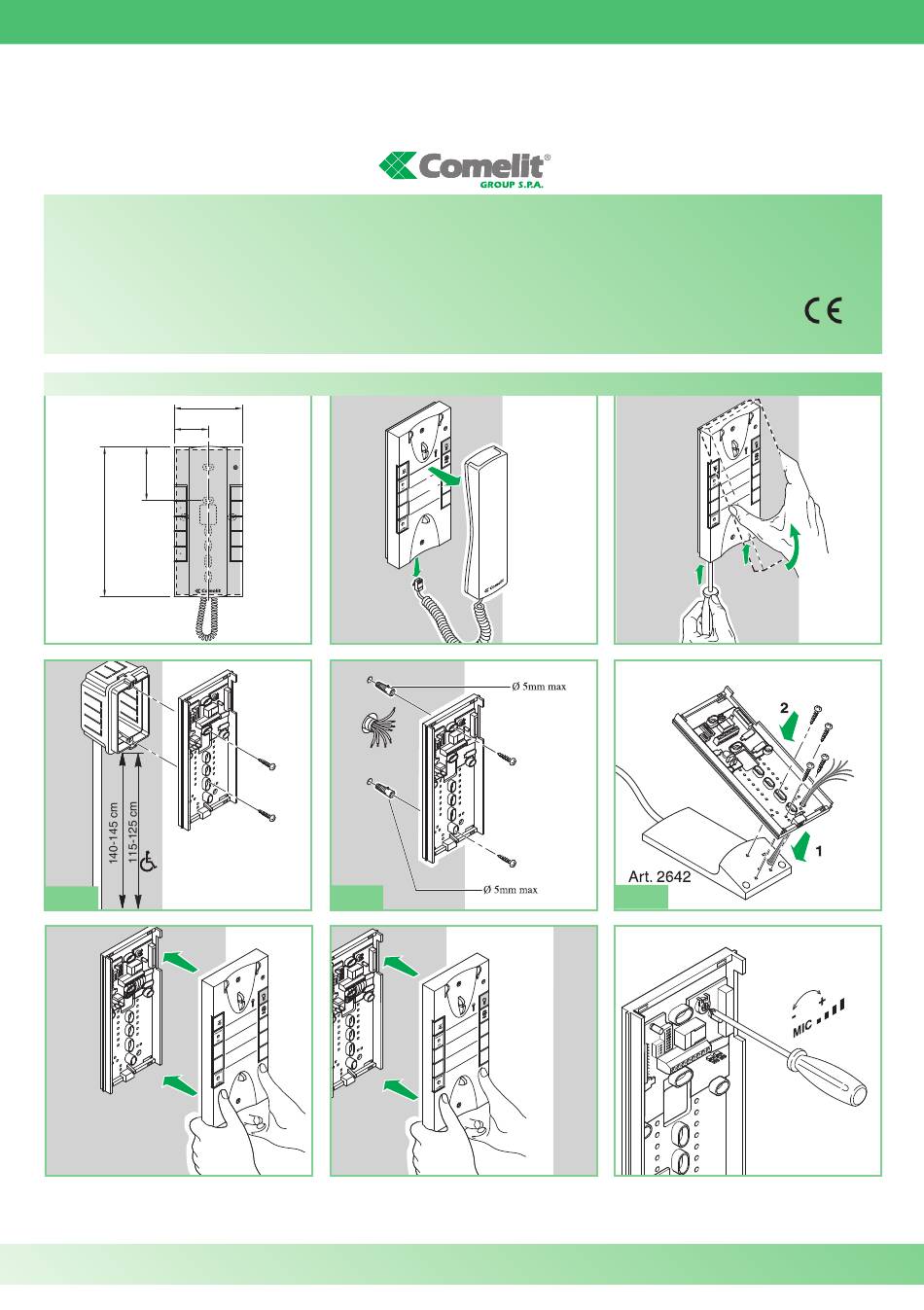

Installation Style door-entry phone Art. 2610SH
95mm
47,5mm
75,5mm
215mm
A
Comelit Group UK Ltd - Unit 4 Mallow Park - Watchmead Welwyn Garden City Herts - AL7 1GX - Tel: +44 (0)1707377203 - Fax: +44 (0)1707377204
www.comelitgroup.co.uk
1
B
2
1
4
3
5
6
8
7
9
www.simplehome.eu
info@comelitgroup.co.uk
Technical service abroad (+39) 0346750092
TECHNICAL
SHEET
FT 2610SH
2
1
2
4
3
5
6
7
8
9
2
1
3
4
6
5
8
7
9
commerciale.italia@comelit.it
Export departmet (+39) 0346750093
2
1
3
4
6
5
8
7
9
2
1
1
C
export.department@comelit.it
Advertisement
Related Manuals for Comelit FT 2610SH
Summary of Contents for Comelit FT 2610SH
- Page 1 • Install the equipment by carefully following the instructions given by the manufacturer and in compliance with the legislation in force. • All the equipment must only be used for the purpose it was built for. Comelit Group S.p.A. declines any responsibility for improper use of the apparatus, for modifications made by others under for whatever reason, and for the use of non-original accessories and materials.
- Page 2 • The dedicated address must be set according to the dipswitches shown in the programming table on page 3 • Addressing the handset may take place at any time, even without power. EXAMPLE for setting code 200: 4, 7, 8 Dip switch to ON FT 2610SH...
- Page 3 FT 2610SH Dip switch programming table (*NOTE: code 240 is reserved for the switchboard) User code Dip switch to ON User name User code Dip switch to ON User name User code Dip switch to ON User name User code...
- Page 4 GROUP S.P .A. SB2/EN/003 Connection of Art. 2610SH in Simplebus 2 CLOSED CONTACT WITH DOOR OPEN AC Release AC Relay SPEAKER UNIT READER SPEAKER UNIT KEYPAD FT 2610SH...
