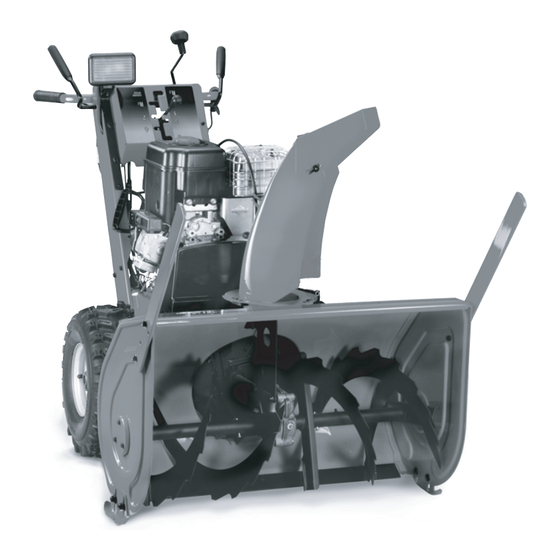

OPERATOR'S
MANUAL
Large Frame
Snowthrowers
960 Models
Mfg. No.
Description
1694602
9247E, 9HP Snowthrower
1694589
9560E, 9.5HP Snowthrower
1694597
9560M, 9.5HP Snowthrower (CE)
1694606
E9247, 9HP Snowthrower (CE)
1060 Models
Mfg. No.
Description
1694590
1060E, 10HP Snowthrower
1694598
1060M, 10HP Snowthrower (CE)
1070 Models
Mfg. No.
Description
1694603
10287E, 10HP Snowthrower
1694607
E10287, 10HP Snowthrower (CE)
1170 Models
Mfg. No.
Description
1694591
1170E, 11HP Snowthrower
1694599
1170M, 11HP Snowthrower (CE)
1180 Models
Mfg. No.
Description
1694604
11327E, 11HP Snowthrower
1694608
E11327, 11HP Snowthrower (CE)
1280 Models
Mfg. No.
Description
1694592
1280E, 12HP Snowthrower
1694600
1280M, 12HP Snowthrower (CE)
1290 Models
Mfg. No.
Description
1694605
12387E, 12HP Snowthrower
1694609
E12387, 12HP Snowthrower (CE)
1390 Models
Mfg. No.
Description
1694593
1390E, 13HP Snowthrower
1694601
1390M, 13HP Snowthrower (CE)
Rev. Date 5/2004
TP 100-4059-01-LW-S
1727040
Revision 01
Advertisement
Table of Contents
Related Manuals for Snapper 1694602 9247E, 11694602 9247E, 1694589 9560E, 1694597 9560M, 1694606 E9247, 1694590 1060E, 1694598 1060M, 1694603 10287E, 169460
Summary of Contents for Snapper 1694602 9247E, 11694602 9247E, 1694589 9560E, 1694597 9560M, 1694606 E9247, 1694590 1060E, 1694598 1060M, 1694603 10287E, 169460
- Page 1 OPERATOR’S MANUAL Large Frame Snowthrowers 960 Models Mfg. No. Description 1694602 9247E, 9HP Snowthrower 1694589 9560E, 9.5HP Snowthrower 1694597 9560M, 9.5HP Snowthrower (CE) 1694606 E9247, 9HP Snowthrower (CE) 1060 Models Mfg. No. Description 1694590 1060E, 10HP Snowthrower 1694598 1060M, 10HP Snowthrower (CE) 1070 Models Mfg.
-
Page 2: Table Of Contents
CONTENTS: Safety Rules & Information Training ...2 Preparation ...2 Operation...2 Children ...3 Clearing a Clogged Discharge Chute ...3 Service, Maintenance and Storage ...3 Emissions ...3 Decals...5 Safety Icons ...6 Identification Numbers...7 Features, Controls, & Operation Control Locations...8 General Operation Checks Before Each Start-Up ...10 Starting the Engine...11 Starting Controls...11 Operating The Snowthrower...12... -
Page 3: Safety Rules & Information
Safety Rules & Information This machine is capable of amputating hands and feet. Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. -
Page 4: Children
21. Keep in mind the operator is responsible for acci- dents occurring to other people or property. 22. Data indicates that operators, age 60 years and above, are involved in a large percentage of power equipment-related injuries. These operators should evaluate their ability to operate the unit safely enough to protect themselves and others from injury. -
Page 6: Decals
DECALS This unit has been designed and manufactured to pro- vide you with the safety and reliability you would expect from an industry leader in outdoor power equipment. Although reading this manual and safety instructions it contains will provide you with the necessary basic knowl- edge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important information while you are operating... -
Page 7: Safety Icons
Safety Icons SAFETY ICONS WARNING: READ OPERATOR’S MANUAL. Read and understand the Operator’s Manual before using this machine. DANGER: THROWN OBJECTS. This machine is capable of throwing objects and debris. Keep bystanders away. WARNING: REMOVE KEY BEFORE SERVICING. Remove the key, disconnect spark plug wire, and consult technical litera- ture before performing repairs or maintenance. -
Page 8: Identification Numbers
Mfg. No.: 169XXXX Serial No.: XXXXX 2002 dB(A) Engine RPM XXXX LpA: XXX dB(A) Vibration: XXX m/s² Simplicity Mfg. Inc. Port Washington, WI USA 53074-0997 Identification Numbers When contacting your authorized dealer for replace- ment parts, service, or information you MUST have these numbers. -
Page 9: Features, Controls, & Operation
Features, Controls, & Operation Please take a moment and familiarize yourself with the name, location, and function of these controls so that you will better understand the safety and operating instructions provided in this manual. CONTROL LOCATIONS The information below briefly describes the function of individual controls. Starting, stopping, and driving require the combined use of several controls applied in specific sequences. - Page 10 Auger Control Engages the auger/impeller when depressed. Releasing the control stops the auger/impeller. Chute Direction Control Models with Electric Chute Rotator: Depressing the chute rotator switch rotates the chute left or right. Models with Manual Chute Rotator: Turning the crank rotates the discharge chute to desired position.
-
Page 11: General Operation
Operation GENERAL OPERATION CHECKS BEFORE EACH START-UP 1. Make sure all safety guards are in place and all nuts, bolts and clips are secure. 2. Check to make sure that the clean-out is attached to the handle on the machine. Do not operate the machine without the clean-out tool properly stored on the handle. -
Page 12: Starting The Engine
STARTING CONTROLS See Figure 1for the following instructions. Units with Optional Electric Start A. Electric Start Button - The Electric Start Button (A) activates an electric starter mounted to the engine, eliminating the need to pull the starter han- dle. The Electric Start Button operates on 120 Volts AC, which is provided by connection to the extension cord provided with units equipped with this feature. -
Page 13: Operating The Snowthrower
Operation OPERATING THE SNOWTHROWER 1. Rotate the discharge chute to the desired direction. 2. Set the speed selector to the desired forward speed. 3. Fully press and hold the auger engage control (C, Figure 2) on the right-hand grip to begin auger rota- tion. -
Page 14: Deflector
DEFLECTOR The distance of the discharged snow is mainly controlled by the position of the deflector. (Engine speed also affects distance of discharge.) The more the deflector is tilted UP, the farther snow will be thrown. Models with Chute Deflector Knob See Figure 3. -
Page 15: Easy-Turn And Traction Drive Lock
Operation FULL TRACTION Both Wheels Drive Figure 6. Easy Turn Control EASY TURN™ FREEWHEELING AND TRACTION DRIVE LOCK While Clearing Snow: For easy turning when using the snowthrower, squeeze the Easy Turn™ lever (Figure 6). Engaging the Easy Turn™ lever releases the right traction wheel but allows the left wheel to continue driving (Figure 6). -
Page 16: After Each Use
AFTER EACH USE Normal use of the snowthrower may result in a build-up of packed snow in and around the starter cord housing and around engine controls. Heat from the engine will usually prevent the snow from freezing solid while the unit is running, but after the engine is shut down, some snow may continue melting from engine heat, and later freeze around some moving parts as the unit cools. -
Page 17: Regular Maintenance
Regular Maintenance MAINTENANCE SCHEDULE MAINTENANCE REQUIRED Check auger gear case lubrication.** Lubricate snowthrower. Check tire pressure. Change engine oil.* ✛ Clean or replace spark plug. Check drive linkage/belt tension. Lubricate Axle Shafts. Check / Lubricate Free-Hand Linkage. Lubricate Auger Shaft.*** * Change original oil after two hours of operation. -
Page 18: Lubrication
LUBRICATION IMPORTANT NOTE It is very important that grease fittings on the auger shaft are lubricated regularly. If auger rusts to shaft, damage to worm gear may occur if shear pins do not break. To prevent wheels rusting to axles, it is also necessary to remove the wheels and grease the axles regularly. -
Page 19: Check / Lubricate Free-Hand Linkage
Regular Maintenance CHECK / LUBRICATE FREE-HAND LINKAGE Check the function of the Free-Hand controls: the con- trols should function as described in the CONTROLS section. It is critical for the safe operation of the unit that the controls disengage when released. If the controls do not function properly, lubricate them. -
Page 21: Troubleshooting, Adjustments, & Service Troubleshooting
Troubleshooting, Adjustments, Service TROUBLESHOOTING This section provides troubleshooting and service instructions. Locate the problem and check the possible cause/remedy in the order listed. Also, refer to the engine manufacturer’s Owner’s Manual for additional information. For problems not covered here, contact your local deal- PROBLEM Engine fails to start. - Page 22 PROBLEM Auger rotates, but snow is not thrown far enough Poor traction Auger does not stop when auger lever is released Snowthrower does not stop when drive lever is released Discharge control is difficult to operate. Snowthrower veers to one side. Excessive vibration.
-
Page 23: Speed Selector Adjustment
Adjustments Figure 18. Speed Selector Linkage A. Shift Rod B. Carriage Bolts C. Nuts SPEED SELECTOR ADJUSTMENT 1. Loosen the two nuts (C, Figure 18). 2. Place the shift lever in 5th gear. 3. Push the lower rod into the housing and tighten the two nuts (C). -
Page 24: Traction Drive Tension
7. If auger does not operate properly, stop engine and recheck drive linkage adjustments. 8. If drive linkage is properly adjusted, auger drive belt tension may require adjustment. See "Adjusting Auger Drive Belt". TRACTION DRIVE TENSION Initial Adjustment CHANNEL HANDLE MODELS 1. -
Page 25: Manual Discharge Chute Adjustment
Adjustments MANUAL DISCHARGE CHUTE CONTROL LINKAGE ADJUSTMENT Pinion Gear Adjustment If the discharge chute is difficult to operate, first lubricate the pinion gear (A, Figure 23) and ring gear (F). If it is still difficult to operate, adjust as follows: NOTE: If the discharge chute will not stay in position, adjust the pinion gear (A) closer to the ring gear (F). -
Page 26: Easy Turn Cable Adjustment
EASY TURN™ CABLE ADJUSTMENT If the Easy Turn™ cable has stretched, the gears will not disengage when the control lever is activated. Adjust the cable using the following procedure. 1. Turn the engine off and disconnect the spark plug wire. 2. -
Page 27: Belt Replacement
Adjustments & Service BELT REPLACEMENT 1. Turn off the engine, remove the spark plug wire, and wait for all moving parts to stop. Rotate the spout full right. Loosen the two screws (B, Figure 28) securing the belt cover. 2. Tilt the cover forward and work it off the snowthrower. 3. - Page 28 6. Reverse the procedure to install the belts. Be sure there are no twists and the belts are properly seated in the grooves. Adjust the belt stops so there is 1/8” (3mm) clearance between belt and stop. The pattern for both belts is shown in Figure 31. Slide the right axle left fully before tightening the set collar (E, Figure 30).
-
Page 29: Specifications
Specifications NOTE: Specifications are correct at time of printing and are subject to change without notice. * Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors. ENGINE: 9 HP* Briggs & Stratton Make Briggs & Stratton Model Intek Snow Horsepower... -
Page 30: Replacement Parts & Accessories
