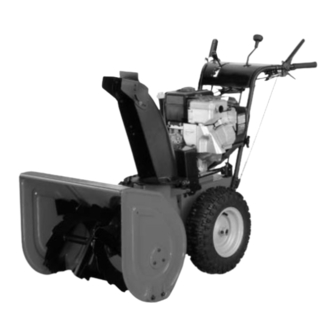

Snapper 105287E Parts Manual

Two stage large frame (2006) series 7 snow thrower
Hide thumbs Also See for 105287E:

Advertisement

Table of Contents

COPYRIGHT © 2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
TWO STAGE LARGE FRAME
McDonough, GA, 30253 U.S.A.
Revision 1,
2/7/2006
Parts Manual for
SNOW THROWER
(2006) SERIES 7
95247E (1694853)
105287E (1694855)
115327E (1694857)
13387E (1694859)
E95247 (1694854)
E105287 (1694856)
E115327 (1694858)
E13387 (1694860)
Manual No.
MODEL
7006080
TP 400-5135-1-LF-N

Advertisement

Table of Contents
loading

Related Manuals for Snapper 105287E

Summary of Contents for Snapper 105287E

  • Page 1 COPYRIGHT © 2006 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. TWO STAGE LARGE FRAME SNOW THROWER McDonough, GA, 30253 U.S.A. Revision 1, 2/7/2006 Parts Manual for (2006) SERIES 7 MODEL 95247E (1694853) 105287E (1694855) 115327E (1694857) 13387E (1694859) E95247 (1694854) E105287 (1694856)

  • Page 3: Table Of Contents

    PAGE GROUP Handles and Controls Group Auger Housing and Chute Group - 24, 28 & 32 inch Auger Housing and Chute Group - 38 inch Auger and Impeller Group Engine and Frame Group Traction Drive Group Wheel & Tires Group Decals Group Headlight Group TWO STAGE LARGE FRAME...

  • Page 4: Handles And Controls Group

    Handles and Controls Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 5 Handles and Controls Group Item Part No Description 1726833 CABLE AND SPRING ASSEMBLY, R.H. Auger 1731334A HANDLE, Tube, R.H. 1922127 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5 1921221 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 1960671 SCREW, Pan Head Torx, 1/4-20 x 3/4, Thread Cutting 1715654 SPACER, 1/4ID x 25/64OD x 11/64LG 1922837...
  • Page 6 Handles and Controls Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 7 Handles and Controls Group Item Part No Description 7075909 STICK, Snow Removal 1720452 CLAMP, Saddle Snow Handle E-Coat 1726727A BRACKET, Clean Out Tool 1960730 CAPSCREW, Hex Head Serrated Flange Taptite, 5/16-18 x 2 G5 1960729 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4 1726832 CABLE AND SPRING ASSEMBLY, L.H.

  • Page 8: Auger Housing And Chute Group - 24, 28 & 32 Inch

    Auger Housing and Chute Group - 24, 28 & 32 inch Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 9 Auger Housing and Chute Group - 24, 28 & 32 inch Item Part No Description 1921332 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 7072881 CHUTE AND DEFLECTOR ASSEMBLY, w/Remote 7072850 CHUTE AND DEFLECTOR ASSEMBLY, Manual 1931335 CARRIAGE BOLT, 5/16-18 x 1 G5 1670578 KNOB, Internal Thread, 5/16 1960686...
  • Page 10 Auger Housing and Chute Group - 24, 28 & 32 inch Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 11 Auger Housing and Chute Group - 24, 28 & 32 inch Item Part No Description 1960294 NUT, Hex Whiz Lock, 1/4-20 NC-2B 7045172 CABLE, Remote Chute Deflector, 60” 7023798 EYEBOLT, 1/4-20 x 1-1/2 LG 1960694 NUT, Hex Lock ESNA Light, 1/4-20NC-3B 1923341 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 1726992A...

  • Page 12: Auger Housing And Chute Group - 38 Inch

    Auger Housing and Chute Group - 38 inch Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 13 Auger Housing and Chute Group - 38 inch Item Part No Description 1960001 SCREW, Hex Washer Head Pastite, 10-14 x 5/8 1931333 CARRIAGE BOLT, 5/16-18 x 3/4 G5 2860210 WASHER, Special, 97/250ID x 1-3/25OD x 3/100 Thick 1960686 NUT, Hex Flange ESNA, 5/16-18 1923341 SCREW, Hex Whiz Lock, 1/4-20 x 3/4 1729792A...
  • Page 14 Auger Housing and Chute Group - 38 inch Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 15 Auger Housing and Chute Group - 38 inch Item Part No Description 1723921A BLADE, Scraper, 35-3/4 for 38” 1960702 CARRIAGE BOLT, 3/8-16 x 1 G5 1931277 NUT, Hex Flange Whiz Lock, 5/16-18 1935043 NUT, Flange Lock, 5/16-18 1729734D HOUSING AND IMPELLER ASSEMBLY, 38” 1664847 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 G5 1729642D...

  • Page 16: Auger And Impeller Group

    Auger and Impeller Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 17 Auger and Impeller Group Item Part No Description 1679293 PULLEY, w/Hub 1928721 SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8 1612187A IMPELLER ASSEMBLY 1960474 SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8 1612093 SEAL, Oil 1/4” Thick 1612149 BUSHING, 377/500 ID x 1-1/10 OD x 1-1/100 LG Powerdered Metal...
  • Page 18 Auger and Impeller Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 19 Auger and Impeller Group Item Part No Description 1668971 FITTING, Pipe Plug, Square Head 1921962 CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5 1723931 SHAFT, 5 LG 1920397 NUT, Hex Lock ESNA Light, 1/4-20NC-3B 1931277 NUT, Hex Flange, 5/16-18, Whiz Lock Small 1931333 CARRIAGE BOLT, 5/16-18 x 3/4 G5 1723922A...

  • Page 20: Engine And Frame Group

    Engine and Frame Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 21 Engine and Frame Group Item Part No Description 1700415 V-BELT, 3L 32.3” 1672732 V-BELT, 3L 31.0” 1928731 NUT, Hex, Toplock, Jam, 3/8-16 1668477 PULLEY, Idler 1960647 SCREW, Hex Head, 3/8-16 x 1-1/2 1665994 PIN, Flat Head Drilled 1703046A ARM, Idler, 5-3/4 LG 1727149 SPRING, Extension 1722460...
  • Page 22 Engine and Frame Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 23 Engine and Frame Group Item Part No Description ENGINE, 13HP B&S Electric Start Model: 21A414-0112-E1 1726942 HOSE, Oil Drain, w/Fittings 1664847 CAPSCREW, Hex Washer Head, 5/16-18 x 3/4 1727068 CLIP, “J” 1727033 SCREW, Muffler Deflector 1727032 DEFLECTOR, Rain Guard, B&S Snow Muffler 2831277 NUT, Hex Flange, 5/16-18, Whiz Lock Small 1725326A...

  • Page 24: Traction Drive Group

    Traction Drive Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 25 Traction Drive Group Item Part No Description 1930601 SCREW, Hex Washer Head Taptite, 5/16-18 x 5/8 1667341 RETAINER, Bearing 1722703 BEARING, Ball 1726856 SHAFT, Hex 1921332 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 1725428 DISC, Friction with Insert 1665995 HUB, Friction Disc 1960684 NUT, Hex Keps, 5/16-18, Conical Washer 1960687...
  • Page 26 Traction Drive Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 27 Traction Drive Group Item Part No Description 1726467 ROD, Pivot, 9-15/100 LG 1722460 PIN, Quick 1725666 SPRING, Extension 1719879 DRIVE DISC with SPINDLE 2818312 KEY, Woodruff, 47/250 x 5/8 1924366 WASHER, 5/8 1670849 ARM, Pivot with Bushings & Bearings (Includes Ref. Nos 45, 46, 47 &...

  • Page 28: Wheel & Tires Group

    Wheel & Tires Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 29 Wheel & Tires Group Item Part No Description 1731186 PIN, Klik 2172353 VALVE STEM & CAP 1714242 HUB, Wheel, RH 1722762 HUB, Wheel, RH 1612000 TIRE, 4.80-4.00-8 1722597 TIRE, 16 x 6.50-6 1714235 WHEEL & TIRE ASSEMBLY, RH (Includes Ref. Nos. 3, 4 & 5) 1722599 WHEEL &...

  • Page 30: Decals Group

    Decals Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...

  • Page 31: Decals Group

    DECAL, Dashboard (CE) 1715557 DECAL, Shift Pattern 1726946 DECAL, Auger Control 1727023 DECAL, Auger Control (CE) 1726721 DECAL, Snapper, Front Dash, 1-3/4 x 7-1/2 1722867 DECAL, Handle Lubrication 1716532 DECAL, Auger Impeller Warning 1727208 DECAL, Auger Impeller Warning (CE) 1731191 DECAL, Snapper, 9.5HP 24”...

  • Page 32: Headlight Group

    Headlight Group Manual No. 7006080 TWO STAGE LARGE FRAME TP 400-5135-1-LF-N (2006) SERIES 7...
  • Page 33 Headlight Group Item Part No Description 1727076 HEADLIGHT ASSEMBLY, Clear Rectangle 1715509A STRAP, Torque 1960684 NUT, Hex Keps, 5/16-18, Conical Washer 2825094 TIE, Self Locking 1919326 WASHER, 5/16 Footnotes: TWO STAGE LARGE FRAME (2006) SERIES 7 Note Manual No. 7006080 TP 400-5135-1-LF-N...
  • Page 36 TWO STAGE LARGE FRAME SNOW THROWER (2006) SERIES 7 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
