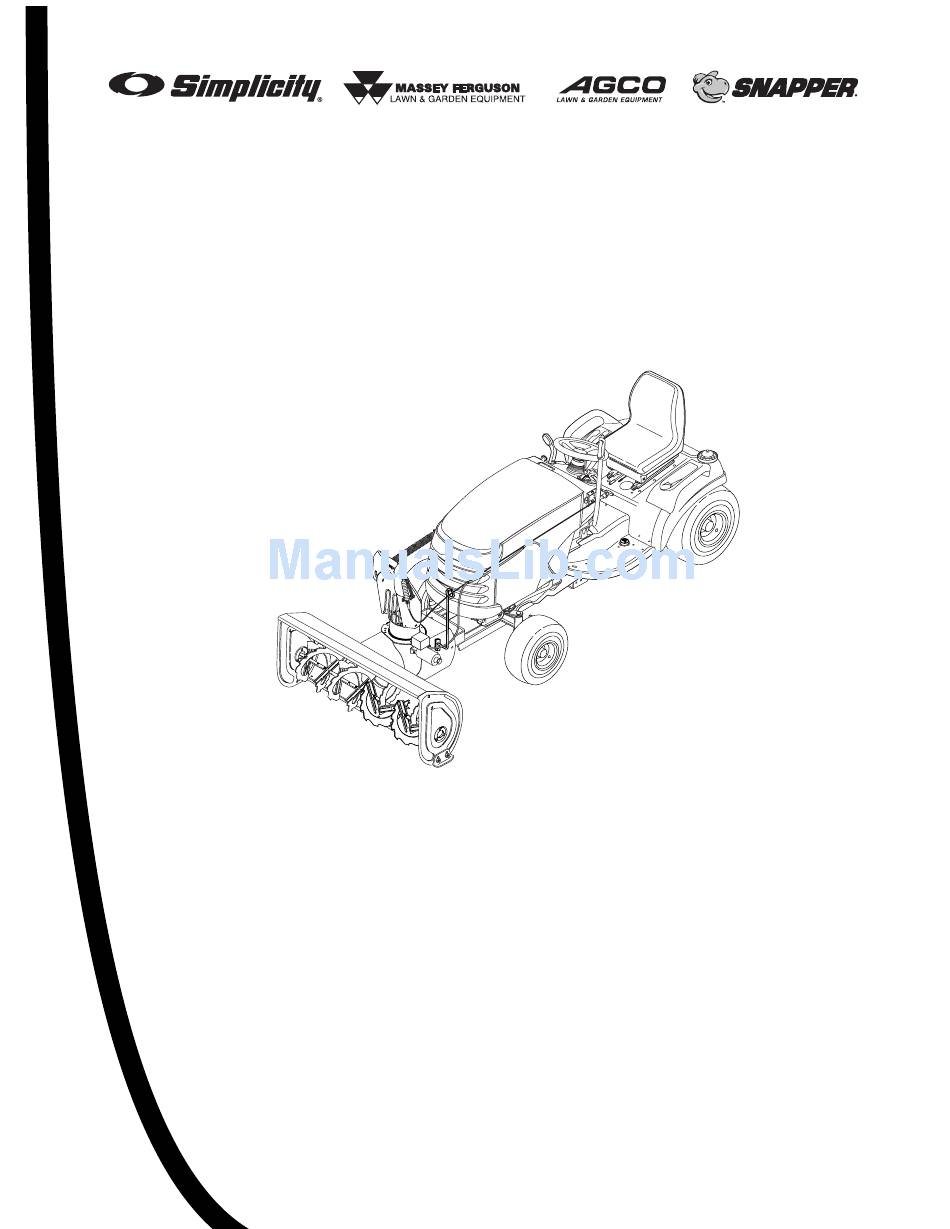

- Page 1 ATTACHMENT OPERATOR’S MANUAL 42” Two-Stage Snowthrower 42” Snowthrower Attachment Mfg. No. Description 1694238 42” Two-Stage Snowthrower 1694874 42” Two-Stage Snowthrower 1695099 42” Two-Stage Snowthrower 1724089 Revision 10 Rev. Date 6/2006 TP 100-3605-10-AT-SMA...
-
Page 3: Table Of Contents
Recommended Accessories ...1 Safety Rules & Information Training ...2 Preparation ...2 Operation...2 Children ...3 Clearing a Clogged Discharge Chute ...3 Service, Maintenance and Storage ...3 Emissions ...3 Decals...4 Required Accessories...5 Recommended Accessories...5 Clean-Out Warning and Procedure ...5 Features & Controls Control Functions ...6 General Operating Instructions Checks Before Starting...7... -
Page 4: Safety Rules & Information
Safety Rules & Information This machine is capable to amputating hands and feet and throwing objects. Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. -
Page 5: Children
19. Never leave a running unit unattended. Always disen- gage the auger and traction controls, stop engine, and remove keys. 20. Do not operate the unit while under the influence of alcohol or drugs. 21. Keep in mind the operator is responsible for acci- dents occurring to other people or property. -
Page 6: Decals
Safety Decals SAFETY DECALS This unit has been designed and manufactured to pro- vide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effec- tively, we have placed several safety labels on the unit to... -
Page 7: Required Accessories
Required Accessories It is required that tire chains and two rear wheel weights or Quick Tach Weights are used. Never operate on slopes greater than 17.6% (10°). Recommended Accessories A rear-mounted weight box can also be added for additional traction. The maximum weight added to the tractor should not exceed 35 lbs. -
Page 8: Features & Controls
Features & Controls CONTROL FUNCTIONS The information below briefly describes the function of individual controls. Operating the tractor and attachment requires the combined use of these controls and additional controls whose operation is described in the tractor Operator’s Manual. Please take a moment and familiarize yourself with the name, location, and function of these... -
Page 9: General Operating Instructions
WARNING If auger does not start and stop when engaging/disengaging electric clutch, see your authorized dealer. Under no circumstances should you attempt to defeat the safety system. Checks Before Starting IMPORTANT NOTE: Refer to Tractor Operator’s Manual for important information concerning safely storing your tractor. -
Page 10: Snow Removal Suggestions
General Operating Instructions Snow Removal Suggestions • Determine the best snow removal pattern before beginning. • Wind direction is an important factor to consider. Rotate the spout to discharge snow downwind. • Plan the pattern so that you avoid throwing snow on cleared areas and on yourself as you are operating. -
Page 11: Maintenance
WARNING To avoid serious injury, perform maintenance on the unit only when the engine is stopped and all moving parts have stopped. Always remove the ignition key before beginning maintenance or adjustments to prevent accidental starting of the engine. Schedule For Normal Care Care Required Schedule Clean snow and ice from... -
Page 12: Check Auger Gearbox Oil Level
Maintenance Check Auger Gearbox Oil Level Perform this check every season. 1. Remove the plug (A, Figure 3) from the side of the auger gear box. 2. Add Simplicity Winter Weight Worm Gear Oil until the oil level is even with the fill plug hole. 3. -
Page 13: Troubleshooting, Adjustments & Service
TROUBLESHOOTING While normal care and regular maintenance will extend the life of your equipment, prolonged or constant use may eventually require that service be performed to allow it to continue operating properly. The troubleshooting guide below lists the most common problems, their causes and remedies. -
Page 14: Skid Shoe Adjustment
Troubleshooting, Adjustments, & Service Skid Shoe Adjustment On smooth surfaces such as concrete or asphalt, the scraper bar should scrape the surface. On surfaces such as gravel, the scraper bar should be set high enough so that it will not pick up debris. 1. -
Page 15: Lift Adjustment
Lift Adjustment In the fully raised position the attachment should be 4”-5” off the ground. In the fully lowered position, the lift rod should compress the spring creating downward pressure on the snowthrower. NOTE: Always adjust the lift height before and after adjusting the downward pressure. -
Page 16: Belt Tension Adjustment
Troubleshooting, Adjustments, & Service Belt Tension Adjustment 1. With the snowthrower drive belt installed, trunnion (A, Figure 11) should be between marks (G) on spring tension bracket (B) for correct belt tension. 2. Turn belt tension handle (C) to move trunnion (A) for- ward or rearward until it is between marks (G). -
Page 17: Initial Setup & Assembly
Ref Qty Description SNOWTHROWER GUIDE, Chute, Hold-Down SCREW, Plastite DISCHARGE CHUTE ASSY. MOUNTING BRACKET WASHER, Large LOCKWASHER, 1/4” NUT, 1/4-20 HAIR PIN CLIP CAPSCREW, 1/4-20 x 7/8 Figure 13. Initial Setup (Left Side Mount Shown) Ref Qty Description SWITCH WIRE HARNESS, Switch WIRE HARNESS, Trailer Plug SUPPORT CARRIAGE BOLT, 5/16-18 x 1... -
Page 18: Install Hitch
Initial Setup & Assembly Snowthrower & Dozer Applications Figure 14. Connect Lift Link - Manual Lift Models A. Pin B. Rear Hole of Lift Bar (Snowthrower & Dozer Applications) C. Spacer D. Hair Pin Clip E. Upper Hole (Snowthrower & Dozer Applications) F. -
Page 19: Install Skid Shoes
Figure 18. Skid Shoe Installation A. Carriage Bolt, 3/8-16 x 3/4” B. Snowthrower Housing C. Skid Shoe D. Washer E. Lockwasher F. Hex Nut Install Skid Shoes 1. Install the skid shoes using 3/8-16 x 3/4” carriage bolts, washers, lockwashers, and nuts as shown in Figure 18. -
Page 20: Mount Remote Deflector Control
Initial Setup & Assembly Figure 21. Mount Control Bracket - Current Models A. 1/4-20 x 7/8 Capscrews B. 1/4 x 1-1/4 Flatwashers C. 1/4 Lockwashers Mount Remote Deflector Control 1. Using the template included in the back of this manu- al, drill two 9/32”... -
Page 21: Install Snowthrower
Install Snowthrower CONNECT TO HITCH 1. Position the snowthrower in front of the hitch. Insert the hitch pin (A, Figure 24) through the snowthrower and hitch on both sides of the snowthrower. Secure with a hair pin clip (B). Use the back set of hitch holes (see inset). - Page 22 Initial Setup & Assembly Figure 27. Install Lift Assist A. Spring B. Pal Nut C. Spring Retainer D. Assist Bracket E. Capscrew, 5/16-18 x 4-1/2 F. Spring Anchor INSTALL LIFT ASSIST SPRING (MANUAL LIFT ONLY) 4. Install the spring anchor (F, Figure 27) on the bumper.
- Page 23 Figure 30. Rotator Motor Electrical Connection A. Rotator Motor Harness & Plug B. Tractor Plug INSTALL DRIVE BELT 7. Route the drive belt as shown in Figure 31. Note that the back of the belt rides in the back-side idlers (B).
-
Page 24: Removal
Removal & Normal Installation Figure 33. Removal A. Rotator Motor Plug B. Lift Rod C. Hair Pin Clip D. Hitch Pin & Clip Removal 1. Fully raise and support the snowthrower with wood blocks. 2. Manual Lift Models: Release and remove the lift assist spring and anchor (F, Figure 33). -
Page 25: Normal Installation
8. Remove the hitch pin and clip (D, Figure 33) from the snowthrower and remove the snowthrower. Reinstall all pins and clips to prevent loss. 9. Remove the clevis pin and hair pin (G, Figure 33 RH manual lift models) frame mounted bracket. Reinstall all pins and clips to prevent loss. -
Page 26: Lift Variations When Using Attachments
Lift Variations When Using Attachments Figure 36. Lift Lock Plate - Hydraulic Lift Models A. Lift Cylinder B. Flat Head Pin (Original) C. Flat Head Pin (New) D. Lock Plate E. Hair Pin Clips F. Lift Shaft Assy. G. Washers LIFT VARIATIONS WHEN USING ATTACHMENTS When a front-mounted attachment such as a snowthrow-... -
Page 28: Mounting Remote Deflector Control
Mounting Remote Deflector Control Line Template Up with Edge of Plastic Dashboard Mark and Drill One 9/32” Hole Mount Bracket and align with Line Mark and Drill One 9/32” Hole Figure 37. Template Location MOUNTING REMOTE DEFLECTOR CONTROL NOTE: Read through instructions before beginning. 1. -
Page 29: Template
Line Template Up with Top Crease of Plastic Dashboard Mark and Drill One 9/32” Hole Line Template Up with Edge of Plastic Dashboard Template... - Page 30 © Copyright 2006 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA. P R O D U C T S 535 Macon Street McDonough, GA 30253 www.Snapper.com 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 AGCOLawn.com...
