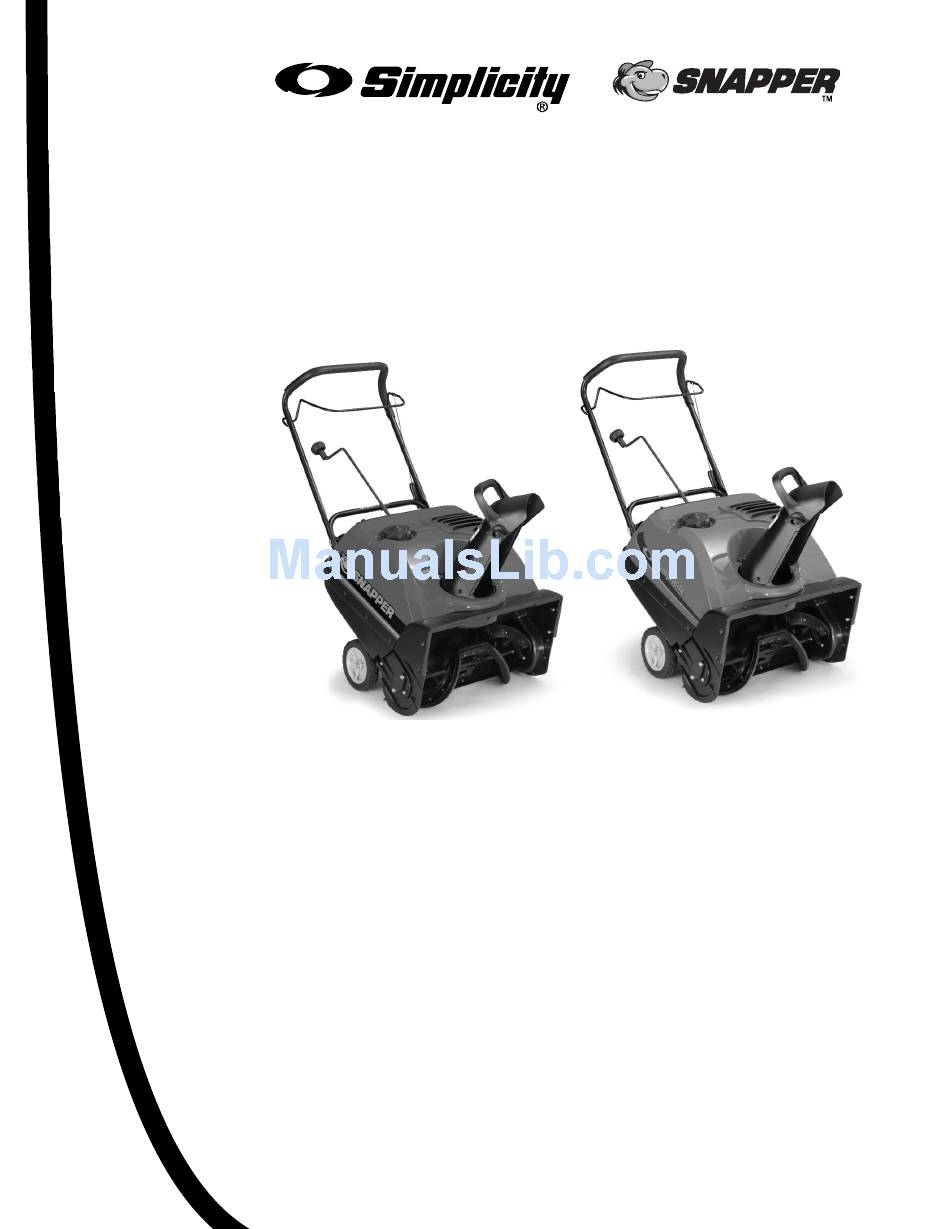

- Page 1 OPERATOR’S MANUAL Single Stage Snowthrower 522E Models Mfg. No. Description 1695090 522E, 5HP Snowthrower 1695091 522E, 5HP Snowthrower (CE) 7800080 SS5220E, 5HP Snowthrower 7800083 ESS5220E, 5HP Snowthrower (CE) 1740187-02 Rev 9/2006 TP 100-4364-02-SW-SN...
-
Page 3: Table Of Contents
CONTENTS: Safety Rules & Information General...2 Training ...4 Preparation ...4 Operation...4 Children ...5 Clearing a Clogged Discharge Chute ...5 Service, Maintenance and Storage ...5 Emissions ...5 Identification Numbers...6 Decals...7 Assembling the Snowthrower ...8 Controls & Operation Snowthrower Controls...10 Engine & Starting Controls...11 General Operation ...12 Checks Before Each Start-Up ...12 Adding Engine Oil ...13... -
Page 4: Safety Rules & Information
Safety Rules & Information Read the Manual The operator’s manual contains important safety information you need to be aware of BEFORE you operate your unit as well as DURING operation. Safe operating techniques, an explanation of the product’s features and controls, and maintenance information is included to help you get the most out of your equipment investment. -
Page 5: Safety Rules And Information
Moving Parts This equipment has many moving parts that can injure you or someone else. However, if you are standing in the operator’s position, and follow all the rules in this book, the unit is safe to operate. The auger and impeller have spinning parts that can amputate hands and feet. Do not allow anyone near the equipment while it is running! DO NOT clear the discharge chute by hand. -
Page 6: Training
Safety Rules & Information This machine is capable to amputating hands and feet and throwing objects. Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. -
Page 7: Children
21. Keep in mind the operator is responsible for acci- dents occurring to other people or property. 22. Data indicates that operators, age 60 years and above, are involved in a large percentage of power equipment-related injuries. These operators should evaluate their ability to operate the unit safely enough to protect themselves and others from injury. -
Page 8: Identification Numbers
Product Identification Identification Numbers When contacting your authorized dealer for replace- ment parts, service, or information you MUST have these numbers. Record your model name/number, manufacturer’s identi- fication numbers, and engine serial numbers in the space provided for easy access. These numbers can be found in the locations shown. -
Page 9: Decals
SAFETY DECALS Safety warning decals are placed at strategic locations on the snowthrower as a constant reminder to the opera- tor of the most important safety precautions. All warning, caution and instructional messages on your snowthrow- er should be carefully read and obeyed. If any of these decals are lost or damaged, replace them at once. They can be purchased from your local dealer. -
Page 10: Assembling The Snowthrower
Assembling the Snowthrower TOOLS REQUIRED • Knife REMOVAL FROM CARTON 1. Locate and remove container of oil. 2. Locate all parts packed separately and remove from carton. Note: Set the fuel stabilizer aside until adding gasoline to the fuel tank. We recommend that fuel stabilizer be added to the fuel each time that gasoline is added to the fuel tank. -
Page 11: Assembling The Snowthrower
Figure 3. Z-Hook Installation A. Auger Drive Lever B. Z-Hook C. Auger Drive Cable 2. Attach the auger drive cable (C, Figure 3) to the auger drive lever (A) using the Z-hook (B). 3. Remove the t-knob (B, Figure 4) and bolt on the upper chute. -
Page 12: Controls & Operation
Controls & Operation SNOWTHROWER CONTROLS Auger Control A. Auger Control - This control engages and disen- gages the auger. Pull the control back against handle to engage the auger, (this will pull snowthrower for- ward if auger is in contact with the ground). Release the Auger Control to stop rotation of auger. -
Page 13: Engine & Starting Controls
ENGINE & STARTING CONTROLS NOTE: Throttle - This snow thrower does NOT have a throttle for controlling operating speed of engine. The engine governor maintains operating speed for vary- ing snow removal conditions. A. Electric Start Button - The Electric Start Button (A, Figure 8) activates an electric starter mounted to the engine, eliminating the need to pull the starter han- dle. -
Page 14: General Operation
Controls & Operation GENERAL OPERATION CHECKS BEFORE EACH START-UP 1. Make sure all safety guards are in place and all nuts, bolts and clips are secure. 2. Check the fuel supply. Fill the tank no closer than 1/4 to 1/2 inch of top of tank to provide space for expan- sion. -
Page 15: Adding Engine Oil
ADDING ENGINE OIL 1. Make sure the unit is level. Use a high quality deter- gent oil classified “For Service SG, SH, SJ, SL, or higher”. 2. Remove the oil fill cap/dipstick access panel (A, Figure 9). 2. Remove the oil fill cap/dipstick (B) and wipe with a clean cloth. -
Page 16: Starting The Engine
Controls & Operation STARTING THE ENGINE NOTE: The snowthrower engine is designed to operate at cold temperatures. Avoid operating the snowthrower if air temperature is 40° F or warmer since engine may vapor lock and stop running after a short time. Engine will be difficult to start in warm weather. -
Page 17: Operating The Snowthrower
OPERATING THE SNOWTHROWER Before operating snowthrower, review the Checks Before Each Use under General Operation on page 12 of this manual. 1. Rotate the discharge chute to the desired direction. 2. Pull the Auger Control back against the handle to engage the auger. -
Page 18: Regular Maintenance
Regular Maintenance WARNING Before beginning any repair stop the engine, remove the key, disconnect the spark plug wire, and wait for all moving parts to stop. LUBRICATION Note: The drive pulley end of auger shaft is supported by a sealed ball bearing and requires no lubrication. The ball bearing on other end of auger shaft is also sealed, and will not require lubrication. -
Page 19: Troubleshooting & Service Troubleshooting
Problem Engine fails to start Engine starts hard or runs poorly Unit does not throw snow Auger does not stop turning when control is released Excessive vibration Note: For repairs beyond the minor adjustments listed above, please contact your local dealer. CHUTE REMOVAL AND INSTALLATION 1. -
Page 20: Cover Removal And Installation
Troubleshooting & Service COVER REMOVAL AND INSTALLATION To access the drive system or the engine, the covers must be removed as follows: REMOVE THE TOP COVER 1. Remove the discharge chute. See “How To Remove The Chute”. 2. Remove the fuel cap. 3. -
Page 21: Replacing The Drive Belt
REPLACE DRIVE BELT The drive belt is of special construction and must be replaced with original factory replacement belt available from your nearest dealer. 1. Remove the belt cover. See “How To Remove The Belt Cover”. 2. Remove the drive belt (E, Figure 14) from the idler pulley (G). -
Page 22: Servicing The Spark Plug
Troubleshooting & Service SERVICING THE SPARK PLUG 1. Remove engine key from switch. 2. Remove the oil access cover. 3. Disconnect the wire from the spark plug. 4. Inspect the spark plug and clean. If necessary, replace it with a new spark plug as recommended in the engine owners manual. -
Page 23: Auger Drive Cable Adjustment
AUGER DRIVE CABLE ADJUSTMENT The auger drive cable is adjusted at the factory and no adjustment should be necessary. If the cable becomes stretched or is sagging, adjustment will be necessary. Whenever the belt is adjusted or replaced, the cable will need to be adjusted. -
Page 24: Specifications
9.02 Cu. in (148 cc) Parts & Accessories REPLACEMENT PARTS Replacement parts are available from your authorized dealer. Always use genuine Simplicity/Snapper Service Parts. MAINTENANCE ITEMS Many convenient and helpful service and maintenance items are available from you authorized dealer. Some of... - Page 28 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.SimplicityMfg.com P R O D U C T S 535 Macon Street McDonough, GA 30253 www.Snapper.com © Copyright 2006, Briggs & Stratton. All Rights Reserved. Printed in USA.
