Operation

Mowing Height Adjustment

The cutting height adjustment pin (A, Figure 6) control the
mower cutting height. The cutting height is adjustable
between 1-3/4" (4,4 cm) and 5" (12,7 cm) in 1/4" (0,64 cm)
increments.
1. Depress the deck lift foot pedal (B) until it locks into the
5" (12,7 cm) position.
2. Place the cutting height adjustment pin in the desired
cutting height.
3. Depress the deck lift foot pedal then push the lock lever
(C) toward the right to release the lock.
4. Release the deck lift foot pedal until it comes to rest
against the cutting height adjustment pin.

Foot Pedal Adjustment

The deck lift foot pedal can be adjusted to accommodate the
operator's height for optimal comfort.
To adjust pedal position:
1. Remove the foot pedal (A, Figure 7) from the pedal
mount tab (B).
2. Remove the pedal mount hardware (C) and rotate the
tab 180 degrees.
3. Reinstall the pedal mount hardware and tighten securely.
4. Reinstall the foot pedal on the pedal mount tab in the
proper orientation as shown in Figure 7.
18
B

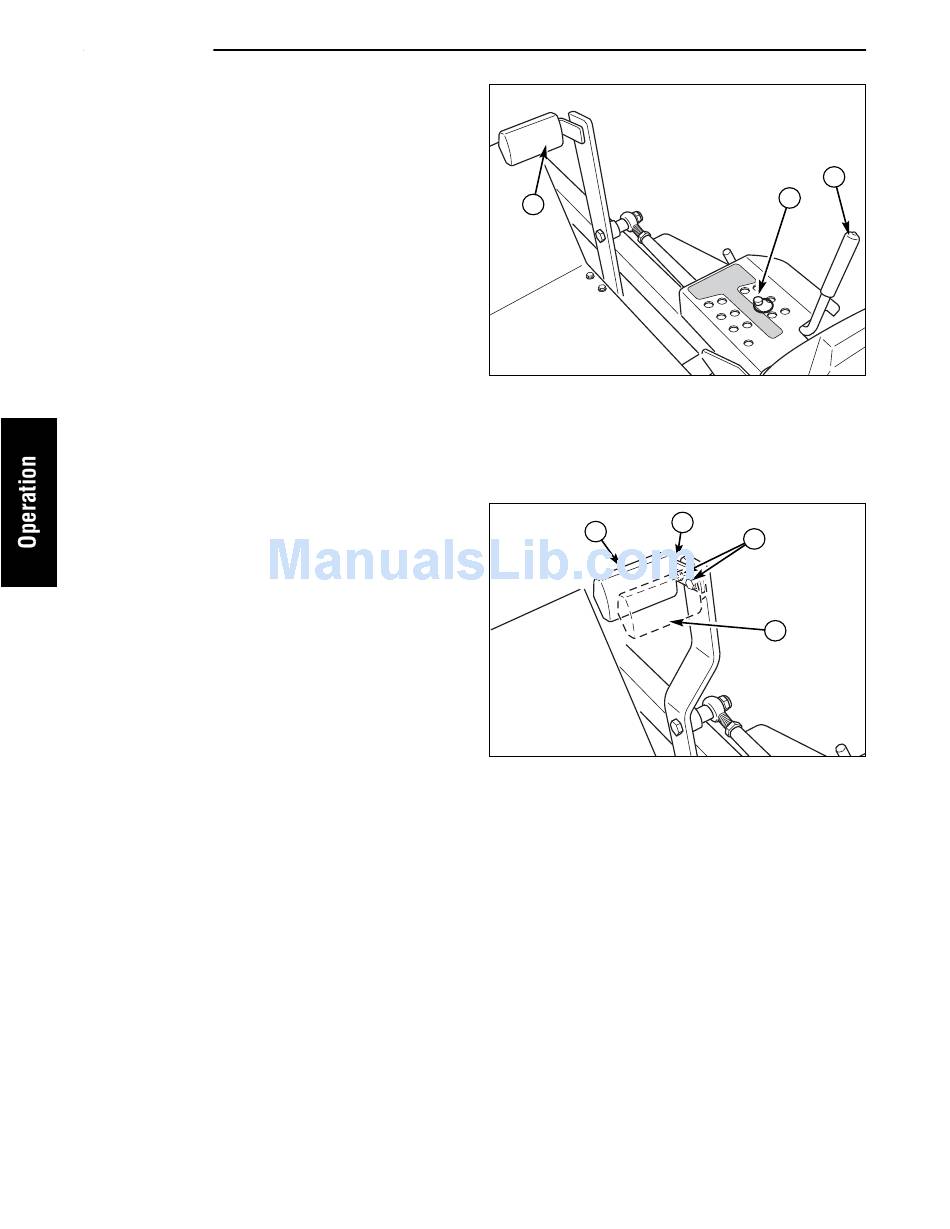

Figure 6. Mowing Height Adjustment
A. Cutting Height Adjustment Pin
B. Deck Lift Foot Pedal
C. Deck Lift Lock lever
A
Figure 7. Foot Pedal Adjustment
A. Deck Lift Foot Pedal
B. Pedal Mount Tab
C. Pedal Mount Hardware
D. Optional Position
C
A
B
C
D
