NOTE: Specifications are correct at time of printing and are subject to change without notice.
* Actual sustained engine power will likely be lower due to operating limitations and environmental factors. Please refer to 'Engine Power Rating Information' for
further details.
Safety Instructions & Operator's Manual for

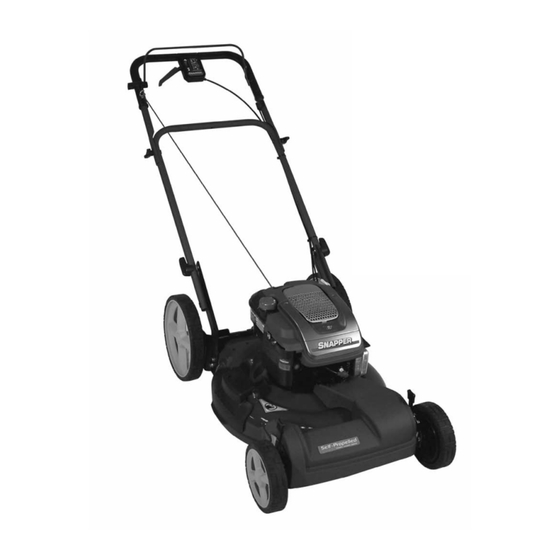

22" WALK BEHIND
S2265 (7800189)
SP2265 (7800165)
SPV22675HW (7800190)
NS2265 (7800228)
NSP2265 (7800229)
NSPV22675HW (7800230)
Manual No. 7102320 (I.R. 1/15/2008)
MOWERS
Models
TP 100-5333-IR-WB-N
Advertisement
Table of Contents
Related Manuals for Snapper S2265 (7800189)
Summary of Contents for Snapper S2265 (7800189)
- Page 1 NOTE: Specifications are correct at time of printing and are subject to change without notice. * Actual sustained engine power will likely be lower due to operating limitations and environmental factors. Please refer to ‘Engine Power Rating Information’ for further details. Safety Instructions &...
- Page 2 Serial Number ______________________________________________________________ Engine Model_________________________Type__________________Trim___________________ It is very important that you register your purchase with Snapper to ensure warranty coverage. Please mail your product registration card to: Snapper at P.O. Box 777, McDonough, Georgia 30253. Or you may register online at www.snapper.com.
-
Page 3: Table Of Contents
Table of Contents Operator Safety ..........2 Important Operator Safety Instructions . -
Page 4: Operator Safety
If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-317-7833). Protection for Children Tragic accidents can occur if the operator is not alert to the presence of children. - Page 5 10. DO NOT test for spark by grounding spark plug next to spark plug hole; spark plug could ignite gas exiting engine. 11. Have machine serviced by an authorized SNAPPER dealer at least once a year and have the dealer install any new safety devices.
-
Page 6: Preparation
(B), twist the rope through the rope guide mounted on the right side of the handle. Figure 1: Unfolding the lower handle Figure 2: Unfolding the upper handle Figure 3: Attaching the recoil-start grip www.snapper.com... -
Page 7: Handle Height
Preparation (Continued) Handle Height 1. Turn the knobs (A, Figure 4) on either side of the lower handle (B) to retract the locking pins. Align the lower handle with the desired set of holes in the handle brackets (C). Turn the knobs to release the locking pins and secure the lower handle. -
Page 8: Grass Bag
3. First, attach the clips (B, Figure 6) to the side of the frame assembly (C). Next, attach the clips to the top and bottom of the frame assembly. Figure 5: Installing the frame assembly Figure 6: Installing the bag clips www.snapper.com... - Page 9 Preparation (Continued) Mounting the Grass Bag 1. To mount the grass bag on the mower, raise the rear door (A, Figure 7). Holding the grass bag by the handle (B), mount the hooks (C) on either end of the grass bag frame assembly onto the rear door pivot rod (D).
-
Page 10: Side Discharge Deflector
Figure 9) goes through the slot in the side deflector. 4. Lower the mulcher cover (A, Figure 10). 5. Attach the wire to the spark plug. Figure 8: Installing the side discharge deflector Figure 9: Side discharge deflector locking tabs Figure 10: Releasing the mulcher cover www.snapper.com... -
Page 11: Mulching Tips
Preparation (Continued) Mulching Tips Mulching finely cuts the grass so that the grass can be easily recycled. Because the nutrients are returned to the soil, the lawn will need less fertilizer. To correctly mulch the lawn, follow the tips below. The grass must be dry. -
Page 12: Operation
Before you start the engine, check the engine stop cable. Make sure the engine stop cable is assembled correctly. Before you operate the unit, replace a bent or damaged engine stop cable. www.snapper.com... -
Page 13: Starting The Engine
Operation (Continued) Starting the Engine WARNING: The blade will rotate when the engine runs. IMPORTANT: Before you start the engine, operate the engine stop lever several times. Make sure the engine stop cable moves freely. Note: The engine design does not include a throttle control or an engine speed adjustment. -
Page 14: Maintenance
(A, Figure 16). Make sure each adjuster arm is in the same position so that the mower will cut level. 1. Disengage the adjuster arm. 2. Move the adjuster arm to another position. Figure 16: Adjusting the height of cut www.snapper.com... -
Page 15: Removing The Drive Belt
Maintenance (Continued) Removing the Drive Belt (Self-Propelled Units Only) WARNING: Before you remove the belt, disconnect the wire from the spark plug. 1. Remove the screws that secure the belt cover (A, Figure 17). Remove the belt cover. Note: The screws that secure the belt cover are located beneath the deck. -
Page 16: Adjusting The Drive Cable
4. Before you begin to mow, make sure the drive system will correctly disengage and that the mower will stop. If the drive system will not disengage, take the mower to an authorized service center before you operate the mower. www.snapper.com... -
Page 17: Blade Service
Maintenance (Continued) Blade Service WARNING: Before you inspect the blade or the blade adapter, disconnect the wire to the spark plug. If the blade hits an object, stop the engine. Disconnect the wire to the spark plug. Check the unit for damage. Frequently check the blade for wear or damage such as cracks. -
Page 18: Preparing The Mower For Storage
CAUTION: Be careful when you fold or raise the handle. Do not damage the cables. A cable that is bent will not work correctly. Before you use the unit, replace a bent or damaged cable. 10. Put the unit in a building that has good ventilation. www.snapper.com... -
Page 19: Troubleshooting
Troubleshooting The engine will not start. 1. Make sure the fuel tank is filled with clean gasoline. Do not use old gasoline. 2. On a cold engine, push the primer button (optional on some models). For the number of times required to push the primer button, see the engine manufacturer’s instructions. -
Page 20: Warranty
For ninety (90) days from purchase date for the original purchaser’s commercial, rental, or other non-residential use, SNAP- PER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both. - Page 21 Slope Guide...
- Page 22 Notes www.snapper.com...
- Page 23 Notes...
- Page 24 (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine. Snapper Products 535 Macon Street McDonough, GA 30253...
