Ford Ranger Raptor 2018 Supplement Manual page 36

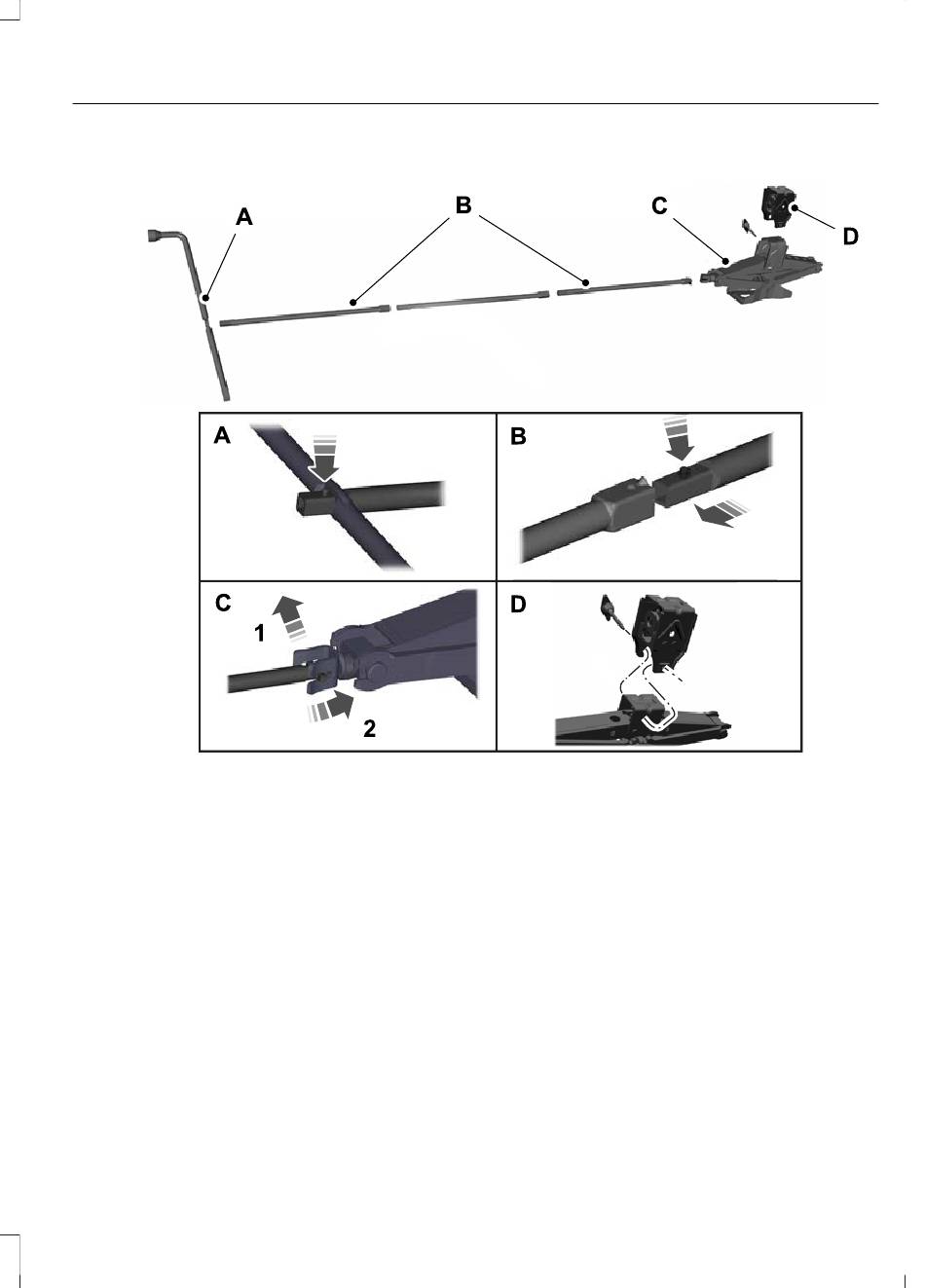

Vehicle Jack Assembly
E263487
A Wheel Brace.
B Jack Handle and Extensions.
C Vehicle Jack.
D Extension Adaptor - Raptor Only.
Note: The Extension Adaptor is only used
for the front jacking points of your vehicle,
do not use for the rear jacking points.
The jack, wheel brace, extension adaptor
and jack handle are in the cab.
Your jack does not require maintenance or
additional lubrication over the service life
of your vehicle.
Ranger Raptor (TKD) Raptor, Vehicles Built From: 21-05-2018, JB3B 19A285 CKA enPHI, Edition date: 201804, First-Printing
Wheels and Tires
Do not use the jack if it is visibly damaged
or does not operate freely. Replace the
damaged jack with a jack specified for use
on your vehicle if you detect these
conditions.
Double Cab - Jack and Tools Behind
Seat
Note: There are two different double cab
jack location configurations.
