ADTRAN 1442704PG1 Installation Instructions

CLEI: S00TALAJ__
Product P/N: 1442704PG1
D
ESCRIPTION

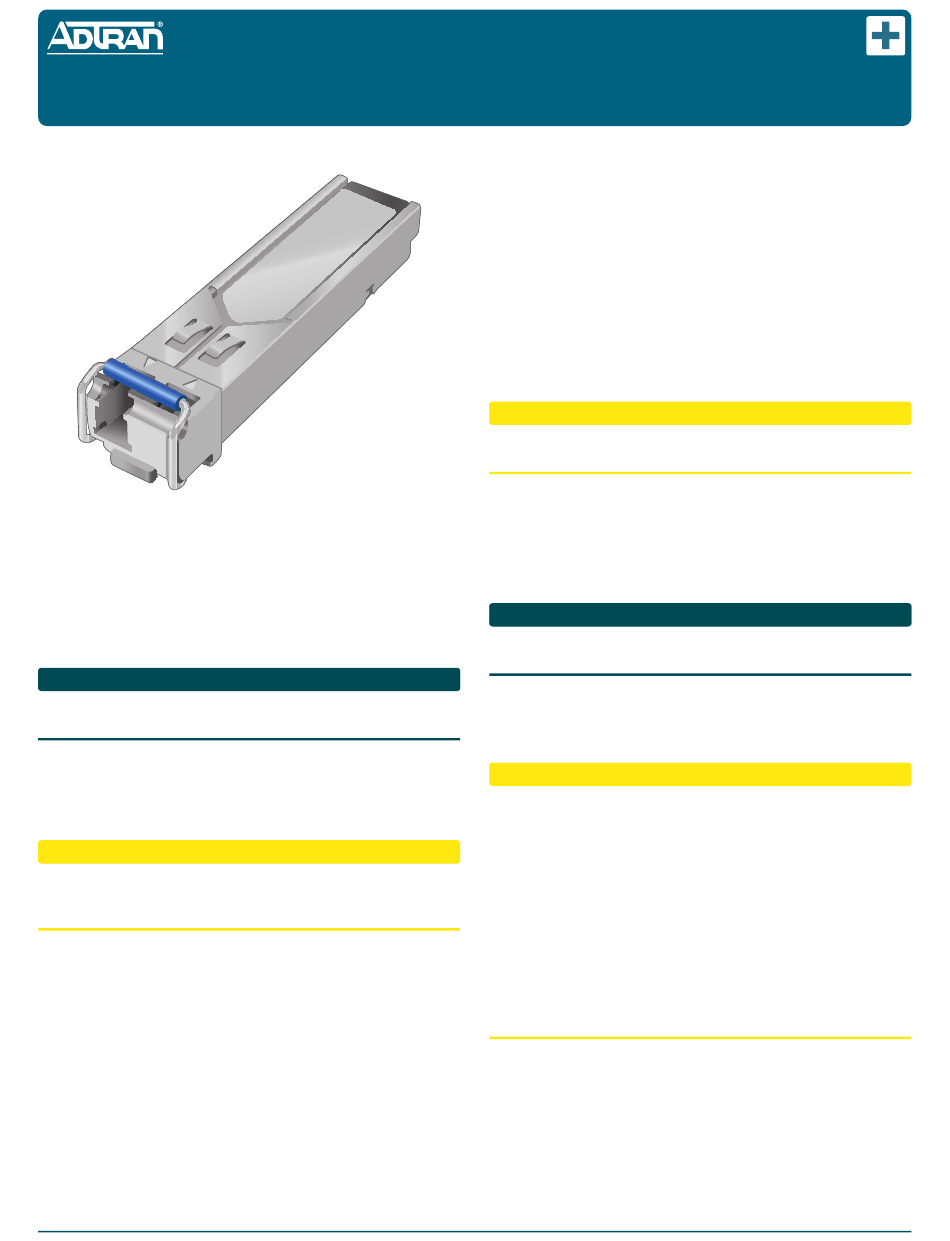

The Small Form‐Factor Pluggable OC‐12 Bidirectional 1310/1550
nm (Bidirectional SFP) plugs into ADTRAN equipment designed
to accept Small Form‐factor Pluggables (SFPs). Installed into an
appropriate host unit, the Bidirectional SFP provides an OC‐12
interface to the supporting system.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the Bidirectional SFP:
♦
SONET OC‐12 compatible (622 Mb/s), single‐fiber operation
♦
15 km maximum optical span
!
CAUTION
Due to compliance certification requirements, only SFPs supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other SFPs.
S
PECIFICATIONS
♦
Optical Specifications:
◊
Optical transmit level: –8 dBm to –15 dBm
◊
Optical receive level: –8 dBm to –28 dBm
◊
Transmit Wavelength: 1310 nm
◊
Receive Wavelength: 1550 nm
◊
Optical budget: 12 (±1) dBm
◊
Optical connectors: LC
Small Form-Factor Pluggable OC-12
Bidirectional 1310/1550 nm
♦
Extended Environmental Support:
◊
Operational temperature range: –40°C to +65°C
◊
Storage temperature range: –40°C to +85°C
◊
Relative humidity to 95%, noncondensing
I
NSTALLATION
To install the Bidirectional SFP into an appropriate module,
complete the following steps:
1. Inspect the Bidirectional SFP. If damaged, file a claim with
the carrier and then contact ADTRAN Customer Support.
!
CAUTION
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
2. Insert the Bidirectional SFP into the SFP cage on the module.
Ensure that the manufacturer's label on the SFP is facing
upward for correct installation.
3. Slide the Bidirectional SFP all the way into the receptacle
until there is an audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the cage on
the circuit card.
S R
AFETY AND EGULATORY
!
CAUTION
♦
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist
strap to prevent damage to electronic components. Place
modules in antistatic packing material when transporting or
storing. When working on modules, always place them on an
approved antistatic mat that is electrically grounded.
♦
The SFP meets or exceeds all the applicable requirements of
NEBS, Telcordia GR‐63‐CORE, GR‐1089‐CORE, and ETSI EN
300368. The Bidirectional SFP is intended for deployment in
Central Office type facilities, EEEs, EECs, and locations where
the NEC applies (for example, Customer Premises). The SFP is
to be installed in ADTRAN products in Restricted Access
Locations only, and installed by trained service personnel.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by ADTRAN
could void the userʹs authority to operate this equipment.
jobAid
Issue Date: October 2010
Document P/N: 61442704PG1-22A
C
OMPLIANCE
