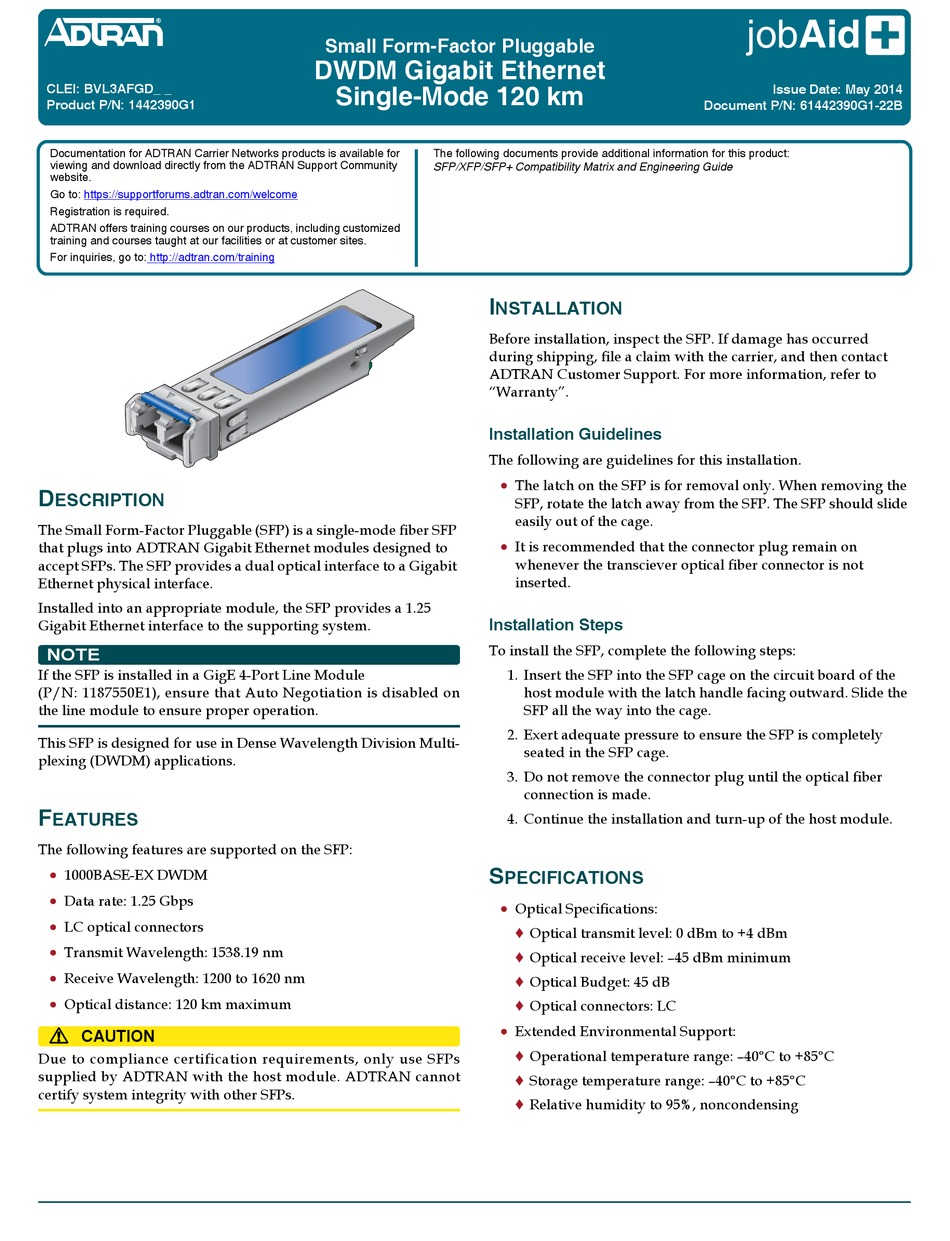

ADTRAN 1442390G1 Manual

CLEI: BVL3AFGD_ _
Product P/N: 1442390G1
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The Small Form-Factor Pluggable (SFP) is a single-mode fiber SFP
that plugs into ADTRAN Gigabit Ethernet modules designed to
accept SFPs. The SFP provides a dual optical interface to a Gigabit
Ethernet physical interface.
Installed into an appropriate module, the SFP provides a 1.25
Gigabit Ethernet interface to the supporting system.
NOTE
If the SFP is installed in a GigE 4-Port Line Module
(P/N: 1187550E1), ensure that Auto Negotiation is disabled on
the line module to ensure proper operation.
This SFP is designed for use in Dense Wavelength Division Multi-
plexing (DWDM) applications.
F
EATURES
The following features are supported on the SFP:

1000BASE-EX DWDM

Data rate: 1.25 Gbps

LC optical connectors

Transmit Wavelength: 1538.19 nm

Receive Wavelength: 1200 to 1620 nm

Optical distance: 120 km maximum
!
CAUTION
Due to compliance certification requirements, only use SFPs
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other SFPs.
Small Form-Factor Pluggable
DWDM Gigabit Ethernet
Single-Mode 120 km
The following documents provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix and Engineering Guide
I
Before installation, inspect the SFP. If damage has occurred
during shipping, file a claim with the carrier, and then contact
ADTRAN Customer Support. For more information, refer to
"Warranty".
Installation Guidelines
The following are guidelines for this installation.
Installation Steps
To install the SFP, complete the following steps:
S
NSTALLATION

The latch on the SFP is for removal only. When removing the
SFP, rotate the latch away from the SFP. The SFP should slide
easily out of the cage.

It is recommended that the connector plug remain on
whenever the transciever optical fiber connector is not
inserted.
1. Insert the SFP into the SFP cage on the circuit board of the
host module with the latch handle facing outward. Slide the
SFP all the way into the cage.
2. Exert adequate pressure to ensure the SFP is completely
seated in the SFP cage.
3. Do not remove the connector plug until the optical fiber
connection is made.
4. Continue the installation and turn-up of the host module.
PECIFICATIONS

Optical Specifications:
o Optical transmit level: 0 dBm to +4 dBm
o Optical receive level: –45 dBm minimum
o Optical Budget: 45 dB
o
Optical connectors: LC

Extended Environmental Support:
o
Operational temperature range: –40°C to +85°C
o Storage temperature range: –40°C to +85°C
o Relative humidity to 95%, noncondensing
jobAid
Issue Date: May 2014
Document P/N: 61442390G1-22B
