ADTRAN 1442300G1 Installation Instructions

CLEI: SOOTAK9J_ _
Product P/N: 1442300G1
D
ESCRIPTION

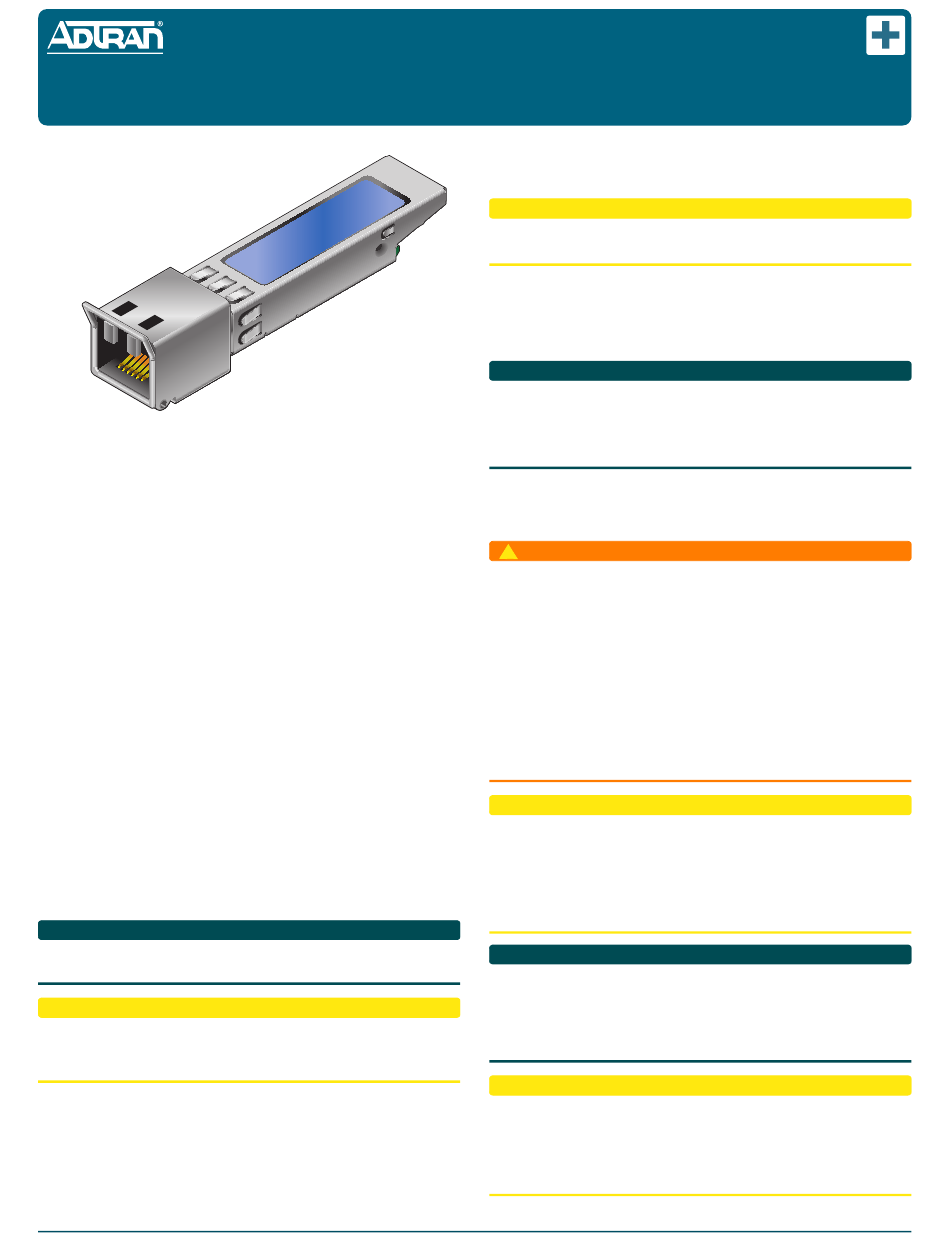

The Small Form‐Factor Pluggable (SFP) is a copper SFP that plugs
into an ADTRAN GigE Copper interface designed to accept SFPs.
The SFP provides a single electrical interface to a physical
interface.
Installed into an appropriate module, this SFP provides a 10/100/
1000 Mbps full duplex data‐link.
The following features are supported on the SFP:
♦
Up to 1.25 Gbps bidirectional data links
♦
Hot‐pluggable footprint
♦
100 meter maximum distance over shielded twisted‐pair Cat 5
cable
♦
Supports 10/100/1000 Mbps using the appropriate module/
platform
Operational Specifications
♦
Extended Environmental Support:
◊
Operational temperature range: –40°C to +85°C
◊
Storage temperature range: –40°C to +85°C
◊
Relative humidity to 95%, noncondensing
◊
Operating Altitude Range: –197 (–60 meters) to 13000 feet
(3962 meters)
NOTE
The operating ambient temperature is derated by 1°C /1000 feet
(3.3°C /km).
!
CAUTION
Due to compliance certification requirements, only SFPs
approved by ADTRAN are to be used with the host module.
ADTRAN cannot certify system integrity with other SFPs.
I
NSTALLATION
To install the SFP into an appropriate module, complete the
following steps:
Small Form-Factor Pluggable
1.25 GigE Copper SFP
Inspect the SFP. If damaged, file a claim with the carrier and then
contact ADTRAN Customer Support.
If present, do not remove the protective end cap from the SFP
until the Cat 5 cable is ready to be connected.
♦
♦
COMPLIANCE
The SFP port is classified as Type 2 or Type 4, as defined in
Appendix B of GR‐1089‐CORE Issue 5, and is suitable for
connection to intra‐building or unexposed wiring or cabling only.
Do not metallically connect this port to interfaces which connect
to Outside Plant (OSP) or to the OSP wiring. The SFP port is
designed for use as an intrabuilding interface only (Type 2 or Type
4), and requires isolation from exposed OSP cabling.
The addition of Primary Protectors is not sufficient protection in
order to connect this interface metallically to OSP wiring. The SFP
port is suitable for connection only to shielded intra‐building
cabling grounded at both ends.
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge strap to
prevent damage to electronic components. Place modules in
antistatic packing material when transporting or storing. When
working on modules, always place them on an approved
antistatic mat that is electrically grounded.
The SFP has been evaluated to international safety standards EN
60950‐1, AS/NZS 60950.1, and IEC 60950‐1. The SFP meets the
requirements for CE marking under the EMC Directive and Low
Voltage Directive. Standards used to demonstrate Compliance are
EN 300 386, EN 50222, EN 55024 as applicable and EN 60950.
The SFP is intended for deployment in Central office type
facilities, EEEs, EECs, and locations where NEC applies (for
example, Customer Premises). The SFP must be installed by
trained service personnel in ADTRAN products that are located
in Restricted Access Locations.
!
CAUTION
1. Insert the SFP into the SFP cage on the module. Ensure the
latch on the SFP is facing upward for correct installation.
2. Slide the SFP all the way into the SFP cage until there is an
audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the cage
on the circuit card.
The SFP meets or exceeds all the applicable requirements of
NEBS, Telcordia GR‐63‐CORE, and GR‐1089‐CORE.
!
WARNING
!
CAUTION
NOTE
!
CAUTION
jobAid
Issue Date: April 2010
Document P/N: 61442300G1-22B
