Snapper 421622BVE Parts Manual page 27

H.
BATTERY WIRE
GROUNDS TO
FRAME
42" MODEL R. E. RIDER SERIES 22
ITEM PART NO. DESCRIPTION
1 6-0753 KIT, 12V Dry Charge Battery
2 1-8817 SOLENOID
3 3-5555 HARNESS, Starter Wiring (Briggs)
4 7-4259 HARNESS, Ignition Wiring (Briggs)
5 1-6168 HOLDER, Fuse (Includes Fuse)
-- 1-6169
6 2-8606 INTERLOCK Module (Briggs)
7 2-8386 HARNESS, Deck Interlock Wiring
8 1-8524 SWITCH, Deck Interlock (Normally Open)
9 1-2444 COVER, Battery Cable
10 1-9326 CABLE, Positive (Red) (17" Long)
11 7-3797 SWITCH, Ignition (Indak #3G463A)
12 9-0880 WASHER, 5/8" Internal Tooth Lock
13 1-5438 NUT, 5/8-32 Hex
14 1-1138 KEY, Switch (2)
15 9-0539 SCREW, 1/4-20 x 1/2"Hex Washer Self-Tap (3)
16 1-2485 RETAINER, 1/4" Bolt (2)
17 2-8770 HARNESS WIRE (Operator Presence Control) (Briggs)
18 9-0053 WASHER, 1/4 Internal Tooth Lock (2)
19 2-7172 SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5 (2)
20 2-8027 CABLE, Negative (15" Long)
21 9-1576 NUT, 1/4-20 Hex Grade 5 or B
22 1-2080 TIE, 7" Long Cable (2)
23 9-0372 NUT, 1/4-20 Hex Center Lock, Grade 5 or B (2)
24 2-2886 SWITCH, Operator Presence Control (OPC) Traction (NO/NC)
25 2-9211 SWITCH, Seat (Normally Closed)
21
FUSE (10 AMP)

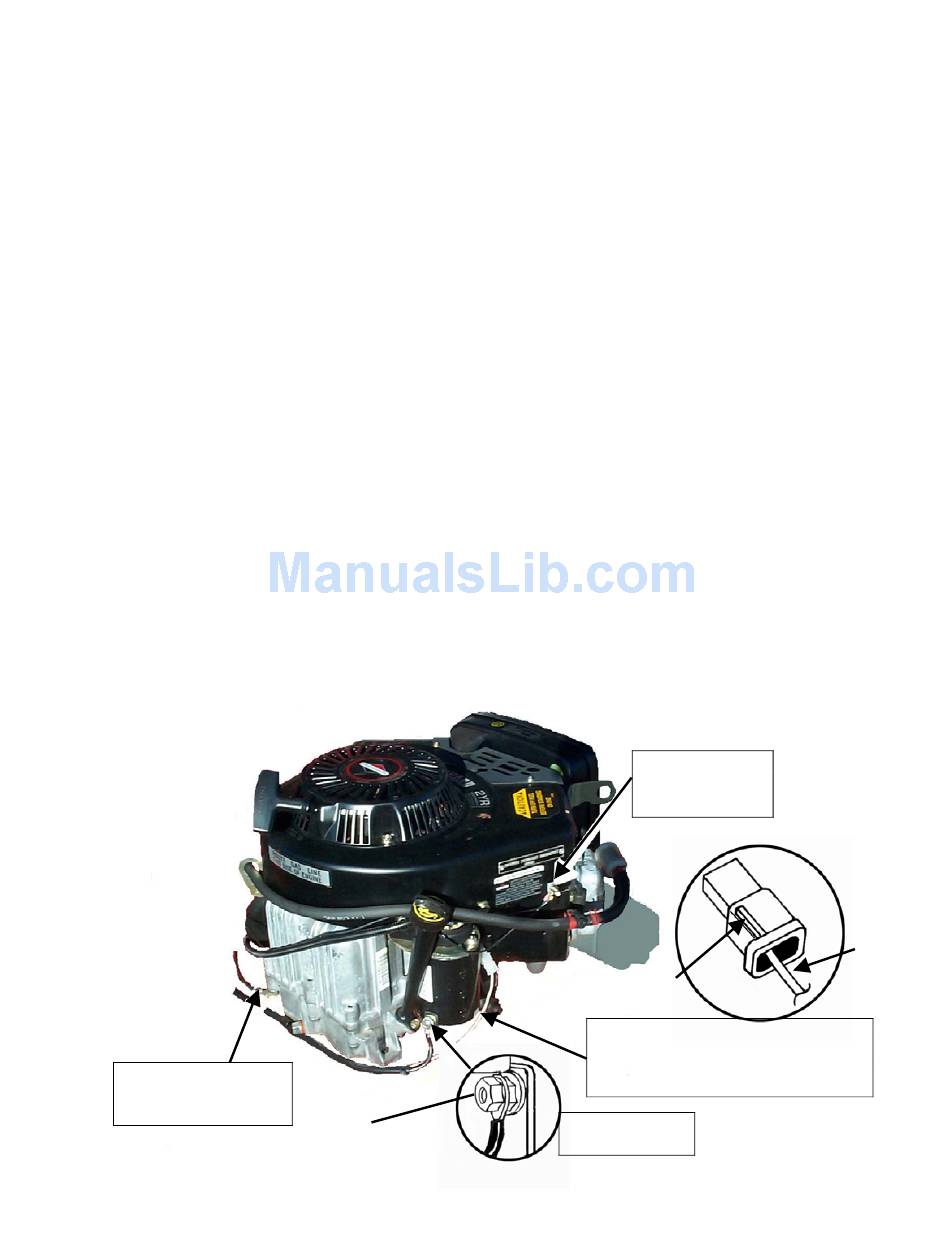

I.
ALTERNATOR CHARGING WIRE
NOTE: Before plugging in be sure that
The white wire is aligned with the
plastic rib.
J.
STARTER
TERMINAL
27
ELECTRICAL SYSTEM
(For 16HP Briggs Engine)
G.
MAGNETO
SHORTING
BLOCK
RIB
MANUAL No. 06130
WHITE
WIRE
