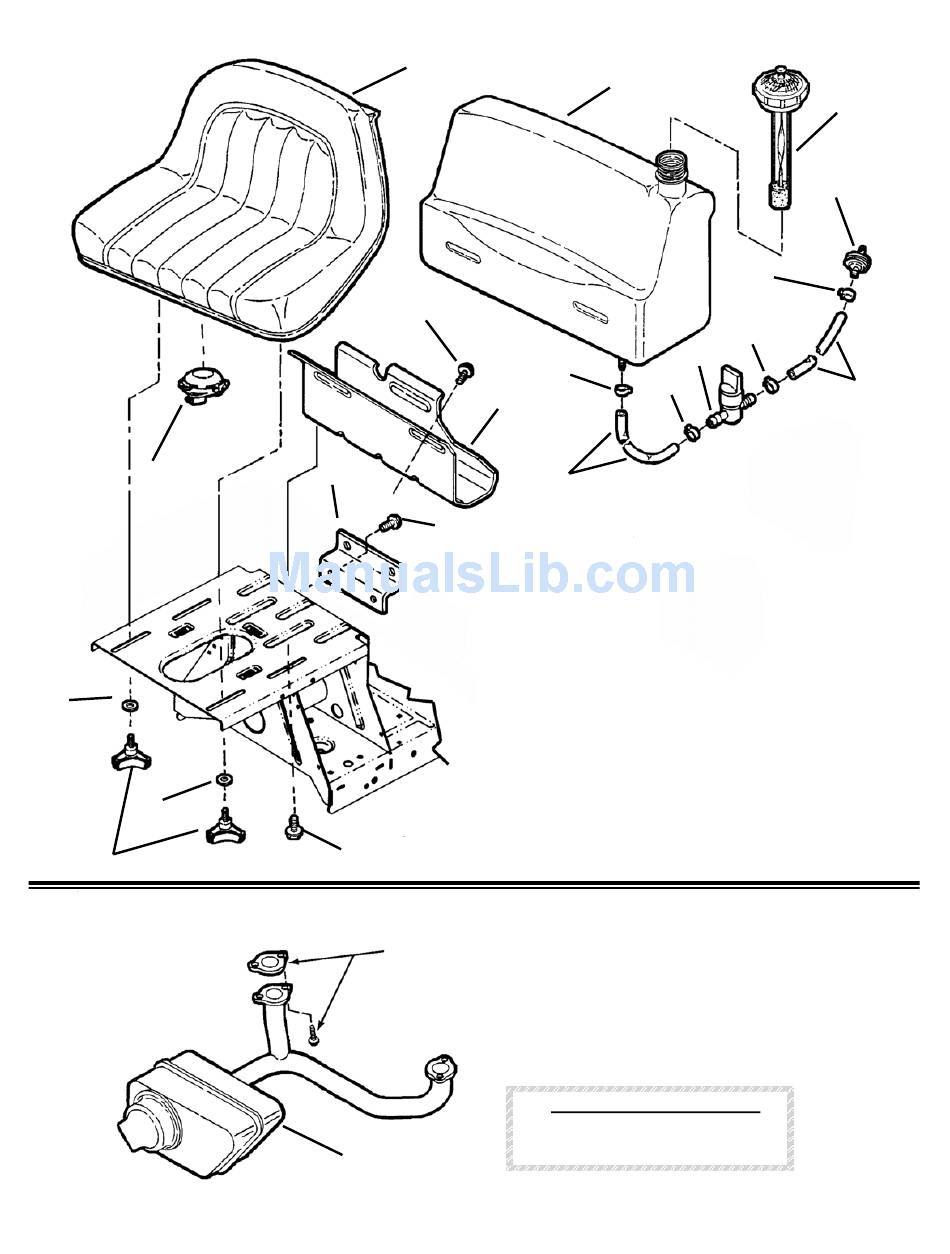

FUEL TANK & OPERATOR'S SEAT
16
13
13
12

EXHAUST MUFFLER, ENGINE

MANUAL No. 06130
1
9
10
8
14
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
11
THESE ITEMS
FURNISHED
WITH ENGINE
ITEM
1
1
24
2
4
5
5
15
PART NO. DESCRIPTION
2-8595 SEAT, Operator (DeLuxe Back)
5-2435 ASSEMBLY, Fuel Tank (Incl. item 3)
1-9377 CAP, Fuel Tank (With Gauge)
1-6325 VALVE, Fuel Shut-Off
1-2222 CLAMP, Fuel Line (4)
3-2038 HOSE, Fuel (5" Long)
1-4359 FILTER, Fuel (In-Line)
3-6549 BRACKET, Tank (For Briggs 16 HP)
9-1542 SCREW, 5/16-18 x 5/8" Self-Tap (2)
3-3377 BRACKET, Fuel Tank (Rear)
9-1038 BOLT, 5/16-18 x 1/2" Hex Fl. Lock (2)
2-3191 KNOB, Seat Adjusting (2)
1-3849 SPACER, 5/16" (2)
9-0858 SCREW, 5/16-18 x 1/2" Hex Self-Tap
2-4247 HOSE, Fuel (24-1/4" Long)
2-9211 SWITCH, Seat (Normally Closed)
PART NO. DESCRIPTION
2-8361 MUFFLER (Briggs 16 HP Engine)
ENGINE SPECIFICATIONS
MODEL: 303777
TYPE: 1145E1
42" MODEL R. E. RIDER SERIES 22
