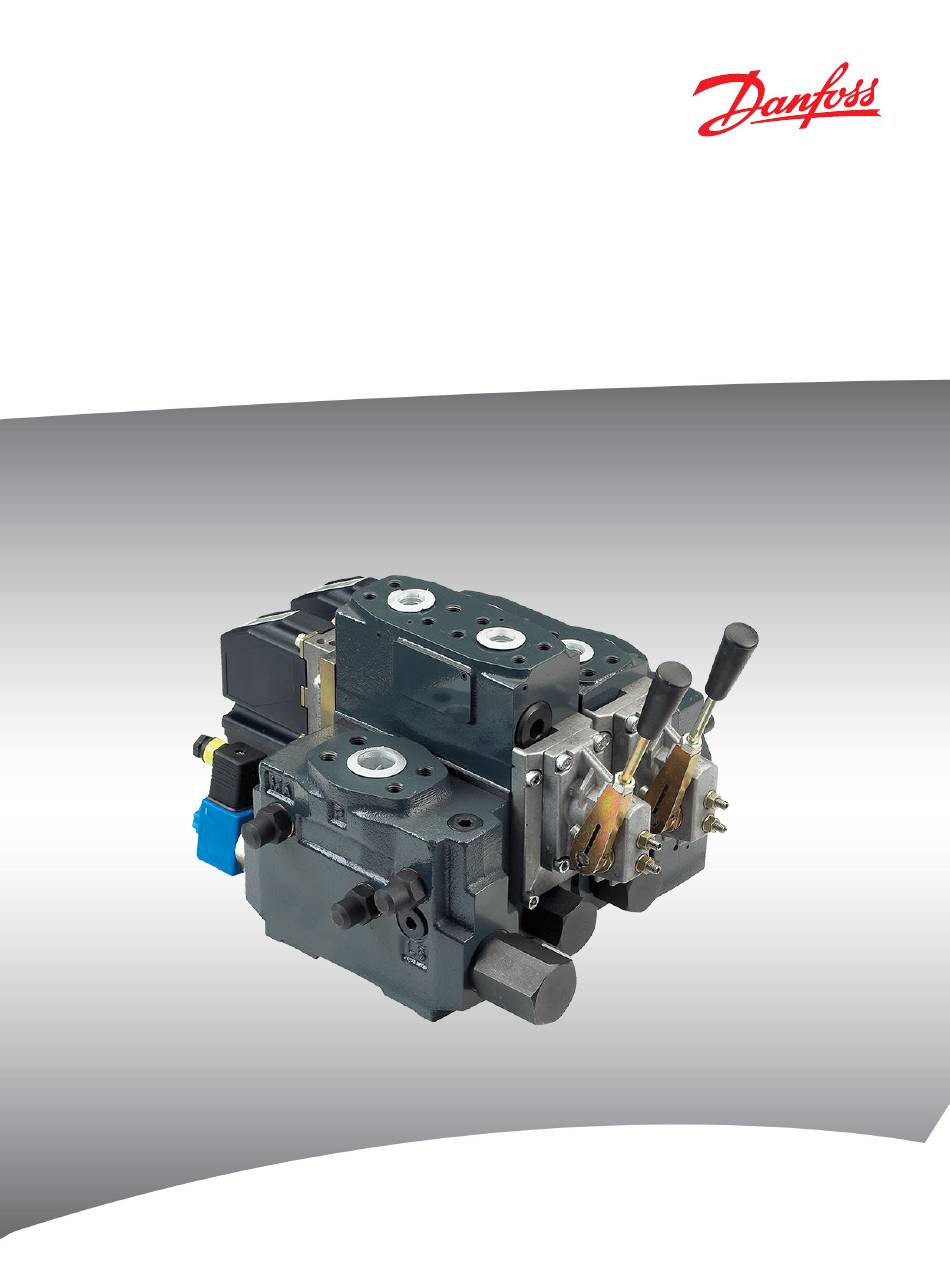

MAKING MODERN LIVING POSSIBLE
Technical Information
Proportional Valve Group
PVG 120
powersolutions.danfoss.com

Advertisement

Table of Contents
loading

Related Manuals for Danfoss PVG 120

Summary of Contents for Danfoss PVG 120

  • Page 1 MAKING MODERN LIVING POSSIBLE Technical Information Proportional Valve Group PVG 120 powersolutions.danfoss.com...
  • Page 2 Table of Revisions Date Changed Mar 2014 Chapters re-order, Modules selection chart Dec 2013 Converted to Danfoss layout – DITA CMS 2006 - 2012 Various updates AB - IC Apr 2006 New edition 520L0356 • Rev JA • Mar 2014...

  • Page 3: Table Of Contents

    PVB, Basic Module..................................23 PVLP, Shock Valve Characteristic (with Pressure Relief Valve)..................25 PVLP/PVLA, Suction Function..............................26 Hydraulic system examples Example of PVG 120 with variable displacement pump....................27 Example of PVG 120 with fixed displacement pump......................28 Other operating conditions Hydraulic fluids for PVG................................29 Particle Content, Degree of Contamination.........................29...
  • Page 4 PVHC, High Current Actuator..............................37 PVE, Electrical Actuation................................37 PVT, tank side module..................................38 PVAS, Assembly Kit..................................38 PVG 120 Modules Selection Chart PVG 120 module selection chart.............................. 39 Order Specification Ordering of modules for oil flow exceeding 180 l/min [47.6 US gal/min]..............43 Order Form....................................... 43 Reordering....................................44...

  • Page 5: Literature Reference For Pvg Products

    Technical Information PVG 120 Proportional Valve Group Literature reference for PVG products Literature reference Literature title Type Order number PVG 32 Proportional valve group Technical Information 520L0344 PVG 100 Proportional valve group Technical Information 520L0720 PVG 120 Proportional valve group...

  • Page 6: General Information

    General Information Valve System Load sensing proportional valve type PVG 120 is a combined directional and flow control valve which is supplied as a valve group consisting of modules specified to match particular customer needs. The flexible nature of this valve will allow an existing valve bank to be easily adapted to suit changes in requirements.

  • Page 7: Basic Module - Pvb

    Technical Information PVG 120 Proportional Valve Group General Information Basic Module – PVB • Integrated pressure compensator in channel P • Interchangeable spools • Depending on requirements the basic module can be supplied with: ‒ Shock/suction valves ‒ Adjustable LS pressure limiting valve for ports A and B ‒...

  • Page 8: Remote Controls Units

    Technical Information PVG 120 Proportional Valve Group General Information Remote Controls Units PVRE, electrical control unit, 162F… PVRH, hydraulic control unit, 155N… 155N0003 155N0001 155N0004 155N0005 155N0002 PVREL, electrical control unit, 155U… PVRES, electrical control unit, 155B… Prof 1, 162F…...

  • Page 9: Function

    PVG 120 Proportional Valve Group Function PVG 120 with PVP Open Center When the pump is started and the main spools (1) in the individual basic modules are in neutral position, oil flows from the pump, through connection P, across the pressure adjustment spool (2) to tank.

  • Page 10: Pvg 120 Sectional View

    Technical Information PVG 120 Proportional Valve Group PVG 120 sectional view PVG 120 sectional view V310100.A Legend: 1 – Main spool 7 – Shock and suction valve PVLP 2 – Pressure adjustment spool in PVP 8 – Suction valve PVLA 3 –...

  • Page 11: Safety In Application

    External cartridge valve connecting LS Pressure to Tank • External cartridge valve connecting main Pressure to Tank PVG 120 – Pump disconnect / block for variable pumps. • PVPE, full flow dump for the PVG 120. 520L0356 • Rev JA • Mar 2014...

  • Page 12: Control System Examples

    Technical Information PVG 120 Proportional Valve Group Safety in Application Control system examples Example of a control system for manlift using PVE fault monitoring input signals and gnals from external ® sensors to ensure the PLUS+1 main controllers correct function of the manlift.
  • Page 13 Technical Information PVG 120 Proportional Valve Group Safety in Application Electrical block diagram for the illustration above Example of a typical wiring block diagram using PVEH with neutral power off switch and fault monitoring output for hydraulic deactivation. Man present...
  • Page 14 Technical Information PVG 120 Proportional Valve Group Safety in Application ® System Control Logic, e.g. PLUS+1 for signal monitoring and triggering signal for deactivation of the hydraulic system. Warning It is the responsibility of the equipment manufacturer that the control system incorporated in the machine is declared as being in confirmity with the relevant machine directives.

  • Page 15: Technical Data

    Technical Information PVG 120 Proportional Valve Group Technical Data PVG 120 technical data continuous 350 bar [5075 psi] Maximum pressure Port P 400 bar [5800 psi] intermittent 400 bar [5800 psi] Port A/B 25 bar/40 bar [365/580 psi] Port T, static/dynamic 240/300 l/min [63.4/79.3 US gal/min]...

  • Page 16: Pve, Electrical Actuation

    The hysteresis is stated at rated and f = 0,02 Hz for a cycle. One cycle includes the movement from neutral position to max. spool travel direction A, via neutral position to max. spool travel in direction B, and back to neutral position. Further information can be obtained by contacting the Danfoss Power Solutions Sales Organization.
  • Page 17 Technical Information PVG 120 Proportional Valve Group Technical Data PVPE, electrical relief valve, normally open (continued) ± 10 % ± 10 % Maximum permissible deviation from rated supply voltage 1.55 A 0.78 A Current consumption at rated at 22 °C [72 °F] coil temperature voltage 1.0 A...

  • Page 18: Electrical Actuation

    Technical Information PVG 120 Proportional Valve Group Electrical Actuation PVEO, ON-OFF The main features of PVEO: • Compact • Robust operation • Hirschmann or AMP connector • Low electrical power V310185.A PVEO parameters 12 V 24 V Supply voltage U...
  • Page 19 Technical Information PVG 120 Proportional Valve Group Electrical Actuation The main features of PVEH: • Inductive transducer • Integrated pulse width modulation • Low hysteresis • Fast reaction time • Hirschmann or AMP connector • Fault monitoring with transistor output for signal source •...

  • Page 20: Pveh, Inductive Transducer (Lvdt - Linear Variable Differential Transformer)

    Technical Information PVG 120 Proportional Valve Group Electrical Actuation PVEH, Inductive Transducer (LVDT – Linear Variable Differential Transformer) When the main spool is moved a voltage is induced proportional to the spool position. The use of LVDT gives contact-free (proximity) registration of the main spool position. This means an extra-long working life and no limitation as regards the type of hydraulic fluid used.

  • Page 21: Pveh, Connection To Fault Monitoring Output

    Technical Information PVG 120 Proportional Valve Group Electrical Actuation 3. Internal clock – The solenoid valves are disabled when the internal clock frequency fails, and the main spool will return/stay in neutral. Attention It is up to the customer to decide on the required degree of safety for the system.

  • Page 22: Technical Characteristics

    Technical Information PVG 120 Proportional Valve Group Technical Characteristics General All characteristics and values in the technical information are typical measured results. For the hydraulic system a mineral based hydraulic oil with a viscosity of 21mm /s [102 SUS] and a temperature of 50°C [122°F] was used.

  • Page 23: Pvb, Basic Module

    Technical Information PVG 120 Proportional Valve Group Technical Characteristics PVB, Basic Module Oil flow characteristics = Signal voltage; = Supply voltage Port conditions at rated oil flow Port Metric units US units 65 l/min [17.2 US gal/min] 95 l/min [25.1 US gal/min] 130 l/min [34.3 US gal/min]...
  • Page 24 Technical Information PVG 120 Proportional Valve Group Technical Characteristics Load independent oil flow Pressure drop Q T in neutral position /spools with open neutral position, (p). The oil flow Q is shown as a function of the load (p). Pressure drop A/B → T at full spool travel...

  • Page 25: Pvlp, Shock Valve Characteristic (With Pressure Relief Valve)

    Technical Information PVG 120 Proportional Valve Group Technical Characteristics Pressure drop A/B → T, spools with open neutral position PVLP, Shock Valve Characteristic (with Pressure Relief Valve) PVLP, shock valve characteristic (with Pressure Relief Valve) The shock valve PVLP is designed to absorb shock effects. Consequently, it shall not be used as a pressure relief valve.

  • Page 26: Pvlp/Pvla, Suction Function

    Technical Information PVG 120 Proportional Valve Group Technical Characteristics PVLP/PVLA, Suction Function PVLP/PVLA, suction function characteristic 520L0356 • Rev JA • Mar 2014...

  • Page 27: Hydraulic System Examples

    Technical Information PVG 120 Proportional Valve Group Hydraulic system examples Example of PVG 120 with variable displacement pump Example of PVG 120 with variable displacement pump 520L0356 • Rev JA • Mar 2014...

  • Page 28: Example Of Pvg 120 With Fixed Displacement Pump

    Technical Information PVG 120 Proportional Valve Group Hydraulic system examples Example of PVG 120 with fixed displacement pump Example of PVG 120 with fixed displacement pump 520L0356 • Rev JA • Mar 2014...

  • Page 29: Other Operating Conditions

    Water-oil emulsions (HFB fluids) • Oil-water emulsions (HFAE fluids) Biodegradable fluids PVG 120 valves can be used in systems using rape-seed oil. The use of rape-seed oil is conditional on: • it complying with the demands on viscosity, temperature and filtration, etc. •...

  • Page 30: Conversion Factors

    Pressure filters must be fitted to suit max. pump oil flow. Internal filters The filters built into PVG 120 are not intended to filter the system but to protect important components against large particles. Such particles can appear in the system as a result of pump damage, hose fracture, use of quick- couplings, filter damage, starting up, contamination, etc.

  • Page 31: Dimensions

    Technical Information PVG 120 Proportional Valve Group Dimensions PVG 120 dimensions 158[6.22] 152[5.98] [1.10] DIN 43650 105[4.13] 35.5 33.5 33.5 PG 11 [prop.] [1.319] 15[0.59] [1.398] [1.319] 25[0.98] 55.5[2.185] PG 9 [on-off ] max.61[2.40] 27[1.06] 21.5[0.846] max. 262.5[10.335] 111[4.37] 27.8 [1.094]...
  • Page 32 Technical Information PVG 120 Proportional Valve Group Dimensions Port 1 in SAE flange (210 bar) –12 UN O-ring Boss (3045 psi) in SAE flange (415 bar) –12 UN O-ring Boss (6020 psi) 1 in SAE flange (415 bar) –12 UN O-ring Boss (6020 psi) –20 UNF...

  • Page 33: Pvm, Lever Positions

    Technical Information PVG 120 Proportional Valve Group Dimensions PVM, Lever Positions Base with an angle of 37.5° Base with an angle of 22.5° V310018.A V310014.A 520L0356 • Rev JA • Mar 2014...

  • Page 34: Modules And Code Numbers

    Technical Information PVG 120 Proportional Valve Group Modules and Code Numbers PVP and PVPV, Pump Side Modules Port type Symbol Description Code number Open center PVP for pumps with fixed displacement. Metric flange 155G5021 Pressure gauge connection. SAE flange 155G5037...

  • Page 35: Pvb, Basic Modules

    Technical Information PVG 120 Proportional Valve Group Modules and Code Numbers PVB, Basic Modules Symbol Description Code number No facilities for Facilities for shock shock valves A/B valves A/B (high (low modules) modules) Pressure compensated Metric flange 155G6014 155G6005 Port connections:...

  • Page 36: Pvlp, Shock And Suction Valves For A/B Port Connections

    Technical Information PVG 120 Proportional Valve Group Modules and Code Numbers PVLP, Shock and Suction Valves for A/B Port Connections Symbol Fixed setting Code number bar [psi] [725] 155G0050 [1100] 155G0075 [1450] 155G0100 [1800] 155G0125 [2200] 155G0150 [2550] 155G0175 [2900]...

  • Page 37: Pvmd, Cover For Mechanical Actuation

    Technical Information PVG 120 Proportional Valve Group Modules and Code Numbers PVM, Mechanical Actuation (continued) Symbol Description Code number PVM, 22,5° 155G3050 Mechanical actuation for hydraulically operated valves. 37,5° 155G3051 Individual oil flow adjustment to ports A and B. PVMD, Cover for Mechanical Actuation...

  • Page 38: Pvt, Tank Side Module

    Technical Information PVG 120 Proportional Valve Group Modules and Code Numbers PVT, tank side module PVT, tank side module Symbol Description Port type Code number Upper part without active elements Metric flange 155G7020 SAE flange 155G7022 O-ring boss 155G7021 Upper part with LX connection...

  • Page 39: Pvg 120 Modules Selection Chart

    Technical Information PVG 120 Proportional Valve Group PVG 120 Modules Selection Chart PVG 120 module selection chart PVG 120 modules exploded view V310173.A PVB, high basic module O-ring Metric flange Weight flange Boss kg [lb] Facilities for shock valves AB...
  • Page 40 Technical Information PVG 120 Proportional Valve Group PVG 120 Modules Selection Chart Accessory modules for PVB Code number Weight, kg [lb] Plug, PVBP 155G6081 0.4 [0.9] press. relief valve, PVBR 155G6080 External LS connection, PVBC 155G6082 Module for oil flow > 180 l/min [47.6 US gal/min], PVBU...
  • Page 41 Technical Information PVG 120 Proportional Valve Group PVG 120 Modules Selection Chart PVP, pump side module Code number O-ring Metric flange Weight Boss flange kg [lb] Open Excl. PVPD, PVPH, PVPE 155G5023 155G5037 155G5021 10.0 [22.1] centre For PVB-oil flow > 180 l/min [47.6...
  • Page 42 Technical Information PVG 120 Proportional Valve Group PVG 120 Modules Selection Chart PVLP, shock and suction valve A/B (continued) Pressure setting 2200 155G0150 2550 155G0175 2900 155G0200 3250 155G0225 3650 155G0250 4000 155G0275 4350 155G0300 4700 155G0325 5100 155G0350 5400...

  • Page 43: Order Specification

    The code number of the spring and plug is 155G6035 (PVBU, accessory module). Order Form An order form for PVG 120 hydraulic valve is shown on next page. The form can be obtained from the Danfoss Power Solutions Sales Organisation.

  • Page 44: Reordering

    Reordering The space at the top right-hand corner of the form is for Danfoss to fill in. The code number for the whole of the specified valve group (PVG No.) is entered here. In the event of a repeat order all you have to do is enter the number Danfoss has given on the initial confirmation of order.
  • Page 45 Technical Information PVG 120 Proportional Valve Group Order Specification 520L0356 • Rev JA • Mar 2014...
  • Page 46 Technical Information PVG 120 Proportional Valve Group 520L0356 • Rev JA • Mar 2014...
  • Page 47 Technical Information PVG 120 Proportional Valve Group 520L0356 • Rev JA • Mar 2014...
  • Page 48 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
