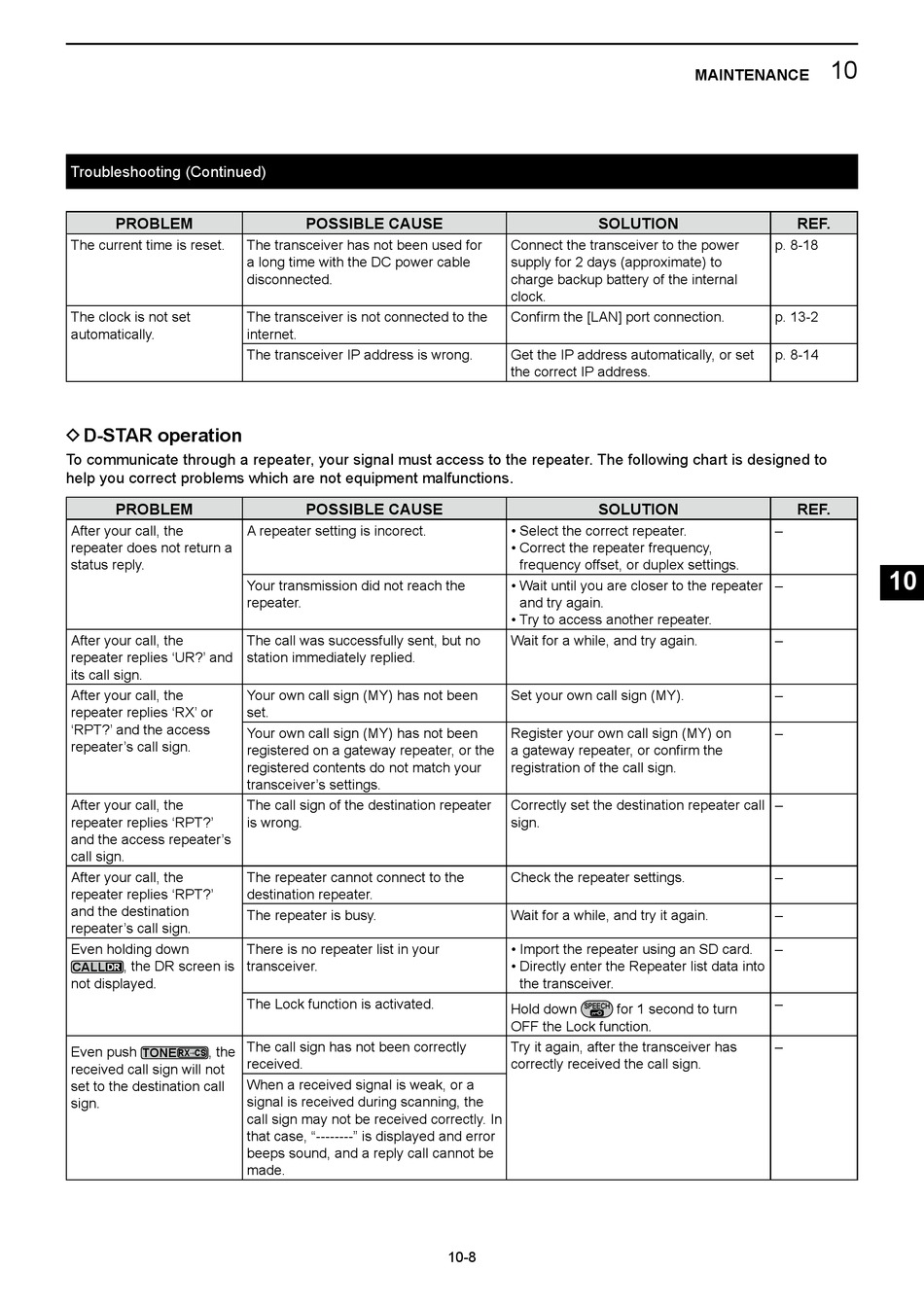

Troubleshooting (Continued)
PROBLEM
The current time is reset.
The clock is not set
automatically.

D D-STAR operation

To communicate through a repeater, your signal must access to the repeater. The following chart is designed to
help you correct problems which are not equipment malfunctions.
PROBLEM
After your call, the
repeater does not return a
status reply.
After your call, the
repeater replies 'UR?' and
its call sign.
After your call, the
repeater replies 'RX' or
'RPT?' and the access
repeater's call sign.
After your call, the
repeater replies 'RPT?'
and the access repeater's
call sign.
After your call, the
repeater replies 'RPT?'
and the destination
repeater's call sign.
Even holding down
, the DR screen is
CALL
DR
not displayed.
Even push , the
TONE
RX → CS
received call sign will not
set to the destination call
sign.
POSSIBLE CAUSE
The transceiver has not been used for
a long time with the DC power cable
disconnected.
The transceiver is not connected to the
internet.
The transceiver IP address is wrong.
POSSIBLE CAUSE
A repeater setting is incorect.
Your transmission did not reach the
repeater.
The call was successfully sent, but no
station immediately replied.
Your own call sign (MY) has not been
set.
Your own call sign (MY) has not been
registered on a gateway repeater, or the
registered contents do not match your
transceiver's settings.
The call sign of the destination repeater
is wrong.
The repeater cannot connect to the
destination repeater.
The repeater is busy.
There is no repeater list in your
transceiver.
The Lock function is activated.
The call sign has not been correctly
received.
When a received signal is weak, or a
signal is received during scanning, the
call sign may not be received correctly. In
that case, "--------" is displayed and error
beeps sound, and a reply call cannot be
made.
SOLUTION
Connect the transceiver to the power
supply for 2 days (approximate) to
charge backup battery of the internal
clock.
Confirm the [LAN] port connection.
Get the IP address automatically, or set
the correct IP address.
SOLUTION
• Select the correct repeater.
• Correct the repeater frequency,
frequency offset, or duplex settings.
• Wait until you are closer to the repeater
and try again.
• Try to access another repeater.
Wait for a while, and try again.
Set your own call sign (MY).
Register your own call sign (MY) on
a gateway repeater, or confirm the
registration of the call sign.
Correctly set the destination repeater call
sign.
Check the repeater settings.
Wait for a while, and try it again.
• Import the repeater using an SD card.
• Directly enter the Repeater list data into
the transceiver.
Hold down for 1 second to turn
SPEECH
OFF the Lock function.
Try it again, after the transceiver has
correctly received the call sign.
10-8
