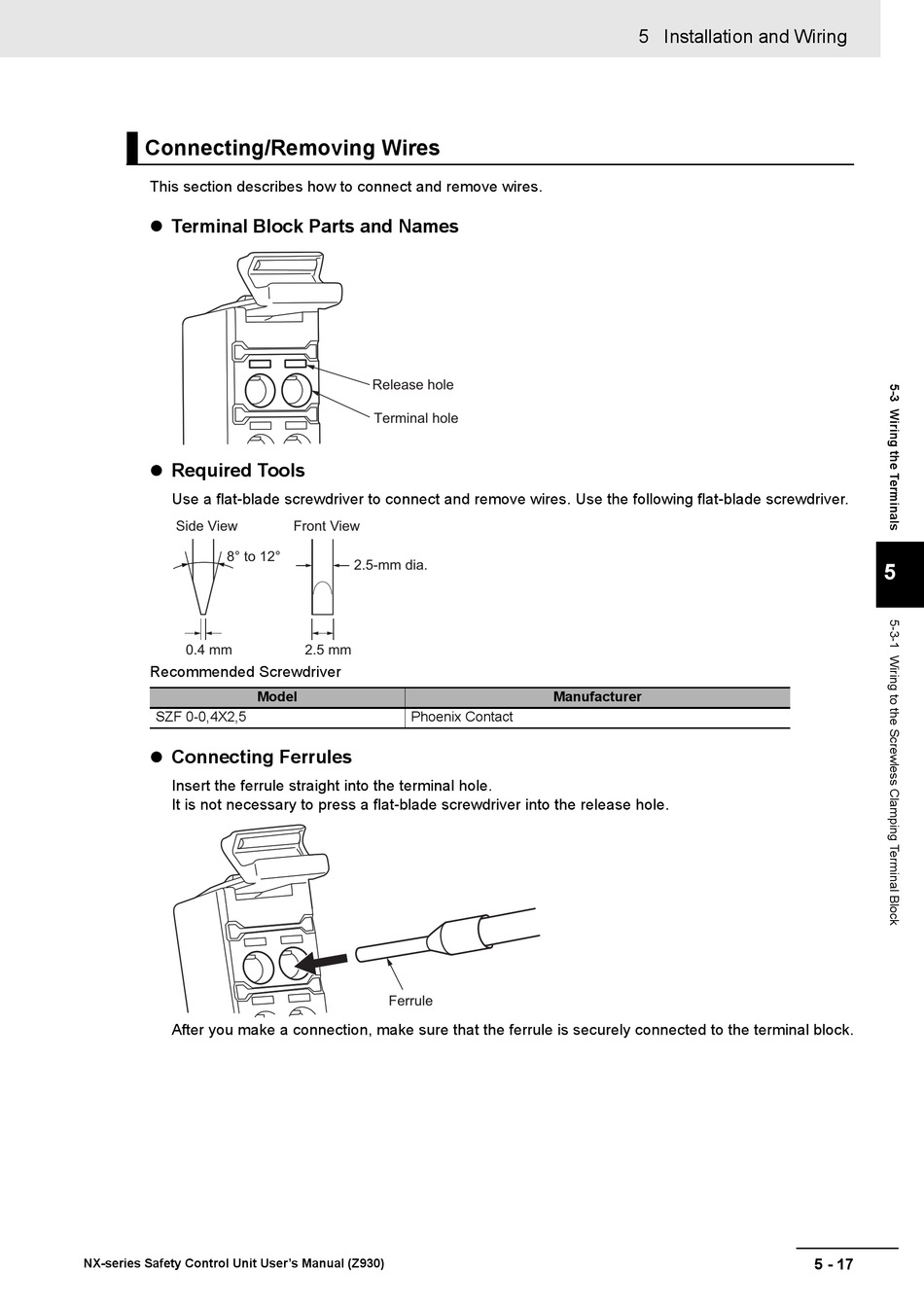

Connecting/Removing Wires
This section describes how to connect and remove wires.
 Terminal Block Parts and Names
 Required Tools
Use a flat-blade screwdriver to connect and remove wires. Use the following flat-blade screwdriver.
Side View
8° to 12°
0.4 mm
Recommended Screwdriver
Model
SZF 0-0,4X2,5
 Connecting Ferrules
Insert the ferrule straight into the terminal hole.
It is not necessary to press a flat-blade screwdriver into the release hole.
After you make a connection, make sure that the ferrule is securely connected to the terminal block.
NX-series Safety Control Unit User's Manual (Z930)
Release hole
Terminal hole
Front View
2.5-mm dia.
2.5 mm
Phoenix Contact
Ferrule
