Installation & Operating Manual
Installation and Appliance Setup - Care and Operation
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Call your dealer for questions on Installation, Operation, or Service.
NOTICE: SAVE THESE INSTRUCTIONS
Intrepid
Direct Vent Gas Heater
®
Model: INDVRCBSB, INDVRBSSB,
INDVRBMSB, INDVRBDSB
CERTIFIED
S
B
AFETY
ARRIER
Installation and service of this appliance should be performed by
www.vermontcastings.com
Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result
in serious injury, death or property damage.
vapors and liquids in the vicinity of this or any
other appliance.
•
WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use
any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
– If you cannot reach your gas supplier, call the
•
Installation and service must be performed
gas supplier.
DANGER
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall
be installed for the protection of children and
other at risk individuals.
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
3-90-20306761
20306543
Advertisement
Table of Contents
Related Manuals for Vermont Castings Intrepid INDVRBMSB
Summary of Contents for Vermont Castings Intrepid INDVRBMSB

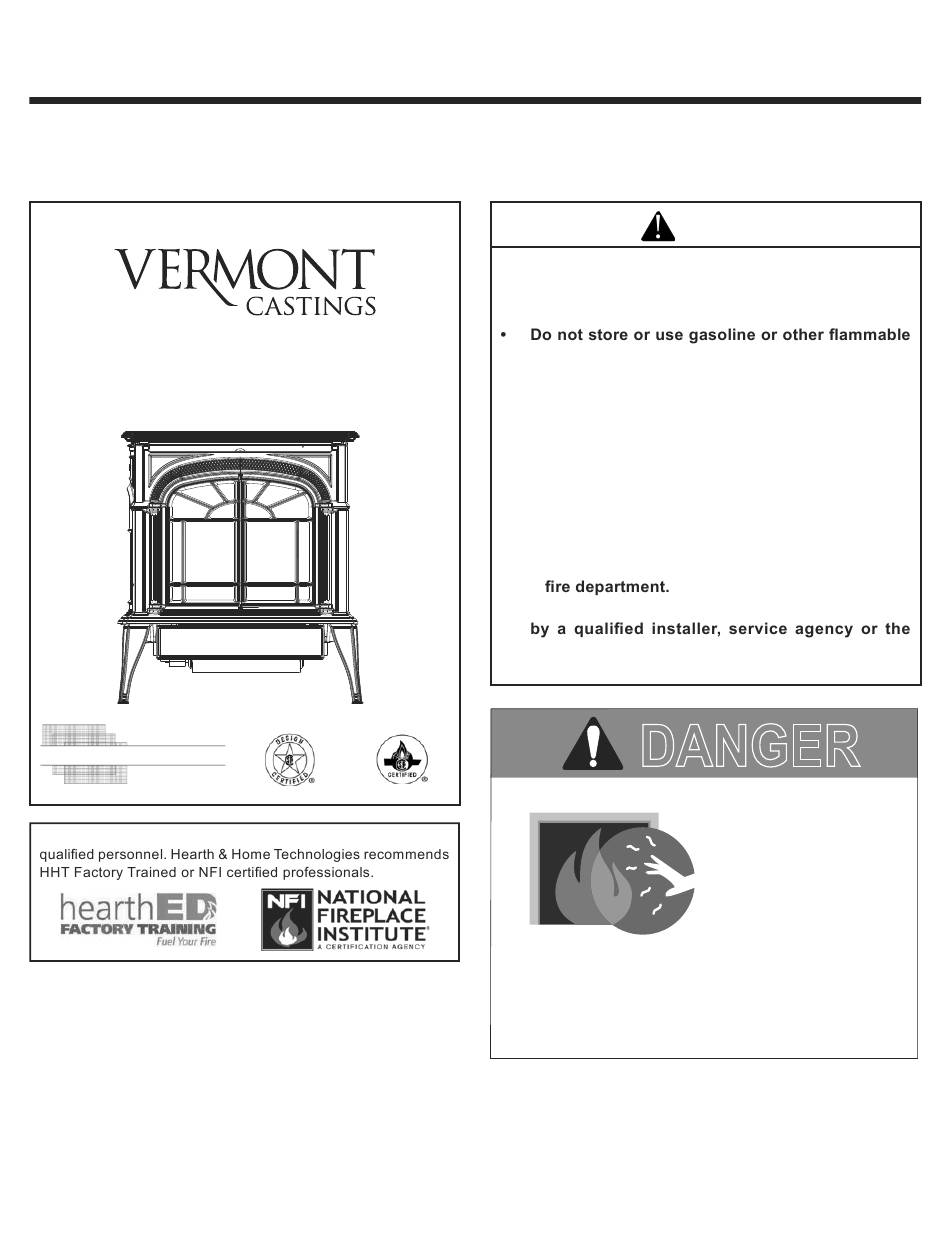

- Page 1 A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at risk individuals. 20306543 www.vermontcastings.com Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18 3-90-20306761...
-
Page 2: Table Of Contents
Thank you and congratulations on your purchase of a Vermont Castings stove. PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these Table of Contents Installation and Operating Instructions... -
Page 3: Installation And Operating Instructions
State in carbon monoxide (CO) poisoning and possible death. of California to cause cancer, birth defects and other Due to high temperatures this appliance should be located out 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 4: Requirements For The Commonwealth Of Massachusetts
Board, and the instructions for that system shall A copy of all installation instructions for all Product Approved Signage California safety information WARNING Inspection unless, upon inspection, the inspector observes carbon 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 5: Stove Dimensions
24 ” (543 mm) (616 mm) Centerline of Flue Pipe 18” (457 mm) Valve Inlet 4” (102 mm) 21 ” (553 mm) 13 ” (352 mm) Figure 1 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 6: Installation Requirements
This appliance is for use only with the type of gas indicated on the rating plate. This appliance is not kit is used. 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 7: Corner Installation
( 1 mm) Figure 4 Wall and Ceiling Clearances 9" (2 0 mm) antel 4" (102 mm) Side all/ e er to 2 " Trim (6 mm) Figure 5 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 8: Gas Inlet And Manifold Pressures
Horizontal Run (in feet) Refer to this manual for correct installation and Figure 7 - operational procedures. For assistance or additional agency, or the gas supplier. 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 9 2ND FLUE • RESTRICTOR • Clearances around the vent termination must be • Vermont Castings does not require any opening for inspection of vent pipe. labelled for this stove may be used. 1 FLUE • Minimum clearances between vent pipes and...
- Page 10 Clearance under veranda, porch, deck or balcony ‡ ‡ NOTE: † A vent shall not terminate directly above a sidewalk or paved ‡ Only permitted if veranda, porch, deck or balcony is fully open 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 11 ACTUAL Combustible & Noncombustible ACTUAL Combustible & ACTUAL M = 12" (305 mm) Noncombustible P = 6” (152 mm) 12" (305 mm) Actual Figure 10 *NOTE: termination cap 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 12: Installation Unpack Stove
Install Optional Fan Kit FK20-VC Snapstat Snapstat Bracket Fan Kit Contents: Figure 12 Upper • Snapstat Bracket Sheet Metal Screw Valve Sheet Metal Screw Figure 13 • • 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 13 Figure 14 - • • Use the wire tie to secure the fan and rheostat wire bottom of the unit. Rheostat Figure 15 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 14 Approved Vent System Components DuraVent Components HHT Components* adapters, wall thimble, masonry and ZC Wall Plate Wall Strap Storm Collar Attic Installation Shield 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 15 Figure 16 Planning Your Installation Zero Clearance Wall Sleeve instructions to determine the minimum clearance from Pipe Section Support / Wall Pipe Section Figure 17 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 16: Rear Vent
Installation’ for an installation where the heater is parallel to Sleeve #8 Sheet Metal Screws Figure 21 - Assemble the sleeve with the #8 sheet metal screws NOTE: 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 17 Center Figure 22 NOTES: Figure 24 NOTES: A downward slope can trap heat and become a possible 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 18 12” (305 mm) Minimum Round 4” (102 mm) Wood Screw Sconce Cap Figure 28 IMPORTANT: Figure 26 assemble the four parts, in order, around the base of the Step 4 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 19: Vertical Installation
Figure 29 centered on the hole drilled Step 7 Step 4 Apply optional decorative brass trim to wall thimble cover Step 5 Vertical Installation Step 1 Step 6 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 20 Step 10 straps or plumber tape may be used for this Figure 34 NOTES: Step 7 with sheet rock with standard construction materials, but 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 21 Level Figure 36 Cathedral Ceiling Installation Step 1 Step 2 Figure 38 Step 5 Step 3 Step 4 Step 6 Step 7 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 22: General Maintenance
Failure to follow these instructions void the warranty. Be sure to check the appliance venting and clearance to combustible requirements, which may vary from one appliance to another. 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 23 • Installation of any component part not manufactured • Installation other than as instructed by DuraVent and 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 24 Converting a Factory-Built Metal Chimney Co-Linear Insert Chimney Liner Chimney System Connector Retro Connector 0909B Any Black Direct Vent Connector Figure 42 Figure 41 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 25 Figure 44 Retro Connector system, and center the adapter on the top of the chimney Black Direct Vent Pipe Sheet Metal Screws Figure 45 Figure 46 Figure 43 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 26 If you have a framed wall in front of the masonry, use wood screws to mount the wall thimble cover to the framed wall, section of direct vent pipe to the retro connector in order 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 27: Connect Gas Supply Line
In the U.S.: Gas connection should be made in accordance Figure 51 Since some municipalities have additional local codes, be In Canada: Stud Wall Retro Connector Cover Masonry Chimney Figure 52 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 28: Burner Information
Use only a thermostat rated for 500 - 750 millivolts. Wire Thermostat Wire / Gauge Maximum Run Switch Assembly Screw Figure 53 - This completes assembly of the Intrepid stove. 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 29 NOTE: Figure 58 Pilot Figure 56 Figure 59 over the air inlet hole and on notched out portion of ember Pilot Assembly Raised Notch Raised Notch Figure 57 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 30: Safety Barrier Installation
It is NOT a replacement for the glass and the unit must NOT be operated without the glass in place. NOTICE: It is the responsibility of the installer to ensure Figure 60 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 31: Operation
PSE Pilot SIT Pilot Gas Control Screw Figure 61 Figure 64 Extension Knobs Pilot Assembly Figure 62 Pilot and Burner Inspection Figure 65 - Flame & Temperature Adjustment 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 32 If knob does not pop up when released, stop and • If after several tries, the pilot will not stay lit, turn 3/ " 1/2" SIT NOVA Honeywell To Turn Off Gas To Heater 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 33 Remove wall switch wires form valve terminals if pilot problem 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 34 Gas Line Gas Supply Inlet Figure 66 - Conversion Precautions Conversion Procedure Figure 67 Figure 68 Figure 69 Figure 70 Natural Gas LP Configuration Configuration Valve Conversion Figure 71 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 35 Figure 73 - Allen Wrench Remove Nuts Figure 77 Figure 74 - Pilot type 2 NOTE: You may use NOTE: Use a wrench to hold pilot tube in place 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 36 Conversion to LP Input (BTU/h) Kit # Part # Minimum Maximum 20012921 30000336 12,000 16,000 Conversion to Natural Gas Input (BTU/h) Kit # Part # Minimum Maximum 20012910 12,500 17,500 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 37: Maintenance
DO NOT OPERATE THE HEATER WITH DAMAGED LOGS. Care of Cast Iron Glass Replacement CAUTION TURN THE PILOT OFF BEFORE PAINTING. ALLOW THE HEATER TO COOL COMPLETELY BEFORE PAINTING. 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 38: Gasket Replacement
NOTE: Shown without top for clarity. Inspect the Vent System Annually Check the Gas Flame Regularly Figure 81 - Gasket Replacement Stove Disassembly includes a wall thermostat, disconnect the thermostat leads 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 39 ON / O Rheostat TP/TH Snapstat Black Figure 83 - Chassis Ground OS A / SNAPS A NOTE: Schematic Diagram n p t t o er Figure 84 - 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 40 Ending Manufacturing Date: Active Intrepid Direct Vent/Rear Vent Gas Heater INDVRCBSB (Classic Black) INDVRBMSB (Majolica Brown) INDVRBDSB (Bordeaux) INDVRBSSB (Biscuit) 24 25 23.2 23.1 Part number list on following page. 12/18 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 41: Service Parts List
30004920 Classic Black 1306333A Biscuit 30003182 Bordeaux 30006716 Brown Majolica 30004830 Door, Control 30003945A Hinge, Control Door 1601670 Rear Shroud Assembly 30004132 Additional service parts on following page 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 42 1408818 or silicone to attach Knob Extension, Hi/Lo 43D0095A Knob Extension, On/Off 43D0094A Tie Bracket Assembly 20012514 Right Burner Support Assembly 20012909K Additional service parts on following page 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 43 Touch-Up Paint Biscuit 0001277 Majolica 0001270 FK20-VC Flexline Black 20H1011 Fresh Air Restrictor SRV4604-114 Conversion Kits Conversion Kit, NG to LP 20012921K Conversion Kit, LP to NG 20012910 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
-
Page 44: Optional Accessories
Optional Accessories Fan Kits: FK20-VC Fan Maintenance Installation Remote Controls Model Functions Controlled Warming Shelf Model Color 0098 Classic Black 1373 1376 Biscuit 1380 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... -
Page 45: Warranty
Grate and Stainless Limited 3 years Steel Burners, le Burn System engine, inner Lifetime cover,access cover and fireback 90 Days All replacement parts beyond warranty period 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18... - Page 46 WARRANTY CONDITIONS: other than the dealer from whom you originally purchased the product. • Limited Catalyst Warranty Amount of Time Since Purchase Credit Towards Replacement Cost WARRANTY EXCLUSIONS: 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 47 • There is any damage to the appliance or other components due to water or weather damage which is the result of, but not limited LIMITATIONS OF LIABILITY 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
- Page 48 Based on CSA P.4.1-2015 EnerGuide Ratings D.O.E Model INDVR 3 90 20306761 Vermont Castings • Intrepid DV Owner's Manual_R12 • 12/18...
