Removal of Outer Panels / Fan Motor

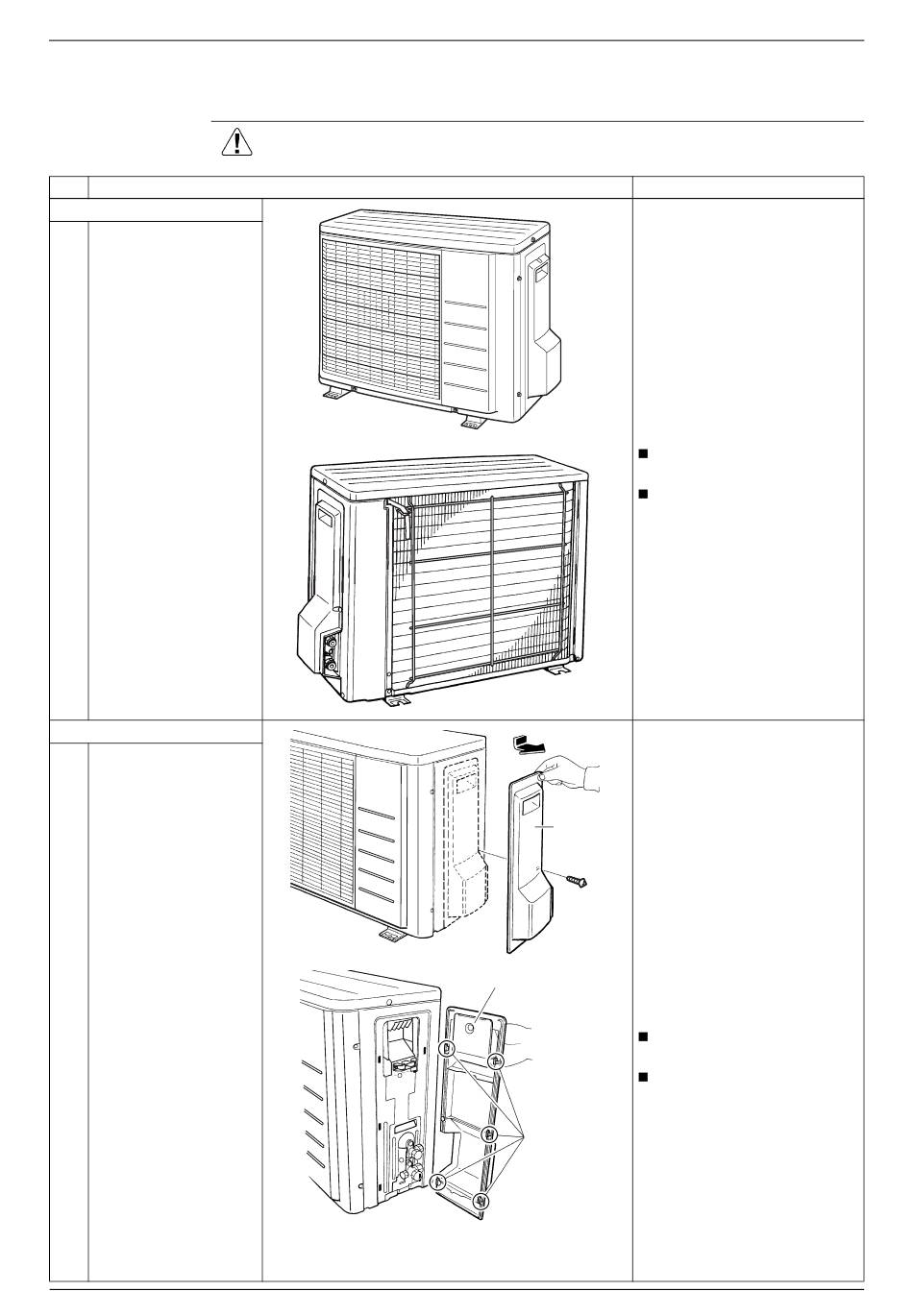

1. Removal of Outer Panels / Fan Motor
Procedure
Step
1. Features
2. Remove the panels.
1 Remove the screw of
the stop valve cover.
Pull down the stop
valve cover and remove
it.
2
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
(R7186)
(R11890)
Stop
valve
cover
(R7188)
Shield plate
Hooks
(R7189)
Si00-872
Points
Some models do not have a
guard net.
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 5 hooks.
Removal Procedure
