1
PANEL DESCRIPTION
u SCRAMBLER INDICATOR
Appears when scrambler function is activated. (Optional UT-
109 (#02)/UT110 (#02) SCRAMBLER UNIT is required.)
i 2/5TONE INDICATOR
Appears when specified 2/5tone call is received.
o!0 LTR INDICATOR
Appears when LTR function is selected.
!1 SHORT MESSAGE INDICATOR
Appears when a short message is received.
!2 ALPHANUMERIC DISPLAY
Displays the CH number, 5-tone indication, DTMF numbers,
Audible indication, etc.
NOTE: When the alphanumeric display blinks and trans-
mitting becomes impossible. In this case, check that the
antenna is not miss-matched or that DC battery voltage
has not dropped below 8 V
!3 ACTIVATED KEY INDICATOR
Appears or blinks when the key under this indicator is acti-
vated.
3

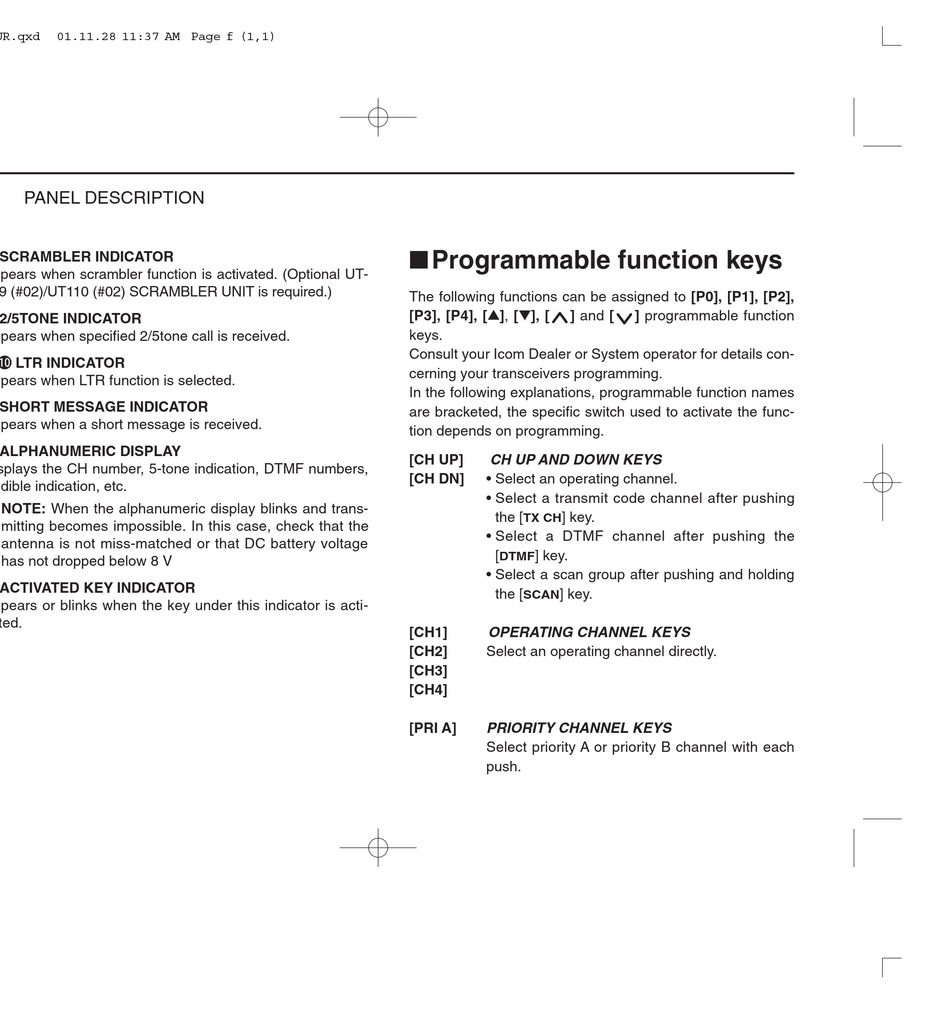

I Programmable function keys

The following functions can be assigned to [P0], [P1], [P2],
[P3], [P4], [∫ ∫ ], [√ √ ], [ ] and [
keys.
Consult your Icom Dealer or System operator for details con-
cerning your transceivers programming.
In the following explanations, programmable function names
are bracketed, the specific switch used to activate the func-
tion depends on programming.
[CH UP] CH UP AND DOWN KEYS
[CH DN] • Select an operating channel.
• Select a transmit code channel after pushing
the [ ] key.
TX CH
• Select a DTMF channel after pushing the
[ ] key.
DTMF
• Select a scan group after pushing and holding
the [ ] key.
SCAN
[CH1] OPERATING CHANNEL KEYS
[CH2] Select an operating channel directly.
[CH3]
[CH4]
[PRI A] PRIORITY CHANNEL KEYS
Select priority A or priority B channel with each
push.
] programmable function
