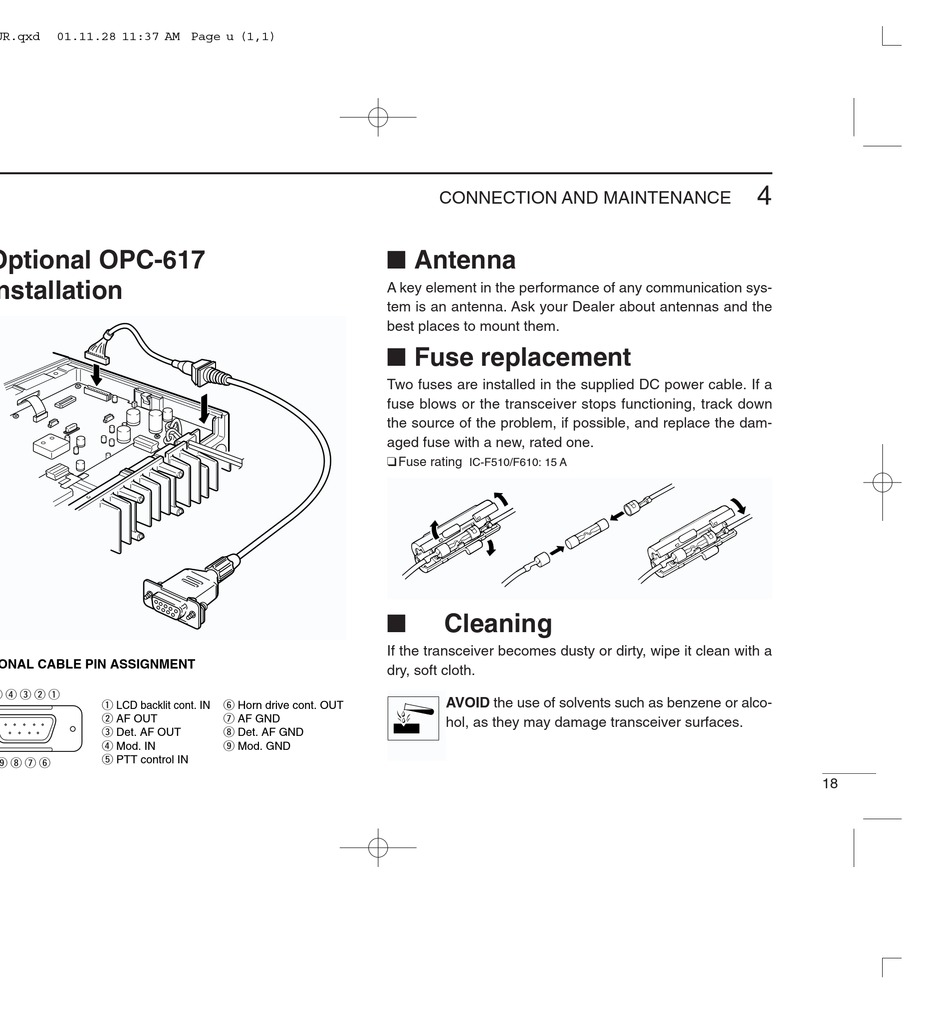

I Optional Opc-617 Installation; I Antenna; I Fuse Replacement; I Cleaning - Icom IC-F610 Instruction Manual

I Optional OPC-617
installation
OPTIONAL CABLE PIN ASSIGNMENT
t r e w q
q
LCD backlit cont. IN
w
AF OUT
e
Det. AF OUT
r
Mod. IN
t
PTT control IN
o i u y

I Antenna

A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
best places to mount them.

I Fuse replacement

Two fuses are installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem, if possible, and replace the dam-
aged fuse with a new, rated one.
❑ Fuse rating
I
If the transceiver becomes dusty or dirty, wipe it clean with a
dry, soft cloth.
y
Horn drive cont. OUT
u
AF GND
i
Det. AF GND
o
Mod. GND
CONNECTION AND MAINTENANCE
IC-F510/F610: 15 A, IC-F520/F620: 20 A
Cleaning
AVOID the use of solvents such as benzene or alco-
hol, as they may damage transceiver surfaces.
