1

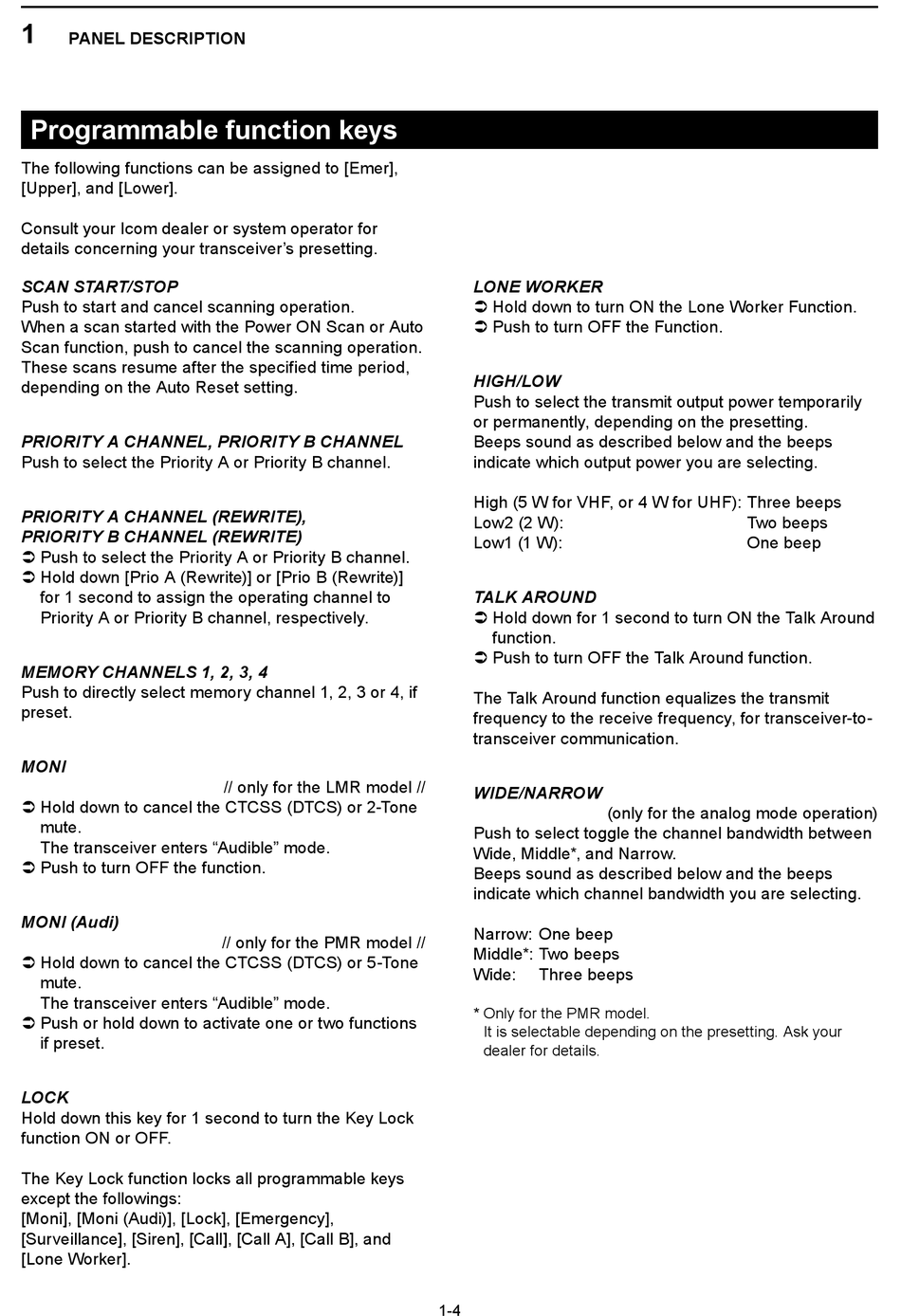

PANEL DESCRIPTION
Programmable function keys
The following functions can be assigned to [Emer],
[Upper], and [Lower].
Consult your Icom dealer or system operator for
details concerning your transceiver's presetting.
SCAN START/STOP
Push to start and cancel scanning operation.
When a scan started with the Power ON Scan or Auto
Scan function, push to cancel the scanning operation.
These scans resume after the specified time period,
depending on the Auto Reset setting.
PRIORITY A CHANNEL, PRIORITY B CHANNEL
Push to select the Priority A or Priority B channel.
PRIORITY A CHANNEL (REWRITE),
PRIORITY B CHANNEL (REWRITE)
Push to select the Priority A or Priority B channel.
Â
Hold down [Prio A (Rewrite)] or [Prio B (Rewrite)]
Â
for 1 second to assign the operating channel to
Priority A or Priority B channel, respectively.
MEMORY CHANNELS 1, 2, 3, 4
Push to directly select memory channel 1, 2, 3 or 4, if
preset.
MONI
Hold down to cancel the CTCSS (DTCS) or 2-Tone
Â
mute.
The transceiver enters "Audible" mode.
Push to turn OFF the function.
Â
MONI (Audi)
Hold down to cancel the CTCSS (DTCS) or 5-Tone
Â
mute.
The transceiver enters "Audible" mode.
Push or hold down to activate one or two functions
Â
if preset.
LOCK
Hold down this key for 1 second to turn the Key Lock
function ON or OFF.
The Key Lock function locks all programmable keys
except the followings:
[Moni], [Moni (Audi)], [Lock], [Emergency],
[Surveillance], [Siren], [Call], [Call A], [Call B], and
[Lone Worker].
// only for the LMR model //
// only for the PMR model //
LONE WORKER
Hold down to turn ON the Lone Worker Function.
Â
Push to turn OFF the Function.
Â
HIGH/LOW
Push to select the transmit output power temporarily
or permanently, depending on the presetting.
Beeps sound as described below and the beeps
indicate which output power you are selecting.
High (5 W for VHF, or 4 W for UHF): Three beeps
Low2 (2 W):
Low1 (1 W):
TALK AROUND
Hold down for 1 second to turn ON the Talk Around
Â
function.
Push to turn OFF the Talk Around function.
Â
The Talk Around function equalizes the transmit
frequency to the receive frequency, for transceiver-to-
transceiver communication.
WIDE/NARROW
(only for the analog mode operation)
Push to select toggle the channel bandwidth between
Wide, Middle*, and Narrow.
Beeps sound as described below and the beeps
indicate which channel bandwidth you are selecting.
Narrow: One beep
Middle*: Two beeps
Wide:
Three beeps
* Only for the PMR model.
It is selectable depending on the presetting. Ask your
dealer for details.
1-4
Two beeps
One beep
