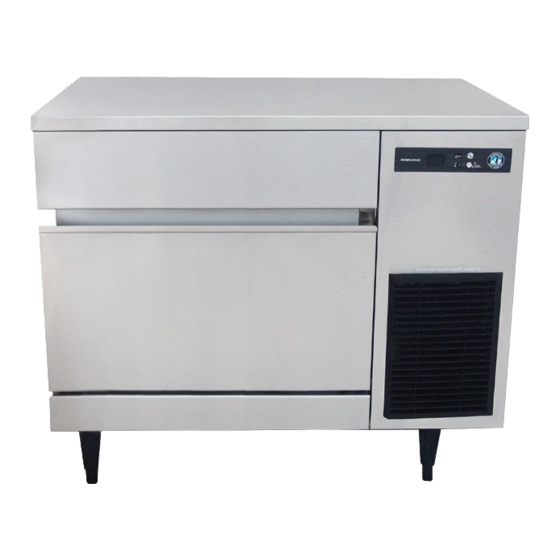

Instruction Manual
Self-Contained Cuber
Model
IM-200BAA
hoshizakiamerica.com
Issued: 2-17-2017

Advertisement

Table of Contents
loading

Related Manuals for Hoshizaki IM-200BAA

Summary of Contents for Hoshizaki IM-200BAA

  • Page 1 Instruction Manual Self-Contained Cuber Model IM-200BAA hoshizakiamerica.com Issued: 2-17-2017...
  • Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Hoshizaki Technical Support Department for assistance. Phone: 1-800-233-1940; (770) 487-2331 Fax: 1-800-843-1056;...

  • Page 3: Table Of Contents

    IMPORTANT This manual should be read carefully before the appliance is installed and operated. Read the warnings and guidelines contained in this manual carefully as they provide essential information for the continued safe use and maintenance of the appliance. Retain this manual for any further reference that may be necessary. CONTENTS PAGE Important Safety Information ---------------------------------------------------------------------------3...

  • Page 4: Important Safety Information

    Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. WARNING Indicates a hazardous situation which could result in death or serious injury.
  • Page 5 WARNING, continued • The appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 6: Specifications

    The nameplate is located on the side panel. For certification marks, see the nameplate. We reserve the right to make changes in specifications and design without prior notice. Model Number IM-200BAA AC Supply Voltage 115/60/1 Freeze Cycle Amperes 7.6A Harvest Cycle Amperes 9.3A (Max.)

  • Page 7: Dimensions/Connections

    B. Dimensions/Connections Unit: mm [inches]...

  • Page 8: Installation And Operating Instructions

    II. Installation and Operating Instructions WARNING • The appliance must be installed in accordance with applicable national, state, and local codes and regulations. • Failure to install, operate, and maintain the appliance in accordance with this manual will adversely affect safety, performance, component life, and warranty coverage and may result in costly water damage.

  • Page 9: Checks Before Installation

    B. Checks Before Installation NOTICE • Remove all shipping cartons, tape, and packing material. If any are left in the appliance, it will not work properly. • Remove the shipping tape holding the door and the bin control actuator. • Visually inspect the exterior of the shipping container and immediately report any damage to the carrier.
  • Page 10 Screw Top Panel Screw Top Insulation Top Sheet Screw Front Sheet Front Frame Screw Front Panel Screw Screw Fig. 1...

  • Page 11: Setup

    D. Setup NOTICE • Do not place more than 33 lb. (15 kg) on the top panel. • Do not use the frame to life the appliance. Lift the appliance from the base. • Handle the appliance carefully to avoid damaging the exterior. 1) Attach the five adjustable legs provided to the bottom of the appliance.

  • Page 12: Electrical Connection

    E. Electrical Connection WARNING • Electrical connection must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or damage. • The appliance requires an independent power supply of proper capacity. See the nameplate for electrical specifications.

  • Page 13: Water Supply And Drain Connections

    • External filters, strainers, or softeners may be required depending on water quality. Contact your local Hoshizaki Certified Service Representative or local Hoshizaki distributor for recommendations. • A plumbing permit and services of a licensed plumber may be required in some areas.

  • Page 14: Icemaker

    1. Icemaker Icemaker / Ice Icemaker Water Minimum Icemaker Minimum Icemaker Storage Bin Supply Inlet Water Supply Line Size Drain Line Size Drain Outlet 1/2" Female Pipe 1/4" Nominal ID Copper 3/4" Female Pipe 3/4" Nominal ID Hard Thread (FPT) Water Tubing or Equivalent Thread (FPT) Pipe or Equivalent...

  • Page 15: Final Checklist

    G. Final Checklist WARNING CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after installation. Make sure that none have fallen into the ice storage bin. 1) Is the appliance level? 2) Is the appliance in a site where the ambient temperature is within 45°F to 100°F (7°C to 38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around? 3) Have the minimum clearance requirements specified below been met? Left Side and Top...

  • Page 16: Startup

    H. Startup WARNING All parts are factory-adjusted. Improper adjustments may adversely affect safety, performance, component life, and warranty coverage. NOTICE • If the appliance is turned off, wait for at least 3 minutes before restarting the appliance to prevent damage to the compressor. •...

  • Page 17: Display

    The unit will show an error code and safely stop if the unit is operating outside of acceptable parameters. See the figure below. If an error code appears, please contact your local Hoshizaki Certified Service Representative for assistance. E1: Abnormal freeze cycle...

  • Page 18: Maintenance

    III. Maintenance The appliance must be maintained in accordance with the instruction manual and labels provided. Consult with your local Hoshizaki Certified Service Representative about maintenance service. WARNING • Only qualified service technicians should service the appliance. • To reduce the risk of electric shock, do not touch the control switch or plug with damp hands.

  • Page 19: Cleaning And Sanitizing Instructions

    1. Cleaning Procedure 1) Dilute approximately 4.5 fl. oz. (133 ml) of [Normal Position] recommended cleaner Hoshizaki "Scale Away" with 0.5 gallon (1.9 lit.) of water. 2) Remove the front panel and then move the control switch to the "OFF" position. Unplug the appliance.
  • Page 20 8) Plug in the appliance. Move the control switch to the "ICE" position and then replace the front panel. 9) Allow the appliance to operate for 3 minutes; the water tank drains and cubes are removed from the evaporator. 10) Remove the front panel and then move the control switch to the "OFF" position. Unplug the appliance.

  • Page 21: Sanitizing Procedure - Following Cleaning Procedure

    2. Sanitizing Procedure - Following Cleaning Procedure 1) Dilute a 8.25% sodium hypochlorite solution (chlorine bleach) with water (add approximately 0.16 fl. oz. (4.6 ml) to 0.5 gal. (1.9 lit.) of water). 2) Remove the front panel and then move the control switch to the "OFF" position. Unplug the appliance.

  • Page 22: Preparing The Icemaker For Periods Of Non-Use

    18) Remove the front panel and then move the control switch to the "OFF" position. Unplug the appliance. 19) Remove the top panel, top insulation, top sheet, front frame, and front sheet. 20) Remove the screw and then move the water tank drain pipe to the normal position. See Fig.

  • Page 23: Disposal

    2. Drain the water tank: 1) Move the control switch to the "OFF" position and then unplug the appliance. 2) Remove the top panel, top insulation, and top sheet. 3) Remove the screw and then move the tank drain pipe to the drain position.
  • Page 24 618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com L1M063102...
