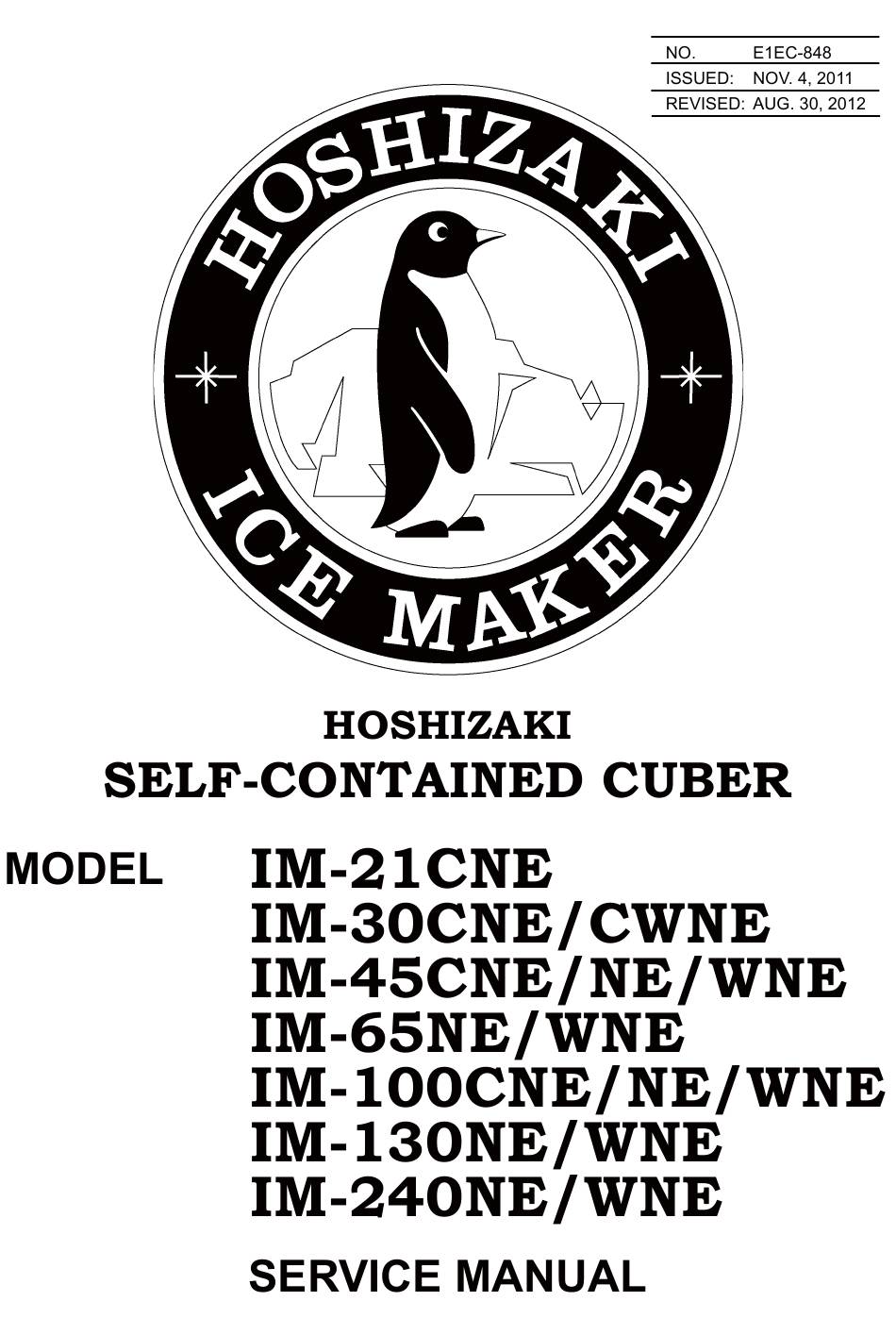

Hoshizaki IM-30CNE Service Manual
Self-contained cuber
Hide thumbs
Also See for IM-30CNE:
- Instruction manual (106 pages) ,
- Service manual (93 pages) ,
- Instruction manual (29 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Hoshizaki IM-30CNE
Summary of Contents for Hoshizaki IM-30CNE
-
Page 56: Performance Data
Water Consumption (lit/h) 3.4 (3.6) 1.7 (1.8) 1.4 (1.6) 1.2(1.4) Electric Consumption (W) Head Pressure [peak] (bar) 10.2 12.8 IM-30CNE Ice Production (kg/d) 23 (28) 22 (24) 18 (19) 15 (16) Freeze Cycle Time (min) 21.0 (13.5) 23.8 (17.7) 30.0 (23.1) 36.5 (27.9) - Page 57 Ambient Temp. (°C) Model Water Temp. (°C) Cube Hole Diameter 5mm(15mm) 5mm(15mm) 5mm(15mm) 5mm(15mm) IM-45NE Ice Production (kg/d) 36 (44) 32 (40) 29 (32) 26 (29) Freeze Cycle Time (min) 22.2 (15.3) 27.5 (19.5) 31.1 (25.0) 35.2 (28.0) Defrost Cycle Time (min) 4.6 (3.8) 2.7 (2.1) 2.2 (2.0)
- Page 58 Ambient Temp. (°C) Model Water Temp. (°C) Cube Hole Diameter 5mm(15mm) 5mm(15mm) 5mm(15mm) 5mm(15mm) IM-65NE-25 Ice Production (kg/d) 45(56.) 44(52) 37(42) 35(38) Freeze Cycle Time (min) 15.8(13.8) 21.5(16.7) 25.9(21.0) 27.6(23.5) Defrost Cycle Time (min) 7.2(3.4) 2.1(1.9) 2.1(2.0) 2.0(1.9) Water Consumption (lit/h) 9.0(9.9) 6.6(8.3) 5.6(6.8)
- Page 59 Ambient Temp. (°C) Model Water Temp. (°C) Cube Hole Diameter 5mm(15mm) 5mm(15mm) 5mm(15mm) 5mm(15mm) IM-100NE-23 Ice Production (kg/d) 72(79) 71(77) 67(70) 65(70) Freeze Cycle Time (min) 20.9(16.5) 22.8(18.7) 25.9(22.5) 27.0 Defrost Cycle Time (min) 5.1(5.0) 3.6(3.4) 2.0(1.8) 1.8(1.7) Water Consumption (lit/h) 20.8(25.0) 9.9(11.7) 9.3(10.6)
- Page 60 Ambient Temp. (°C) Model Water Temp. (°C) Cube Hole Diameter 5mm(15mm) 5mm(15mm) 5mm(15mm) 5mm(15mm) IM-100WNE-21 Ice Production (kg/d) 94(103) 88(97) 85(94) 82(90) (60Hz) Freeze Cycle Time (min) 15.3(12.0) 16.7(13.0) 17.6(13.7) 18.4(14.3) Defrost Cycle Time (min) 2.3(2.0) 2.1(1.8) 1.9(1.6) 1.8(1.7) Water Consumption (lit/h) 30.7(37.8) 13.8(17.2) 13.3(16.6)
- Page 61 Ambient Temp. (°C) MODEL Water Temp. (°C) Suction Pressure Peak (bar) IM-100 “N”-21 type Evaporator Inlet Temp. (°C) -9.0 Suction Pressure Peak (bar) IM-130 “N” type Evaporator Inlet Temp. (°C) Suction Pressure Peak (bar) IM-240 “N” type Evaporator Inlet Temp. (°C) Suction Pressure Peak (bar) IM-240 “N”-21 type Evaporator Inlet Temp.
- Page 62 [b] SECOP (DANFOSS) COMPRESSOR (Ice Production = Capacity when shipped from factory) (*Values for icemaking water only. Use a cooling tower for cooling water.) Cube Hole Diameter: 5mm (15mm) for -28, -23, -32 3mm (7mm) for -21 Ambient Temp. (°C) Model Water Temp.
- Page 63 VI. SERVICE DIAGNOSIS 1. ERROR CODE INDICATION * See the controller board service manual for detailed diagnosis and remedies. * The error and caution codes other than E1 and E2 are indicated as “EE” in the 7-segment display at the time of occurrence. But the error history is recorded as the actual error codes in parenthesis, and a maximum of five errors are indicated from the latest entry.
- Page 64 2. NO ERROR CODE INDICATION Problem Check Possible Cause Remedy Icemaker will Power source Turned off. Turn on. not start. Supply voltage too low. Remove cause Power failure Wait until power is resumed. Transformer Defective. Replace. Power cord Not connected properly. Reconnect.
- Page 65 Problem Check Possible Cause Remedy Imperfect ice Insufficient water Water valve filter clogged. Clean. production. supply Water supply cycle too short. Extend. Water supply pressure too low. Remove cause. Water leaks from Water tank broken. Replace. water tank or Water plate broken. Replace.
