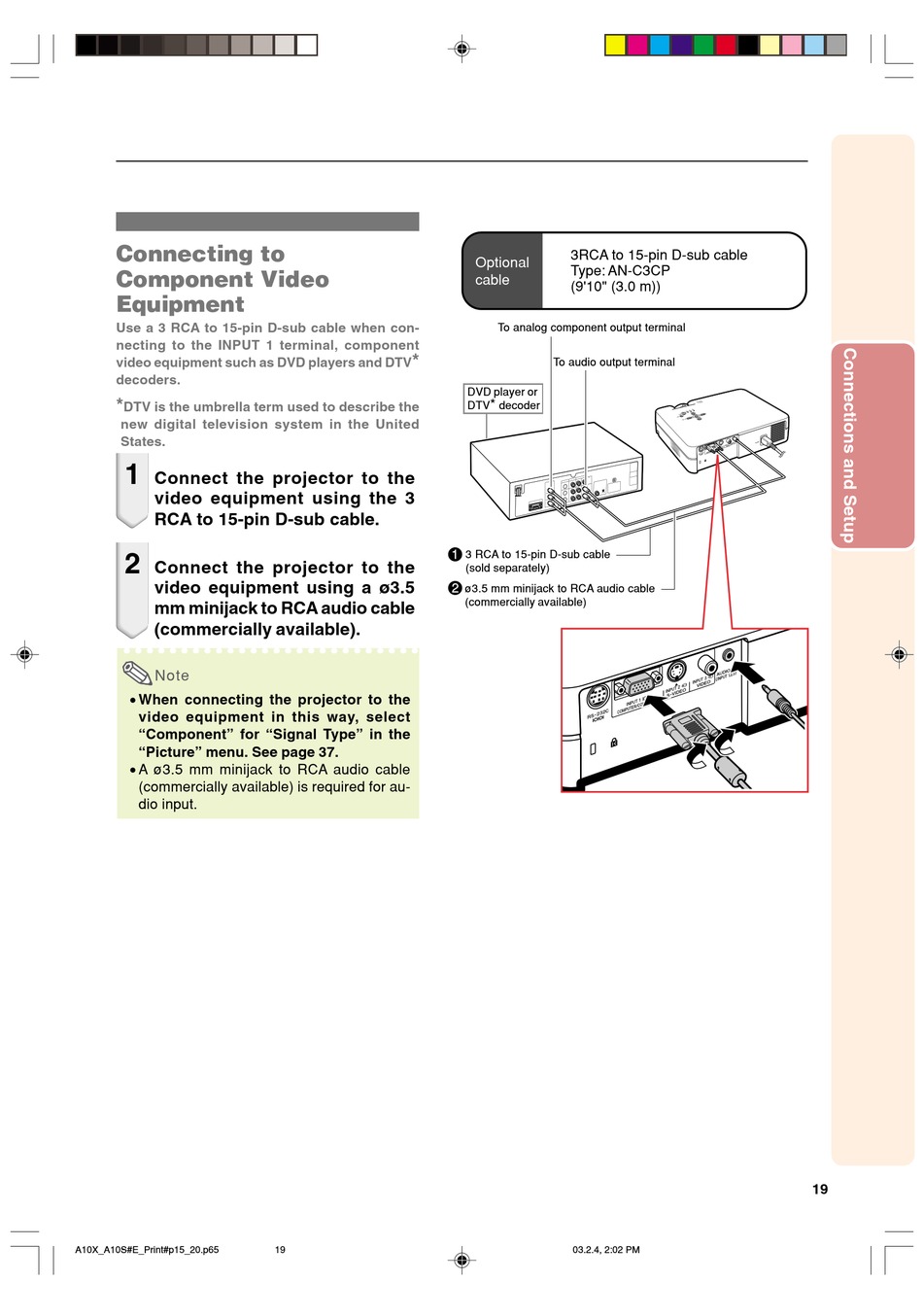

Connecting to
Component Video
Equipment
Use a 3 RCA to 15-pin D-sub cable when con-
necting to the INPUT 1 terminal, component
video equipment such as DVD players and DTV
decoders.
*
DTV is the umbrella term used to describe the
new digital television system in the United
States.
1
Connect the projector to the
video equipment using the 3
RCA to 15-pin D-sub cable.
2
Connect the projector to the
video equipment using a ø3.5
mm minijack to RCA audio cable
(commercially available).
Note
• When connecting the projector to the
video equipment in this way, select
"Component" for "Signal Type" in the
"Picture" menu. See page 37.
• A ø3.5 mm minijack to RCA audio cable
(commercially available) is required for au-
dio input.
A10X_A10S#E_Print#p15_20.p65
*
1
2
19
3RCA to 15-pin D-sub cable
Optional
Type: AN-C3CP
cable
(9'10" (3.0 m))
To analog component output terminal
To audio output terminal
DVD player or
*
DTV decoder
3 RCA to 15-pin D-sub cable
(sold separately)
ø3.5 mm minijack to RCA audio cable
(commercially available)
