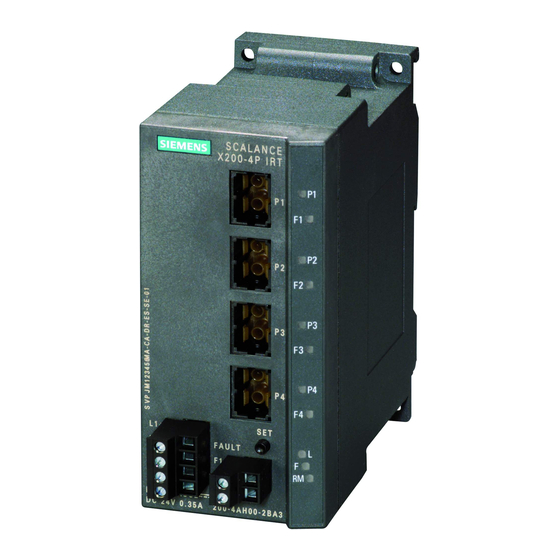

Siemens SCALANCE X-200 Operating Instructions Manual
Siemens SCALANCE X-200 Operating Instructions Manual

Siemens SCALANCE X-200 Operating Instructions Manual

Simatic net industrial ethernet switches
Hide thumbs Also See for SCALANCE X-200:

Advertisement

SIMATIC NET
Industrial Ethernet Switches
SCALANCE X-200
Operating Instructions
02/2018
C79000-G8976-C284-12
___________________
Preface
___________________
Functions
___________________
Description of the device
___________________
Safety notices
___________________
Installation
___________________
Connecting up
___________________
Approvals
___________________
Technical specifications
___________________
Dimension drawings
___________________
Test of mechanical stability
___________________
Training, Service & Support
1
2
3
4
5
6
7
A
B
C

Advertisement

Table of Contents
loading

Summary of Contents for Siemens SCALANCE X-200

  • Page 1 ___________________ Preface ___________________ Functions ___________________ SIMATIC NET Description of the device ___________________ Safety notices Industrial Ethernet Switches SCALANCE X-200 ___________________ Installation ___________________ Connecting up Operating Instructions ___________________ Approvals ___________________ Technical specifications ___________________ Dimension drawings ___________________ Test of mechanical stability ___________________ Training, Service &...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 3: Preface

    ● One 4-pin plug-in terminal block (power supply) ● One DVD (configuration manual, operating instructions, Primary Setup Tool, SNMP OPC profiles) The following components are supplied with a SCALANCE X-200 IE switch with the PRO supplement: ● One device ● Protective caps for the data interfaces ●...
  • Page 4 (https://support.industry.siemens.com/cs/ww/en/view/109479891)). Note the different national regulations. Device defective If a fault develops, please send the device to your SIEMENS service center for repair. Repairs on-site are not possible. Purpose of the Operating Instructions These operating instructions support you when commissioning networks with the devices of the product line SCALANCE X-200.
  • Page 5 ● On the data medium that ships with some products: – Product CD / product DVD – SIMATIC NET Manual Collection ● On the Internet pages of Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/view/60612658). Validity of the Operating Instructions These operating instructions are valid for the following devices:...
  • Page 6 2 bus adapters BA 6ES7 193-6AP20-0AA0 SCRJ/RJ-45 Purpose The SCALANCE X-200 devices are switches for setting up Ethernet networks for industrial applications. Restricted area of application according to Hazardous Locations (HazLoc) The devices are only suitable for use in the following areas: ●...
  • Page 7 Unless mentioned otherwise, the descriptions in these operating instructions refer to all devices of the SCALANCE X-200 product line named above in the section on Validity. In the remainder of the instructions, these will also be referred to as IE switches or also simply as X-200.
  • Page 8 39134641 (http://www.siemens.de/snst) Where to find Siemens documentation ● Article numbers You will find the article numbers for the Siemens products of relevance here in the following catalogs: – SIMATIC NET - Industrial Communication / Industrial Identification, catalog IK PI – SIMATIC - Products for Totally Integrated Automation and Micro Automation, catalog...
  • Page 9 Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers’...
  • Page 10 Preface SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 11: Table Of Contents

    Safety when connecting up ..................... 55 Wiring rules ..........................58 Power supply .......................... 59 5.3.1 Supply with X-200 via the terminal block ................59 5.3.2 Supply for X208PRO....................... 60 5.3.3 Supply for IRT-PRO devices ....................61 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 12 5.6.3 Push-pull connector for IRT-PRO devices ................75 Approvals ............................. 77 Technical specifications ........................85 Dimension drawings ..........................97 Test of mechanical stability ........................103 Training, Service & Support ......................... 105 Index ..............................107 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 13: Functions

    ● WBM - Web Based Management ● Configuration with STEP 7 ● SNMP ● Ring redundancy including redundancy manager ● Passive Listening ● FM devices support the Fiber Monitoring Protocol and allow the monitoring of optical line sections. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 14 • Between a port set to 10 Mbps and a port set to 100 Mbps. • When two packets are to be sent at the same time on one port. In this case, an X-200 IE switch changes to Store&Forward and the delay increases. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 15 The number before the hyphen in the product name indicates the number of electrical connectors. The number following the hyphen indicates the number of optical connectors of the device. For example, the switch X212-2 has twelve electrical and two optical connectors. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 16 Functions SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 17: Description Of The Device

    3 Connector for signaling contact 4 Connector for power supply 5 SET button 6 Optical attachment to Industrial Ethernet 7 Electrical attachment to Industrial Ethernet 8 (on rear of device, not shown in figure:) Slot for C- PLUG SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 18 Connector for power supply Connector for signaling contact (behind the connectors, not shown in figure:) SET button (on side of device, not shown in figure:) Slot for C-PLUG LEDs for attachments to Industrial Ethernet SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 19 LEDs • L: Power LED, power supply • F: Fault LED • RM: Redundancy manager Slot for C-PLUG SET button Connector for signaling contact Connector for power supply SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 20: Accessories

    50 connectors per package IE FC RJ-45 PLUG RJ-45 data plug-in connector for IE FC cables 6GK1 901-1BB12-2AA0 180 4x2 4x2 (24 AWG), 180° cable outlet, CAT6A, 10/100/1000/10000 Mbps, rugged metal housing 1 connector per package SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 21 BA 2xSCRJ PROFINET bus adapter with fiber-optic connector 6ES7 193-6AP00-0AA0 POF/PCF BA 2xSCRJ (Coated) PROFINET bus adapter with FO connector 6AG1 193-6AP00-2AA0 POF/PCF with printed circuit boards with confor- mal coating. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 22 The bus adapter BA 2xSCRJ (coated), for example has no FM approval. If you operate the basic device with a BA 2xSCRJ (coated) the FM approval of the basic device lapses. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 23 Mat with 16 plates pack of 10 Cover for the bus adapter Cover for the unused bus adapter slots 6ES7 591-3AA00-0AA0 slots With the cover the plug contacts are protected from contamination. pack of 5 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 24: The Leds

    No power supply is connected or the voltage is < 14 VDC or with TS devices < 8 VDC. Note The following devices do not have a redundant power supply: • X201-3P IRT PRO • X202-2P IRT PRO • X204IRT PRO SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 25: Fault Led "F" (Yellow/Red Led)

    A loop was detected. • Device startup. The LED lights up for approximately 20 seconds. • Flashing Internal error detected. Notify maintenance personnel. If necessary, send the device in for repair. No error detected. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 26: Redundancy Manager Led "Rm" (Green Led)

    In Web Based Management (WBM), the LED is labeled differently depending on the function: • The redundancy manager function (as shipped) is labeled "RM". • The standby function is labeled "SB" in the WBM. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 27: Standby Led "Rm" (Yellow Led)

    In this status, no data is sent or received via the port. period Green flashes Port exists and is in the "monitor port" status. four times per In this status, the data traffic of another port is mirrored to this port. period SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 28: Diagnostics Leds For Optical Connectors "F" (Yellow Led)

    All port LEDs of the addressed node flash green at 2 Hz. With the Primary Setup Tool (PST) V3.0 or higher, you can trigger this function with "Module \ Flash". SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 29: The Set Button

    The LEDs of the ring ports flash and the RM LED is off. If you release the button in phase 6, the redundancy function is disabled. All LEDs flash. The device is reset to factory settings. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 30: The C-Plug

    X204-2 6GK5 204-2BB00-2AA3 6GK5 204-2BB10-2AA3 X204-2LD 6GK5 204-2BC00-2AA3 6GK5 204-2BC10-2AA3 X206-1 6GK5 206-1BB00-2AA3 6GK5 206-1BB10-2AA3 X206-1LD 6GK5 206-1BC00-2AA3 6GK5 206-1BC10-2AA3 X208 6GK5 208-0BA00-2AA3 6GK5 208-0BA10-2AA3 X208PRO 6GK5 208-0HA00-2AA6 6GK5 208-0HA10-2AA6 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 31 ● The accidental removal of a C-PLUG ● General malfunctions of the C-PLUG. The C-PLUG does not ship with the product The C-PLUG is not supplied with the IE switches X-200, see section “Accessories (Page 20)“. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 32 You will find the slot for the various product groups in the "Device views (Page 17)" Follow the steps below to insert the C-PLUG: 1. Remove the screw cover. 2. Insert the C-PLUG in the slot. 3. Close the slot with the screw cover. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 33 Web Based Management and in the Command Line Interface. In this case, you will need to set the device to operation without C-PLUG. For further information, refer to the section "System C-PLUG" in the section on the WBM menu in the configuration manual. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 34 Description of the device 2.5 The C-PLUG SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 35: Safety Notices

    The current descriptions of the currently available products can be found on the Product Support pages under the entry IDs below: ● Configuration manual SIMATIC NET PH SCALANCE X-200 63203259 (http://support.automation.siemens.com/WW/view/en/63203259) ● System manual SIMATIC NET Industrial Ethernet Network Manual 27069465 (http://support.automation.siemens.com/WW/view/en/27069465)
  • Page 36 • Place the modules only on conductive surfaces. • Pack, store and transport electronic modules and components only in conductive packaging such as metalized plastic or metal containers, conductive foam or household aluminum foil. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 37: Safety Notices For Hazardous Areas

    This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or non- hazardous locations only. This equipment is suitable for use in Class I, Zone 2, Group IIC or non-hazardous locations only. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 38: Security Recommendations

    ● Restrict physical access to the device to qualified personnel because the plug-in data medium can contain sensitive data. ● Lock unused physical interfaces on the device. Unused interfaces can be used to gain access to the plant without permission. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 39 ● Keep the firmware up to date. Check regularly for security updates for the device. You can find information on this at the Industrial Security website. ● Inform yourself regularly about security recommendations published by Siemens ProductCERT. ● Only activate protocols that you require to use the device.
  • Page 40 ● If you require non-secure protocols and services, operate the device only within a protected network area. ● Restrict the services and protocols available to the outside to a minimum. ● For the DCP function, enable the "DCP read-only" mode after commissioning. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 41 NTP (secure) (when config- ured) SNMP UDP/161 Open Open (SNMPv3) (when config- ured) PROFINET IO UDP/34964 Open Open UDP/1026, UDP/1027 * PROFINET IO TCP/84 Open Open Service TELNET TCP/23 Open Open (when config- ured) SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 42 Port status Factory setting Authentication Encryption DHCP UDP/67, Open Closed UDP/68 (when config- ured) TFTP UDP/69 Open Closed (when config- ured) These ports are assigned dynamically and can differ from the values specified here. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 43: Installation

    70 °C. The device must therefore be installed so that it is only accessible to service personnel or users that are aware of the reason for restricted access and the required safety measures at an ambient temperature higher than 50 °C. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 44 WARNING To comply with EC Directive 2014/34/EU (ATEX 114) or the conditions of IECEx, this enclosure or cabinet must meet the requirements of at least IP54 in compliance with EN 60529. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 45 The control cabinet cover or housing must be secured so that it can only be opened with a tool. An appropriate strain-relief assembly for the cable must be used. Note You must not install the device on a wall in hazardous areas. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 46 With the following IE switches, an ambient temperature of maximum +40 °C is permitted if the device is installed on a vertical rail: • X204-2TS • X204-2LD TS • XF204 • XF204-2 • XF206-1 • XF208 • XF204IRT SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 47: Installation Options

    The XF devices (flat design) can only be installed on a 35 mm DIN rail. Installation clearance Keep to the following minimum clearances so that the convection ventilation of the device is not blocked: ● Below at least 10 cm ● Above at least 10 cm SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 48: Installation On A Din Rail

    To remove an X-200 from a DIN rail, follow the steps below: 1. First disconnect all connected cables. 2. Use a screwdriver to release the lower DIN rail catch of the device and pull the lower part of the device away from the rail. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 49: Mounting Onto Standard Rail (Scalance Xf204-2Ba Irt)

    2. Press the device down against the DIN rail until the spring catch locks in place 3. Fit the connectors for the power supply, see the section "Connecting up". 4. Insert the terminal blocks into the sockets on the device. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 50 1. Disconnect all connected cables. ① 2. Release the DIN rail locking mechanism by pressing down on the release button ② 3. Pull the lower part of the device away from the DIN rail SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 51: Installation On A Standard Rail

    To remove an X-200 from a standard rail, follow the steps below: 1. First disconnect all connected cables. 2. Release the screws on the bottom of the standard rail. 3. Remove the X-200 from the standard rail. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 52: Wall Mounting

    2. Connect the electrical cable connecting cables. 3. Fit the connectors for the signaling contact. 4. Insert the terminal blocks or M12 cable connectors into the sockets on the IE Switch X- 200. 5. Screw the device to the wall. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 53: Mounting Bus Adapters

    To remove a bus adapter, follow the steps below: 1. First disconnect all connected cables. 2. Loosen the screw connection of the bus adapter. 3. Pull the bus adapter out of the Base Unit to the front. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 54 Installation 4.7 Mounting bus adapters SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 55: Connecting Up

    The supply of the devices by PELV (Protective Extra Low Voltage) according to DIN VDE 0100-410 or IEC 60364-4-41 is permitted when the generated nominal voltage does not exceed the voltage limits 25 VAC or 60 VDC. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 56 WARNING Take measures to prevent transient voltage surges of more than 40% of the rated voltage. This is the case if you only operate devices with SELV (safety extra-low voltage). SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 57 A suitable device is, for example, the Dehn Blitzductor BVT AVD 24 V type no. 918 422 or a comparable protective element. Manufacturer: DEHN+SÖHNE GmbH+Co.KG, Hans-Dehn-Str.1, Postfach 1640, D-92306 Neumarkt, Germany. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 58: Wiring Rules

    ** See note "Wire end ferrules" Note Wire end ferrules Use crimp shapes with smooth surfaces, such as provided by square and trapeze shaped crimp cross sections. Crimp shapes with wave-shaped profile are unsuitable. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 59: Power Supply

    L2+ 24 VDC With TS devices: L2+ 12 to 24 VDC Note Special features with X208PRO and the IRT-PRO devices Note the special requirements for the power supply for the devices in the following sections. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 60: Supply For X208Pro

    ● The power supply is non-floating. ● The signal cables of the electrical Ethernet interfaces are floating. The following table shows the pin assignment: Pin no.: Assignment L1 or L2: 24 VDC n. c. M1 or M2 n. c. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 61: Supply For Irt-Pro Devices

    In areas subject to the EU directives ATEX and IECEX of the National Electric Code (NEC), the Canadian Electric Code (CEC) and UL, metal connectors must be used. Further information and technical advice on this subject is available from: Jürgen Hertlein, juergen.hertlein@siemens.com. Power supply ● Power: 24 VDC ●...
  • Page 62 DIN or standard rail or that the labeling on the device can be read in the normal reading direction. If no power is looped through, any installation position is permitted. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 63: Supply With Xf-200Irt Devices With Bus Adapter Slots

    ● The power supply is connected over a high resistance with the enclosure to allow an ungrounded set up. ● The power supply is non-floating. ● The signal cables of the electrical Ethernet interfaces are floating. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 64 Connecting up 5.3 Power supply Position and assignment Figure 5-1 Position of the power supply and assignment of the terminal blocks Contact Assignment 24 VDC Ground SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 65: Grounding

    If an IE Switch X-200 is mounted on a non-conducting base, a grounding cable must be installed. The grounding cable is not supplied with the device. Connect the paint-free surface of the device to the nearest grounding point using the grounding cable. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 66: Signaling Contact

    When the IE Switch X-200 is turned off, the signaling contact is always activated, i.e. opened. NOTICE Load on the signaling contact The signaling contact can be subjected to a maximum load of 100 mA (safety extra-low voltage (SELV), 24 VDC). SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 67 The following table shows the pin assignment: Assignment F1: Fault contact 1 F2: Fault contact 2 SCALANCE X-200, XF-200, X- SCALANCE XF-200IRT 200IRT Connection via M12 socket With the X-200 IRT PRO devices and with the X208PRO, the connection is via a 5-pin, b-coded M12 socket.
  • Page 68: Attachment To Industrial Ethernet

    – Select "Enable Standby Master". – The "Standby Connection Name" must match the name of the partner device. – You must also configure the standby port. You will find detailed information in the SCALANCE X-200 configuration manual. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 69: Electrical Connections

    Formation of loops Please note that the direct connection of two ports on the switch or accidental connection over several switches causes an illegal loop. Such a loop can lead to network overload and network failures. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 70 ● With connection using TP cords or TP-XP cords: maximum 10 m ● When connected using IE FC cable with IE RJ-45 plug: Depending on the cable type, a total length of up to 100 m is permitted between two devices. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 71: Electrical Connectors Of The X208Pro

    The IE FC M12 Plug PRO has a high degree of protection (IP65/67) and is suitable for connecting the X208PRO to Industrial Ethernet. You can obtain this plug using the following order number: 6GK1 901-0DB20-6AA0. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 72: Optical Attachments To Industrial Ethernet

    Transmission speed 100 Mbps Transmission mode 100Base-FX according to IEEE 802.3 Connectors BFOC sockets Wavelength 1300 nm Core diameter 50 or 62.5 μm Outer diameter 125 μm Light source Maximum range (segment length) 5 km SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 73: Single Mode Fiber-Optic Cable

    125 μm Light source Maximum range (segment length) 26 km Note No autonegotiation With optical transmission, the full duplex mode and transmission speed cannot be changed. For this reason, the autonegotiation function cannot be selected. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 74: Pof And Pcf Cables

    0.230 dB/m • • with PCF 0.01 dB/m • • Note No autonegotiation With optical transmission, the full duplex mode and transmission speed cannot be changed. For this reason, the autonegotiation function cannot be selected. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 75: Push-Pull Connector For Irt-Pro Devices

    ● X201-3P IRT PRO Due to their high degree of protection (IP65), the push-pull connectors are suitable for installation outside cabinets. The plugs do not ship with the product, see the section “Accessories (Page 20)“. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 76 Connecting up 5.6 Attachment to Industrial Ethernet SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 77: Approvals

    Approvals for shipbuilding are not printed on the device type plate. Current approvals on the Internet You will find the current approvals for the product on the Internet pages of Siemens Industry Online Support. 15285 (https://support.industry.siemens.com/cs/ww/en/ps/15285)
  • Page 78 You will find the EC declaration of conformity for these products on the Internet pages of Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/ps/15273/cert). The EC Declaration of Conformity is available for all responsible authorities at:...
  • Page 79 ● EN 60079-0 II 3 (2) G Ex nA [op is] IIC T4 The IE switches SCALANCE X-200 listed below have additional approval according to II 3 (2) G Ex nA [op is] IIC T4, certificate no.: DEKRA11ATEX0060 X: X204-2 XF204-2 •...
  • Page 80 "n") ● IEC 60079-0 (Explosive atmospheres - Part 0: Equipment - General requirements) You will find the current versions of the standards in the currently valid IECEx certificates. The following SCALANCE X-200 IE switches meet these requirements: X204-2 XF204-2 •...
  • Page 81 ● IEC 60079-28 (Explosive atmospheres - Part 28: Protection of equipment and transmission systems using with optical radiation) You will find the current versions of the standards in the currently valid IECEx certificates. The following SCALANCE X-200 IE switches also meet these requirements: X204-2 XF204-2 •...
  • Page 82 Report no. E240480 CSA Approval for Information Technology Equipment CSA Certification Mark Canadian Standard Association CSA C22.2 No. 60950-1-03 CSA Approval for Industrial Control Equipment CSA Certification Mark Canadian Standard Association CSA C22.2 No. 142-1987 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 83 Approvals FDA and IEC approvals The following SCALANCE X-200 switches meet the FDA and IEC requirements listed below: ● X204-2LD ● X204-2LD TS ● X206-1LD ● X212-2LD Figure 6-1 FDA and IEC approvals CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
  • Page 84 The test was performed with a device and a connected communications partner that also meets the requirements of the standards listed above. When operating the device with a communications partner that does not comply with these standards, adherence to the corresponding values cannot be guaranteed. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 85: Technical Specifications

    60 x 125 x 124 X204IRT PRO 90 x 125 x 124 1000 XF204IRT 75 x 125 x 73 DIN rail mounting only XF204-2BA IRT 100 x 117,1 x 74 DIN rail mounting only SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 86 10/100 Mbps (half / full 100BaseFX) duplex) X200-4P IRT X201-3P IRT X202-2P IRT Type Slots for bus adapters Connector for power supply Connector for signaling contact 2-terminal plug-in block 2-terminal plug-in block XF204-2BA IRT SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 87 600 mA / 60 V X206-1LD 5.28 W 220 mA 600 mA / 60 V X208 3.84 W 185 mA 600 mA / 60 V X208PRO 4.4 W 185 mA 600 mA / 60 V SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 88 200 mA 2 bus adapters BA 2xSCRJ 4 x SCRJ 9.6 W 400 mA 1 bus adapter BA 2xSCRJ 3 x SCRJ + 1 x RJ-45 8.4 W 350 mA 1 bus adapter BA SCRJ/RJ- SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 89 [dBm] max. [dBm] Sensitivity min. [dBm] Input power max. [dBm] XF204-2BA POF cable HCS cable POF cable HCS cable POF cable HCS cable POF cable HCS cable -4.5 -26.8 (with corre- sponding bus adapters) SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 90 IE FC TP marine / trailing / flexible / FRNC / festoon / food cable with IE FC RJ-45 Plug ● 0 to 100 m: IE FC TP standard cable with IE FC RJ-45 plug 180 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 91 6 dB max. permitted cable attenuation with 3 dB link power margin X204-2 X204-2TS X204-2FM X204-2LD X204-2LD TS X206-1 X206-1LD X212-2 X212-2LD XF204-2 XF206-1 X200-4P IRT X201-3P IRT X201-3P IRT PRO X202-2IRT X202-2P IRT X202-2P IRT PRO SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 92 30 s Store and forward 5 μs X-200IRT 4096 30 s (configurable) Store and forward / cut through < 5 μs XF-200IRT 4096 30 s (configurable) Store and forward / cut through < 5 μs SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 93 2000 m at max. 56 ℃ 3000 m at max. 50 ℃ XF206-1 -40 °C to +60 ℃ *) -40 °C to +70 ℃ ‹ 95 % 2000 m at max. 56 ℃ 3000 m at max. 50 ℃ SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 94 3000 m at max. 45 ℃ 1 bus adapter BA SCRJ/RJ45 1 bus adapter BA 0 °C to +50 °C 2000 m at max. 45 ℃ 2xSCRJ 3000 m at max. 40 ℃ 1 bus adapter BA 2×RJ- SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 95 • Between a port set to 10 Mbps and a port set to 100 Mbps. • When two packets are to be sent at the same time on one port. In this case, an X-200 IE switch changes to Store&Forward and the delay increases. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 96 Technical specifications SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 97: Dimension Drawings

    Dimension drawings Figure A-1 Drilling pattern SCALANCE X204-2, X204-2TS, X204-2FM, X204-2LD, X204-2LD TS, X206-1, X206-1LD, X208, X200-4P IRT, X201-3P IRT, X202-2IRT, X202-2P IRT, X204IRT SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 98 Dimension drawings Figure A-2 Drilling pattern SCALANCE X212-2, X212-2LD and X216 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 99 Dimension drawings Figure A-3 Drilling pattern SCALANCE X224 Figure A-4 Side view SCALANCE X-200 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 100 Dimension drawings Figure A-5 Side view SCALANCE X-200 POF with POF interface Figure A-6 Dimension drawings of the SCALANCE X208PRO, SCALANCE X201-3P IRT PRO, SCALANCE X202-2P IRT PRO and SCALANCE X204IRT PRO SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 101 Dimension drawings Figure A-7 Drilling pattern of the SCALANCE X208PRO, SCALANCE X201-3P IRT PRO, SCALANCE X202-2P IRT PRO and SCALANCE X204IRT PRO SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 102 Dimension drawings Figure A-8 SCALANCE XF-200 dimension drawings Dimension drawings SCALANCE XF204-2BA IRT SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 103: Test Of Mechanical Stability

    6 shocks per axis 1 octave/min, 20 sweeps XF204-2 5 – 9 Hz: 3.5 mm 15 g, 6 ms duration 9 – 500 Hz: 1 g 6 shocks per axis 1 octave/min, 20 sweeps SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 104 If only ports of different port groups are used, the device meets the requirements for Environment B in compliance with IEEE 802.3, Section 33.4.1.1. If ports of the same port group are used, the requirements for Environment A are met. SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 105: Training, Service & Support

    Training, Service & Support Industry Online Support In addition to the product documentation, the comprehensive online information platform of Siemens Industry Online Support at the following Internet address: (https://support.industry.siemens.com/cs/start?lc=en-WW) Apart from news, there you will also find: ● Project information: Manuals, FAQs, downloads, application examples etc.
  • Page 106 Training, Service & Support SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
  • Page 107: Index

    Glossary, 9 SET button, 29 SIMATIC NET glossary, 9 SIMATIC NET Selection Tool, 8 Support, 105 System manual, 7, 84 Installation Installation on a DIN rail, 49 Installation on a DIN rail, 49 Training, 105 SCALANCE X-200 Operating Instructions, 02/2018, C79000-G8976-C284-12...
