KIT FEATURES
• ISO DIN and DDIN radio provisions
• Painted Matte Black
• AXXESS Interface included
• Provides accessory (12 volt 3 amp) and retained
accessory power
• Retains all warning chimes
KIT COMPONENTS
• A) Radio Trim Panel • B) Radio Brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws • E) (10) White Plastic Panel Clips
• F) Interface • G) 4-pin to 44-pin harness
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Interface included

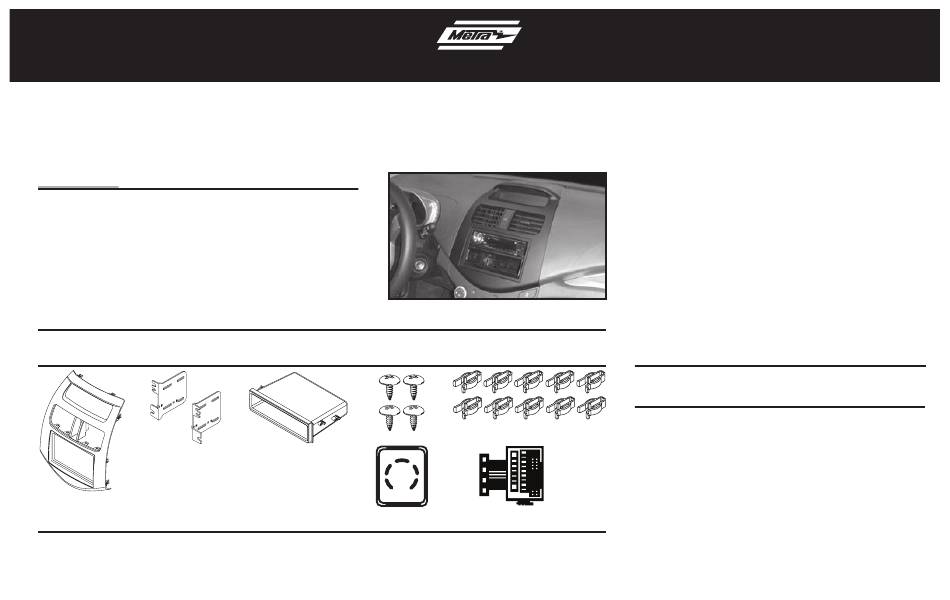

INSTALLATION INSTRUCTIONS FOR PART 99-3309B-LC
Chevrolet Spark 2013-up
99-3309B-LC
C
D
F
Antenna Adapter: • 40-EU55 antenna adapter
APPLICATIONS
E
G
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Small flat-blade screwdriver
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
