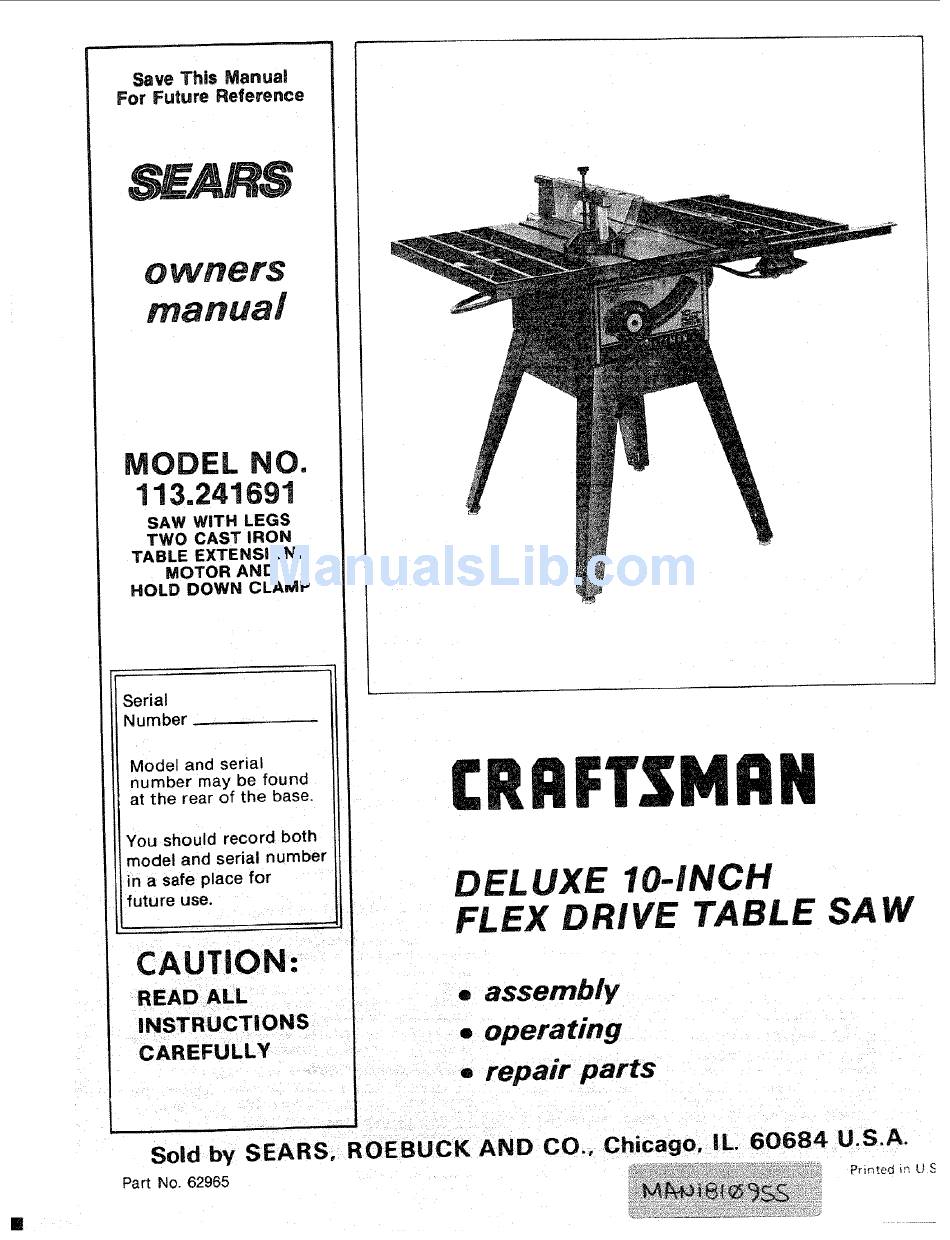

Deluxe io-inch flex drive table saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Save This Manual
For Future Reference
owners
manual
MODEL NO.
113.241591
SAW WITH
LEGS
TWO CAST
IRON
TABLE
EXTENSIONS
MOTOR
AND
HOLD
DOWN
CLAMP
Serial
Number
Model
and serial
number
may be found
at the rear of the base.
You should record
both
model
and serial number
in a safe place for
future
use.
CAUTION:
READ
ALL
INSTRUCTIONS
CAREFULLY
L
#
DELUXE
IO-INCH
FLEX DRIVE
TABLE
SAW
. assembly
. operating
= repair
parts
Sold by SEARS,
ROEBUCK
AND
CO.,
Chicago,
IL. 60684
U.S.A.
PriP,_:ed _n U_
Part No. 62965
