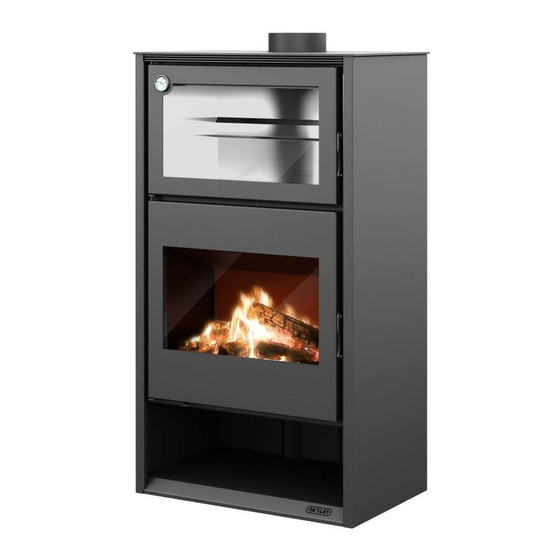

- Page 1 Installation and Operation Manual ATLAS WOOD BURNING COOKSTOVE (DB04810 model) Security test made according to regulations ULC S627 and UL 1482 by an accredited laboratory. READ AND KEEP THIS MANUAL FOR REFERENCE Printed in Canada 45962A...
- Page 3 It is also highly recommended to register the warranty online at https://www.drolet.ca/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit. Installation and operation manual - Atlas woodburning cookstove...
-
Page 4: Table Of Contents
TABLE OF CONTENTS PART A - OPERATION AND MAINTENANCE ................1. Safety Information ........................7 2. General information ........................ 8 Specifications ....................... 8 Cookstove Dimensions ....................9 3. Fuel ............................10 Recommended Fuel ......................10 4. Stove Operation ........................10 Components Location ....................10 Cooking ........................11 First Fires ........................11 Lighting a Fire ......................11... - Page 5 10. Combustion Air Supply ......................27 11. Chimney Connector Installation ................... 27 11.1 Single Wall Chimney Connector Installation ..............27 12. Troubleshooting ........................30 13. Exploded View and Parts List ....................31 Atlas Cooking Stove Limited Lifetime Warranty ................ Dealer: Installer: Phone Number: Serial Number: Installation and operation manual - Atlas woodburning cookstove...
- Page 6 CERTIFICATION PLATE Page 6 Installation and operation manual - Atlas woodburning cookstove...
-
Page 7: Part A - Operation And Maintenance
PART A - OPERATION AND MAINTENANCE 1. Safety Information • Operate only with doors fully closed. If door is left partly open, gas and flame may be drawn out of the opening, creating risks from both fire and smoke. • The cookstove is not designed to be used when the door is open. Open the door only to startup or to reload the stove. -
Page 8: General Information
2. General information 2.1 Specifications Model Atlas woodburning cookstove (DB04810) Fuel Type Dry Cordwood Recommended log length 15 - 18 in (400 - 500 mm) Flue outlet diameter 6 in (150 mm) Chimney diameter 6 in (150 mm) Type of chimney UL 103 HT, ULC S629 Necessary flue draft 0,05"... -
Page 9: Cookstove Dimensions
2.2 Cookstove Dimensions 6" Ø 150mm 5 3/8" 136mm 18" 459mm 27" 684mm Figure 1: Top view 10" 19" 252mm 484mm 49 3/8" 1254mm 47 3/8" 1202mm 11" 278mm 19" 484mm Figure 2: Front view Figure 3: Side view Installation and operation manual - Atlas woodburning cookstove Page 9... -
Page 10: Fuel
3. Fuel 3.1 Recommended Fuel Wood burner performance depends greatly on the fuel used. Good firewood has been cut to the correct length for the appliance, split to a range of sizes and stacked in the open until its moisture content is down to 15% to 20%. Proper fuel makes it easier to regulate heat and keep the wood burner and flue in better condition. -
Page 11: Cooking
It is prohibited to put or store: alcohol, gasoline, liquid fuel, flammable materials, ashes, paper and wood in the accessory compartment. 4.2 Cooking Cooking can be done in the stainless steel oven, using the cooking grills and the trays provided with the cookstove. -
Page 12: Maintaining Wood Fires
4.5 Maintaining Wood Fires 4.5.1 General Advice Wood burns best in cycles. A cycle starts when a new load of wood is ignited by hot coals and ends when that load has been consumed down to a bed of charcoal about the same size as it was when the wood was loaded. -
Page 13: Adjusting Primary And Secondary Air Inlet
Raking the coals is useful for two reasons. First, it brings them near where most of the combustion air enters the firebox. This will ignite the new load quickly. Secondly, the charcoal will not be smothered by the new load of wood. When the embers are simply spread inside the combustion chamber, the new load smoulders for a long time before igniting. - Page 14 CLOSE FERMÉ OPEN OUVERT Figure 5: Cold hand Figure 6: Air inlet control 4.6.1 Regulating the air during lighting Opening the air inlet completely is mandatory during the lighting, and it is recommended to leave the door ajar during lighting as well, in order to avoid condensation of fumes on the glass. Wait enough time (until the hearth has warmed up) before starting to regulate the air inlet.
-
Page 15: Cookstove Maintenance
5. Cookstove Maintenance This cookstove will give many years of reliable service if used and maintained properly. Some of the internal components of the firebox, such as vermiculite and baffle will wear over time under intense heat. Defective parts should always be replaced with original parts. Firing each load hot to begin a cycle will not cause premature deterioration of the cookstove. - Page 16 Never use an abrasive cleaner on the window. Do not clean the window when it’s hot. Do not force, hit, slam, or do anything that could weaken the glass door. Do not use the cookstove if the window is missing, cracked, or broken. 5.5.1 Replacing the Glass Door and the Glass Gasket The glass used in the this cookstove is 4 mm thick, and was tested to reach temperatures up to 1400º...
-
Page 17: Chimney Maintenance
6. Chimney Maintenance 6.1 Why Sweep the Chimney? Wood smoke can condense inside the chimney and the chimney connector, forming a flammable deposit called creosote. If the creosote builds up in the evacuation system, it can combust when the fire is very hot. An extremely hot fire can progress to the extremity of the chimney. Severe chimney fires can damage even the best chimneys. -
Page 18: Part B - Installation
PART B - INSTALLATION 7. General Information 7.1 Security • Read this manual completely before installing the cookstove. It is important to fully respect the installation instructions. If the cookstove is not correctly installed, it could result in a fire, bodily injuries or even death. -
Page 19: Clearances To Combustible Materials
7.4 Location of the Certification Label Since the information given on the certification label affixed to the appliance always overrides the information published, in any other media (owner’s manual, catalogues, flyers, magazines and web sites) it is important to refer to it in order to have a safe and compliant installation. In addition, important information about the stove can be found (model, serial number, etc.). - Page 20 Figure 8: Clearances - Top Figure 9: Clearances - Side Figure 10: Clearances - Corner Page 20 Installation and operation manual - Atlas woodburning cookstove...
- Page 21 APPLIANCE CLEARANCES (INSTALLATION APPLIANCE CLEARANCES (INSTALLATION WITH SINGLE OR DOUBLE WALL PIPE WITH DOUBLE WALL PIPE CONNECTOR AND CONNECTOR) HEAT SHIELD AC02710 Canada Canada 15 ½" (394 mm) 15 ½" (394 mm) 2 ½" (64 mm) 2 ½" (64 mm) 13"...
-
Page 22: Clearances Reduction To The Walls And The Ceiling
Floor Protection This cookstove is designed to prevent the floor from overheating. However, it must be placed on a non-flammable surface to protect the floor from hot embers that may fall during loading. The floor protection must be a continuous non-combustible surface such as steel with a minimum thickness of 0.015"... - Page 23 Table 2 : Clearances Reduction Percentages Table CLEARANCES MAY BE REDUCED BY THESE PERCENTAGES TYPE OF SHIELD SIDES AND REAR TOP (CEILING) CAN /USA CAN /USA MIN. MIN. Sheet metal, a minimum of 24 gauge (0.61 mm) in thickness , spaced out at least 25 mm (1 in)* 12 in 18 in by non-combustible spacers...
-
Page 24: Clearances For Shield Installation
8.2 Clearances for Shield Installation Minimum clearance between the top of 925 mm the appliance and the (36 ½") unprotected ceiling Shield extension above 500 mm appliance (20") USA 25 mm (1") Minimum space behind the Can. 21 mm shield (7/8") USA 25 mm (1") Clearance at the bottom of... -
Page 25: The Exhaust System
9. The Exhaust System 9.1 General Information The exhaust system, consisting of the chimney and the pipe that connects the cookstove to the chimney, acts as the engine that drives the wood heating system. Even the best appliance will not work as securely and adequately as expected if it is not connected to an adequate chimney. The heat contained in the exhaust gas, which goes from the cookstove to the chimney connector, then to the chimney, is not lost heat. -
Page 26: Chimney Height
9.2.2 Masonry Chimney The cookstove may also be connected to a masonry chimney, provided the chimney complies with the construction rules found in the building code enforced locally. The chimney must have either a clay liner or a suitably listed stainless steel liner. If the masonry chimney has a square or rectangular liner that is larger in cross sectional area than a round 6"... -
Page 27: Combustion Air Supply
Combustion Air Supply For the cookstove draft to work correctly, the room must have an outside or fresh air inlet, with a minimum of 4" diameter, from the house exterior to the room, that is at least sufficient to replenish the volume of air that comes out of the chimney flue. In well insulated houses an air inlet must be fitted through the outer wall that is not exposed to the prevailing winds, depending on the surrounding conditions of the house. - Page 28 Vertical or horizontal Vertical installation, Vertical or horizontal installation, prefabricated prefabricated interior installation, masonry exterior exterior chimney chimney chimney The rules below are based on the rules found in the installation code of a solid fuel burning appliance. It is imperative to carefully follow these installation instructions or those of the local code.
- Page 29 • The installation must be able to expand: the installation of elbows allow expansion; straight installations must have a coupling pipe with an extremity without attachment or with a telescopic section. • Minimum upward slope toward the chimney: 20 mm/m (¼" per foot) •...
-
Page 30: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSES SOLUTION • Draft too low • Bad air intake adjustment • Check that all the pipes are clean. • Too much combustible in the • Modify the chimney: increase the height Oven window cookstove. or check surrondings. or combustion chamber’s window •... -
Page 31: Exploded View And Parts List
Exploded View and Parts List Installation and operation manual - Atlas woodburning cookstove Page 31... - Page 32 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your unit, please provide the model number and the serial number. We reserve the right to change parts due to technology upgrade or availability. Contact an authorized dealer to obtain any of these parts.
-
Page 33: Atlas Cooking Stove Limited Lifetime Warranty
*Subject to limitations above. **Picture required. Shall your unit or a components be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: Your name, address and telephone number;... - Page 34 NOTES...
- Page 36 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 418-908-8002 of information contained in any document obtained from www.drolet.ca/en/ unauthorized sources. tech@sbi-international.com...
