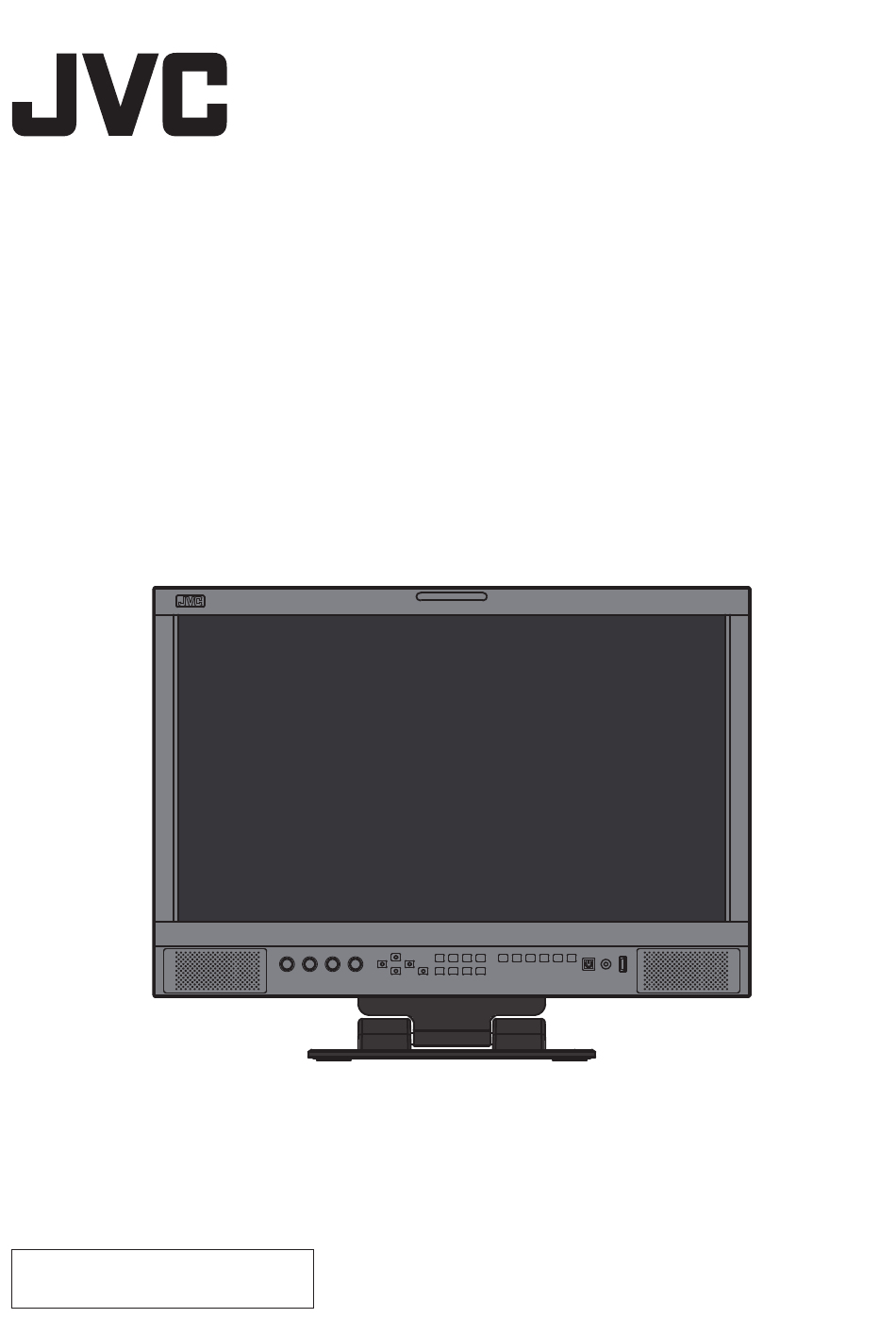

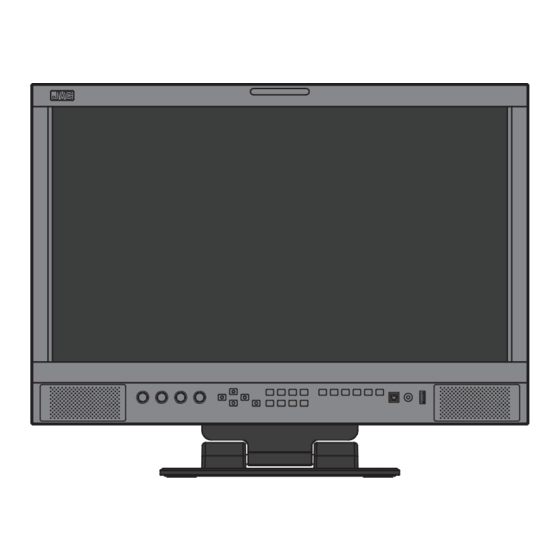

- Page 1 MULTI FORMAT LCD MONITOR DT-G17E DT-G21E DT-G24E DT-G27E INSTRUCTIONS For Customer Use: Please read the Instruction Manual carefully and retain this information for future reference. Version: D...
-
Page 2: Safety Precautions
Safety Precautions The lighting flash with arrowhead symbol, within an equilateral triangle is CAUTION intended to alert the user to the presence of uninsulared “dangerous voltage” RISK OF ELECTRICAL SHOCK within the product’s enclosure that may DO NOT OPEN be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 Safety Precautions (cont.) Under the following conditions, • Make enough room for inserting or removing the power plug. Turn off the power. Place the product as close to an AC outlet as possible. The 2. Unplug this product from the wall outlet. main power supply for the product is controlled by inserting or 3.
-
Page 4: Operating Precautions
Operating Precautions IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Table Of Contents
Table of Contents Safety Precautions ............2 IMPORTANT SAFEGUARDS Operating Precautions . -
Page 6: Installation
The DT-G17E provides a pair of rack ears to be installed on standard 19” racks. Step1: Fix the supplied rack ears onto left and right side of the DT-G17E monitor, by supplied 4 screws. Step2: Install the monitor onto the standard 19-inch rack. Occupy 7U height. -
Page 7: Index Of Parts And Functions
Index of Parts and Functions Rear panel REMOTE terminal Terminal for controlling the monitor by an external control. ( Page 20.) E. AUDIO 3G/HD/SD SDI (IN 1, IN 2) terminals (BNC) Input / Output terminals for the HD/SD SDI signals. The terminals accept also EMBEDDED AUDIO signals including up to 16 audio channels with a sampling frequency of 48 kHz. -
Page 8: Front Panel
Index of Parts and Functionos (cont.) Front panel Tally lamp This lamp is controlled by the tally function of the Make contact terminal. ( External Control on Page 18.) You can select the color of the tally lamp from "Green", "Red", or "Yellow". -
Page 9: Showing Input Signals
Showing Input Signals On the Information Display On the Status Display Main Menu Status TC：00:15:13:07 HDMI Exit&Status ＞ CAMERA 1 Picture User Profile ＞ Color Temp XXXX Color Temp ＞ Func�on Key Scan Mode ＞ Freeze Frame ＞ Odd/Even Frame ＞... -
Page 10: The Operation Procedure
The Operation Procedure Note Press the “MENU” button to display the Main Menu. The items in gray means not available Press “ ” and “ ” to select submenu, the selected submenu highlights in yellow; Press “ ” to set up. to apply and enter into the selected submenu item. -
Page 11: Main Menu
Main Menu Picture Function Setting for the picture quality. Item To do Setting value Exit Return to Main Menu Contrast Adjusts the contrast of the display. -50 to +50 Brightness Adjusts the brightness of the display. -50 to +50 Chroma Adjusts the saturation of the display. - Page 12 Setting functions for external control Item To do Setting value Exit Return to Main Menu Enable GPI control ON, OFF GPI Control *1 1 Pin Red Tally, Green Tally, Yellow Tally, Video, HDMI, SDI1, SDI2, Focus Assist, 2 Pin Low Latency Mode, Odd/Even Frame , Max Backlight,Audio Alarm, UMD, Assign functions to the GPI 3 Pin Color Bar, Marker, R/G/B/Mono, H/V Delay, AFD, False Color, Histogram,...
- Page 13 Marker Settings for marker functions Item To do Setting value Exit Return to Main Menu Marker Turn the marker display on / o O , On Marker Select Adjust the ratio of marker O , 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1 Safety Area Safety area setting O , 80%, 85%, 90%, 93%, 95%...
- Page 14 Audio Setting Setting for the audio meters and channel selection Item To do Setting value Exit Return to Main Menu Audio Bar Turn on / turn o the audio bar display On, O Bar Frame : On Bar Frame : O On, O Turn on / turn o the Yellow...
- Page 15 Vector Setting for Vector scope and Histogram patterns Item To do Setting value Exit Return to Main Menu Vector Turn on/o the Vector scope pattern O , On Bottom Right, Center, Top Left Vector Position *1 Vector scope pattern on screen display position setting Top Right, Bottom Left Vector Blending Vector scope pattern background transparency selection...
- Page 16 Display Setting value Item To do Exit Return to Main Menu Waveform Audio Bar Vector Zebra Focus Assist Time Code *1 Histogram False Color AFD *1 H/V Delay *1 Blue Only, Red Only, Green Only, Mono R/G/B/Mono Select Red only, Green only, Blue only or Black/White mode Color Bar Marker Low Latency Mode *2...
- Page 17 Re-calibrated 3DLUT cube Select a preset 3DLUT to convert Camera Log Mode to Rec.709. The User-Log is to select the user uploaded 3DLUT. J-Log1.cube JVC J-Log1 De-log 3DLUT cube *2 Color Space Log-C.cube ARRI Log-C De-log 3DLUT cube Switch to “LCD panel”, the monitor will display LCD native color space, and S-Log2.cube...
- Page 18 Auto Calibration Operations for automatic 3DLUT color calibration Item To do Setting value Exit Return to Main Menu Probe Select Select probe that used for the calibration X-rite Eye One Pro OEM, Jeti Specbos*1 Start Calibration *2 Start the auto calibration No, Yes *1 X-rite Eye One Pro OEM, Jeti Sepcbos The monitor support the following probe models:...
- Page 19 Adjust the OSD display size, color, duration, and TALLY light/keyboard light settings Item To do Setting value Exit Return Main Menu OSD Language English OSD Blending OSD Blending setting Low, Medium, High, O OSD Duration*1 OSD Duration setting 10Sec,15Sec, 30Sec, 60Sec Key Led Brightness Key Led Brightness setting Low, Medium, High, O...
-
Page 20: External Control
External Control About the external control To assign the functions to the pin terminals This monitor has three external control terminals. RS-485 terminal (RJ-45): Select “GPI” on the Main Menu. Controls the monitor with the RS-485 system. Set “GPI control” to “ON”. The terminal is to connect with TallyMan system of UMD application. -
Page 21: Using The Webserver Ip Control
External Control (cont.) Using the Webserver IP Control 1) Set the computer Ethernet IP address at: 192.168.1.XXX. (Do not set to the same as monitor IP) Pin No Pin name This is a female terminal. Connect the monitor ETHERNET port into LAN, and the monitor can be remote controlled by webserver. - Page 22 External Control (cont.) Monitor Control Port: 1024~65535 Status Frame Click ON or OFF to turn on/o the frame related settings: Read the monitor current status, including: input source, video format, Volume/Chroma/Bright/Contrast setting Freeze Frame mode, Odd/Even Frame mode, Low Latency values, Freeze Frame, Odd/Even Frame, Low Latency mode.
-
Page 23: Troubleshooting
Troubleshooting The solutions to common problems related to the monitor are described here. If none of the solutions presented here solve the problm, unplug the monitor and consult an authorized dealer or service center. Symptom Page Probable cause and corrective action Check AC input switcher on the rear side of the monitor. -
Page 24: General
6.8 kg(15lbs) 7.95 kg(17.5 lbs) Weight(with the stand) 5.5kg(12.1lbs) 7.3kg(16.1lbs) 8.3kg(18.3lbs) 9.45kg(20.8lbs) Accessories AC power cord x 1, Monitor stand x 1, 19-inch rack ear x 2 (Only DT-G17E) LCD panel Model name DT-G17E DT-G21E DT-G24E DT-G27E 476.64 mm (18 3/4˝) 597.89 mm (23 1/2˝) -
Page 25: Dimensions
Specifications (cont.) Dimensions Unit: mm VESA mounting holes (Size:M4,deep:10mm) DT-G17E VESA mounting holes (Size:M4,deep:10mm) DT-G21E VESA mounting holes (Size:M4,deep:10mm) DT-G24E VESA mounting holes (Size:M4,deep:10mm) DT-G27E... -
Page 26: Available Signals
Specifications (cont.) Available signals The following signals are available for this monitor. Video signals Input terminal Signal format shown in Signal name the status display CVBS YPbPr HDMI NTSC NTSC — — — — √ — — — NTSC 4.43 NTSC —... - Page 27 This monitor is precision equipment and needs dedicated packing material for transportation. Never use any packing material supplied from sources other than JVC or JVC-authorized dealers. For easy understanding, pictures and illustrations are shown by being emphasized, omitted or composed, and may be slightly di erent from actual products.
