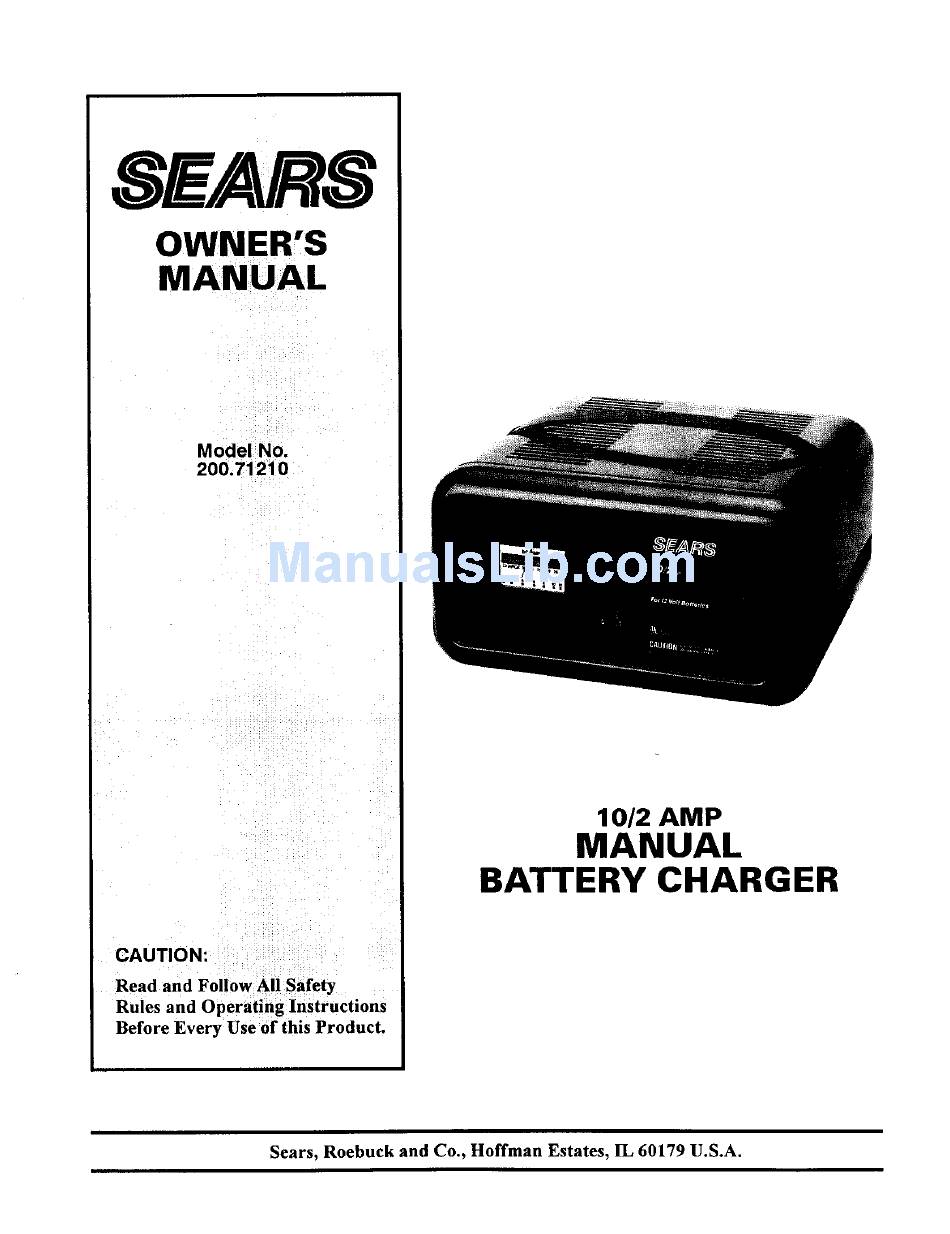

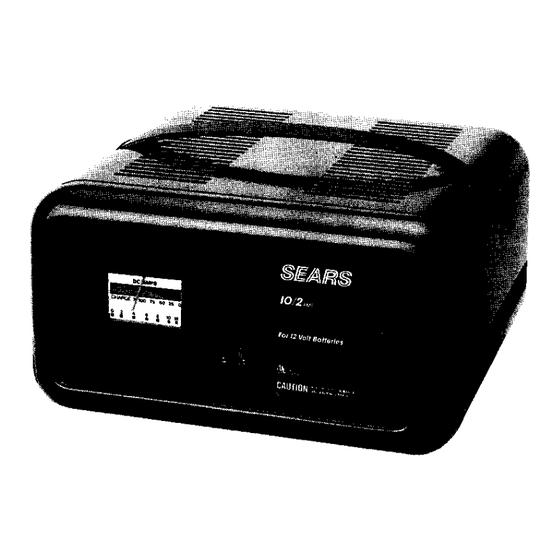

- Page 1 SE/ S OWNER'S MANUAL Model No. 200.71210 10/2 AMP MANUAL BATTERY CHARGER CAUTION: Read and Follow All Safety Rules and Operating Instructions Before Every Use of this Product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
-
Page 2: Table Of Contents
FULL "fWO-YEAR WARRANTY If, within two years from the date of purchase this battery charger fails due to a defect in materials or work- manship, simply RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair or replace it, free of charge. -
Page 3: Important Safety Instructions
This may spark or short circuit the battery or another electrical device that may cause an explosion. • Always operate your battery charger in an open, well ventilated area. • Never smoke or allow a spark or flame in the vicinity of the battery or engine. -
Page 4: Parts
Parts This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are located, and what they look like. Replacement Parts List Sears 71210 Item Description Cover Heatsink/Diode Assembly Base AC Power Cord... -
Page 5: Before Using Your Battery Charger
Before Using Your Battery Charger It is important to understand your charger's requirements. This section will tell you about your charger's electrical requirements and how to prepare a battery for charging. Plugging it in Your charger should be grounded to reduce the risk of electrical shock. -
Page 6: Preparing Your Battery To Be Charged
Preparing your battery to be charged It is important that you read and follow these guidelines while you are preparing to charge your battery. • Make sure that you have a 12 volt lead-acid battery. • Clean the battery terminals. Be careful to keep corrosion from getting in or around your eyes. -
Page 7: Using Your Battery Charger
Using Your For best results from your battery charger, learn to use it properly. This section tells how to set the controls and how to charge a battery in or out of the vehicle. Setting the Controls SELECTOR SWITCHES: A 2-way switch is used to select the 2-AMP or the 10-AM P charge rate. - Page 8 11. Standing away from the battery, remove the charger clamps In this order: (1) from the chassis connection and, (2) from the battery post or terminal. 12. Clean and store the battery charger in a dry location. Charging your battery outside the vehicle: 1.
-
Page 9: Calculating Charge Time
Calculating charge Chart Method Use the following table to more accurately determine the time it will take to bring a battery to full charge. First, identity where your battery fits into the chart. • Small batteries motorcycles, -- are usually rated in Ampere Hours (AH). For example;... -
Page 10: Maintenance And Care
Maintenance and care A minimal amount of care can keep your battery charger working properly for years. Clean the clamps each time you are finished charging. Wipe off any battery fluid that may have come in contact with the clamps to prevent corrosion. -
Page 11: Troubleshooting
Separate the clamps. Circuit breaker cycles when current draw is too high. Check for worn cables and replace if needed. Have a Sears technician test the battery, Correct connections. Use shorter or heavier extension cord. Sulfated battery will eventually take a normal charge if left connected. - Page 12 SEARS OWNER'S MANUAL Model No. 200.71210 When requesting service or ordering parts, always provide the following information: • Product Type • Model Number • Part Number • Part Description 0000000509-895 10/2 MANUAL BATTERY CHARGER Forinformation abouttroubleshooting Call t oll-free fromanywhere intheU.S.A.
