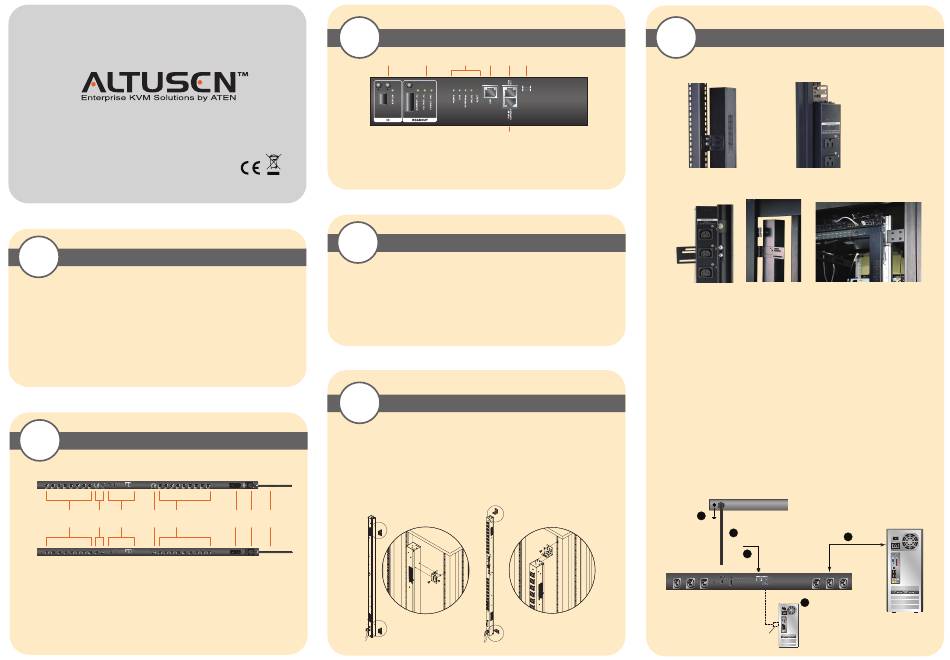

Package Contents
The PN5212/PN5320 package consists of:
1 PN5212 or PN5320 Power Distribution Unit
2 Rack Mount Kit
3 Serial Adapters
1 Grounding Wire
1 SA0149 (RJ45F to DB9F)
1 User Manual
1 SA0150 (RJ45F to DB9M)
1 Quick Start Guide
1 SA0151 (RJ45F to DB9F)
1 Software CD
2
Hardware Review (Front View)
1 2 3 2 1
1. Power Sockets (17 x NEMA 5-15R or 17 x IEC C13) 4. Circuit Breaker
2. Port and LED Panel 5. Grounding Terminal
3. Power Sockets (3 x NEMA5-20R or 3 x IEC C 19) 6. Power Cord
Note: The Front View diagram depicts a PN5320. The PN5212 is basically the same, except there are
only 12 AC power sockets (6 on each side of the Port and LED panel), and all the sockets are
NEMA 5-15R or IEC320 C13. There are no NEMA 5-20R or IEC320 C19 sockets
3
Hardware Review (Port and LED Panel)
1
1. Station Selection
2. Readout Section
3. Status LEDs and Reset Switch
4. LAN Port
4
Requirements
• Browsers accessing the PN5212 / PN5320 must support SSL 128 bit encryption.
• For cold booting of attached computers, the computer's BIOS must support Wake on LAN or
System after AC Back.
• For Safe Shutdown:
• The computer must be running Windows (Windows 2000 or higher), Linux.
• The safe shutdown AP (available by download from our website or from the software CD
included), must be installed and running on the computer
5-1
Hardware Installation
Rack Mounting
The PN5212 / PN5320 can be installed in a 0U configuration on the side of a rack. To rack mount
the device, use the rack mounting brackets that came with your device.
PN5320 - IEC
1. The brackets can be mounted either on the back panel, or the top and bottom of the device.
4 5 6
PN5320 - NEMA
2 3 4 5 6
7
5. PON Out Port
6. RS-232/RS-485 Switch
7. PON In / Console Port
5-2
Hardware Installation
3. L bracket, mounting style 2
2. L bracket, mounting style 1
4. Z bracket, mounting style 1, 5. Z bracket, mounting style 2
front and rear view.
Single Stage Installation
In a single stage installation, there are no additional PN5212 / PN5320 stations daisy chained down from
the first unit. To set up a single stage installation, refer to the installation diagram (the numbers in the
diagram correspond to the numbered steps), and do the following
1. Use a grounding wire to ground the PN5212 / PN5320 by connecting one end of the wire to its
grounding terminal, and the other end of the wire to a suitable grounded object.
Note: Do not omit this step. Proper grounding helps to prevent damage to the unit from surges or static
electricity.
2. For each device you want to connect, use its power cable to connect from the device's AC socket to
any available outlet on the PN5212 / PN5320.
3. Plug the cable that connects the PN5212 / PN5320 to the LAN into the PN5212 / PN5320's LAN port.
4. (Optional) If you wish to use a console terminal connection, use Cat 5e cable to connect the PN5212 /
PN5320's PON IN/Console port to the SA0151(DTE) adapter supplied with your package. Connect
the adapter's serial connector to the COM port of the computer you will use for the console terminal.
5. Connect the PN5212/PN5320's power cord to an AC power source.
Note: We strongly advise that you do not plug the PN5212/PN5320 into a multi socket extension cord,
since it may not receive enough amperage to operate correctly.
Once you have finished these installation steps, you can turn on the PN5212 / PN5320 and the connected
devices.
Note: We strongly recommend using cable ties and cable bars to safely and securely route the cables
attached to the back of the unit.
1
5
3
4
SA0151
(DTE)
2
