Summary of Contents for ATEN eco PDU PE7214

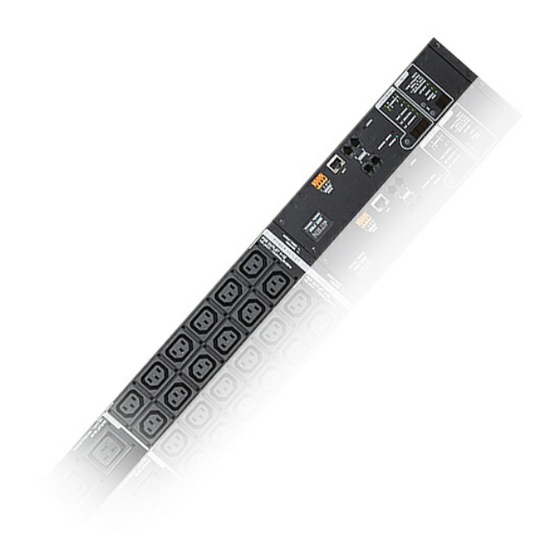

- Page 1 PDU PE Series PE7214 / PE7216 / PE7324 / PE7328 / PE8121kJ / PE8216 / PE8316G / PE8324 / PE8324A / PE8324JA / PE9216 / PE9222 / PE9324 / PE9330 Power Distribution Unit User Manual www.aten.com...
-
Page 2: Sj/T 11364-2006
eco PDU PE Series User Manual FCC, CE Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8-4481-58923 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. -
Page 4: Package Contents
Copyright © 2013 ATEN® International Co., Ltd. Manual Date: 2013-12-23 NRGence and the NRGence logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
eco PDU PE Series User Manual Contents FCC Information ..........ii SJ/T 11364-2006. - Page 6 eco PDU PE Series User Manual PDU Placement ..........32 Installation .
- Page 7 eco PDU PE Series User Manual Security ..........64 Login Failures .
-
Page 8: Conventions
eco PDU PE Series User Manual Conventions This manual uses the following conventions: Monospaced Indicates text that you should key in. Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 9: Product Information
For information about all NRGence products and how they can help you save money in the data center, visit NRGence on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers International –... -
Page 10: Chapter 1. Introduction
Chapter 1 Introduction Overview As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE7214 / PE7216 /... - Page 11 Chapter 1. Introduction and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
-
Page 12: Comparison Chart
eco PDU PE Series User Manual Comparison Chart Metering Outlet Model Inlet / Cord Outlets Level Switching PE7214B NEMA 6-20P 12 x IEC320 C13 + PDU / (208V) 1 x Bank / 2 x IEC320 C19 Outlet PE7214G IEC 60320 C20 14 12 x IEC320 C13 + PDU / 1 x Bank /... - Page 13 Chapter 1. Introduction Metering Outlet Model Inlet / Cord Outlets Level Switching PE7328B / J NEMA L6-30P 24 x IEC 60320 C13 + PDU / 2 x 4 x IEC 60320 C19 Bank / PE7328G IEC 60309 32A Outlet PE9330B / J NEMA L6-30P 26 x IEC 60320 C13 + PDU / 2 x Yes 16/30...
-
Page 14: Features
eco PDU PE Series User Manual Features Power Distribution Space saving 0U rack mount design with rear mounting Various IEC outlet models 2 digit 7-segment front panel LED shows PDU/Phase / Bank / Outlet ID 3 digit 7-segment front panel LED shows Current / Voltage / Power Dissipation, IP address, and readings from up to 4 environment sensors Safe shutdown support Separate power for the unit's own power and its power outlets –... -
Page 15: Management
Chapter 1. Introduction RTC support to keep the timer running during times of no power Up to 8 user accounts and 1 administrator account Management Power metering and monitoring at the PDU / Bank / Outlet level LED indicators for current, voltage, power dissipation at the PDU / Bank / Outlet levels Real-time aggregate current, voltage, and power and power dissipation displayed in a browser-based UI for monitoring at the PDU, bank and... -
Page 16: Eco Sensors Energy Management Software
eco PDU PE Series User Manual eco Sensors Energy Management Software* Automatic discovery of all PE devices within the same intranet Remote real-time power measurement and monitoring Real-time environment sensor monitoring Plotting/monitoring of all PE devices Exceed threshold alert through SMTP and System log Power Analysis report Note: eco Sensors is designed to work with NRGence PDUs, and is bundled with all PE series packages. -
Page 17: Requirements
Chapter 1. Introduction Requirements Browsers accessing the eco PDU unit must support SSL 128 bit encryption. For cold booting of attached computers, the computer's BIOS must support Wake on LAN or System after AC Back. For Safe Shutdown: The computer must be running Windows (Windows 2000 or higher) or Linux. -
Page 18: Optional Accessories
Sensors can be managed via the eco PDU’s built-in graphical user interface (GUI) or with the NRGence eco Sensors software that can be downloaded from the ATEN website. The download link can be found on the software CD provided with the eco PDU package. -
Page 19: Cable Holders
Plug cable holders to secure the cables from your attached devices in place on the eco PDU unit. Use only the ATEN Lok-U-Plug cable holders that have been specifically designed to work with the eco PDU. Using any other kind of cable securing device could be highly dangerous. -
Page 20: Components
eco PDU PE Series User Manual Components PE7214B / PE7214G... - Page 21 G models connect to an IEC 60320 C20 source Output Power Indicator This LED lights steady to indicate output power for the related bank. Note: Holes for ATEN Lok-U-Plug cable holders are located around the outlets. See Securing the Cables, page 35, for further information.
-
Page 22: Pe7216 / Pe8216 / Pe9216
eco PDU PE Series User Manual PE7216 / PE8216 / PE9216 PE8216 PE7216 PE9216 Note: The PE7216 / PE8216 / PE9216 unit components are identical except for the outlet LEDs – the PE7216 has none; the PE8216 has 16; and the PE9216 has 8, as shown by number 9 above. - Page 23 PE8216 (x 16) and PE9216 (x 8) only. These LEDs indicate outlet status. Lights ORANGE for powered on. Off for powered off. Note: Holes for ATEN Lok-U-Plug cable holders are located around the outlets. See Securing the Cables, page 35, for further information.
-
Page 24: Pe8316G
eco PDU PE Series User Manual PE8316G... - Page 25 G models connect to an IEC 60309 32A source Outlet Status LEDs These 16 LEDs indicate outlet status. Lights ORANGE for powered on. Off for powered off. Note: Holes for ATEN Lok-U-Plug cable holders are located around the outlets. See Securing the Cables, page 35, for further information.
-
Page 26: Pe8121Kj
eco PDU PE Series User Manual PE8121kJ... - Page 27 Chapter 1. Introduction Item Description Power Outlets* 21 in total (21 x IEC 320 C13) Bank 1-1: Outlet 1–7 Bank 1-2: Outlet 8–14 Bank 1-3: Outlet 15-21 Port and LED Panel The Port and LED panel contains: Readout Section and LEDs Sensor Ports LAN Port Door Sensor Port...
-
Page 28: Pe9222B / Pe9222G
eco PDU PE Series User Manual PE9222B / PE9222G... - Page 29 Off for powered off. Output Power Indicator This LED lights steady to indicate output power for the related bank. Note: Holes for ATEN Lok-U-Plug cable holders are located around the outlets. See Securing the Cables, page 35, for further information.
-
Page 30: Pe7324 / Pe8324 / Pe9324
eco PDU PE Series User Manual PE7324 / PE8324 / PE9324 PE7324 PE8324 PE9324 Note: The PE7324 / PE8324 / PE9324 unit components are identical except for the outlet LEDs – the PE7324 has none; the PE8324 has 24; and the PE9324 has 16, as shown by number 5 above. - Page 31 PE8324 (x 24) and PE9324 (x 16) only. These LEDs indicate outlet status. Lights ORANGE for powered on. Off for powered off. Note: Holes for ATEN Lok-U-Plug cable holders are located around the outlets. See Securing the Cables, page 35, for further information.
-
Page 32: Pe8324A / Pe8324Ja
eco PDU PE Series User Manual PE8324A / PE8324JA... - Page 33 Outlet Status LEDs These 24 LEDs indicate outlet status. Lights ORANGE for powered on. Off for powered off. Note: Holes for ATEN Lok-U-Plug cable holders are located around the outlets. See Securing the Cables, page 35, for further information.
-
Page 34: Pe7328
eco PDU PE Series User Manual PE7328... - Page 35 Chapter 1. Introduction Item Description Power Outlets* 28 in total (24 x IEC 320 C13 + 4 x IEC 320 C19) Bank 1: Outlet 1–14: 12 C13; 2 x C19 Bank 2: Outlet 15–28: 12 x C13; 2 x C19 Port and LED Panel The Port and LED panel contains: Readout Section and LEDs...
- Page 36 eco PDU PE Series User Manual PE9330...
-
Page 37: Pe9330
Chapter 1. Introduction Item Description Power Outlets* 30 in total (26 x IEC 320 C13 + 4x IEC 320 C19) Bank 1-1: Outlet 1–14: 7 C13; 1 x C19 Bank 1-2: Outlet 15–22: 7 x C13; 1 x C19 Bank 2: Outlet 23–30: 7 x C13 + 1 x C19 Port and LED Panel The Port and LED panel contains: Readout Section and LEDs... -
Page 38: Port And Led Panel (All Models)
eco PDU PE Series User Manual Port and LED Panel (All models) Item Description ID Section The ID of the selected PDU/Phase / Bank / Outlet appears in the LED display window. When PDU/Phase LED is lit, the LED display window will show P1. - Page 39 Chapter 1. Introduction Item Description Sensor External sensors plug into these four RJ-11 ports. See Environment Sensors, page 9, and Securing the Sensors, Ports page 36, for further information. Reset This switch is recessed and must be pushed with a thin object, Switch such as the end of a paper clip.
-
Page 40: Chapter 2. Hardware Setup
Chapter 2 Hardware Setup Before You Begin 1. Important safety information regarding the placement of this device is provided on page 76. Please review it before proceeding. 2. Make sure that power to all the devices you will be connecting have been turned off. -
Page 41: Pdu Placement
Chapter 2. Hardware Setup PDU Placement For safety reasons the eco PDU should not be installed with the power sockets facing directly up or down, and thus should only be installed with the power sockets facing out from a vertical position as shown below: Right. -
Page 42: Installation
2. For each device you want to connect, use its power cable to connect from the device's AC socket to any available outlet on the eco PDU. Use ATEN Lok-U-Plug cable holders to secure them. -
Page 43: Installation Diagram
Chapter 2. Hardware Setup Installation Diagram... -
Page 44: Securing The Cables
PDU PE Series User Manual Securing the Cables For added safety, use ATEN Lok-U-Plug cable holders to secure the cables from your attached devices in place on the eco PDU unit. Secure the cable holders using the specially designed holes around the individual power outlets, as shown below: Note: 1. -
Page 45: Securing The Sensors
Chapter 2. Hardware Setup Securing the Sensors Connect the sensors to the eco PDU’s front panel sensor ports and secure them using sensor mounts, tie wraps, and adhesive cable tie holders. If you use a tie wrap to secure the sensor, tighten the tie wrap over the recessed channel on the sensor, as shown in the following diagram: Note: 1. -
Page 46: Basic Operation And First Time Setup
Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. NRGence eco Sensors can be downloaded from the ATEN website, along with a separate eco Sensors User Manual. -
Page 47: First Time Setup
Chapter 3. Basic Operation and First Time Setup First Time Setup Once the eco PDU installation has been cabled up, the next task the Administrator needs to perform involve configuring the network parameters, changing the default Administrator login settings, and adding users. The easiest way to accomplish this is to log in over the Net with a browser. -
Page 48: Network Configuration
eco PDU PE Series User Manual Network Configuration To set up the network, do the following: 1. Click the Setup tab. 2. This opens on the Device Configuration page. A screen similar to the one below appears: 3. Fill in the fields according to the information provided under Device Configuration, page 55. -
Page 49: Changing The Administrator Login
Chapter 3. Basic Operation and First Time Setup Changing the Administrator Login To change the default Administrator username and password, do the following: 1. Click the User tab. Once users have been added to the system, the Accounts page displays a detailed list of users –... -
Page 50: Chapter 4. Logging In
Chapter 4 Logging In Logging In The eco PDU can be accessed via a supported Internet browser from any platform. Note: Browsers must support SSL 128 bit encryption. To access the eco PDU do the following: 1. Open your browser and specify the IP address of the eco PDU you want to access in the browser's URL location bar. -
Page 51: The Eco Pdu Main Page
Chapter 4. Logging In The eco PDU Main Page After you have successfully logged in, the eco PDU Main Page comes up with the Energy Connections page displayed: Note: The screen depicts an Administrator’s page. Depending on a user’s type and permissions, and your PE model, not all of these elements appear. -
Page 52: Page Components
The Sidebar provides a tree view listing of outlets that relate to the various tab bar and menu bar selections. Help Connects to on-line help at the ATEN website for the device’s configuration and operation. Logout Click this button to log out of your eco PDU session. -
Page 53: Chapter 5. Energy
Chapter 5 Energy Energy Connections When you log in to the eco PDU, the interface opens with its default selection of the Energy tab; and the Connections menu. The contents of the PDU Status, Bank Status, and Outlet Status sections are displayed in the main panel. Note: Only enabled eco PDU models will display the Bank Status and/or Outlet Status submenu section. - Page 54 eco PDU PE Series User Manual PDU Status All eco PDU models support PDU device level monitoring. The PDU Status section allows you to set up a power management configuration for the PDU device as a whole: PDU Threshold Settings These fields are used to set the maximum, minimum, and fluctuation threshold settings for Aggregate Current, Voltage, Power, and Aggregate Power Dissipation.
- Page 55 Chapter 5. Energy Bank Status All eco PDU models support Bank level monitoring. The Bank Status section allows you to set up a power management configuration for the individual banks: Threshold Settings These fields are used to set the maximum, minimum, and fluctuation threshold settings for Aggregate Current, Voltage, Power, and Power Dissipation.
- Page 56 eco PDU PE Series User Manual Outlet Status If your eco PDU models supports outlet level power management, threshold settings and manual On/Off/Reboot switching can be performed on this page. Threshold Settings These fields are used to set the maximum, minimum, and fluctuation threshold settings for Aggregate Current, Voltage, Power, and Power Dissipation.
-
Page 57: Configuration
Chapter 5. Energy Configuration The Configuration page is used to configure the settings of the eco PDU at the bank and individual power outlet level: POP Setting This section allows you to configure the settings for NRGence’s exclusive Proactive Overload Protection (POP) technology. Effective on all non-critical outlets, this added safety feature automatically powers off the last outlet that caused the current overload. - Page 58 eco PDU PE Series User Manual Outlet Configuration This page lets you set up the power management configuration for the selected outlet. The meanings of the field headings are given in the following table Heading Meaning Outlet Name Each outlet can be given a distinctive name. The maximum number of characters is 15.
- Page 59 Chapter 5. Energy Heading Meaning Remote Turn Kill the Power: If this option is selected, the eco PFDU waits for the ON Method amount time set in the Power Off Delay field, and then turns the Outlet's power Off. Turning the power off performs a cold (non-safe) shutdown.
-
Page 60: Chapter 6. User Management
Chapter 6 User Management Overview When you select the User tab the screen comes up with the Accounts menu, and the Administrator Information and User Information displayed in the main panel: Note: There is a pre-installed administrator account. It can be used to set up the device and to begin creating users and groups. -
Page 61: User Information
Chapter 6. User Management User Information To add a user, do the following: 1. Select the user type in the Management drop-down menu. 2. Key in a name and password in the Name and Password fields. 3. Set the outlet-by-outlet permissions of the user in the Outlet field. 4. -
Page 62: Chapter 7. Log Log
Chapter 7 The eco PDU keeps a record of transactions that take place on its installation, and stores up to 128 events at one time. -
Page 63: The System Log Event List
Chapter 7. Log The System Log Event List Clicking on a device in the Sidebar displays its log events in the main panel’s log event list. Clicking the Refresh button brings the log list up to date with the latest events. -
Page 64: Chapter 8 Setup
Firmware Version This item displays the current firmware version number. You can reference it to see if there are newer versions available on the ATEN website. Rack Location This field lets you give the rack location a unique name for easy Name reference. - Page 65 Chapter 8. Setup Service Ports As a security measure, if a firewall is being used, the Administrator can specify the port numbers that the firewall will allow. If a port other than the default is used, users must specify the port number as part of the IP address when they log in.
- Page 66 eco PDU PE Series User Manual IPv4 Configuration The PDU’s IPv4 IP and DNS addresses (the traditional method of specifying IP addresses) can either be assigned dynamically (DHCP), or a fixed IP address can be specified. For dynamic IP address assignment, select the Obtain IP address automatically radio button.
- Page 67 Chapter 8. Setup IPv6 Configuration IPv6 is the new (128-bit) format for specifying IP addresses. The PDU’s IPv6 IP and DNS addresses can either be assigned dynamically (DHCP), or a fixed IP address can be specified. For dynamic IP address assignment, select the Obtain IP address automatically radio button.
- Page 68 eco PDU PE Series User Manual Event Notification The Event Notification section is divided into three sections: SMTP Settings; SNMP Trap Receivers; and Syslog Server. Each section is described below. Note: SMTP communications are supported on Port 25. SMTP Settings To have the eco PDU device email reports from the SMTP server to you, do the following: 1.
- Page 69 Chapter 8. Setup SNMP Trap Receivers Up to four SNMP management stations can be specified. If you want to use SNMP trap notifications, do the following: 1. Check Enable SNMP Trap. 2. Select which version of SNMP you want to use. 3.
- Page 70 eco PDU PE Series User Manual Syslog Server To record all the events that take place on eco PDU devices and write them to the eco PDU Syslog server, do the following: 1. Check Enable Syslog Server. 2. Key in the IP address and the port number of the Syslog server. The valid port range is 1-65535.
-
Page 71: Date/Time
Chapter 8. Setup Date/Time The Date/Time dialog page sets the eco PDU time parameters: Set the parameters according to the information described below. Time Zone To establish the time zone that the eco PDU is located in, drop down the Time Zone list and choose the city that most closely corresponds to where it is at. - Page 72 eco PDU PE Series User Manual Manual Input Use this section to specify the eco PDU’s date and time manually. Click the calendar icon and click the calendar entry for the date. Key the time into the Time field, using the HH:MM:SS (hours, minutes, seconds) format.
-
Page 73: Security
Chapter 8. Setup Security The Security page controls access to the eco PDU. Login Failures Allowed sets the number of consecutive failed login attempts that are permitted from a remote user. Timeout sets the amount of time a remote user must wait before attempting to login again after exceeding the number of allowed failures. -
Page 74: Account Policy
eco PDU PE Series User Manual Account Policy The Account Policy section governs policies in regard to usernames and passwords. Check a policy and enter the required information in the appropriate fields. Item Description Minimum Username Length Sets the minimum number of characters required for a username. -
Page 75: Login String / Ip Filter / Mac Filter
Chapter 8. Setup Login String / IP Filter / Mac Filter Login String The Login String entry field is used to specify a login string (in addition to the IP address) that users must include when accessing the eco PDU device with a browser. - Page 76 eco PDU PE Series User Manual IP Filter / MAC Filter If any filters have been configured, they appear in the IP Filter and/or MAC Filter list boxes. IP and MAC Filters control access to the eco PDU based on the IP and/or MAC addresses of the client computers attempting to connect.
- Page 77 Chapter 8. Setup 3. To filter a single IP address, key in the same address as the start IP. To filter a continuous range of addresses, key in the end number of the range (for example, 192.168.0.225). 4. After filling in the address, click OK. Repeat these steps for any additional IP addresses you want to filter.
-
Page 78: Authentication & Authorization
eco PDU PE Series User Manual Authentication & Authorization The Authentication & Authorization page is used to set up login authentication and authorization management from external sources. - Page 79 Chapter 8. Setup RADIUS Settings To allow authentication and authorization for the eco PDU device through a RADIUS server, do the following: 1. Check Enable. 2. Fill in the IP addresses and service port numbers for the Preferred and Alternate RADIUS servers. The default port number for the Preferred server is 1812;...
-
Page 80: Private Certificate
For enhanced security, the Private Certificate section allows you to use your own private encryption key and signed certificate, rather than the default ATEN certificate. There are two methods for establishing your private certificate: generating a self-signed certificate;... -
Page 81: Chapter 9 Pdu
Chapter 9 The PDU function is used to upgrade the eco PDU’s firmware, and to backup and restore the device’s configuration settings. Firmware File When you click the PDU tab, the display opens with the Upgrade Main Firmware menu page, which looks similar to the one below:... - Page 82 eco PDU PE Series User Manual A description of the items shown in this panel are given in the table, below: Item Description Check Main If you enable Check Main Firmware Version, the eco PDU’s Firmware Version current firmware level is compared with that of the upgrade file. If the current version is equal to or higher than the upgrade version, a popup message appears, to inform you of the situation and stops the upgrade procedure.
- Page 83 Chapter 9. PDU Upgrading the Firmware To upgrade the firmware refer to the screenshot on the preceding page, and do the following: 1. Go to our website and download the new firmware file to a convenient location on your computer. 2.
-
Page 84: Backup
eco PDU PE Series User Manual Backup To backup the device’s settings do the following: 1. In the Password field, key in a password for the file. Note: Entering a password is optional. If you do enter a password, make a note of it, since you will need it to be able to restore the file. -
Page 85: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 86 eco PDU PE Series User Manual Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).
-
Page 87: Rack Mounting
To secure the cables in the eco PDU’s power outlets, use only the ATEN Lock-Your-Plug cable holders that have been specifically designed to work with the eco PDU. Using any other kind of cable securing device could be highly dangerous. Please contact your ATEN dealer for information about ATEN Lock-Your-Plugs. -
Page 88: Resetting The Circuit Breaker
eco PDU PE Series User Manual Resetting the Circuit Breaker Before switching the circuit breaker to reset a trip, power down and disconnect all devices connected to the eco PDU's power outlets to prevent damage caused by a sudden power surge. If a power surge causes the eco PDU’s circuit breaker to switch off the power and it needs to be reset, follow the instructions below. -
Page 89: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase. -
Page 90: Ip Address Determination
eco PDU PE Series User Manual IP Address Determination If you are an administrator logging in for the first time, you need to access the eco PDU in order to give it an IP address that users can connect to. There are two methods to choose from. - Page 91 NRGence eco Sensors allows you to determine/assign an IP address in order to configure a PDU device and monitor power status of the equipment connected to it. NRGence eco Sensors can be obtained from the Download area of the ATEN web site.
-
Page 92: Specifications
eco PDU PE Series User Manual Specifications There are 24 models in the PE7xxx / PE8xxx / PE9xxx range. They are available in 14-, 16-, 21-, 22-, 24-, 28-, or 30-port versions, with power inlet/ cord variations. A basic comparison is show in the table, below. Basic Comparison Outlet Model... - Page 93 Appendix Outlet Model Inlet / Cord Outlets Metering Level Switching PE7328B / J NEMA L6-30P 24 x IEC 320 C13 + PDU / 2 x 4 x IEC 320 C19 Bank / Outlet PE7328G IEC 60309 32A PE9330B / J NEMA L6-30P 26 x IEC 320 C13 + PDU / 2 x Yes 16/30...
-
Page 94: Pe7214B / Pe7214G
eco PDU PE Series User Manual PE7214B / PE7214G Function PE7214B PE7214G Power Outlets Direct Connectors Power Cord 1 x NEMA 6-20P (208V) 1 x IEC 320 C20 Power Total: 12 x IEC320 C13 + 2 x IEC320 C19 Bank 1: Outlet 1–14; 12 x C13 + 2 x C19 Outlets Environment Sensors 4 x RJ-11 Female (Black) -
Page 95: Pe7216B / Pe8216B / Pe9216B
Appendix PE7216B / PE8216B / PE9216B Function PE7216B PE8216B PE9216B Power Outlets Direct Connectors Power Inlet 1 x NEMA 6-20P Power NEMA Outlets Total: 14 x IEC 320 C13 + 2 x IEC 320 C19 Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. Bank 1-2, Outlet 9–16: 7 x C13 + 1 x C19 Environment Sensors 4 x RJ-11 Female (Black) -
Page 96: Pe7216G / Pe8216G / Pe9216G
eco PDU PE Series User Manual PE7216G / PE8216G / PE9216G Function PE7216G PE8216G PE9216G Power Outlets Direct Connectors Power Inlet 1 x IEC 320 C20 Power NEMA Outlets Total: 14 x IEC 320 C13 + 2 x IEC 320 C19 Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. -
Page 97: Pe8316G
Appendix PE8316G Function PE8316G Power Outlets Direct Connectors Power Cord 1 x IEC 60309 32A Power Total : 6 x IEC320 C13 + 10 x IEC320 C19 Outlets Bank 1: Outlet 1–8; 3 x C13 + 5 x C19 Bank 2: Outlet 9–16; 3 x C13 + 5 x C19 Environment Sensors 4 x RJ-11 Female (Black) Door Sensor... -
Page 98: Pe8121Kj
eco PDU PE Series User Manual PE8121kJ Function PE8121kJ Power Outlets Direct Connectors Power Inlet 1 x NEMA L6-15P Power Total: 21 x IEC 320 C13 with lock Outlets Bank 1-1, Outlet 1–7 Bank 1-2, Outlet 8–14 Bank 1-3, Outlet 15-21 Environment Sensors 4 x RJ-11 Female (Black) Door Sensor... -
Page 99: Pe9222B / Pe9222G
Appendix PE9222B / PE9222G Function PE9222B PE9222G Power Outlets Direct Connectors Power Cord 1 x NEMA 6-20P (208V) 1 x IEC C20 Power Total: 19 x IEC320 C13 + 3 x IEC320 C19 Outlets Ban1-1: Outlet 1–14; 12 x C13 + 2 x C19 Bank1-2: Outlet 15–22;... -
Page 100: Pe7324B/J / Pe8324B/J / Pe9324B/J
eco PDU PE Series User Manual PE7324B/J / PE8324B/J / PE9324B/J Function PE7324B / J PE8324B / J PE9324B / J Power Outlets Direct Connectors Power Cord 1 x NEMA L6-30P Power Total: 21 x IEC 320 C13 + 3 x IEC 320 C19 Outlets Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. -
Page 101: Pe8324A / Pe8324Ja
Appendix PE8324A / PE8324JA Function PE8324A PE8324JA Power Outlets Direct Connectors Power Cord 1 x NEMA L5-30P (UL) 1 x NEMA L5-30P (PSE) Power Total: 24 x NEMA 5-15R Outlets Bank 1-1, Outlet 1–8 Bank 1-2, Outlet 9–16 Bank 2, Outlet 17-24 Environment Sensors 4 x RJ-11 Female (Black) Door Sensor... -
Page 102: Pe7324G / Pe8324G / Pe9324G
eco PDU PE Series User Manual PE7324G / PE8324G / PE9324G Function PE7324G PE8324G PE9324G Power Outlets Direct Connectors Power Cord 1 x IEC 309 32A Power Total: 21 x IEC 320 C13 + 3 x IEC 320 C19 Outlets Bank 1-1, Outlet 1–8: 7 x C13 + 1 x C19. -
Page 103: Pe7328B/J / Pe7328G
Appendix PE7328B/J / PE7328G Function PE7328B / J PE7328G Power Outlets Direct Connectors Power Cord 1 x NEMA L6-30P 1 x IEC 60309 32A Power Total: 24 x IEC 320 C13 + 4 x IEC 320 C19 Outlets Bank 1, Outlet 1–14: 12 x C13 + 2 x C19. Bank 2, Outlet 15–28: 12 x C13 + 2 x C19 Environment Sensors 4 x RJ-11 Female (Black) -
Page 104: Pe9330B/J / Pe9330G
eco PDU PE Series User Manual PE9330B/J / PE9330G Function PE9330B / J PE9330G Power Outlets Direct Connectors Power Cord 1 x NEMA L6-30P 1 x IEC 60309 32A Power Total: 26 x IEC 320 C13 + 4 x IEC 320 C19 Outlets Bank 1-1, Outlet 1–14: 12 x C13 + 2 x C19 Bank 1-2, Outlet 15–22: 7 x C13 + 1 x C19... -
Page 105: Administrator Login Failure
Appendix Administrator Login Failure If you are unable to perform an Administrator login (because the Username and Password information has become corrupted, or you have forgotten it, for example), you can clear the login information with the following procedure: 1. Power off the eco PDU and remove its housing. 2. -
Page 106: Limited Warranty
PDU PE Series User Manual Limited Warranty ATEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ATEN's support department for repair or replacement of your unit.
